Precision Engineered P51A646TEYR25-25-H 104.5 cc/rev Hydraulic Gear Pump

Displacement:104.5 cc/rev

Rated Pressure:16 MPa (2320 psi)

Max Pressure:17 MPa (2465 psi)

Max Speed:2400 r/min

Rotation:/: (Bidirectional)

Vendor:BXHS

Product Type:Hydraulic Gear Pump

Product Series:P51 Series Hydraulic Gear Pump

Packagingsize:45*25*18

Grossweight:18.00 kg

Availability: In Stock

154 Views are Looking for this Product

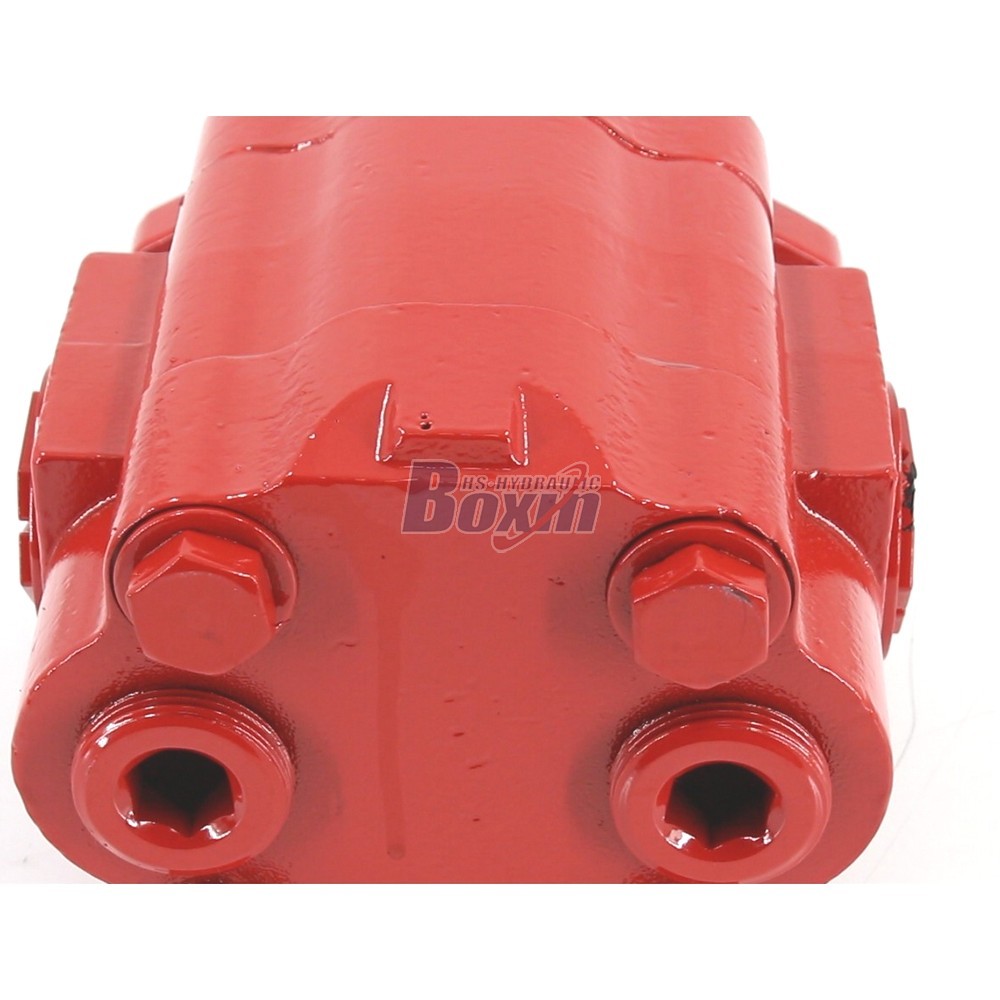

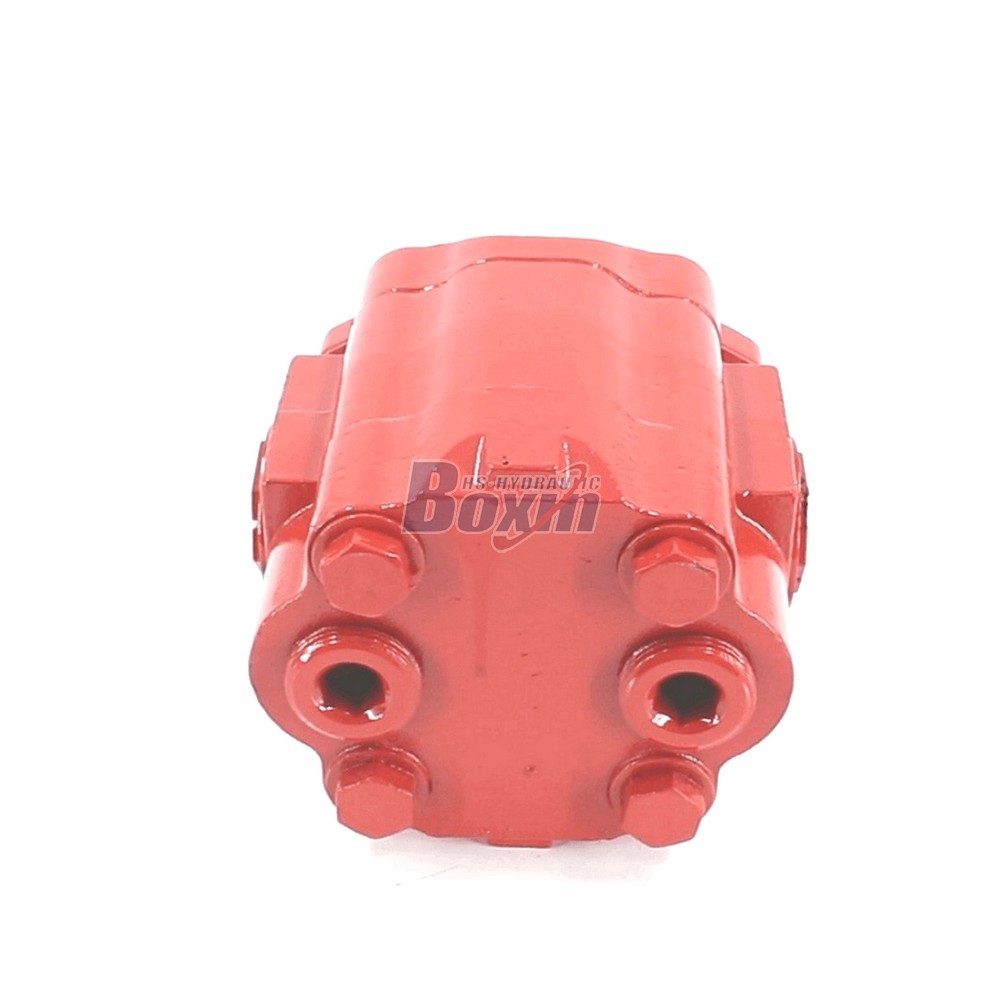

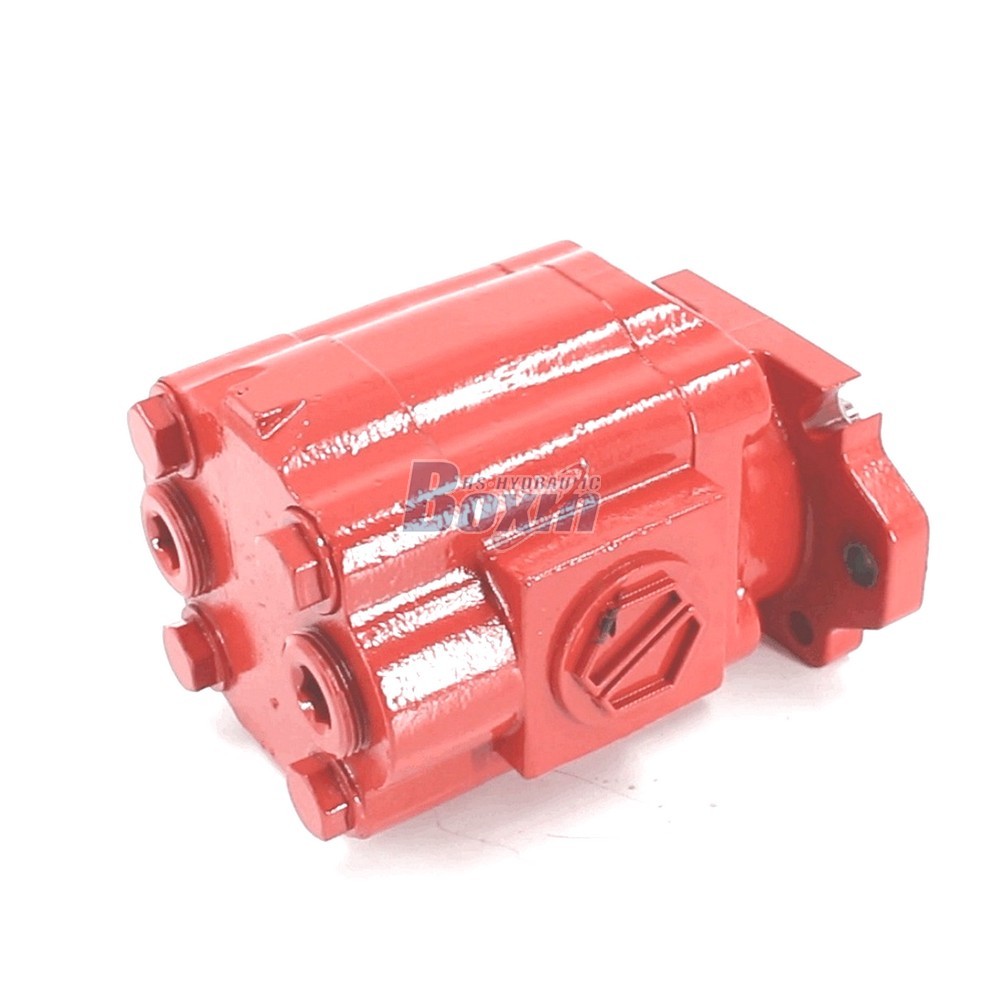

Precision Engineered P51A646TEYR25-25-H 104.5 cc/rev Hydraulic Gear Pump detailed image

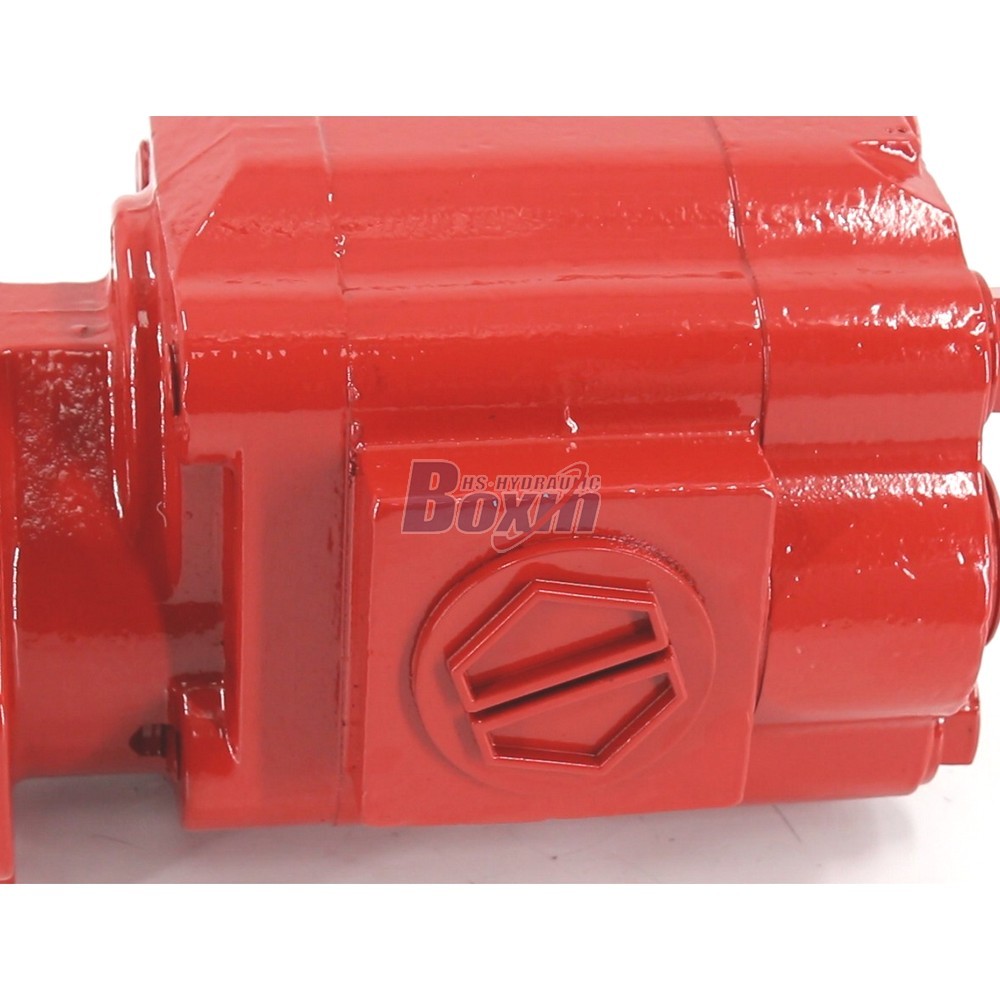

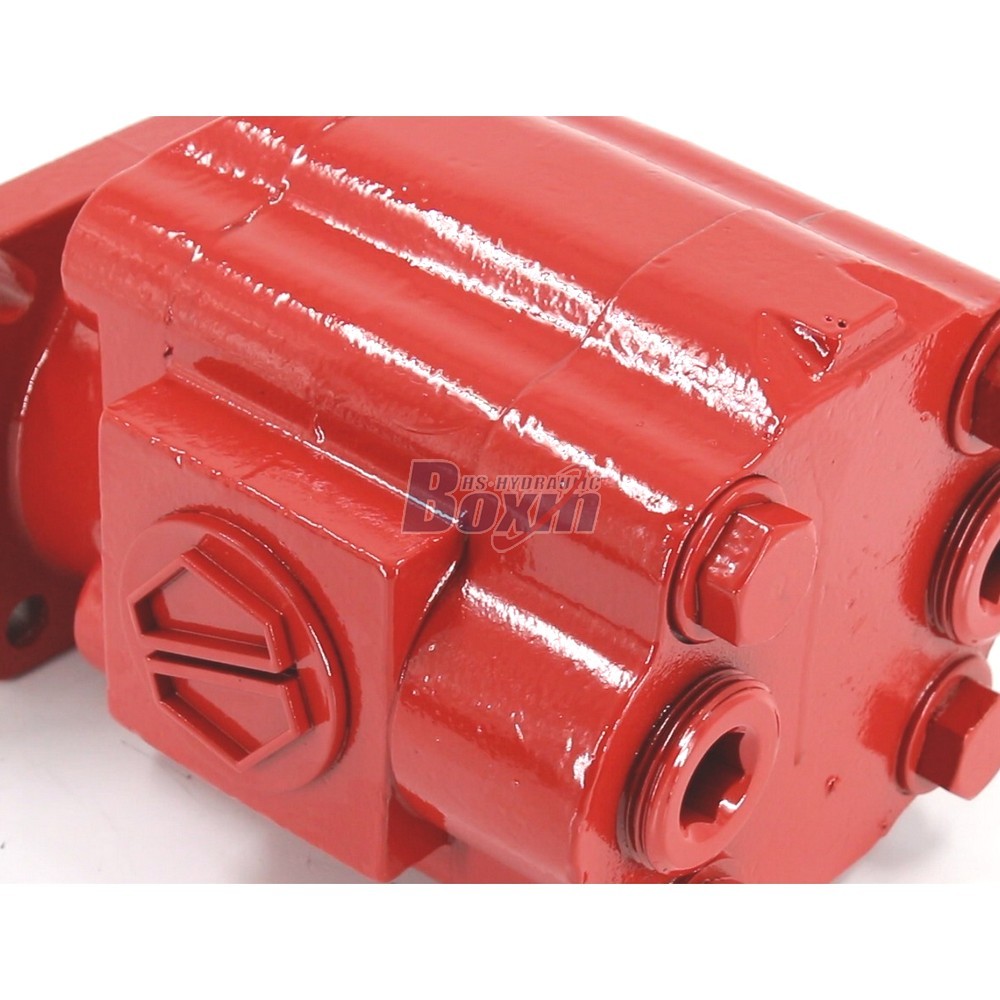

Precision Engineered P51A646TEYR25-25-H 104.5 cc/rev Hydraulic Gear Pump detailed image

Precision Engineered P51A646TEYR25-25-H 104.5 cc/rev Hydraulic Gear Pump drawing image

This P51 Series Hydraulic Gear Pump features a 104.5 cc/rev displacement, 16 MPa rated pressure, and bidirectional rotation, ideal for telehandlers and loaders. Manufactured by a 25-year IATF 16949 certified factory with 1.5M annual capacity, it ensures reliable performance for construction and agricultural machinery.

P51 Series Hydraulic Gear Pump Parameters
Displacement 104.5 cc/rev, 21 cc/rev, 41.8 cc/rev, 52.3 cc/rev, 62.7 cc/rev, 64.6 cc/rev, 104.5/104.5 cc/rev
Rated Pressure 16 MPa (2320 psi), 17.2 MPa (2494 psi)
Max Pressure 17 MPa (2465 psi), 19 MPa (2756 psi)
Rated Speed 2200 r/min
Max Speed 2400 r/min
Rotation /: (Bidirectional)
Material Cast Iron
Structure External Gear Pump
Flange Version A-Oval Flange, ISO-4 Mounting Holes, SAE Flange
Shaft Type X: Involute Spline

**1. High-Efficiency Hydraulic Gear Pump Specifications**
- Delivers precise 104.5 cc/rev displacement with a rated pressure of 16 MPa (2320 psi) and max pressure of 17 MPa, ensuring stable power output.
- Operates efficiently at a rated speed of 2200 r/min (max 2400 r/min) with bidirectional rotation, providing versatile installation options for complex hydraulic systems.

**2. Versatile 104.5 cc/rev Gear Pump Applications**
- Engineered specifically for heavy-duty equipment including telehandlers, forklifts, wheel loaders, skid steer loaders, and backhoe loaders.
- Widely used in material handling, construction, earthmoving, and agriculture sectors, offering seamless compatibility with midi-excavators, tractors, harvesters, and sweepers.

**3. Reliable P51 Series Hydraulic Pump Quality**
- Produced in our 68,000 sqm facility with 260+ vertical machining centers, adhering to strict IATF 16949 standards and CE compliance.
- Every unit undergoes 100% bench testing for pressure, flow, and sealing integrity, supported by SGS detection and 25+ autonomous patents for guaranteed durability.

**4. Durable Bidirectional Gear Pump Construction**
- Features advanced anti-rust treatment and heavy-duty wooden crate packaging to ensure safe global delivery and long-term storage stability.
- Designed as a direct replacement for international mainstream brands, offering cost-effective solutions without compromising on structural integrity or operational lifespan.

**5. Factory Direct Sales & OEM Customization**
- Leverage our 25 years of manufacturing expertise and 1.5 million annual production capacity for wholesale direct sales and bulk orders.
- Supported by 35+ senior engineers, we offer comprehensive OEM/ODM services including custom logos, casting modifications, and private label solutions for distributors.
