Production & Delivery
15-30 Days Production Lead Time
Innovation drives development Technology forges future
- 32 cc/rev
- 40 cc/rev
- 45 cc/rev
- 50 cc/rev
- 63 cc/rev
- 80 cc/rev
- 25 cc/rev
- 108 cc/rev
1 Views are Looking for this Product

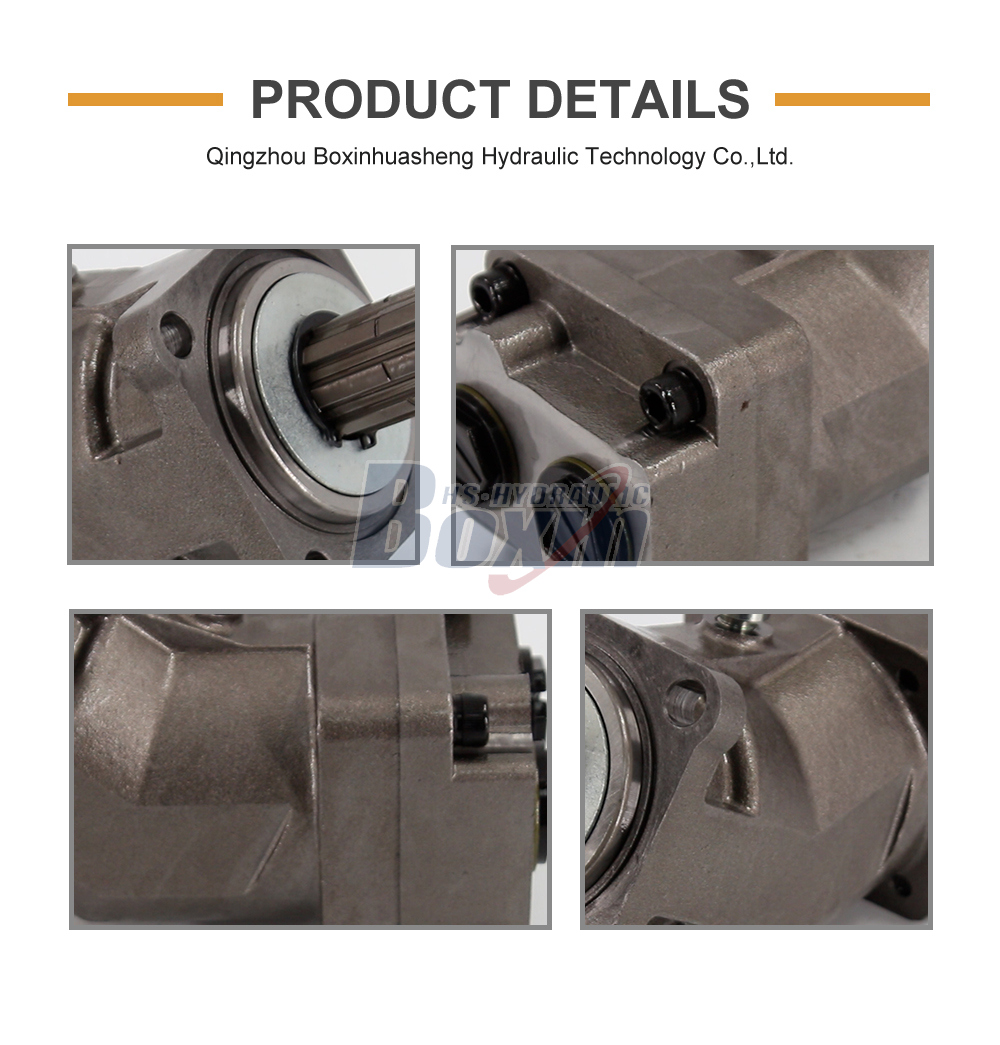

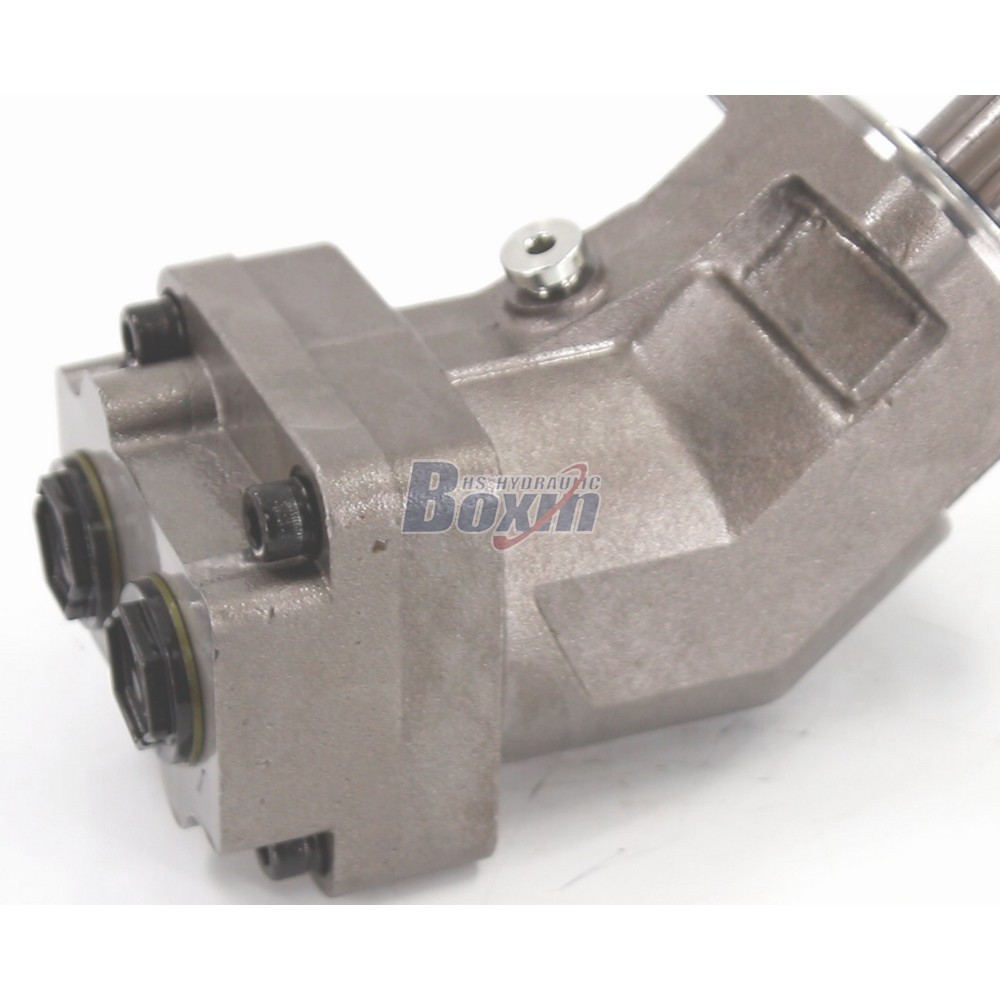

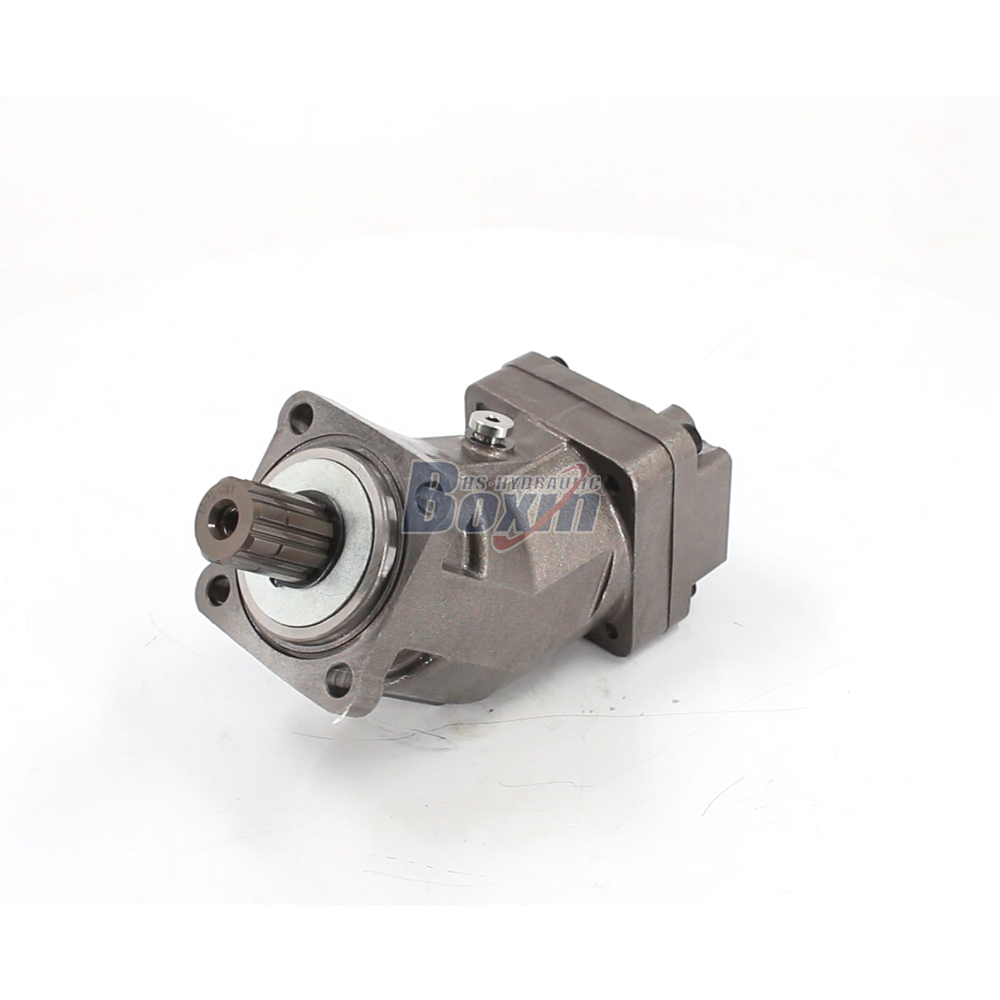

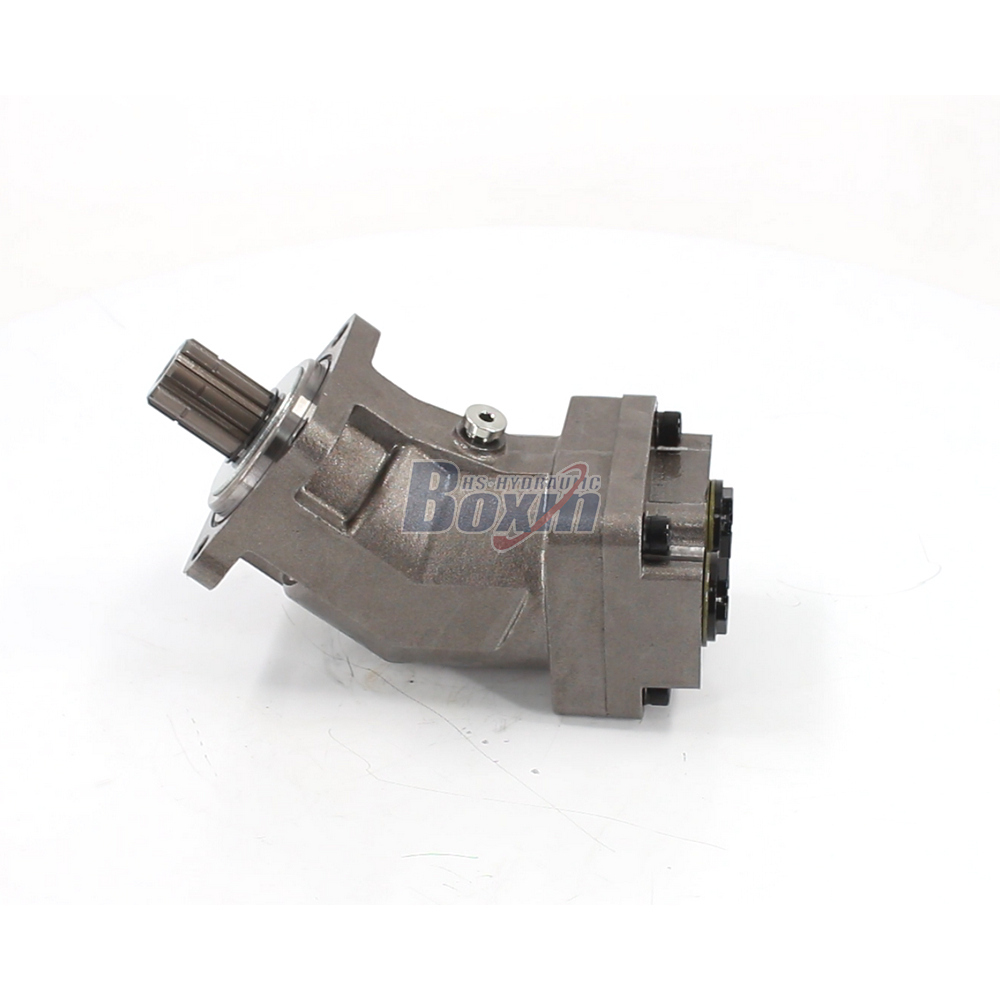

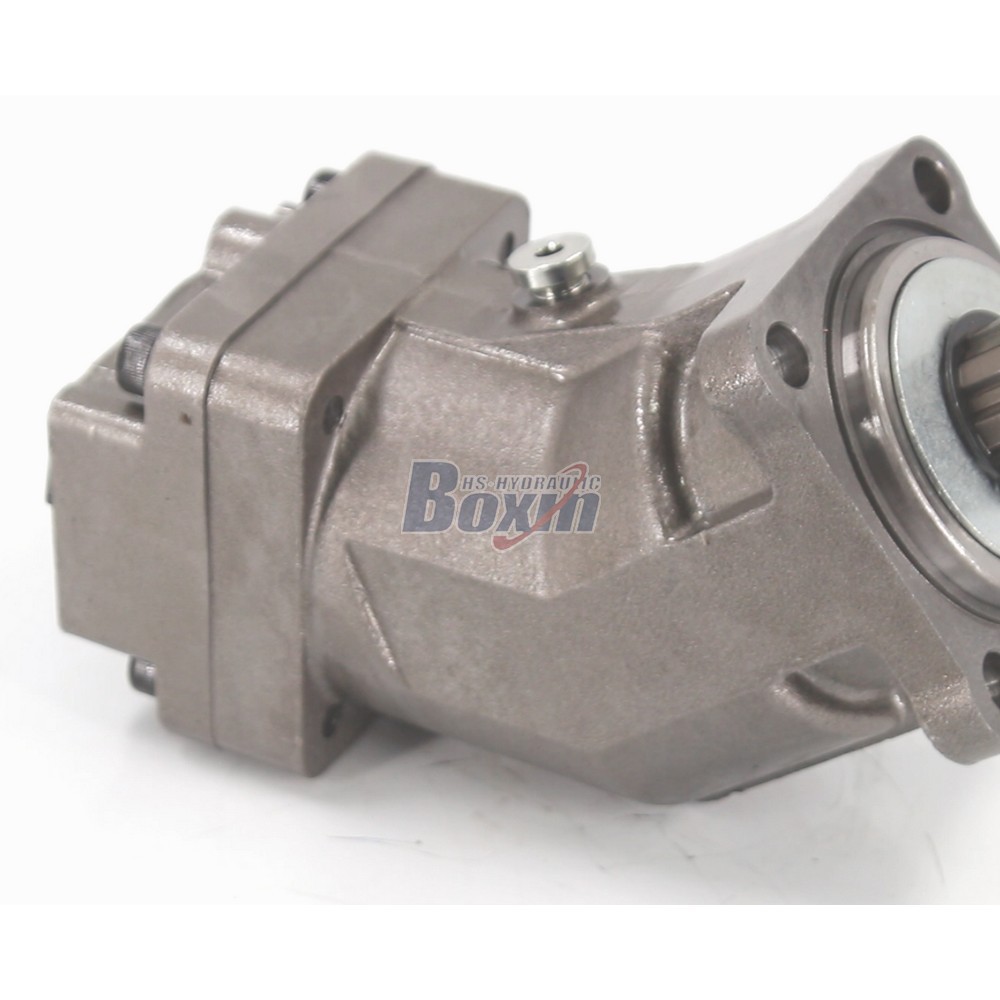

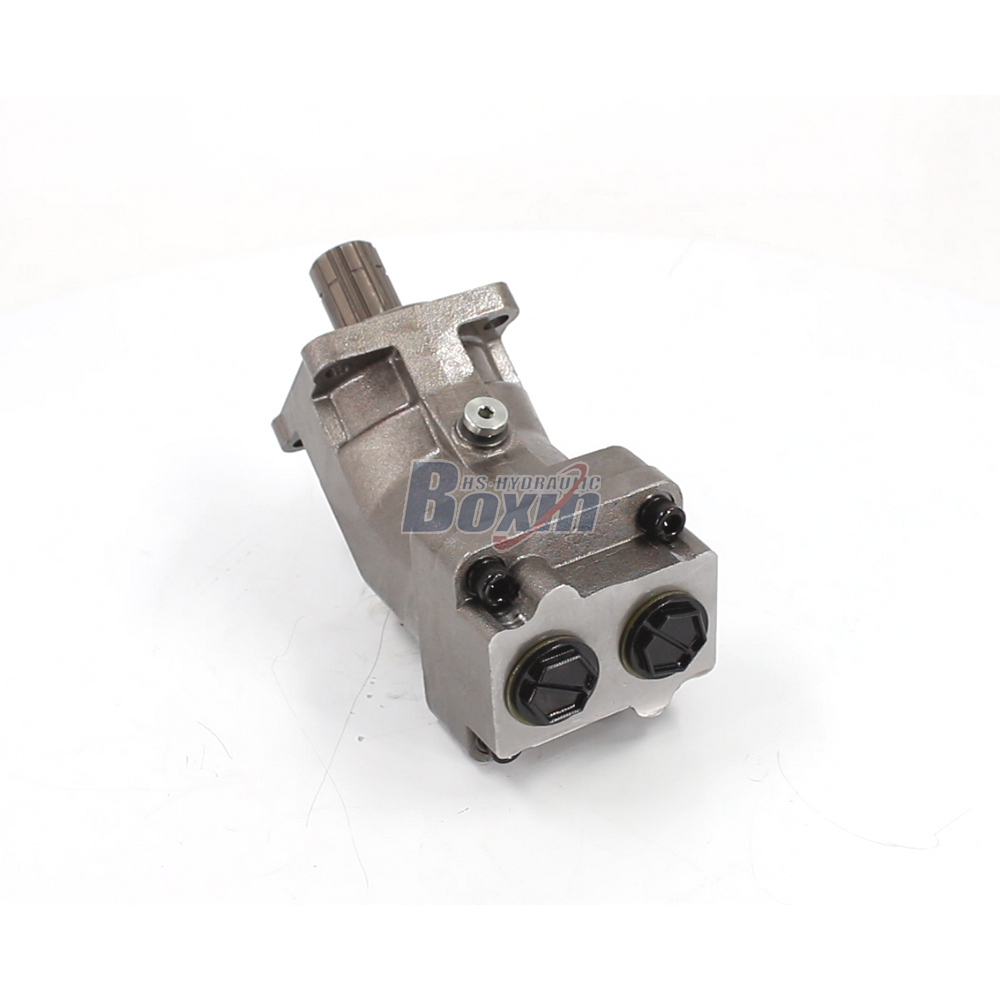

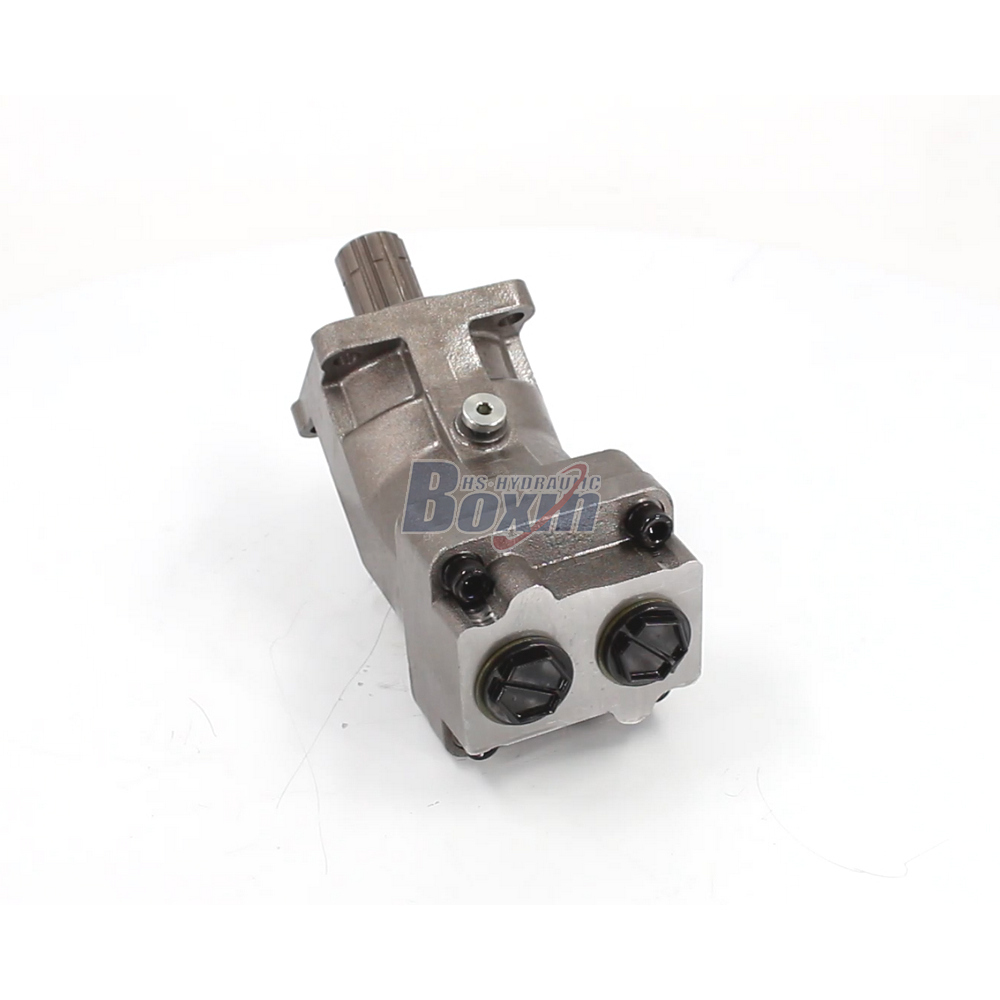

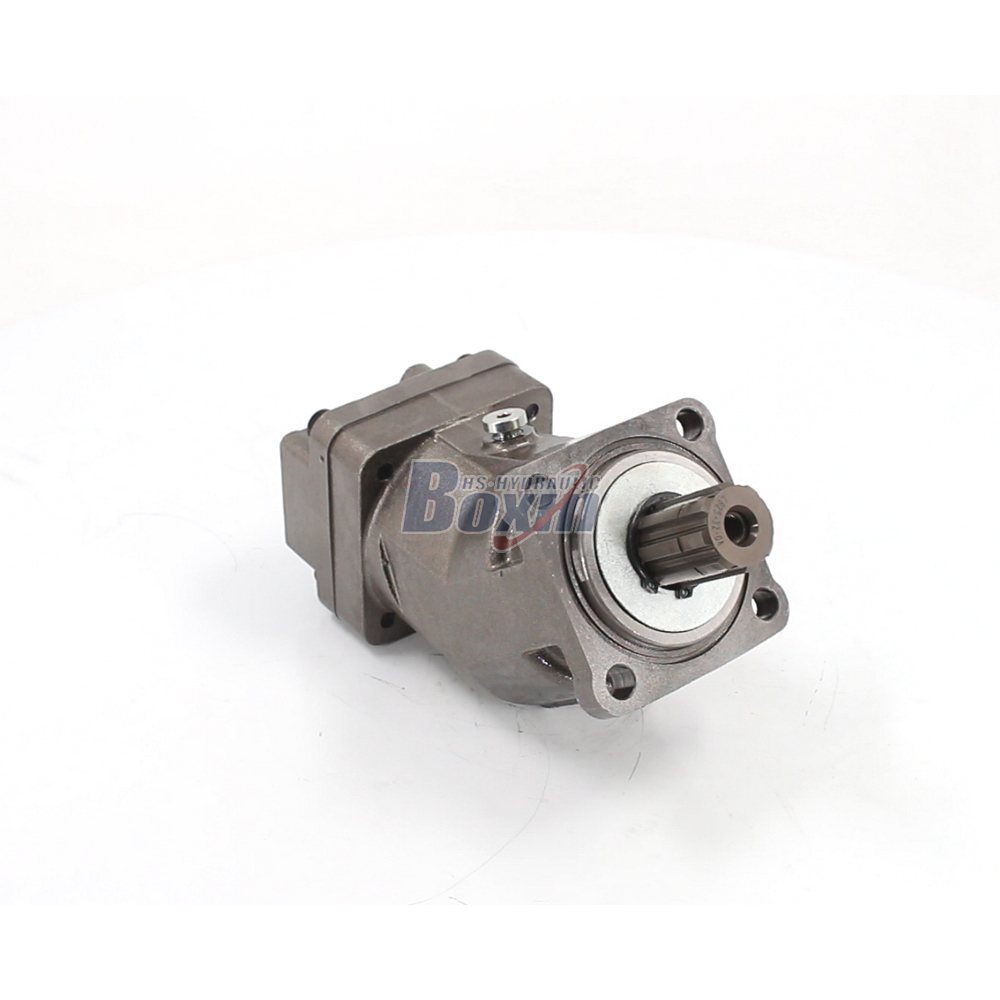

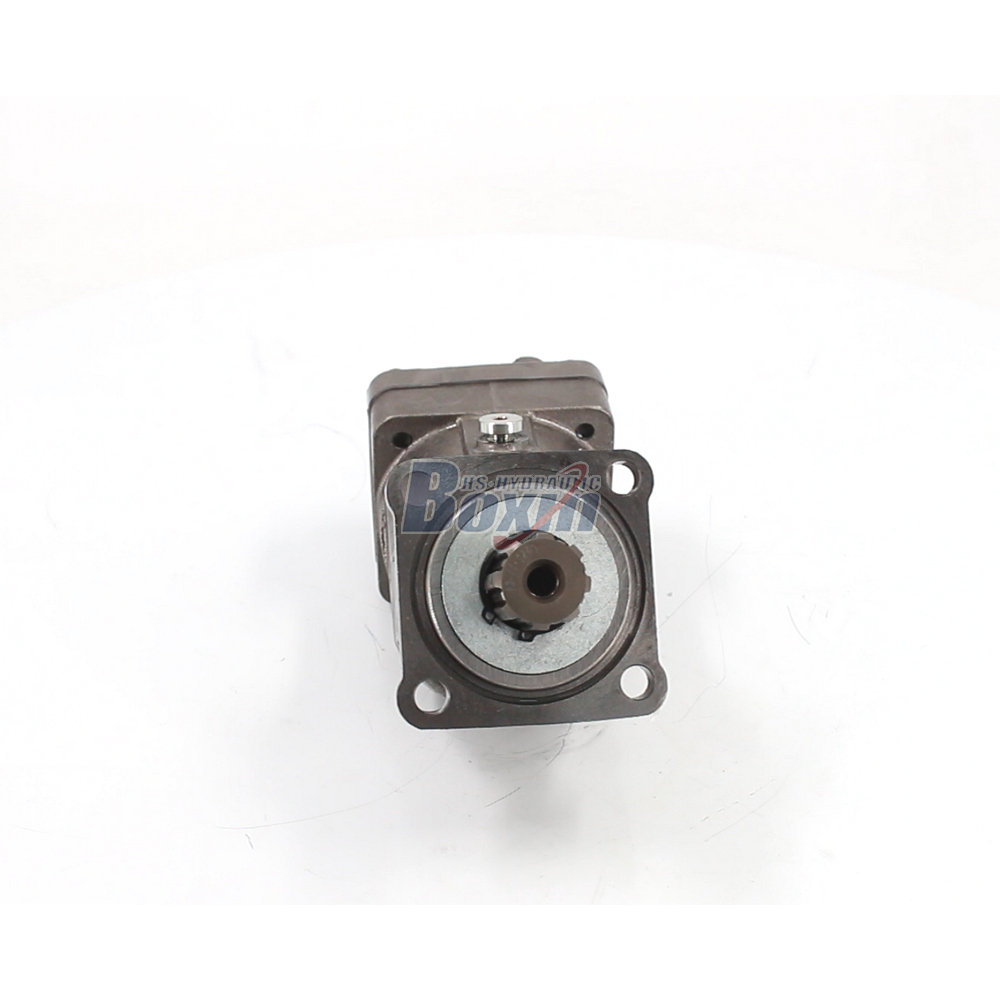

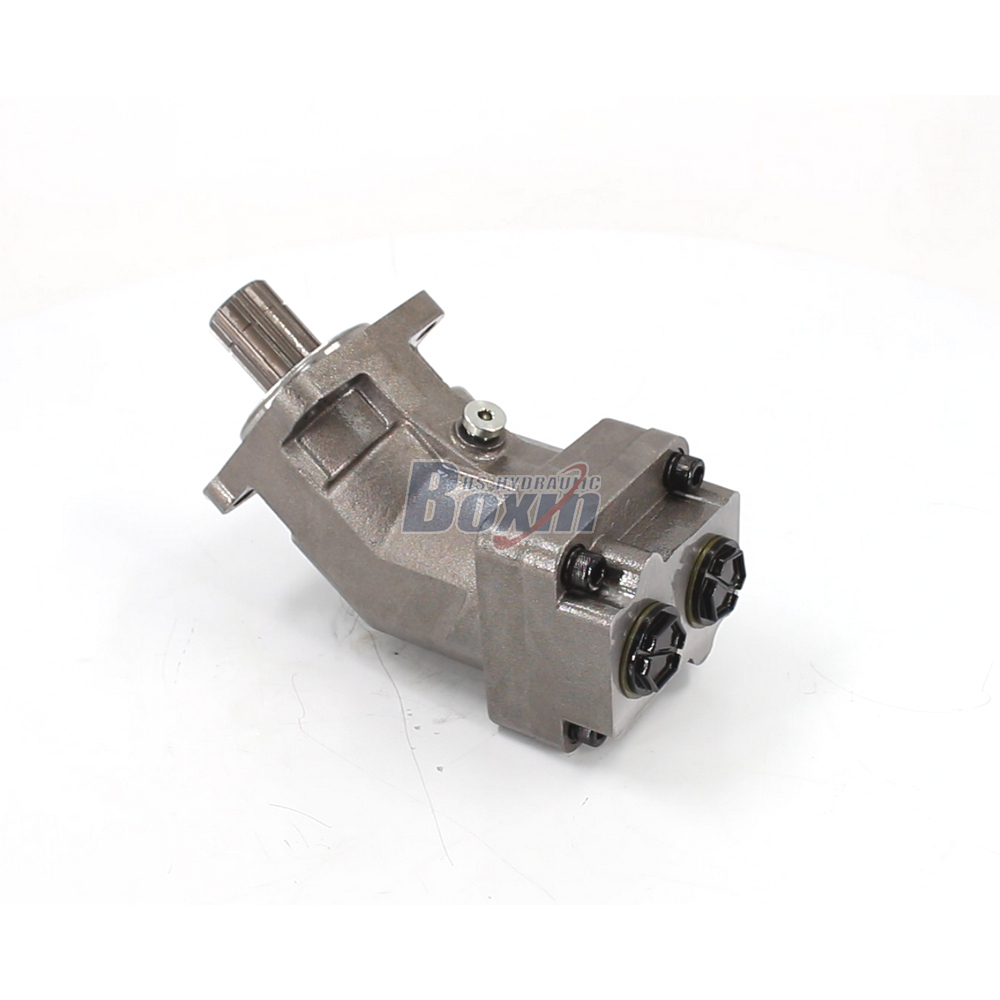

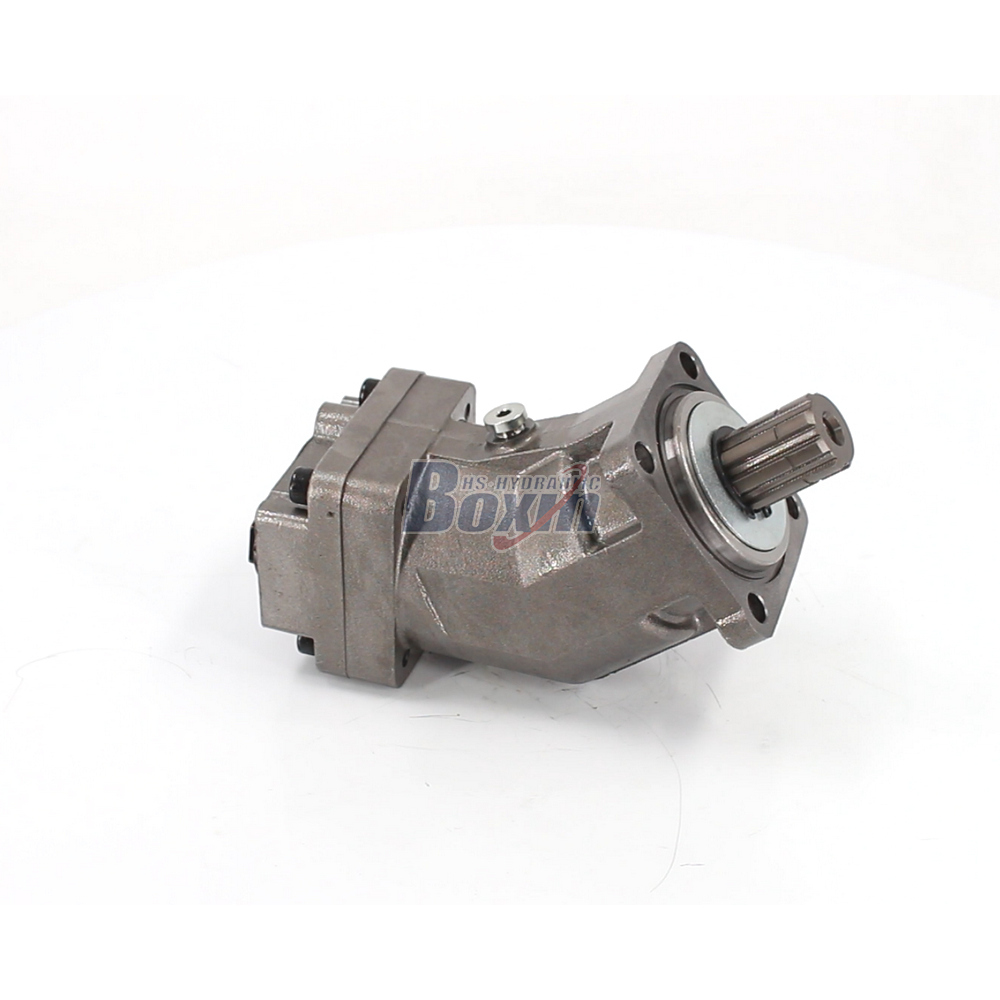

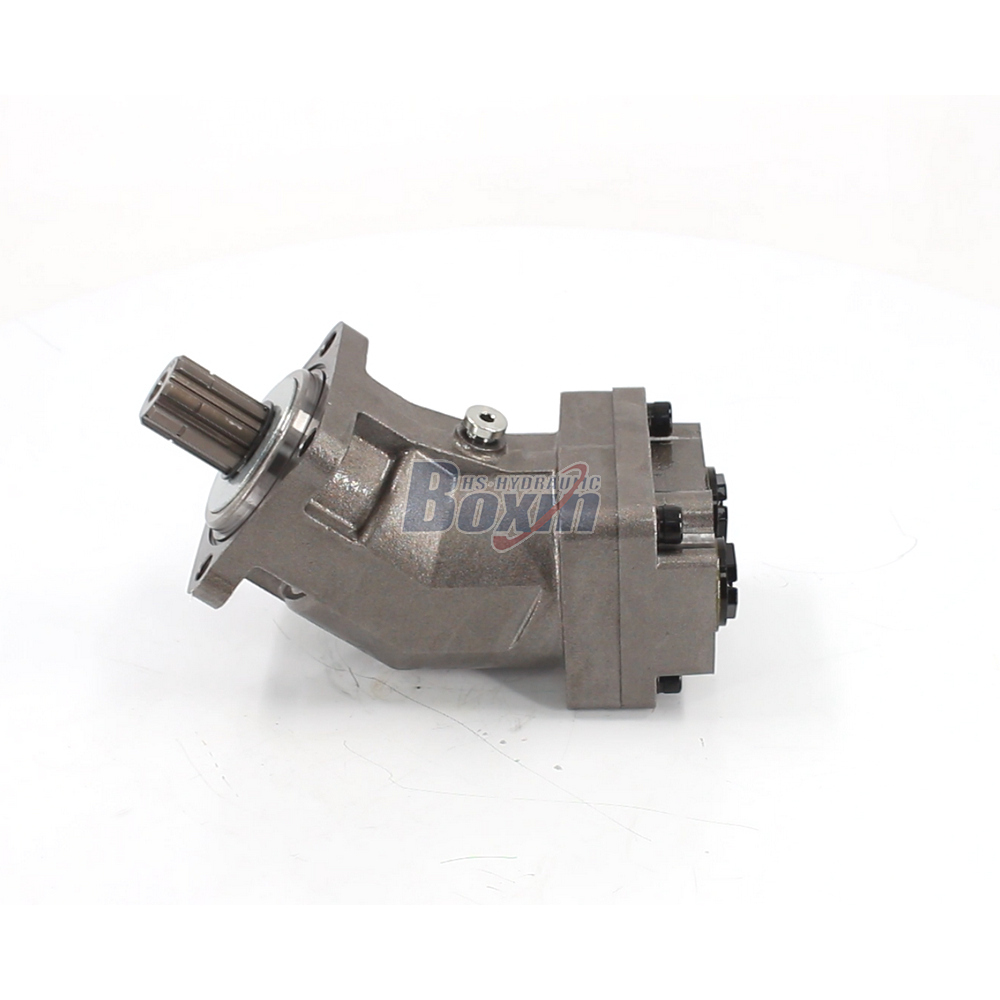

The XPi-32L is a robust 32 cc/rev swashplate hydraulic piston pump designed for high-pressure applications up to 42 MPa. Featuring a durable cast iron construction, ISO-4 mounting, and rectangle spline shaft, it offers reliable performance in left or right rotation modes. Ideal for OEM, custom, and wholesale needs in construction, agriculture, and industrial sectors.

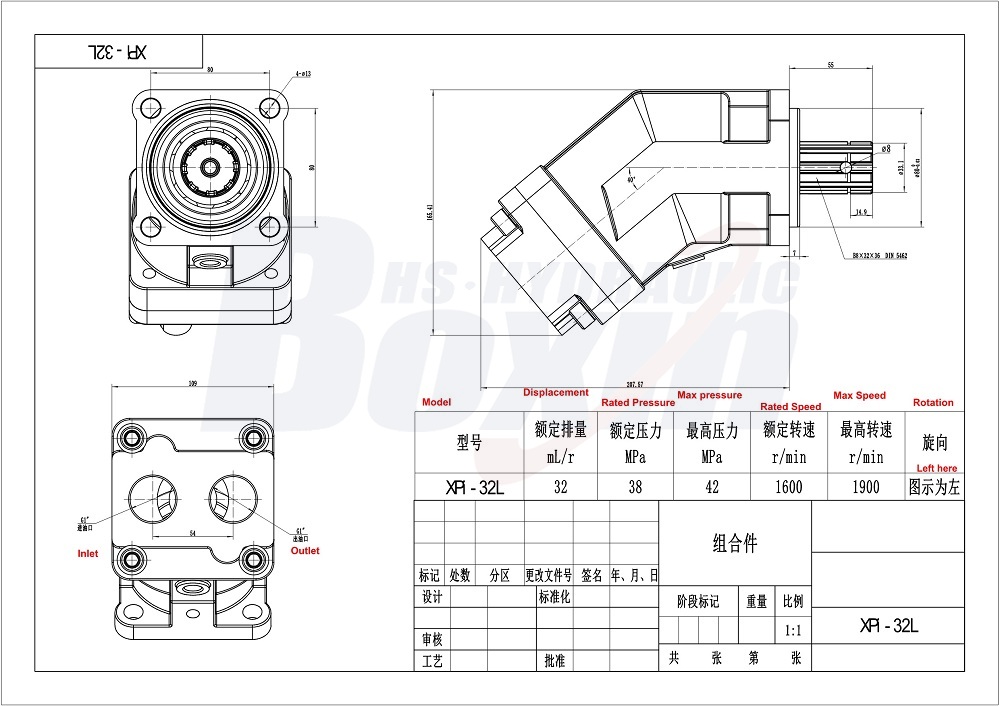

| XPI Series Hydraulic Piston Pump Parameters | |
|---|---|
| Displacement | 32 cc/rev, 40 cc/rev, 45 cc/rev, 50 cc/rev, 63 cc/rev, 80 cc/rev, 25 cc/rev, 108 cc/rev |
| Rated Pressure | 38 MPa (5511 psi) |
| Max Pressure | 42 MPa (6091 psi) |
| Rated Speed | 1600 r/min |
| Max Speed | 1900 r/min |
| Rotation | L: Left (counter-clockwise), R: Right (clockwise) |
| Material | Cast Iron |
| Structure | Swashplate |
| Flange Version | ISO-4 Mounting Holes |

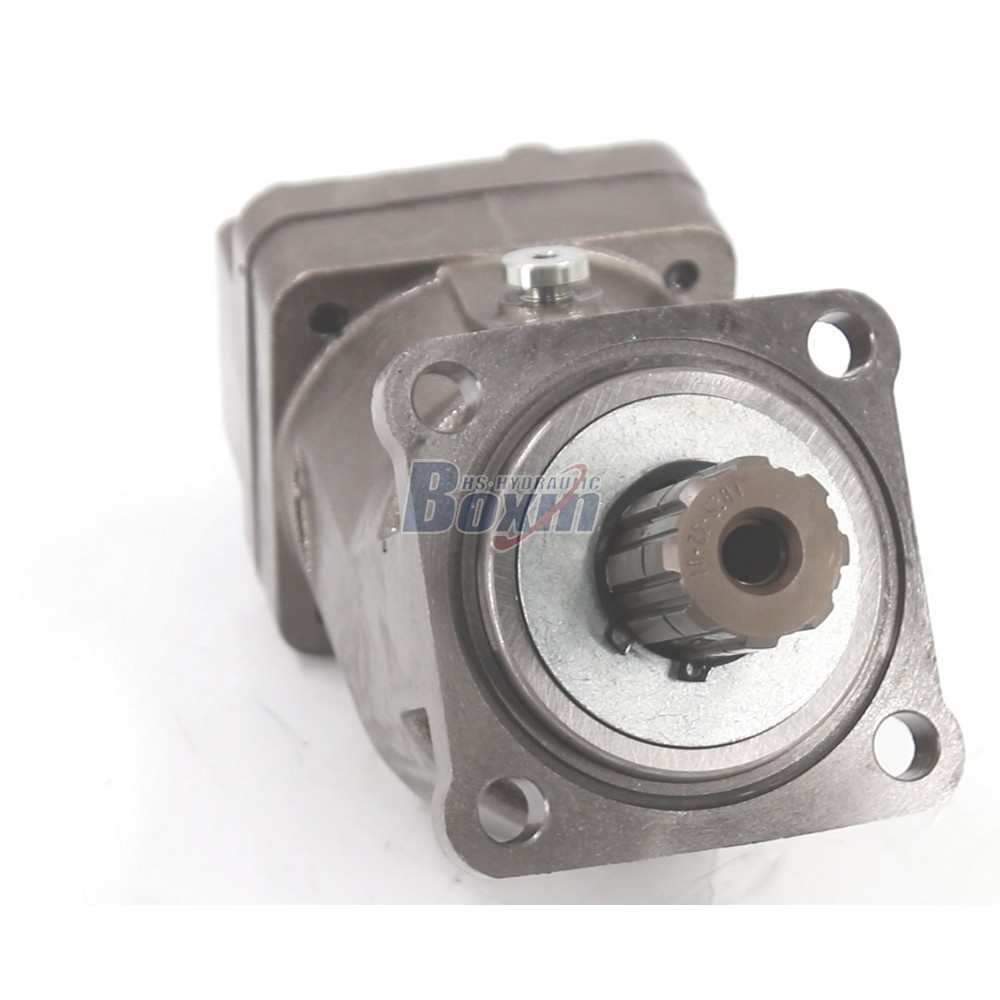

| Shaft Type | H: Rectangle Spline |
Product Features:
- High Performance: Delivers consistent flow with a displacement of 32 cc/rev, rated for 38 MPa and capable of handling peak pressures up to 42 MPa (6091 psi).
- Durable Construction: Built with high-grade cast iron for enhanced durability and resistance to wear in demanding environments.
- Versatile Configuration: Available in Left (L) and Right (R) rotation options to suit various system designs. Features an ISO-4 flange mount and H-type rectangle spline shaft for easy integration.
- Speed Efficiency: Operates efficiently at a rated speed of 1600 r/min with a maximum speed of 1900 r/min.
Applications:
This pump is engineered for heavy-duty mobile and industrial hydraulic systems. It is perfectly suited for construction machinery such as mini/midi excavators, skid steer loaders, and compact wheel loaders. It also serves agricultural equipment like tractors and harvesters, as well as material handling vehicles including forklifts and telehandlers.
Services:
As a large-scale manufacturer, we provide comprehensive services including manufacturing, OEM/ODM, private labeling, customization, and wholesale distribution. We are actively seeking global distributors, wholesalers, agents, and traders to partner with us in delivering high-quality hydraulic solutions.
