High Performance P51A646TEYR25-25-H 104.5 cc/rev Hydraulic Gear Pump Supply

Displacement:104.5 cc/rev

Rated Pressure:16 MPa (2320 psi)

Max Pressure:17 MPa (2465 psi)

Max Speed:2400 r/min

Rotation:/: (Bidirectional)

Vendor:BXHS

Product Type:Hydraulic Gear Pump

Product Series:P51 Series Hydraulic Gear Pump

Packagingsize:45*25*18

Grossweight:18.00 kg

Availability: In Stock

155 Views are Looking for this Product

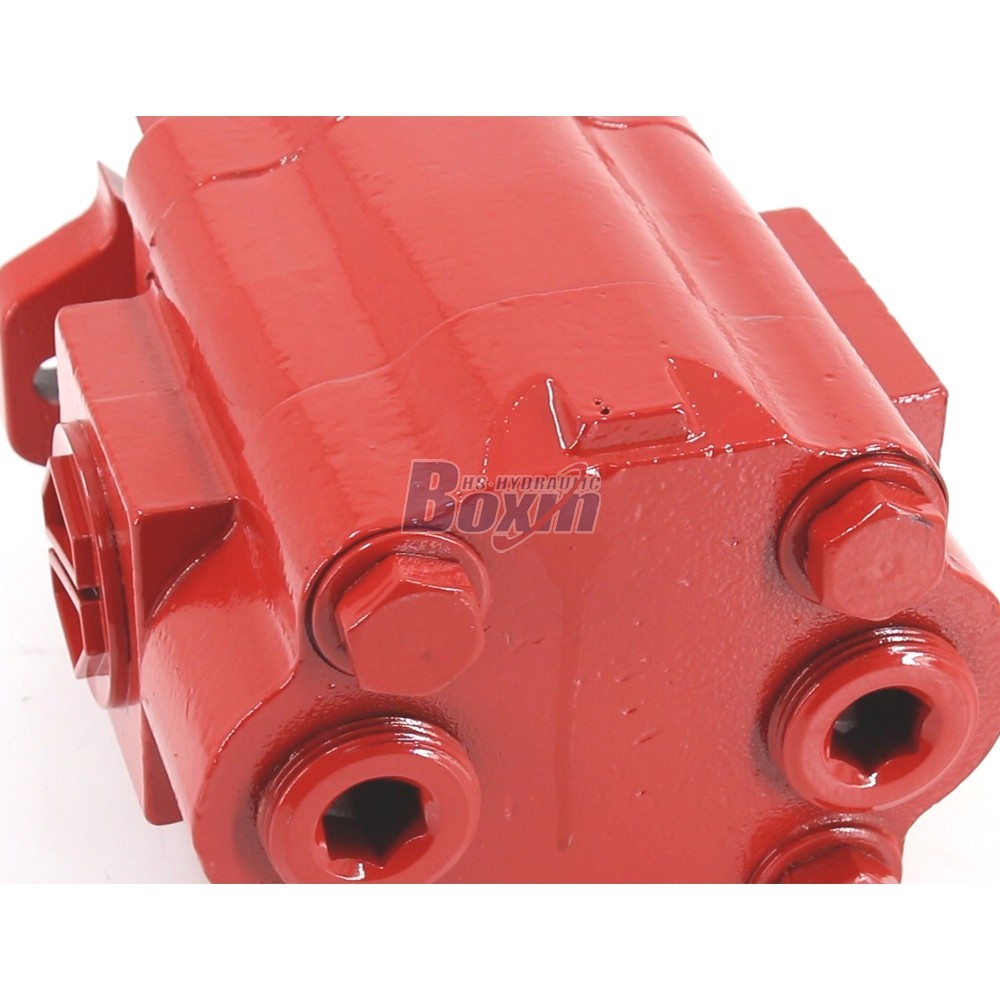

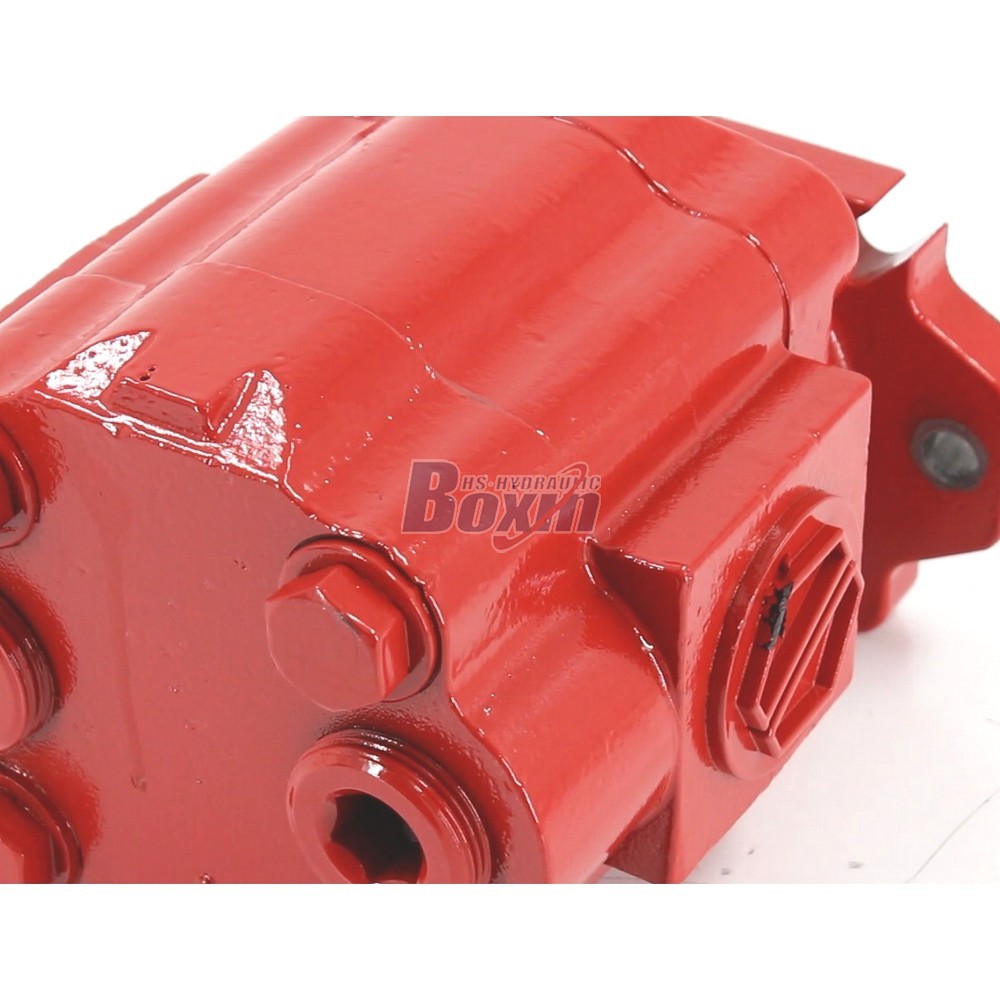

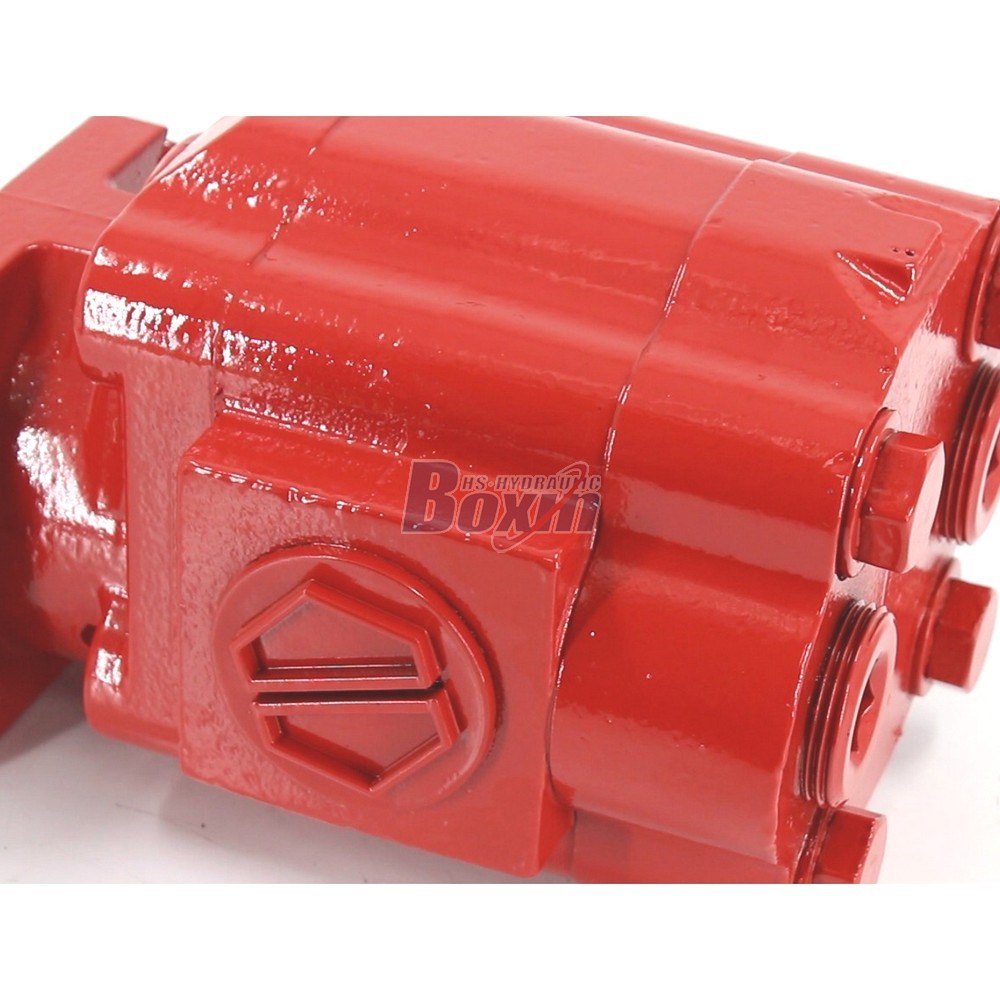

High Performance P51A646TEYR25-25-H 104.5 cc/rev Hydraulic Gear Pump Supply detailed image

High Performance P51A646TEYR25-25-H 104.5 cc/rev Hydraulic Gear Pump Supply detailed image

High Performance P51A646TEYR25-25-H 104.5 cc/rev Hydraulic Gear Pump Supply drawing image

This P51 Series Hydraulic Gear Pump features a 104.5 cc/rev displacement, 16 MPa rated pressure, and bidirectional rotation, ideal for loaders and agricultural machinery. Backed by a 25-year professional manufacturer with IATF 16949 certification, it ensures reliable performance for OEM and replacement needs.

P51 Series Hydraulic Gear Pump Parameters
Displacement 104.5 cc/rev, 21 cc/rev, 41.8 cc/rev, 52.3 cc/rev, 62.7 cc/rev, 64.6 cc/rev, 104.5/104.5 cc/rev
Rated Pressure 16 MPa (2320 psi), 17.2 MPa (2494 psi)
Max Pressure 17 MPa (2465 psi), 19 MPa (2756 psi)
Rated Speed 2200 r/min
Max Speed 2400 r/min
Rotation /: (Bidirectional)
Material Cast Iron
Structure External Gear Pump
Flange Version A-Oval Flange, ISO-4 Mounting Holes, SAE Flange
Shaft Type X: Involute Spline

**1. Exact Fit P51 Series Gear Pump**
- Model P51A646TEYR25-25-H delivers 104.5 cc/rev displacement with bidirectional rotation flexibility.
- Rated for 16 MPa (2320 psi) and max 17 MPa (2465 psi), ensuring stable power for heavy-duty cycles.

**2. Reliable Hydraulic Gear Pump for Construction**
- Designed for telehandlers, wheel loaders, and skid steers, operating efficiently at 2200 r/min rated speed.
- Max speed capability of 2400 r/min supports high-demand applications in earthmoving and material handling.

**3. Factory Direct Sales with IATF 16949 Quality**
- Produced in our 68,000㎡ facility with 260+ CNC centers, ensuring strict tolerance control.
- Every unit undergoes 100% bench testing for pressure, flow, and sealing before shipment.

**4. OEM/ODM Available for Private Label**
- Supported by 35+ senior engineers, we offer custom logos, casing modifications, and laser marking.
- Perfect for distributors seeking wholesale China factory solutions with flexible branding options.

**5. Wholesale Hot Sale with Global Compatibility**
- Directly replaces major international brands, offering cost-effective solutions for maintenance markets.
- Secured with rust-proof treatment and heavy-duty wooden packaging for safe worldwide export.
