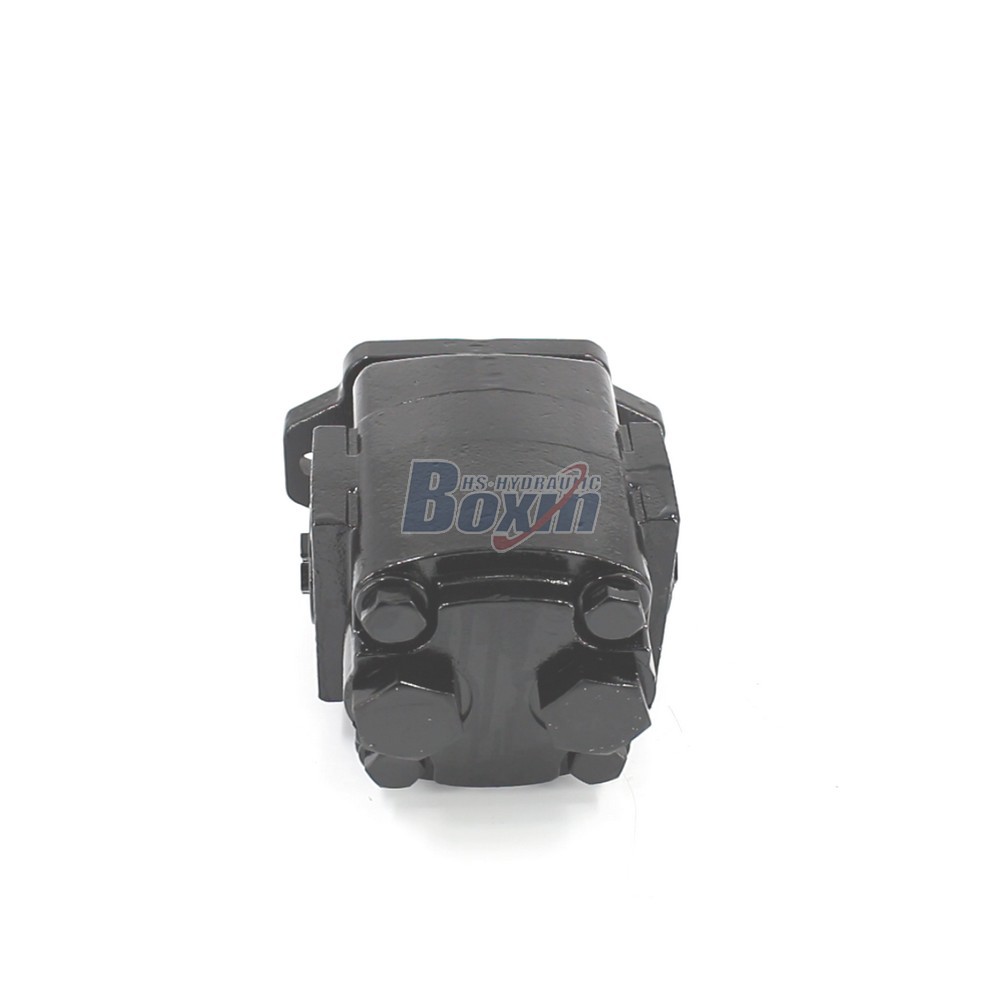

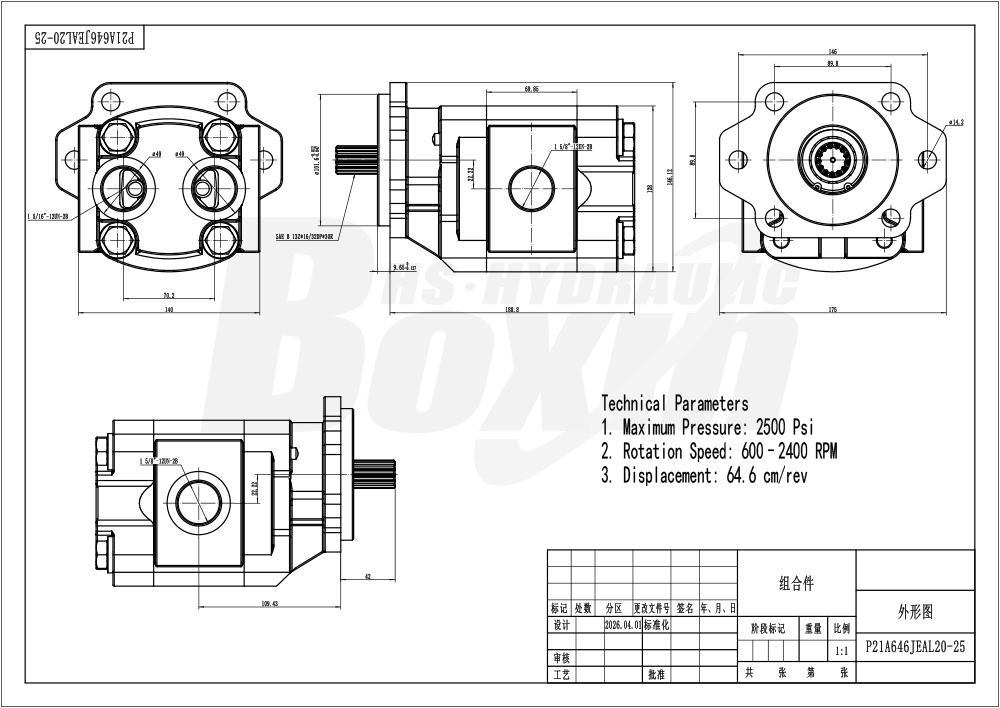

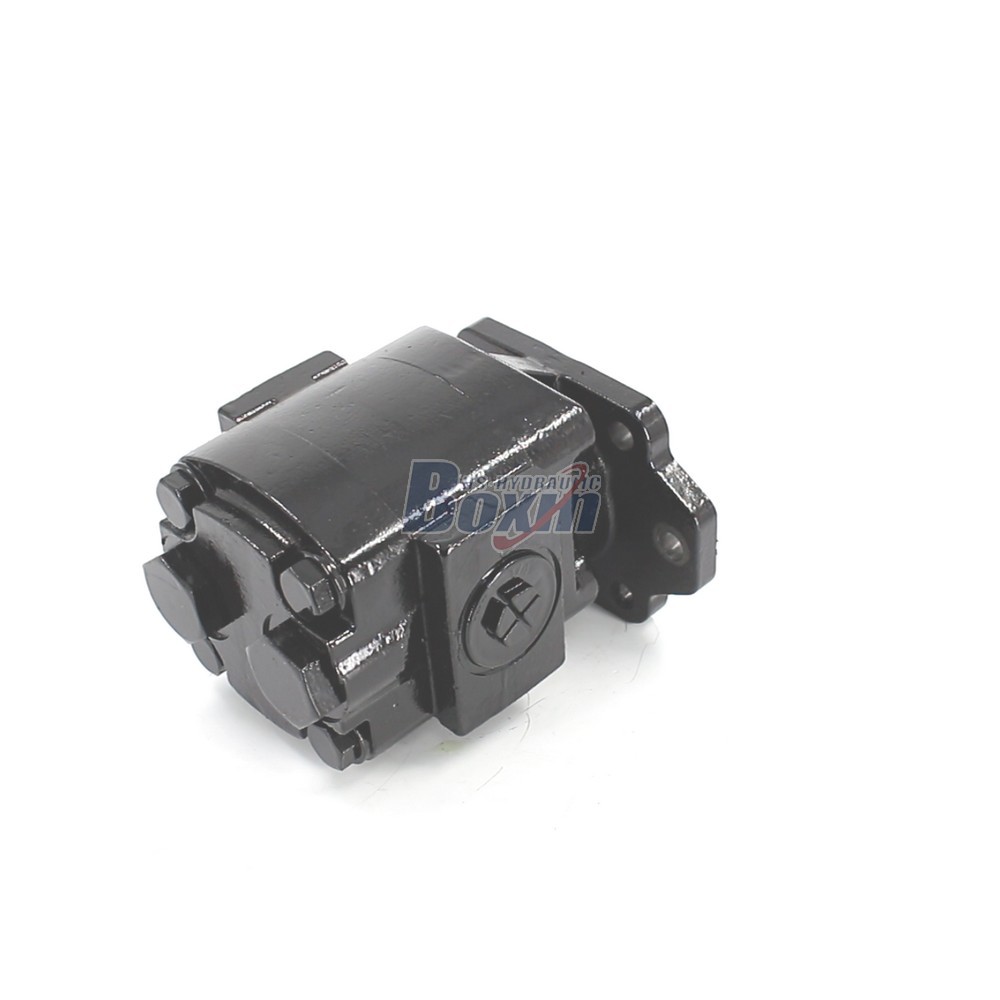

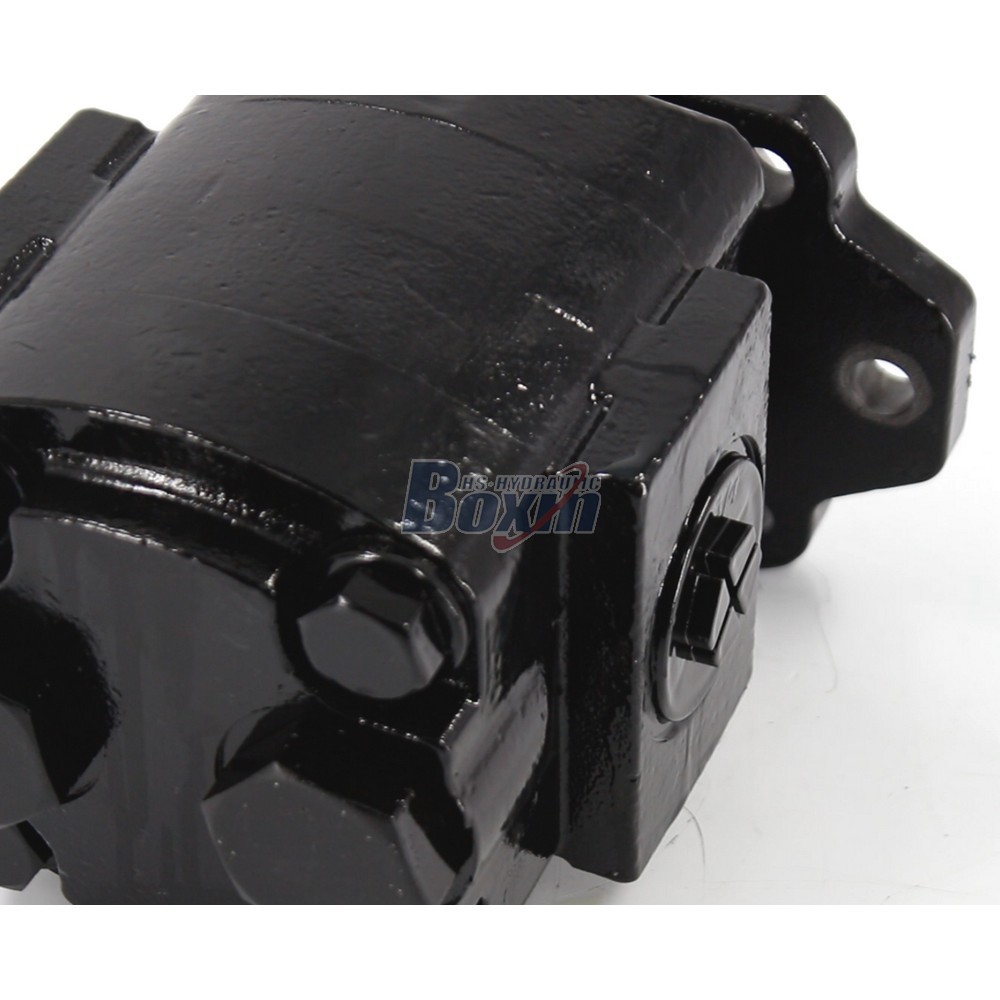

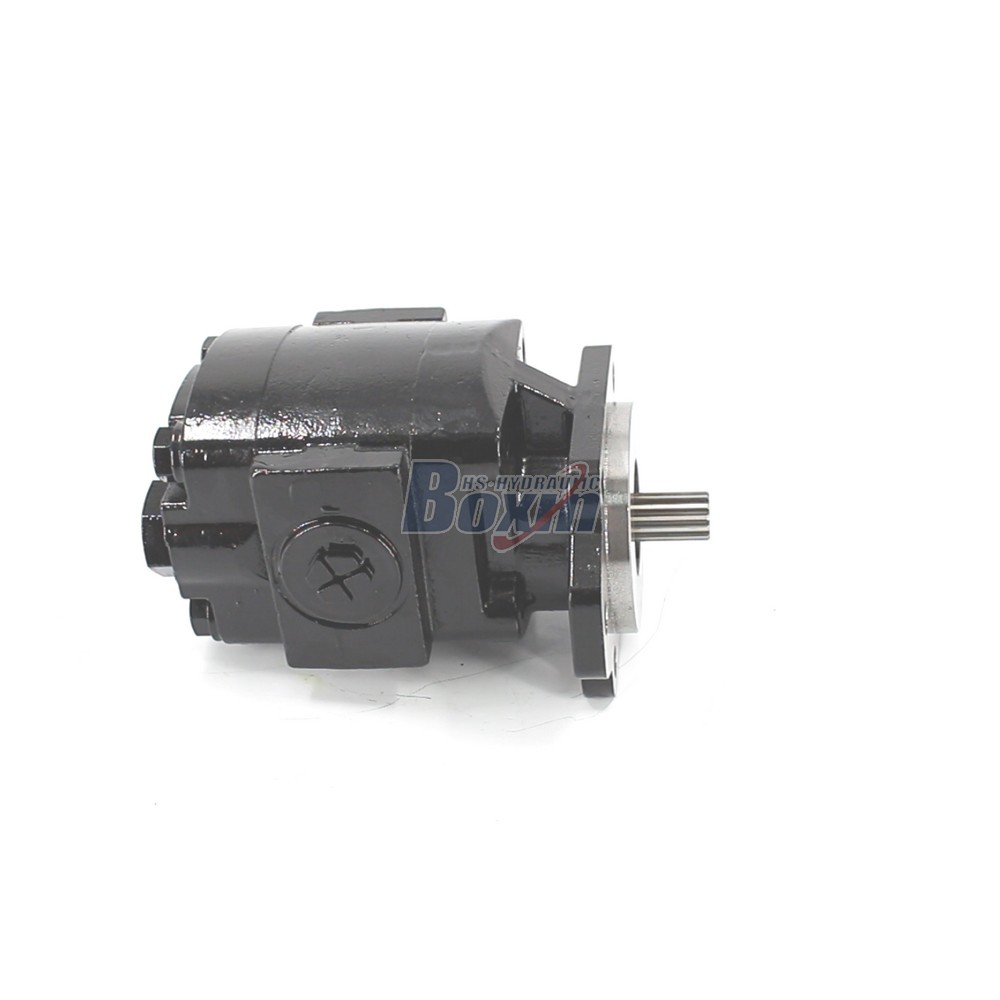

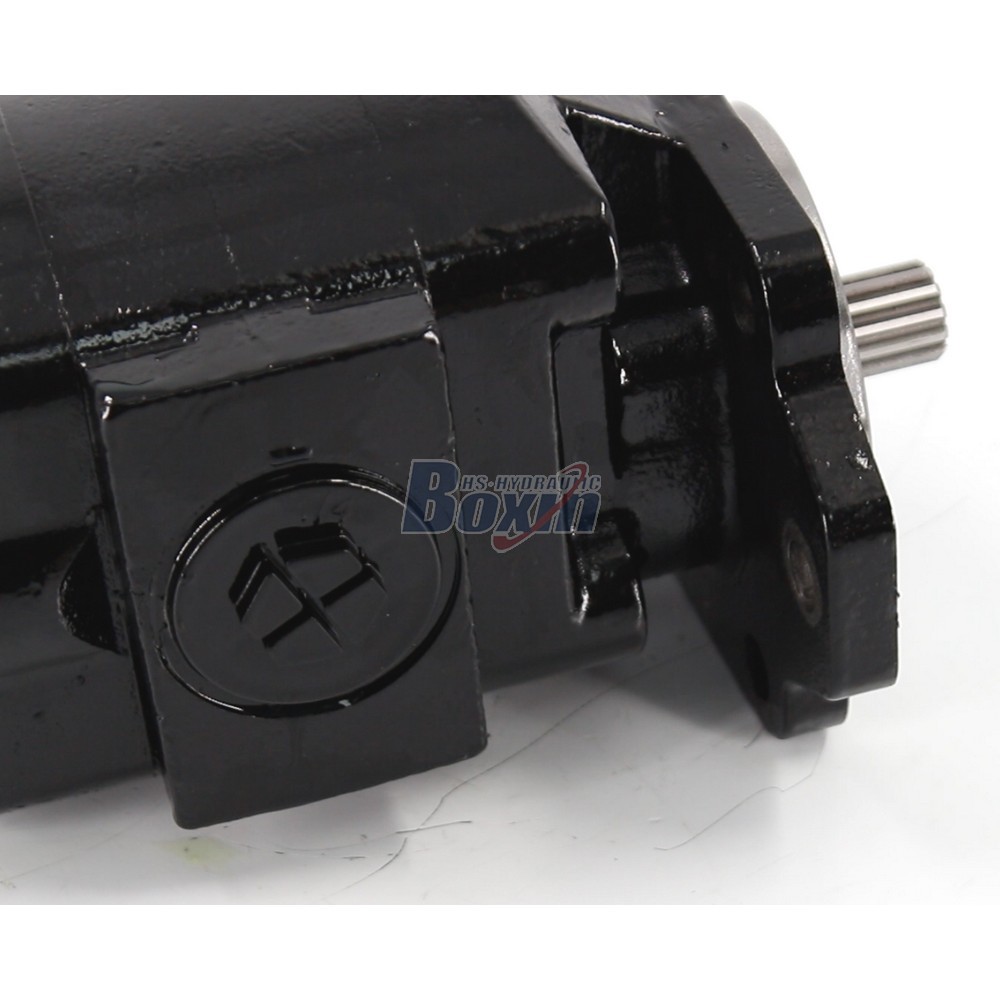

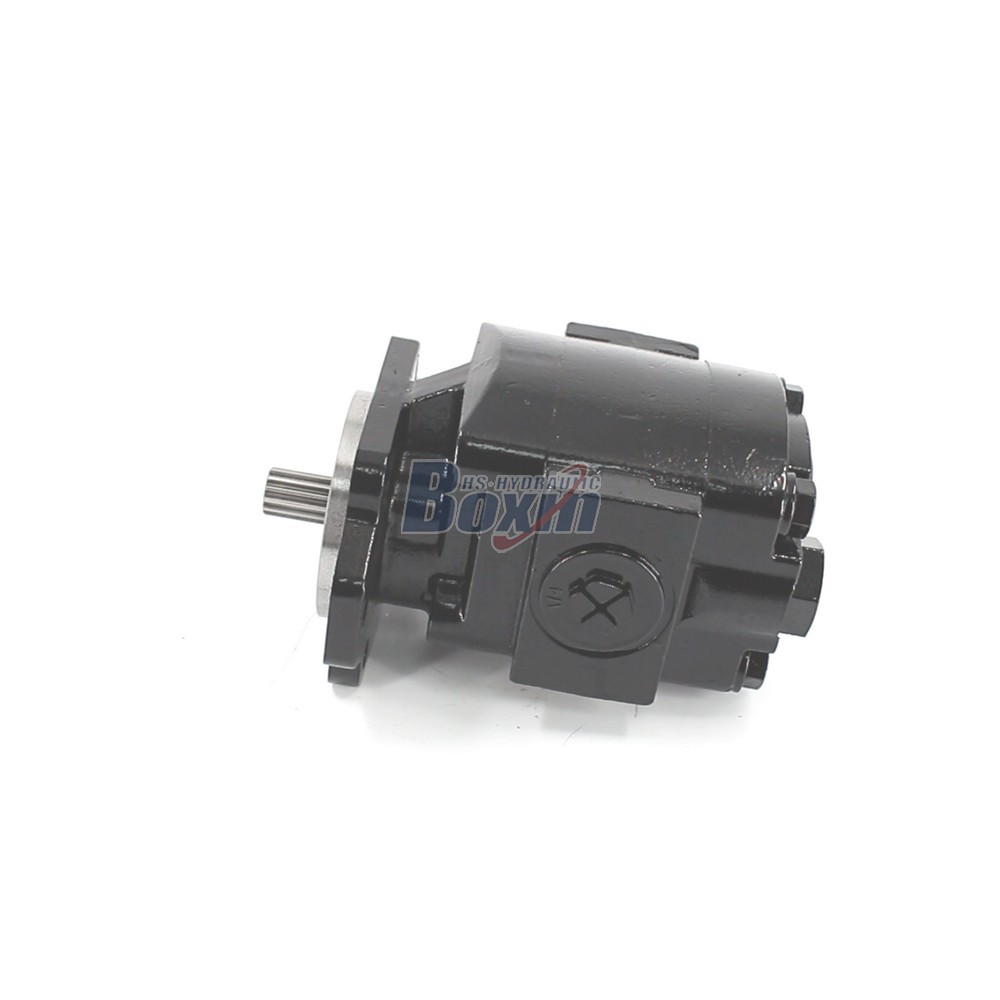

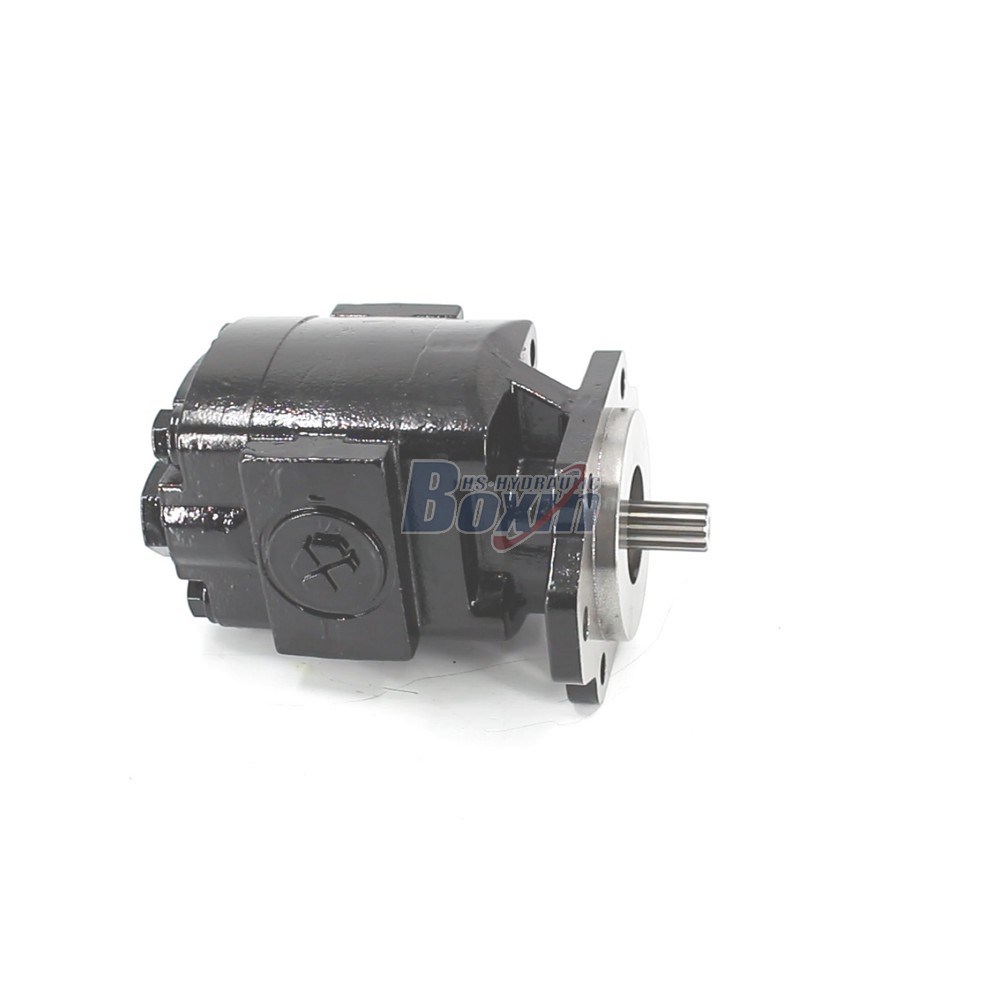

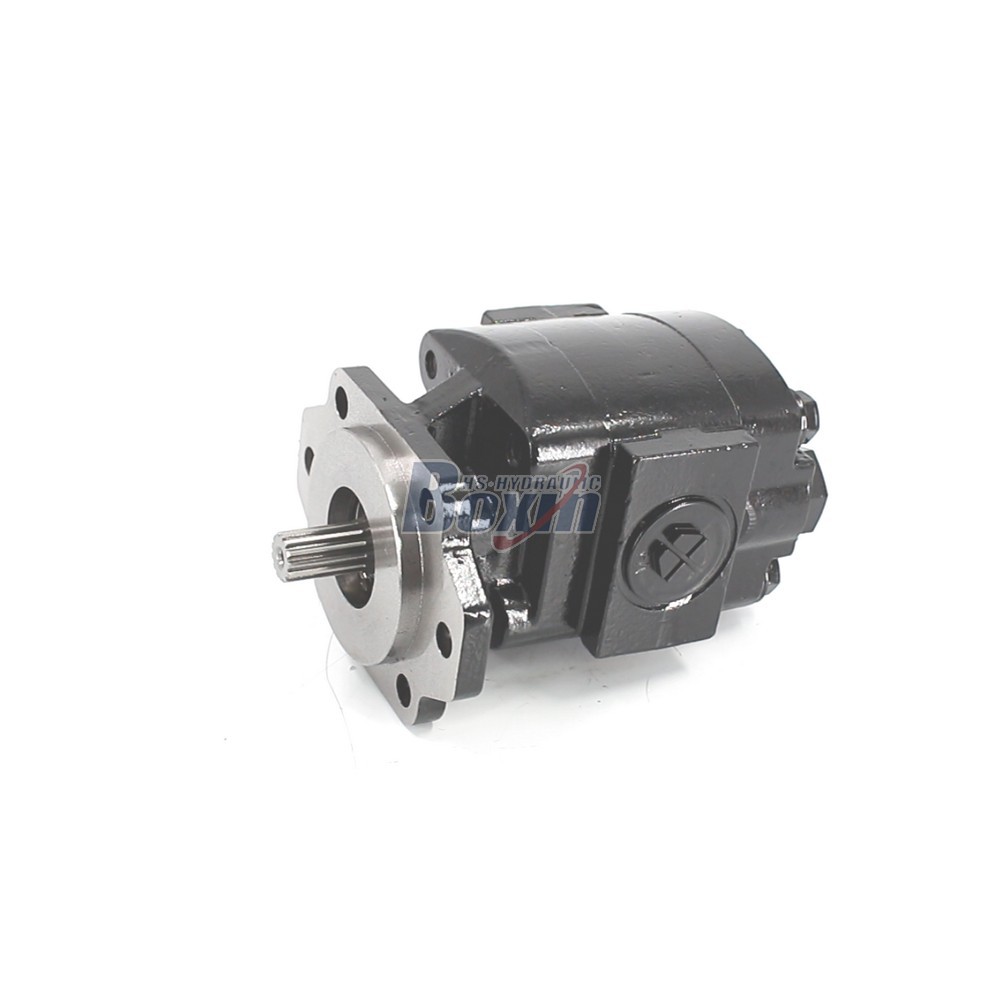

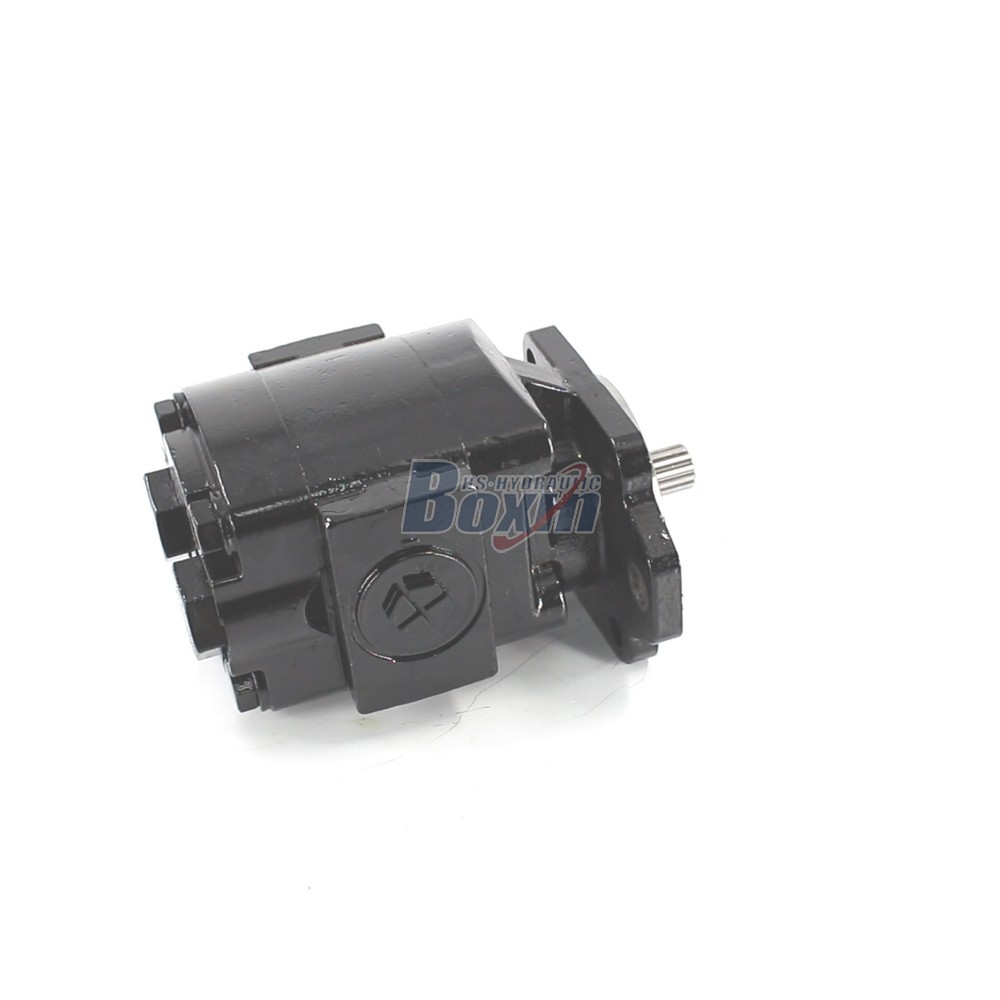

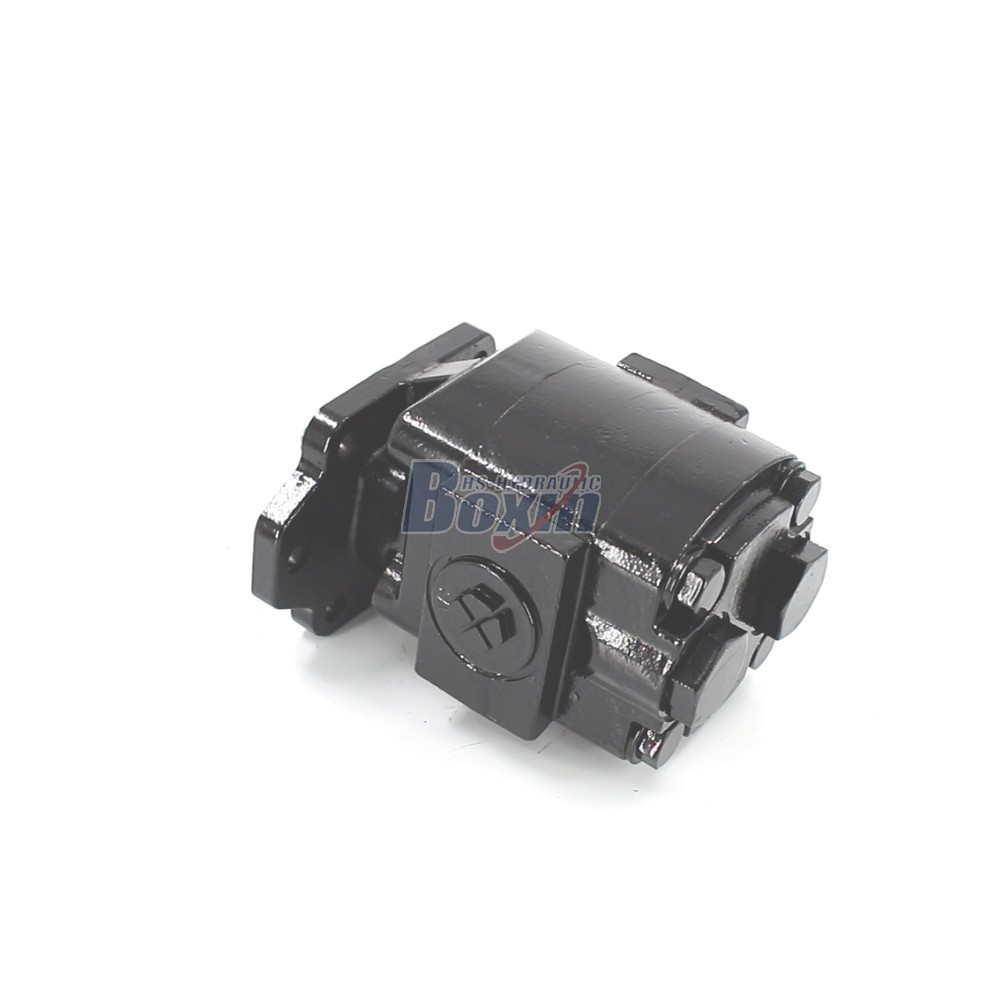

The P21A646JEAL20-25 hydraulic gear pump is engineered for reliability and efficiency in heavy-duty hydraulic systems. With a displacement of 64.6 cc/rev and a rated pressure of 16 MPa (2320 psi), it delivers consistent flow and power for medium to high-load operations. The pump supports bidirectional rotation, making it adaptable to various system configurations.

Key Features:
- High displacement capacity of 64.6 cc/rev for efficient hydraulic power delivery
- Rated pressure of 16 MPa with a maximum pressure tolerance of 17 MPa (2465 psi)
- Operating speed range from 600 r/min (rated) up to 2400 r/min (maximum)
- Durable cast iron construction for long service life under harsh conditions
- Bidirectional rotation for flexible system design

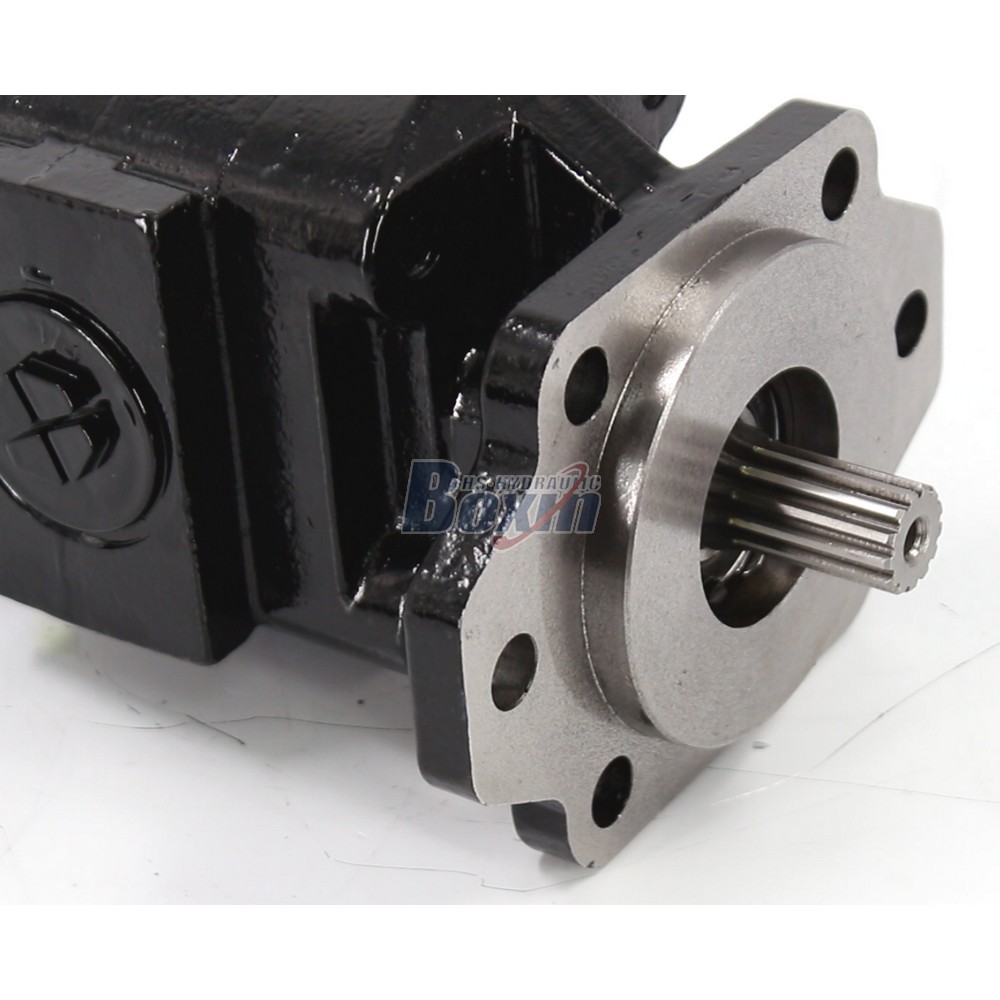

- Involute spline shaft (X-type) for secure torque transmission
- Multiple flange options: A-Oval, B-Square, SAE, ISO-4, and UNI-3 mounting holes

Applications:
This pump is widely used in wheel loaders, backhoe loaders, skid steer loaders, forklifts, telehandlers, compact wheel loaders, mini and midi excavators, tractors, and dumpers. It is ideal for hydraulic systems requiring reliable, high-pressure flow in construction, earthmoving, agricultural, and material handling equipment.

We offer OEM, ODM, and custom manufacturing services with flexible MOQ options for distributors, wholesalers, agents, and traders worldwide.
