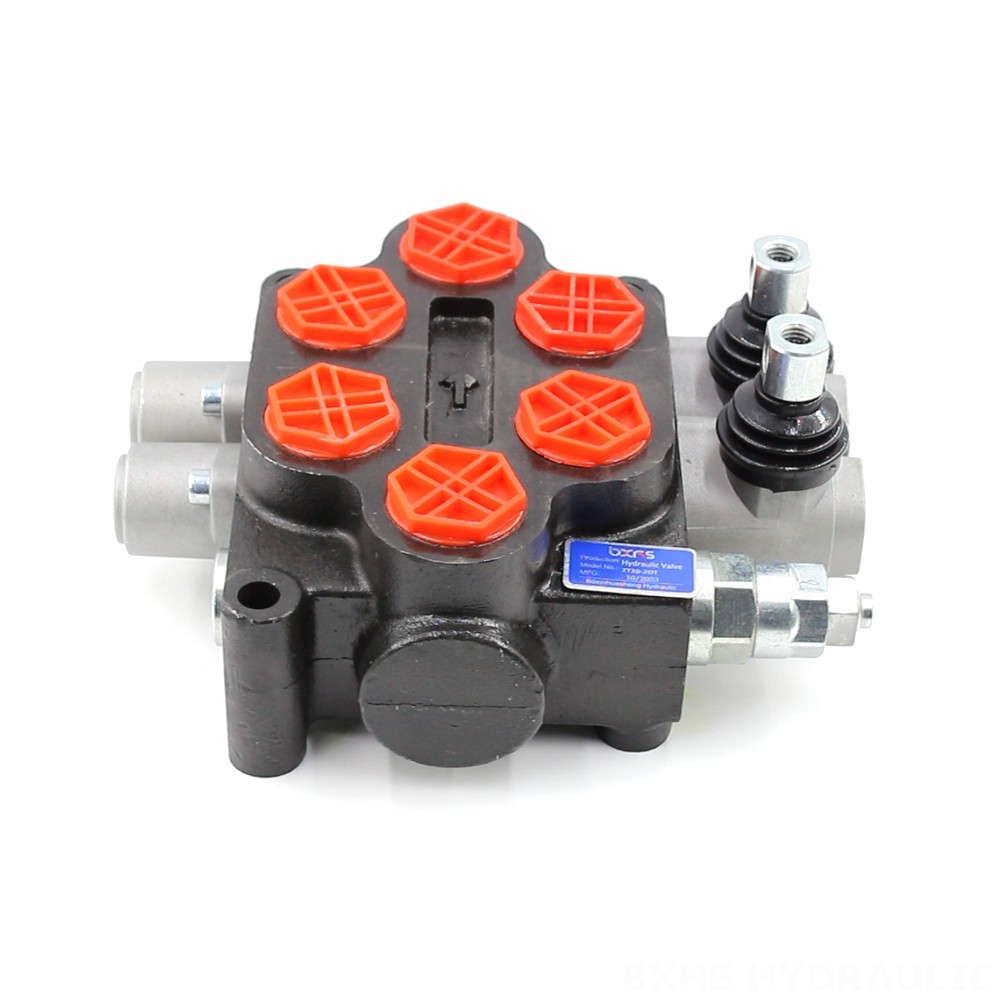

ZT20 Manual 2 Spool Monoblock Directional Valve is a robust and reliable hydraulic valve designed for use in a wide range of industrial and mobile applications. With its high flow rate capacity of 100 L/min and maximum pressure of 250 bar, it is suitable for demanding applications in construction, agriculture, and industrial vehicles.
| ZT20 Series Hydraulic Control Valve Parameters | |
|---|---|
| Control Method | Manual, Cable, Joystick, Manual and Joystick |
| Spool | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool |
| Rated Flow | 100 L/min (26.5 US gpm) |
| Max Pressure | 250 bar (3600 psi) |
| Inlet Port | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Outlet Port | G1/2, G3/4, M22×1.5, M27×2.0, SAE 8, SAE 10, 1/2 NPT, 3/4 NPT |
| Port Size | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Section | 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section |
| Structure Type | Monoblock valve |
| Ambient Temperature Range | -40°C to +80°C (-40°F to +176°F) |
| Operating Viscosity Range | 15 - 75 mm²/s (15 cSt to 75 cSt) |
Manual 2 spool operation for precise control ,Monoblock construction for compact size and durability
, High flow rate of 100 L/min for efficient operation,Maximum pressure of 250 bar for demanding applications
, Wide operating viscosity range of 15 - 75 mm²/s for compatibility with various hydraulic fluids
,Ambient temperature range of -40°C to +80°C for use in extreme conditions.
Applications: ZT20 Manual 2 Spool Monoblock Directional Valve is commonly used in a variety of applications, including: Mobile hydraulics
, Industrial equipment
,Construction machinery
, Agricultural equipment.
