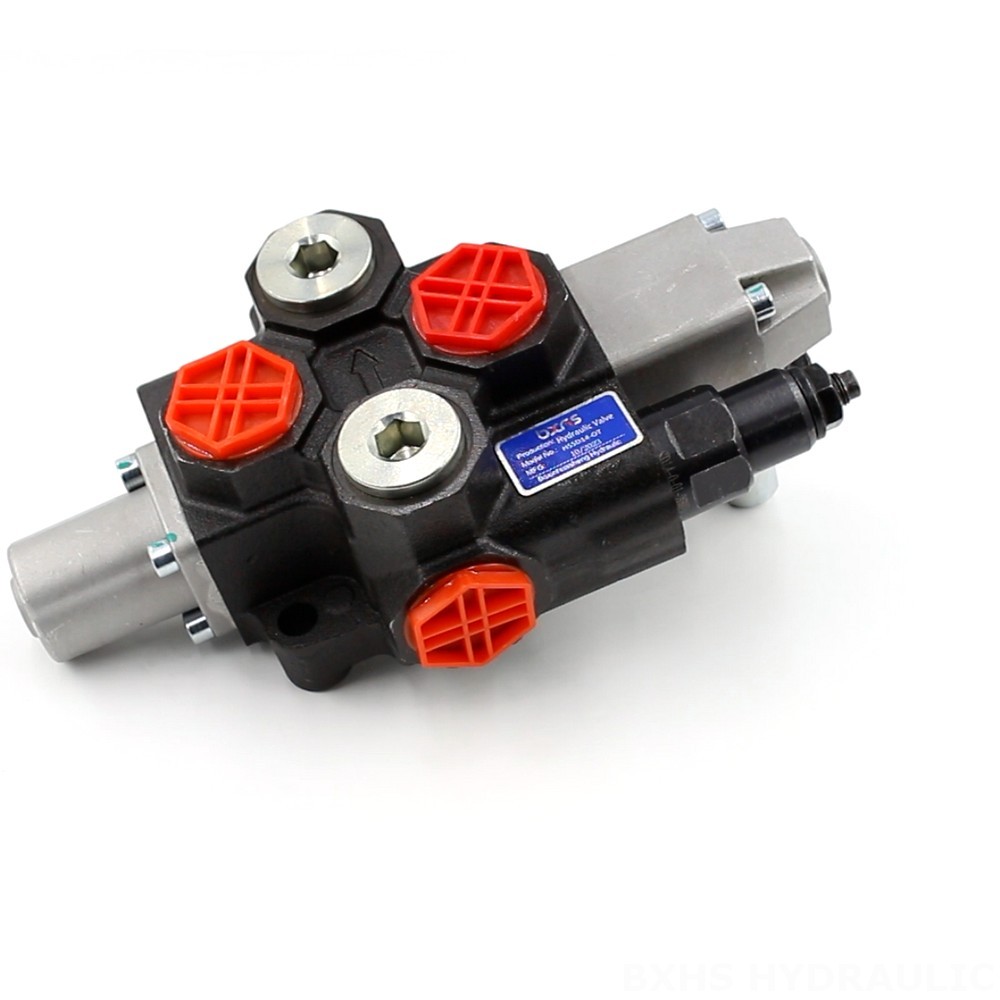

The SD14 Manual 1 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for demanding applications. With a rated flow of 120 L/min and a max pressure of 315 bar, this valve provides excellent flow control and pressure handling capabilities. Its compact monoblock design and manual control offer ease of installation and operation.
| SD14 Series Monoblock Directional Valve Parameters | |
|---|---|
| Control Method | Manual, Pneumatic, Hydraulic |
| Spool | 1 Spool |
| Ambient Temperature Range | -40°C to +60°C (-40°F to +140°F) |
| Structure Type | Monoblock valve |
| Section | 1 Section |
| Operating Viscosity Range | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| Rated Flow | 120 L/min (31.7 US gpm) |
| Max Pressure | 315 bar (4600 psi) |
| Inlet Port | G3/4 |
| Outlet Port | G3/4 |
| Port Size | G3/4 |
**Product Features and Benefits:**
* Manual control for precise flow regulation
* Monoblock construction for compact and robust design
* Rated flow of 120 L/min for high system efficiency
* Max pressure of 315 bar for demanding applications
* Operating viscosity range of 15 - 75 mm²/s for versatility
* Ambient temperature range of -40°C to +60°C for wide operating conditions
* 1 spool for simple and effective flow control
**Applications:**
The SD14 Manual 1 Spool Monoblock Directional Valve is commonly used in various industrial applications, including:
* Material handling equipment, such as forklifts and telehandlers
* Construction and earth moving machinery, such as excavators and motor graders
* Agricultural vehicles, such as tractors and harvesters
* Industrial vehicles, such as sweepers and waste compactors
