Two Way Hydraulic Valve P40 Monoblock Directional Valve: Performance and Efficiency Unrivaled

Max Pressure:250 bar (3600 psi)

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:P40 Series Monoblock Directional Valve

Productsize:30*23*16

Netweight:14.00 kg

Availability: In Stock

Description

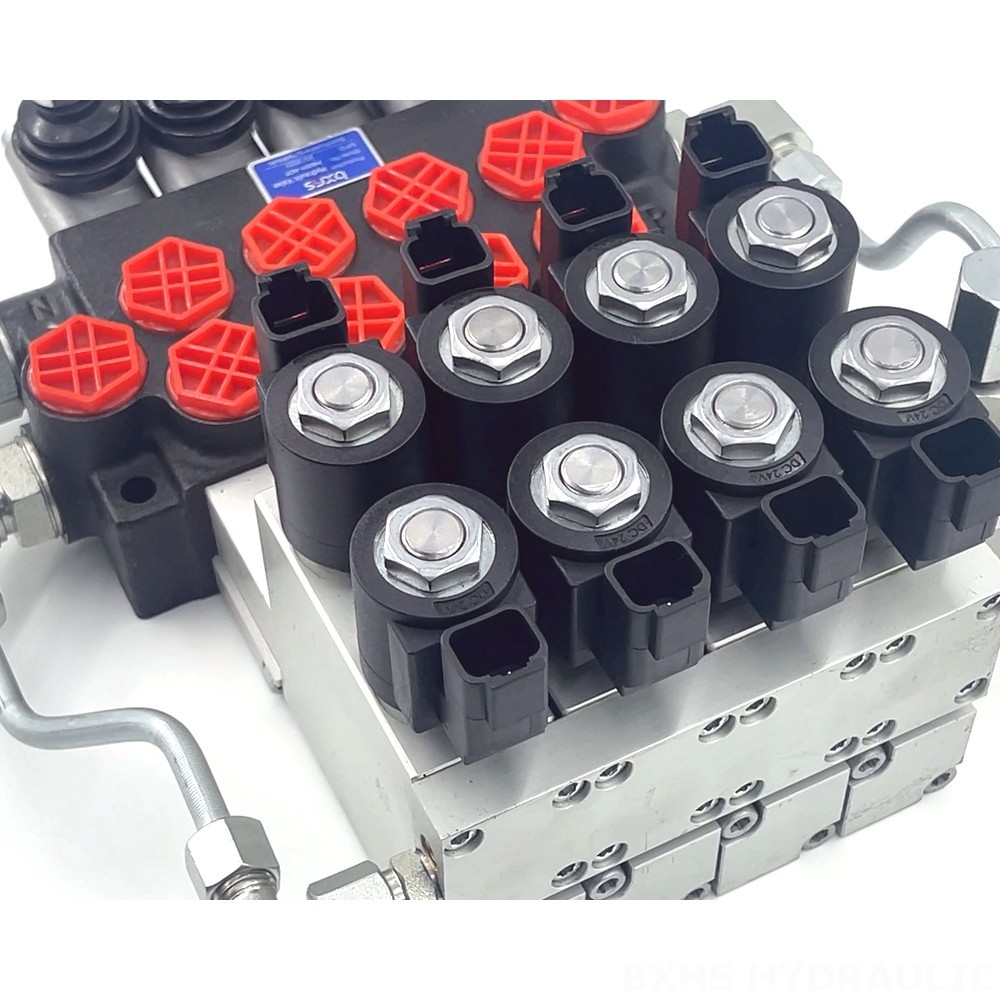

Two Way Hydraulic Valve P40 Monoblock Directional Valve: Performance and Efficiency Unrivaled detailed image

Two Way Hydraulic Valve P40 Monoblock Directional Valve: Performance and Efficiency Unrivaled drawing image

The Two Way Hydraulic Valve P40 Monoblock Directional Valve is a high-performance, electro-hydraulic controlled valve designed for use in material handling, construction, agriculture, and industrial vehicles. With its 4-section, monoblock design and 40 L/min rated flow, this valve delivers unmatched performance and efficiency.

Rated Flow	40 L/min (10.5 US gpm)
Max Pressure	250 bar (3600 psi)
Inlet Port	G3/8,G1/2,M18×1.5,M22×1.5,SAE 8,SAE 10,3/8 NPT,1/2 NPT
Outlet Port	G3/8,G1/2,M18×1.5,M22×1.5,SAE 8,SAE 10,3/8 NPT,1/2 NPT
Port Size	G3/8,G1/2,M18×1.5,SAE 8,SAE 10,3/8 NPT,1/2 NPT
Section	1 Section,2 Section,3 Section,4 Section,5 Section,6 Section,7 Section
Structure Type	Monoblock valve
Ambient Temperature Range	-40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range	15 - 75 mm²/s (15 cSt to 75 cSt)

This P40 Series valve features a 4-section monoblock structure for compact size and high reliability. It operates at a maximum pressure of 250 bar (3600 psi) and is designed for use with hydraulic fluids within a viscosity range of 15-75 mm²/s. With its electro-hydraulic control, this valve offers precise and responsive operation for a wide range of applications, including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, wheel loaders, and backhoe loaders.

Two Way Hydraulic Valve P40 Monoblock Directional Valve: Performance and Efficiency Unrivaled application image
