Tailor Your Electro-pneumatic Valve Solutions with Our OEM and ODM Capabilities

Max Pressure:250 bar (3600 psi)

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:P40 Series Monoblock Directional Valve

Productsize:12*29*11

Netweight:3.50 kg

Availability: In Stock

Description

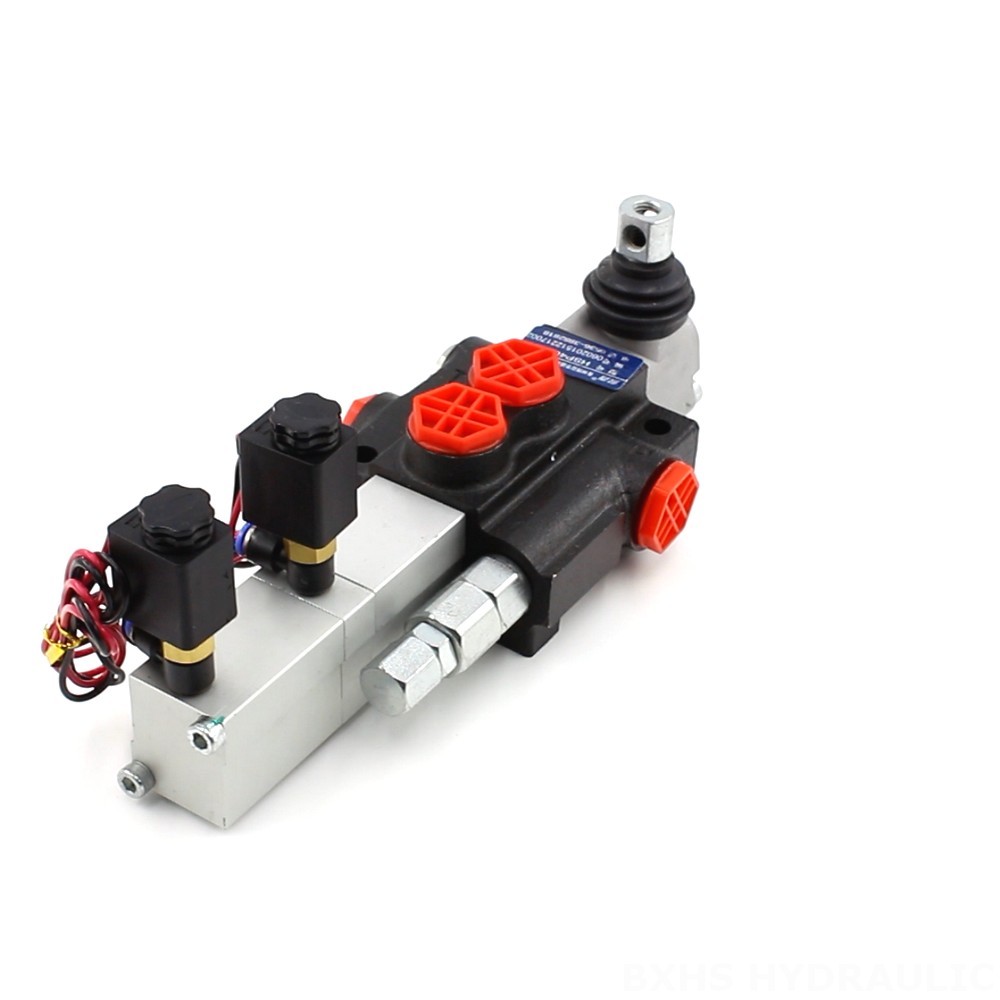

Tailor Your Electro-pneumatic Valve Solutions with Our OEM and ODM Capabilities detailed image

Tailor Your Electro-pneumatic Valve Solutions with Our OEM and ODM Capabilities drawing image

Tailor Your Electro-pneumatic Valve Solutions with Our OEM and ODM Capabilities

Rated Flow	40 L/min (10.5 US gpm)
Max Pressure	250 bar (3600 psi)
Inlet Port	G3/8,G1/2,M18×1.5,M22×1.5,SAE 8,SAE 10,3/8 NPT,1/2 NPT
Outlet Port	G3/8,G1/2,M18×1.5,M22×1.5,SAE 8,SAE 10,3/8 NPT,1/2 NPT
Port Size	G3/8,G1/2,M18×1.5,SAE 8,SAE 10,3/8 NPT,1/2 NPT
Section	1 Section,2 Section,3 Section,4 Section,5 Section,6 Section,7 Section
Structure Type	Monoblock valve
Ambient Temperature Range	-40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range	15 - 75 mm²/s (15 cSt to 75 cSt)

Control Method: Electro-pneumatic
Section: 1 Section
Structure Type: Monoblock valve
Rated Flow: 40 L/min (10.5 US gpm)
Max Pressure: 250 bar (3600 psi)
Operating Viscosity Range: 15 - 75 mm²/s (15 cSt to 75 cSt)
Ambient Temperature Range: -40°C to +80°C (-40°F to +176°F)
Spool: 1 Spool
Series: P40 Series
Application Area: MATERIAL HANDLING,CONSTRUCTION AND EARTH MOVING,AGRICULTURE,INDUSTRIAL VEHICLES
Applicable Model: TELEHANDLER,FORKLIFT,ALL TERRAIN CRANE,STACKER,AERIAL PLATFORM,MOTOR GRADER,MIDI-EXCAVATOR,MINI-EXCAVATOR,SKID STEER LOADER,COMPACT WHEEL LOADER

Tailor Your Electro-pneumatic Valve Solutions with Our OEM and ODM Capabilities application image
