SD5-G38 Manual 1 Spool Monoblock Directional Valve

Rated Flow:40 L/min (10.5 US gpm)

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:SD5 Series Monoblock Directional Valve

Productsize:22*19*11

Netweight:3.60 kg

Availability: In Stock

Description

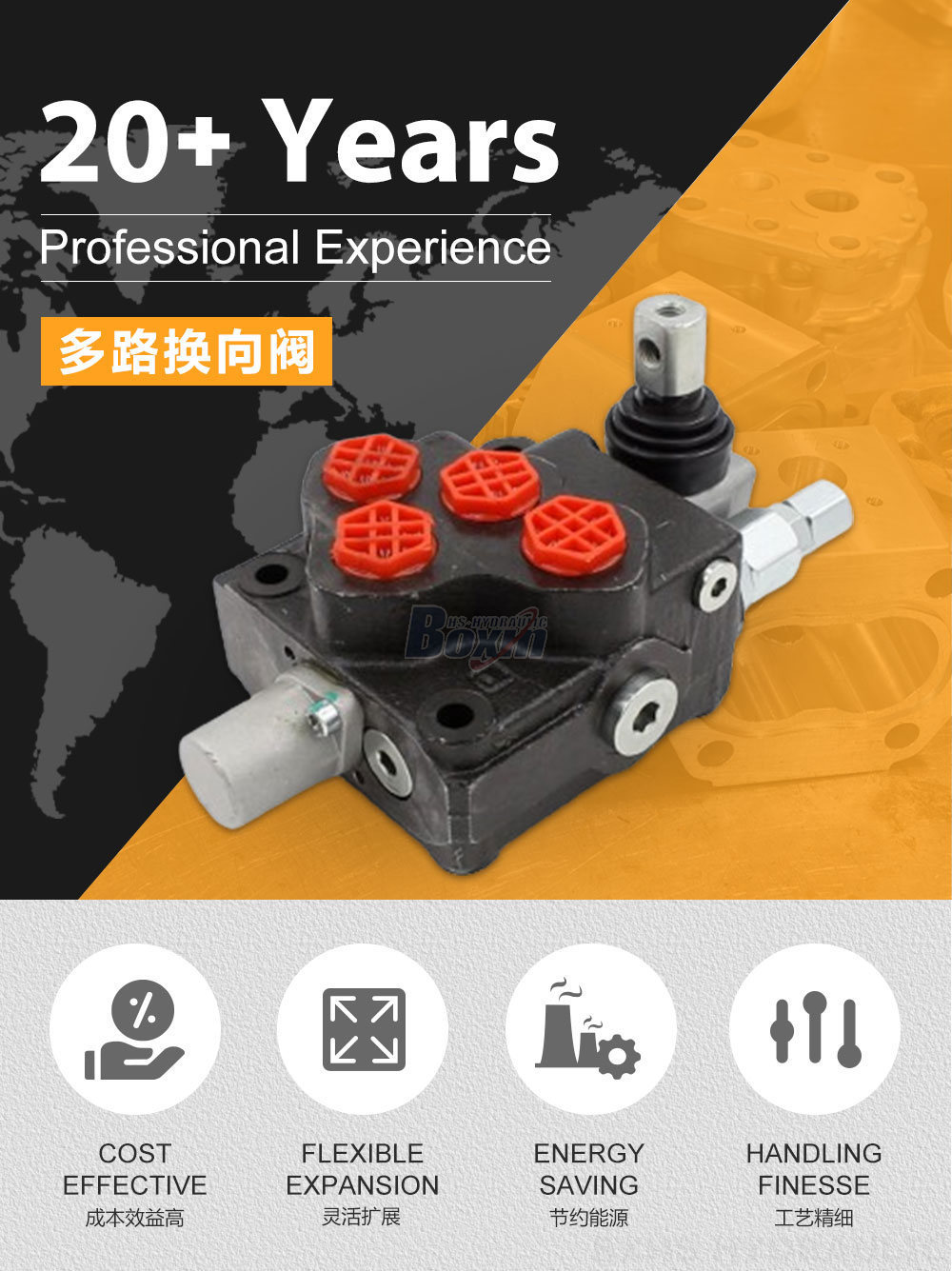

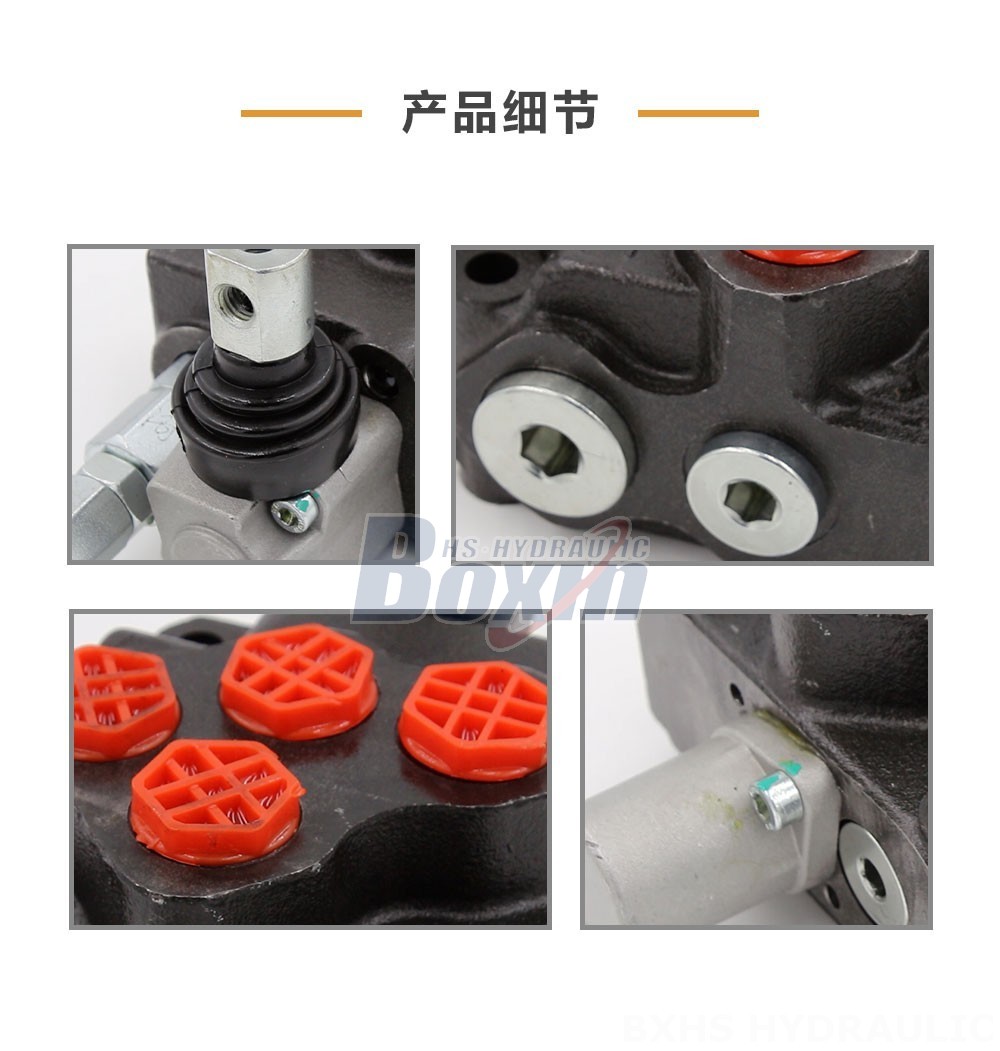

SD5-G38 Manual 1 Spool Monoblock Directional Valve detailed image

SD5-G38 Manual 1 Spool Monoblock Directional Valve drawing image

The SD5-G38 Manual 1 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for various applications in material handling, construction, agriculture, and industrial vehicles. It features manual control, a compact monoblock design, a rated flow of 40 L/min (10.5 US gpm), a maximum pressure of 305 bar (4400 psi), and an operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt).

Rated Flow	40 L/min (10.5 US gpm)
Max Pressure	305 bar (4400 psi)
Inlet Port	G3/8,G1/2,M18×1.5,M20×1.5,SAE 6,SAE 8,G1-1/2
Outlet Port	G3/8,G1/2,M18×1.5,M20×1.5,SAE 6,SAE 8
Port Size	G3/8,G1/2,M18×1.5,M20×1.5,SAE 6,SAE 8
Section	1 Section,2 Section,3 Section,4 Section,5 Section,6 Section,7 Section
Structure Type	Monoblock valve
Control Method	Manual
Ambient Temperature Range	-40°C to +60°C (-40°F to +140°F)
Operating Viscosity Range	15 - 75 mm²/s (15 cSt to 75 cSt)

**Features and Benefits:**

* Manual control for precise and responsive operation
* Monoblock construction for compact size and durability
* Rated flow of 40 L/min (10.5 US gpm) for efficient hydraulic system performance
* Maximum pressure of 305 bar (4400 psi) for demanding applications
* Operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) for compatibility with various hydraulic fluids
* Ambient temperature range of -40°C to +60°C (-40°F to +140°F) for reliable operation in diverse environments

**Applications:**

The SD5-G38 Manual 1 Spool Monoblock Directional Valve is suitable for a wide range of applications, including:

* Material handling equipment (forklifts, telehandlers, stackers)
* Construction machinery (excavators, cranes, loaders)
* Agricultural vehicles (tractors, harvesters)
* Industrial vehicles (sweepers, waste compactors)

With its versatility, durability, and reliable performance, the SD5-G38 Manual 1 Spool Monoblock Directional Valve is an ideal choice for various hydraulic system applications.
