SD11 Pneumatic 2 Spool Monoblock Directional Valve

Rated Flow:70 L/min (18.5 US gpm)

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:SD11 Series Monoblock Directional Valve

Productsize:20*32*12

Netweight:11.20 kg

Availability: In Stock

Description

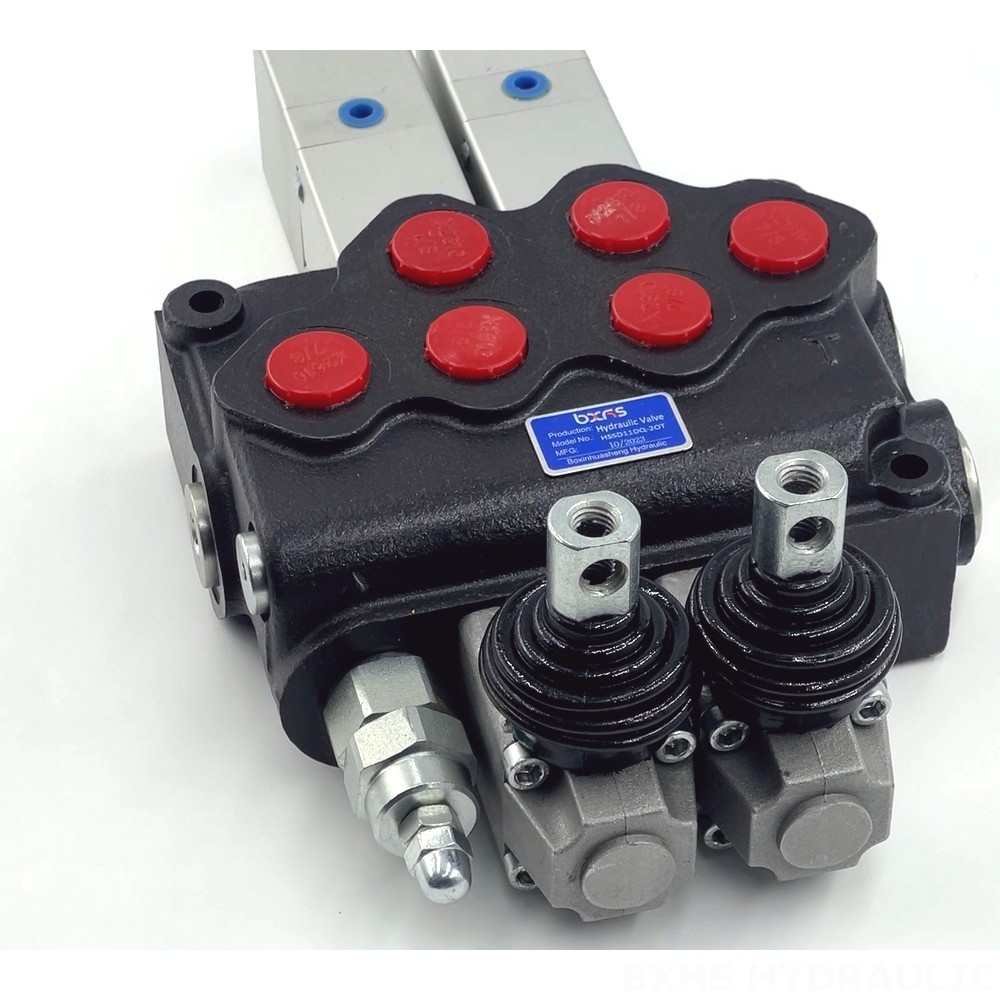

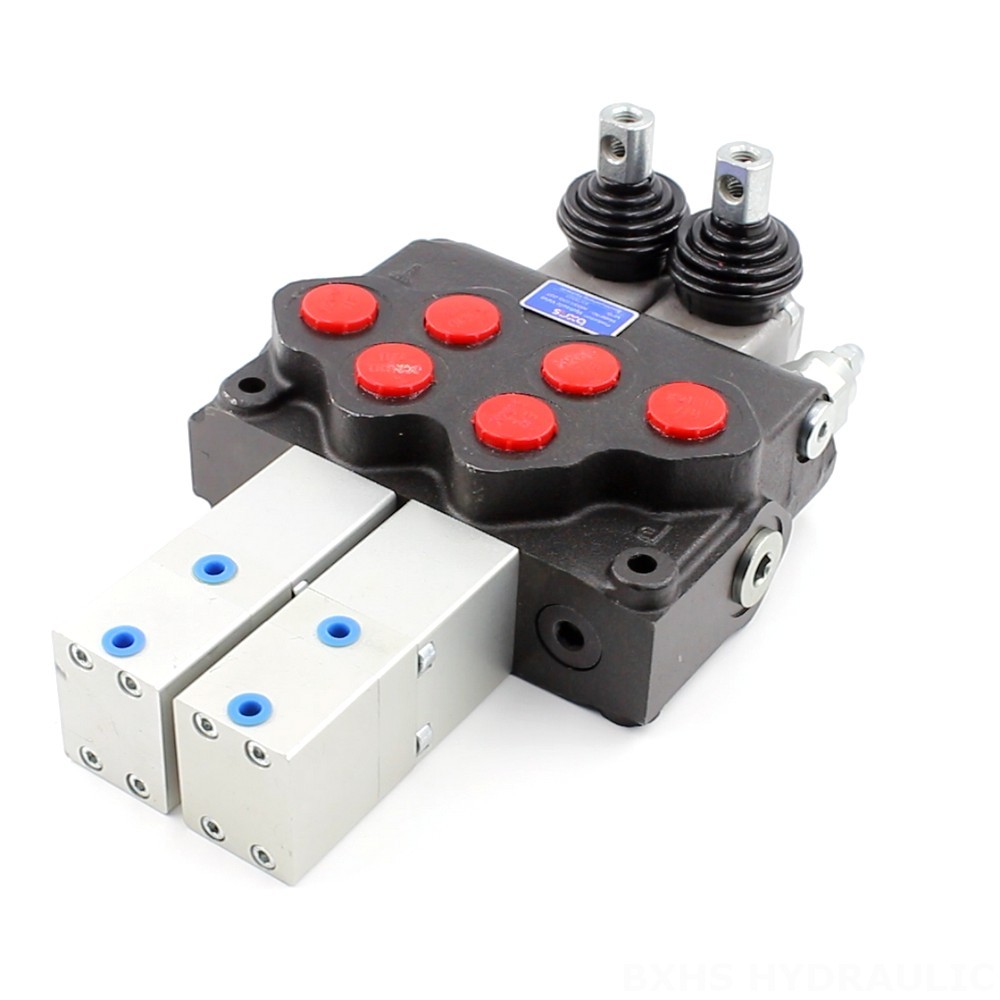

SD11 Pneumatic 2 Spool Monoblock Directional Valve detailed image

SD11 Pneumatic 2 Spool Monoblock Directional Valve drawing image

SD11 Pneumatic 2 Spool Monoblock Directional Valve is a high-performance valve designed for use in a wide range of industrial applications. With a rated flow of 70 L/min and a maximum pressure of 250 bar, this valve is capable of handling even the most demanding hydraulic systems. Its compact, monoblock design makes it easy to install and maintain, while its pneumatic control method provides precise and responsive operation.

Rated Flow	70 L/min (18.5 US gpm)
Max Pressure	315 bar (4600 psi)
Inlet Port	G3/4,SAE 12
Outlet Port	G3/4,SAE 12
Port Size	G3/4,SAE 12
Section	1 Section,2 Section,3 Section,4 Section,5 Section,6 Section,7 Section
Structure Type	Monoblock valve
Control Method	Pneumatic
Ambient Temperature Range	-40°C to +60°C (-40°F to +140°F)
Operating Viscosity Range	15 - 75 mm²/s (15 cSt to 75 cSt)

**Product Features and Benefits:**

* High flow rate of 70 L/min for efficient operation
* Maximum pressure of 250 bar for demanding applications
* Compact, monoblock design for easy installation and maintenance
* Pneumatic control method for precise and responsive operation
* Suitable for a wide range of industrial applications

**Applications:**

* Material handling equipment
* Construction and earth moving equipment
* Agricultural machinery
* Industrial vehicles

SD11 Pneumatic 2 Spool Monoblock Directional Valve application image
