Reliable P21A646JEAL20-25-H 64.6 cc/rev Hydraulic Gear Pump Manufacturer Source

Displacement:64.6 cc/rev

Rated Pressure:16 MPa (2320 psi)

Max Pressure:17 MPa (2465 psi)

Max Speed:2200 r/min

Rotation:/: (Bidirectional)

Vendor:BXHS

Product Type:Hydraulic Gear Pump

Product Series:P21 Series Hydraulic Gear Pump

Packagingsize:45*25*18

Grossweight:16.00 kg

Availability: In Stock

136 Views are Looking for this Product

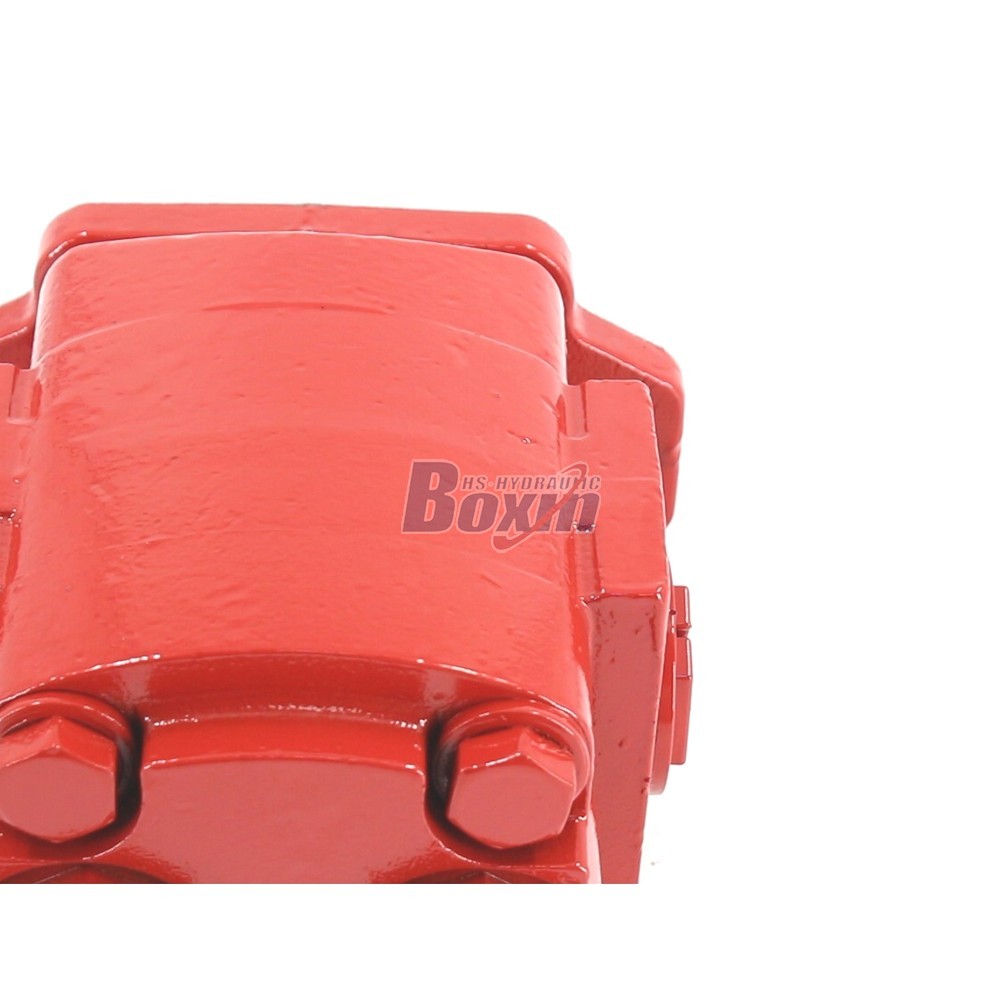

Reliable P21A646JEAL20-25-H 64.6 cc/rev Hydraulic Gear Pump Manufacturer Source detailed image

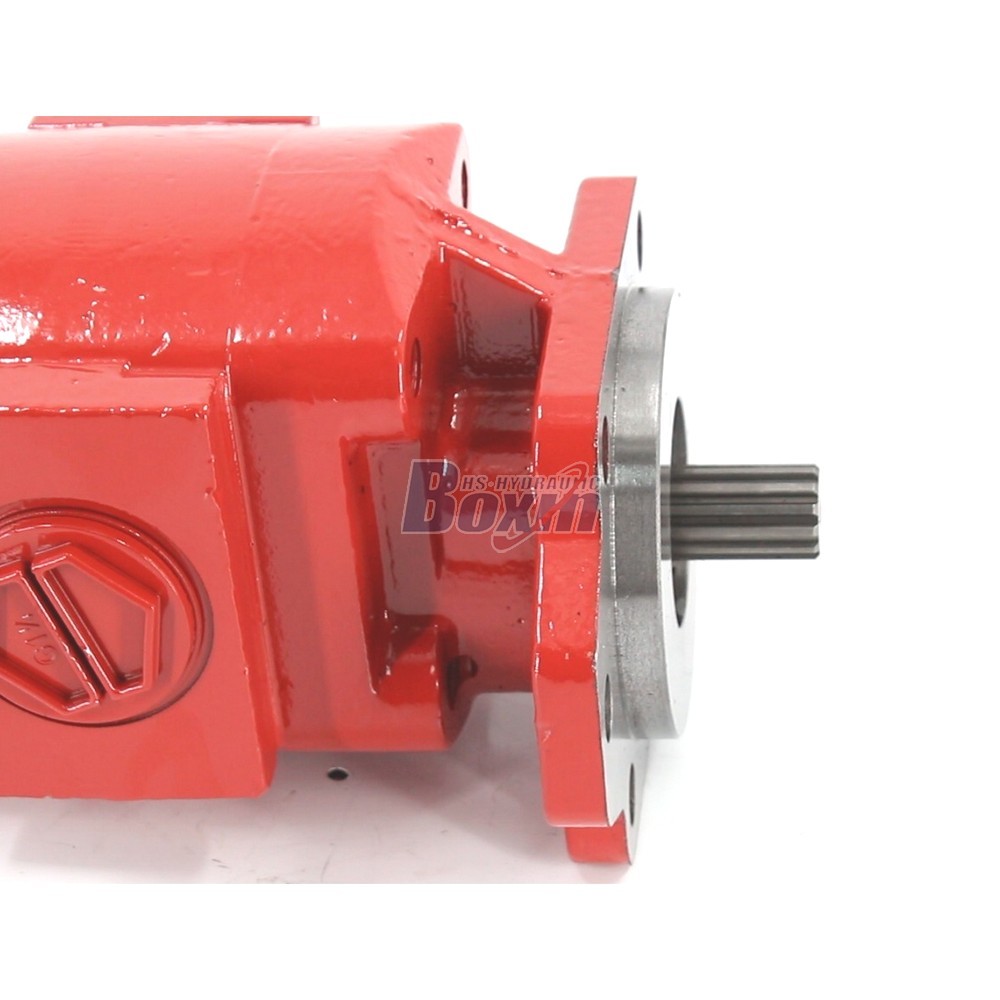

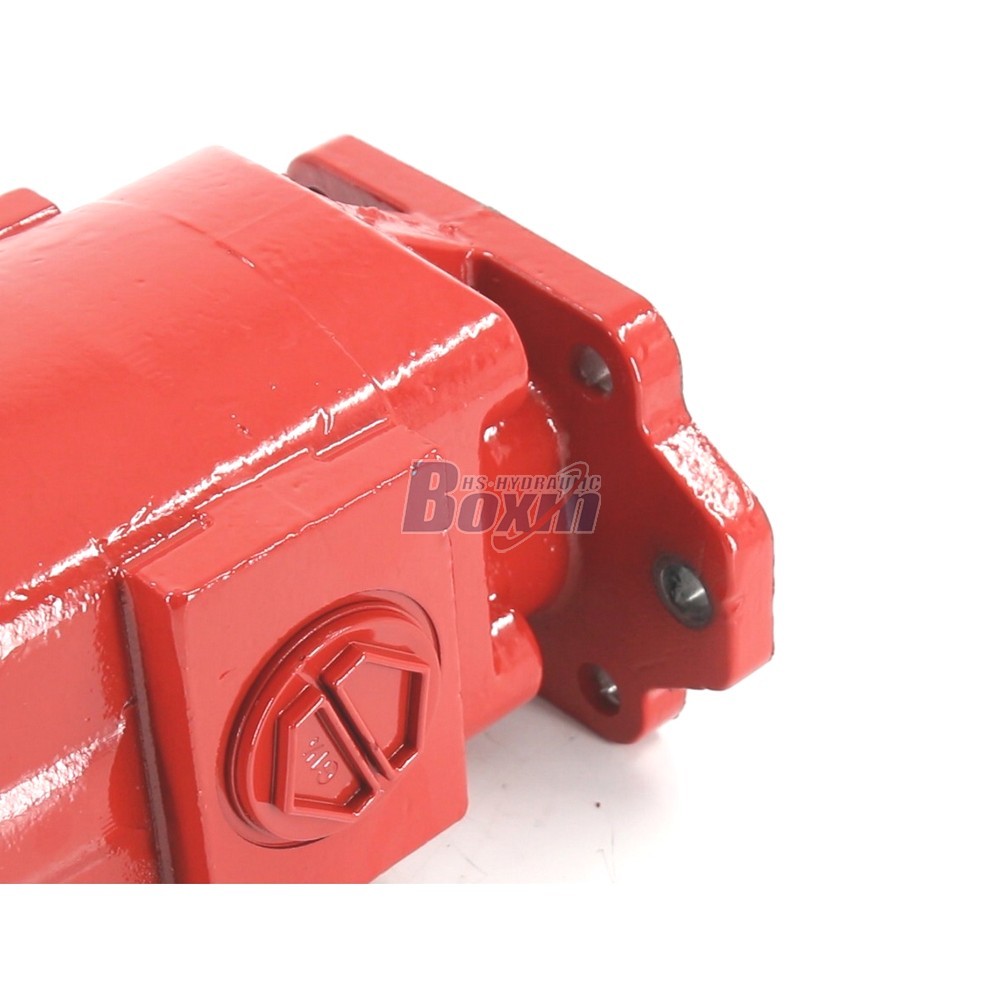

Reliable P21A646JEAL20-25-H 64.6 cc/rev Hydraulic Gear Pump Manufacturer Source detailed image

Reliable P21A646JEAL20-25-H 64.6 cc/rev Hydraulic Gear Pump Manufacturer Source drawing image

This P21 Series Hydraulic Gear Pump features a 64.6 cc/rev displacement, 16 MPa rated pressure, and bidirectional rotation, ideal for forklifts and loaders. Backed by a 25-year Professional Manufacturer with IATF 16949 certification, it ensures reliable performance for construction and agricultural machinery.

P21 Series Hydraulic Gear Pump Parameters
Displacement 64.6 cc/rev
Rated Pressure 16 MPa (2320 psi)
Max Pressure 17 MPa (2465 psi)
Rated Speed 600 r/min
Max Speed 2400 r/min
Rotation /: (Bidirectional)
Material Cast Iron
Structure External Gear Pump
Flange Version A-Oval Flange, B-Square Flange, ISO-4 Mounting Holes, UNI-3 Mounting Holes, SAE Flange
Shaft Type X: Involute Spline

**1. Reliable P21 Series Gear Pump Specifications**
- Engineered with 64.6 cc/rev displacement and bidirectional rotation, operating efficiently at 2000 r/min rated speed.
- Delivers consistent flow up to 2200 r/min max speed, ensuring smooth power transmission for heavy-duty applications.

**2. High-Pressure Hydraulic Gear Pump Performance**
- Rated for 16 MPa (2320 psi) with a max pressure of 17 MPa (2465 psi), providing strong lifting force for material handling.
- Rigorously tested for seal integrity and pressure stability, guaranteeing durability in demanding earth-moving tasks.

**3. Versatile OEM Hydraulic Pump Applications**
- Perfectly compatible with forklifts, telehandlers, skid steer loaders, and backhoe loaders as a direct replacement part.
- Supports diverse industrial vehicles including tractors, sprayers, and waste compactors, offering broad market adaptability.

**4. Factory Direct Sales Quality Assurance**
- Produced by a 25-year Professional Manufacturer with 4 modern factories and an annual capacity of 1,500,000 units.
- Each unit undergoes 100% bench testing for pressure, flow, and leakage, backed by IATF 16949 and CE certifications.

**5. Customizable Wholesale China Factory Solutions**
- Offers full OEM/ODM services including custom logos, casting modifications, and private label packaging for distributors.
- Secured with rust-proof treatment and heavy-duty wooden crate packing, ensuring safe Exported Worldwide delivery.

Reliable P21A646JEAL20-25-H 64.6 cc/rev Hydraulic Gear Pump Manufacturer Source application image

Reliable P21A646JEAL20-25-H 64.6 cc/rev Hydraulic Gear Pump Manufacturer Source packing image

Reliable P21A646JEAL20-25-H 64.6 cc/rev Hydraulic Gear Pump Manufacturer Source company image

Reliable P21A646JEAL20-25-H 64.6 cc/rev Hydraulic Gear Pump Manufacturer Source certification image
