P80-U116-U78-2OT Manual 2 Spool Monoblock Directional Valve

Rated Flow:80 L/min (21.2 US gpm)

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:P80 Series Monoblock Directional Valve

Productsize:25.1*17*8

Netweight:7.80 kg

Availability: In Stock

Description

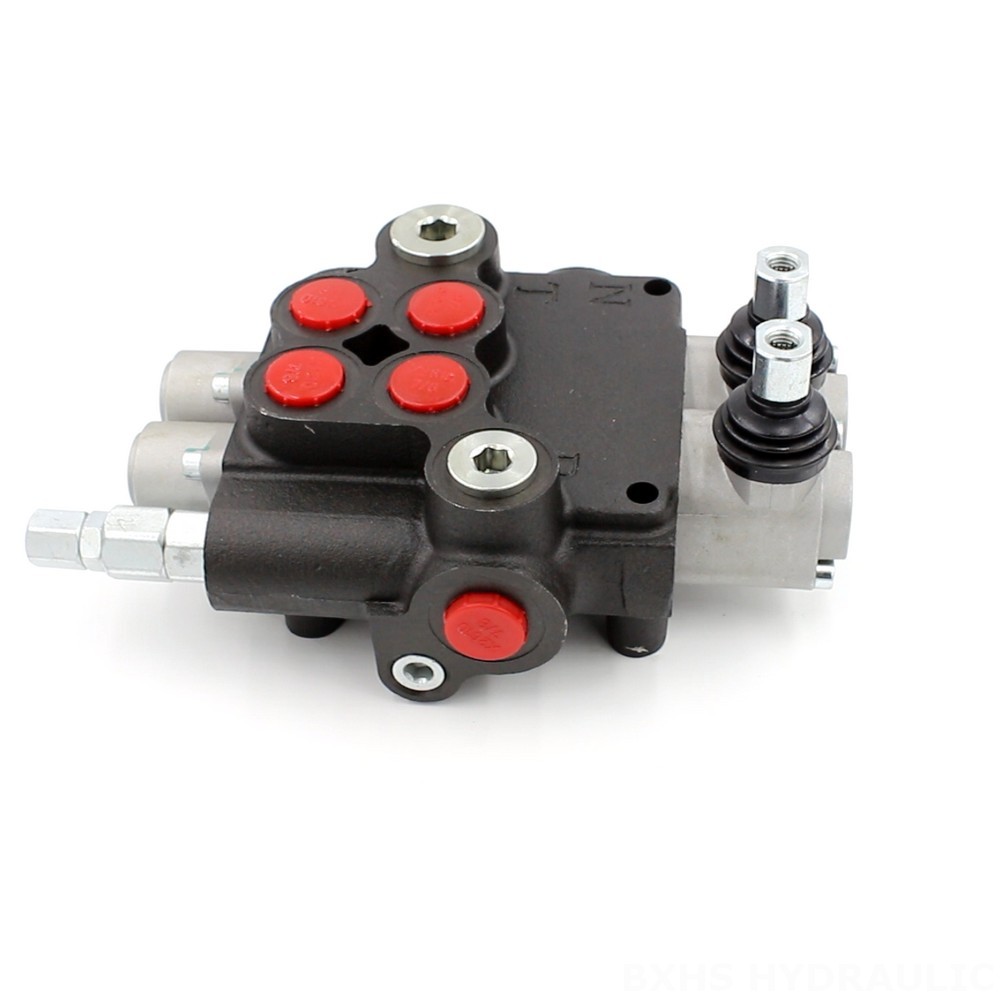

P80-U116-U78-2OT Manual 2 Spool Monoblock Directional Valve detailed image

P80-U116-U78-2OT Manual 2 Spool Monoblock Directional Valve drawing image

The P80-U116-U78-2OT Manual 2 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for a wide range of applications in the material handling, construction, agriculture, and industrial vehicle industries. With its compact design, high flow capacity, and robust construction, this valve offers reliable and efficient control of hydraulic systems.

Port Size	G1/2,G3/4,M22×1.5,M27×2.0,SAE 10,1/2 NPT,3/4 NPT
Section	1 Section,2 Section,3 Section,4 Section,5 Section,6 Section,7 Section
Ambient Temperature Range	-40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range	15 - 75 mm²/s (15 cSt to 75 cSt)
Max Pressure	315 bar (4600 psi)
Rated Flow	80 L/min (21.2 US gpm)
Structure Type	Monoblock valve
Control Method	Manual
Inlet Port	G1/2,G3/4,M27×2.0,SAE 10,SAE 12,1/2 NPT,3/4 NPT

**Product Features and Benefits:**

* Manual control for precise and responsive operation
* 2 spool design for independent control of multiple hydraulic circuits
* Monoblock construction for increased strength and durability
* Rated flow of 80 L/min (21.2 US gpm) for high system efficiency
* Maximum pressure of 250 bar (3600 psi) for demanding applications
* Operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) for compatibility with a wide range of hydraulic fluids
* Ambient temperature range of -40°C to +80°C (-40°F to +176°F) for operation in harsh environments

**Applications:**

The P80-U116-U78-2OT Manual 2 Spool Monoblock Directional Valve is suitable for a variety of applications, including:

* Material handling equipment: forklifts, telehandlers, cranes, stackers, aerial platforms
* Construction equipment: excavators, skid steer loaders, compact wheel loaders, backhoe loaders

P80-U116-U78-2OT Manual 2 Spool Monoblock Directional Valve application image
