P80 Solenoid 3 Spool Monoblock Directional Valve

Rated Flow:80 L/min (21.2 US gpm)

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:P80 Series Monoblock Directional Valve

Productsize:33*24*11

Netweight:12.50 kg

Availability: In Stock

  • 1 Spool
  • 2 Spool
  • 3 Spool
  • 4 Spool
  • 5 Spool
  • 6 Spool
  • 7 Spool
  • Manual
  • Pneumatic
  • Electro-pneumatic
  • Electro-hydraulic
  • Solenoid
  • Hydraulic
  • Hydraulic and Manual
  • Cable
  • Joystick
1008 Views are Looking for this Product

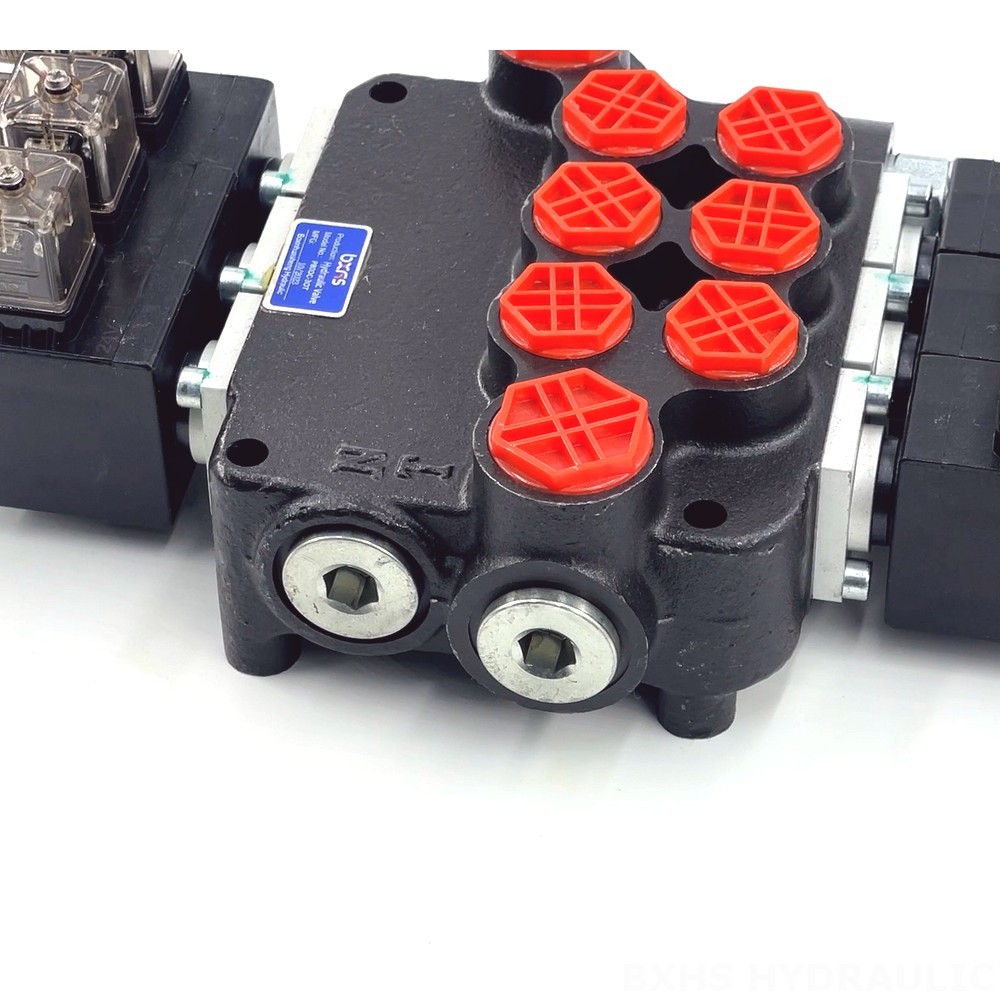

P80 Solenoid 3 Spool Monoblock Directional Valve detailed image

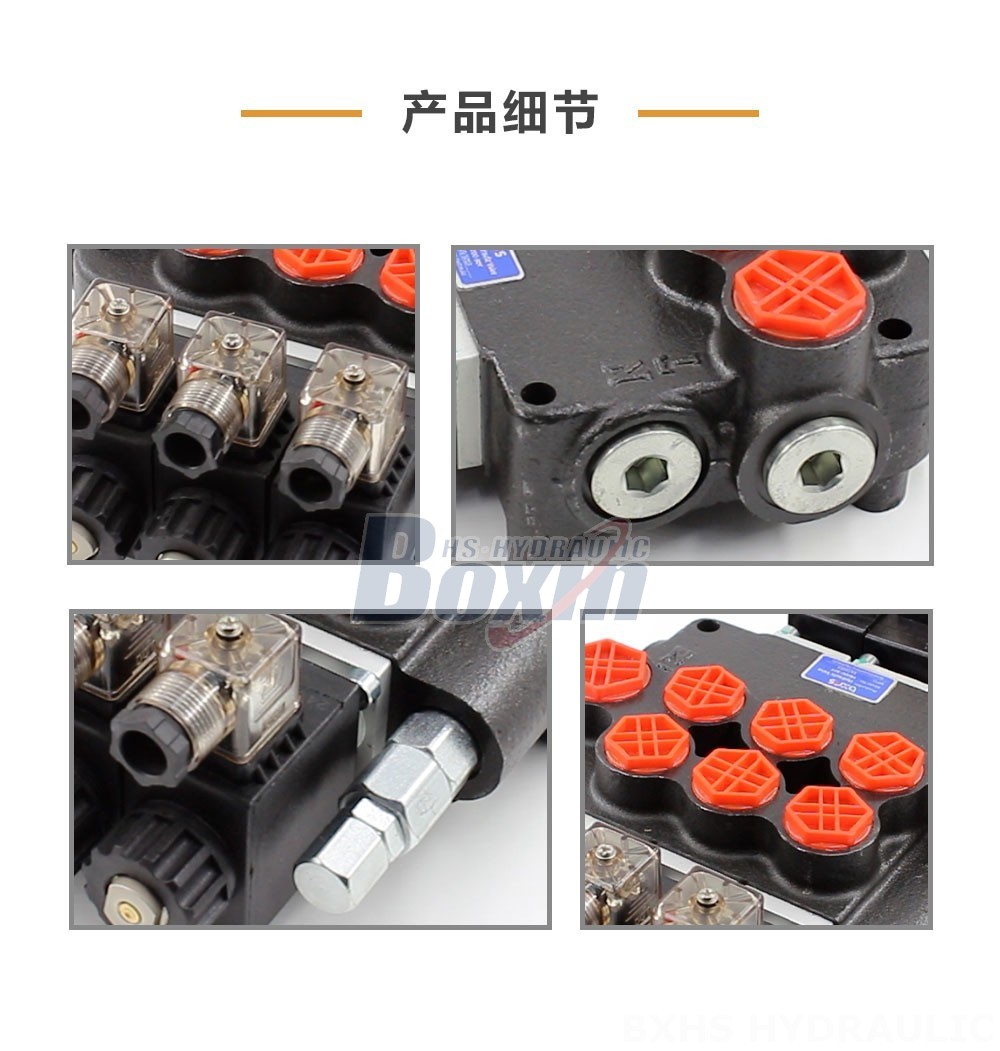

P80 Solenoid 3 Spool Monoblock Directional Valve detailed image

P80 Solenoid 3 Spool Monoblock Directional Valve drawing image

The P80 Solenoid 3 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for use in demanding applications. With a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure of 250 bar (3600 psi), this valve is suitable for a wide range of applications in the material handling, construction and earth moving, agriculture, and industrial vehicles industries.

Port Size G1/2,G3/4,M22×1.5,M27×2.0,SAE 10,1/2 NPT,3/4 NPT
Section 1 Section,2 Section,3 Section,4 Section,5 Section,6 Section,7 Section
Ambient Temperature Range -40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)
Max Pressure 315 bar (4600 psi)
Rated Flow 80 L/min (21.2 US gpm)
Structure Type Monoblock valve
Control Method Solenoid
Inlet Port G1/2,G3/4,M27×2.0,SAE 10,SAE 12,1/2 NPT,3/4 NPT

The P80 Solenoid 3 Spool Monoblock Directional Valve is a compact and lightweight valve that is easy to install and maintain. It features a robust construction and is designed to withstand the harsh conditions of industrial environments. This valve is also highly efficient and can help to reduce energy consumption in hydraulic systems.

The P80 Solenoid 3 Spool Monoblock Directional Valve is available in a variety of configurations to meet the specific requirements of your application. It can be used to control the flow of hydraulic fluid in a variety of applications, including:

- Material Handling: Forklifts, telehandlers, stackers, aerial platforms, and other material handling equipment.
- Construction and Earth Moving: Excavators, loaders, backhoes, and other construction and earth moving equipment.
- Agriculture: Tractors, harvesters, balers, and other agricultural equipment.
- Industrial Vehicles: Sweepers, waste compactors, and other industrial vehicles.
