P80-G34-OT Manual 3 Spool Monoblock Directional Valve

Rated Flow:80 L/min (21.2 US gpm)

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:P80 Series Monoblock Directional Valve

Productsize:25.1*20.8*8

Netweight:10.10 kg

Availability: In Stock

  • 1 Spool
  • 2 Spool
  • 3 Spool
  • 4 Spool
  • 5 Spool
  • 6 Spool
  • 7 Spool
  • Manual
  • Pneumatic
  • Electro-pneumatic
  • Electro-hydraulic
  • Solenoid
  • Hydraulic
  • Hydraulic and Manual
  • Cable
  • Joystick
715 Views are Looking for this Product

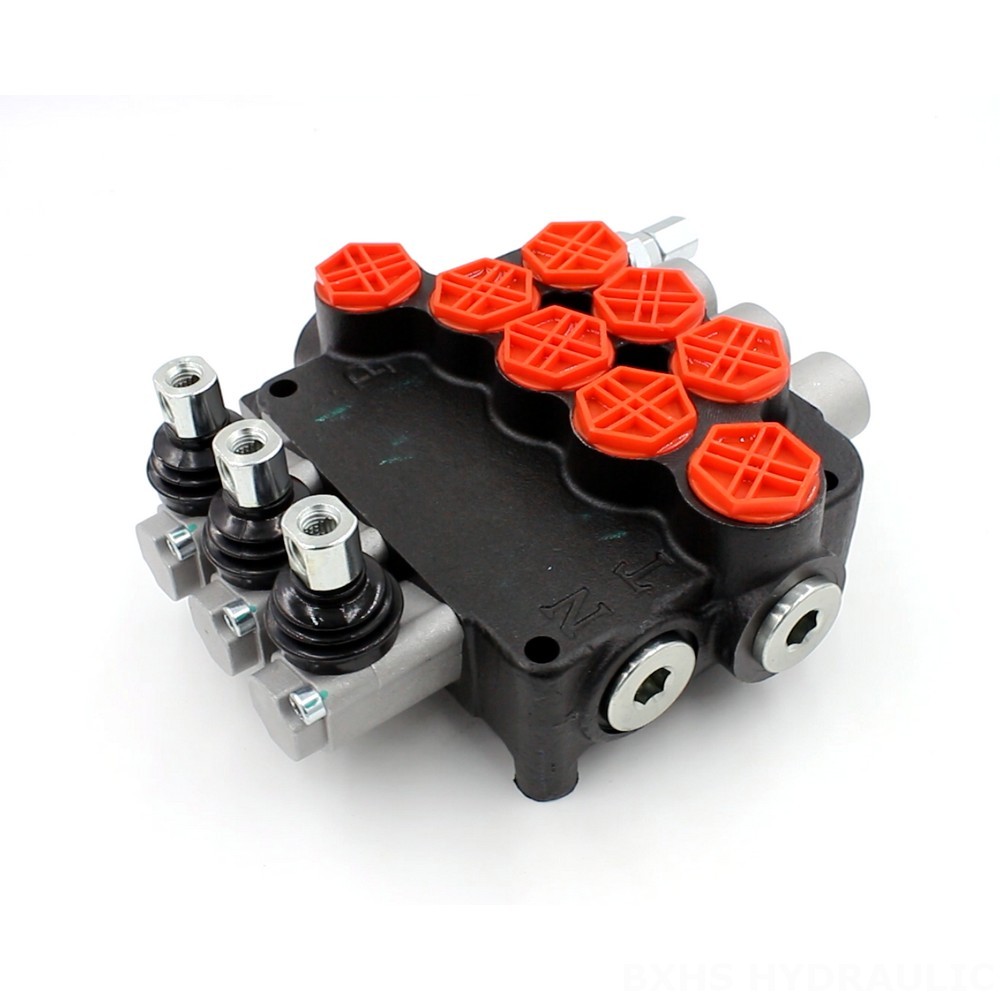

P80-G34-OT Manual 3 Spool Monoblock Directional Valve detailed image

P80-G34-OT Manual 3 Spool Monoblock Directional Valve detailed image

P80-G34-OT Manual 3 Spool Monoblock Directional Valve drawing image

The P80-G34-OT Manual 3 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for use in a wide range of industrial and mobile applications. With a rated flow of 80 L/min and a maximum pressure of 250 bar, this valve is capable of handling demanding hydraulic systems. Its compact monoblock design and manual control make it easy to install and operate.

Port Size G1/2,G3/4,M22×1.5,M27×2.0,SAE 10,1/2 NPT,3/4 NPT
Section 1 Section,2 Section,3 Section,4 Section,5 Section,6 Section,7 Section
Ambient Temperature Range -40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)
Max Pressure 315 bar (4600 psi)
Rated Flow 80 L/min (21.2 US gpm)
Structure Type Monoblock valve
Control Method Manual
Inlet Port G1/2,G3/4,M27×2.0,SAE 10,SAE 12,1/2 NPT,3/4 NPT

**Product Features and Benefits:**

* High flow capacity of 80 L/min for efficient system operation
* Maximum pressure of 250 bar for demanding applications
* Compact monoblock design for easy installation and space saving
* Manual control for precise and reliable operation
* 3-section design for versatile flow control
* Wide operating viscosity range of 15 - 75 mm²/s for compatibility with various fluids
* Operating temperature range of -40°C to +80°C for use in harsh environments
* Durable construction for long service life

**Applications:**

* Material handling equipment (e.g., forklifts, telehandlers, cranes)
* Construction and earth moving machinery (e.g., excavators, loaders, graders)
* Agricultural machinery (e.g., tractors, harvesters, balers)
* Industrial vehicles (e.g., sweepers, waste compactors, hook-loaders)

P80-G34-OT Manual 3 Spool Monoblock Directional Valve application image

P80-G34-OT Manual 3 Spool Monoblock Directional Valve packing image

P80-G34-OT Manual 3 Spool Monoblock Directional Valve company image

P80-G34-OT Manual 3 Spool Monoblock Directional Valve certification image
