P80-G12-OW Manual 1 Spool Monoblock Directional Valve

Rated Flow:80 L/min (21.2 US gpm)

Max Pressure:250 bar (3600 psi)

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:P80 Series Monoblock Directional Valve

Productsize:25.1*10.5*8

Netweight:4.80 kg

Availability: In Stock

Description

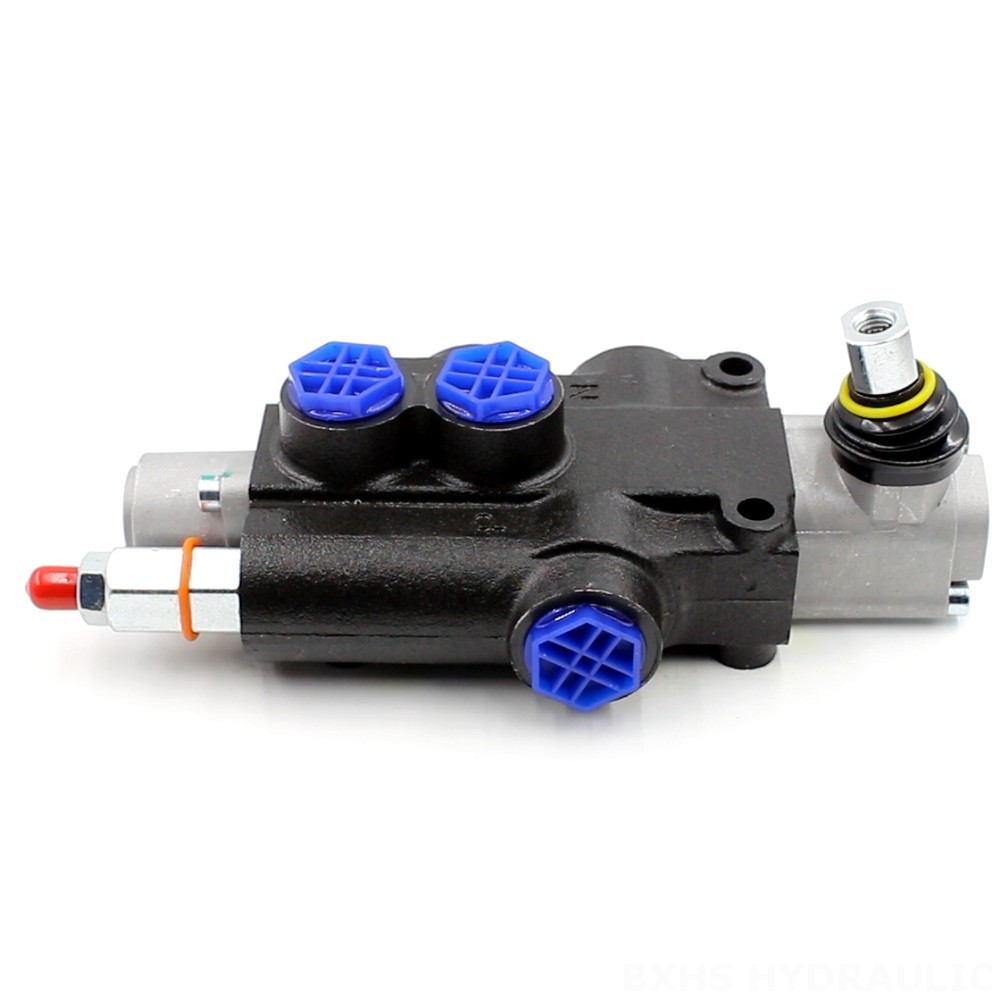

P80-G12-OW Manual 1 Spool Monoblock Directional Valve detailed image

P80-G12-OW Manual 1 Spool Monoblock Directional Valve drawing image

The P80-G12-OW Manual 1 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for demanding applications. With a rated flow of 80 L/min and a maximum pressure of 250 bar, it provides precise and reliable flow control. Its monoblock construction ensures durability and compactness, making it suitable for various industrial and mobile machinery applications.

P80 Series Monoblock Directional Valve Parameters
Spool	1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Control Method	Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick
Port Size	G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT
Section	1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section
Ambient Temperature Range	-40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range	15 - 75 mm²/s (15 cSt to 75 cSt)
Max Pressure	315 bar (4600 psi)
Rated Flow	80 L/min (21.2 US gpm)
Structure Type	Monoblock valve
Inlet Port	G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT

**Product Features**

- Manual control for precise flow regulation
- Monoblock design for durability and compact size
- 1 spool for efficient flow control
- Rated flow of 80 L/min for high flow capacity
- Maximum pressure of 250 bar for high-pressure applications
- Operating viscosity range of 15 - 75 mm²/s for compatibility with various fluids
- Ambient temperature range of -40°C to +80°C for wide operating conditions

**Applications**

The P80-G12-OW Manual 1 Spool Monoblock Directional Valve is widely used in various applications, including:

- Construction and earth-moving equipment
- Material handling systems
- Industrial vehicles
- Agricultural machinery
