P80-G12-G34-OW Manual 5 Spool Monoblock Directional Valve

Rated Flow:80 L/min (21.2 US gpm)

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:P80 Series Monoblock Directional Valve

Productsize:25.1*28.4*8

Netweight:14.80 kg

Availability: In Stock

  • 1 Spool
  • 2 Spool
  • 3 Spool
  • 4 Spool
  • 5 Spool
  • 6 Spool
  • 7 Spool
  • Manual
  • Pneumatic
  • Electro-pneumatic
  • Electro-hydraulic
  • Solenoid
  • Hydraulic
  • Hydraulic and Manual
  • Cable
  • Joystick
730 Views are Looking for this Product

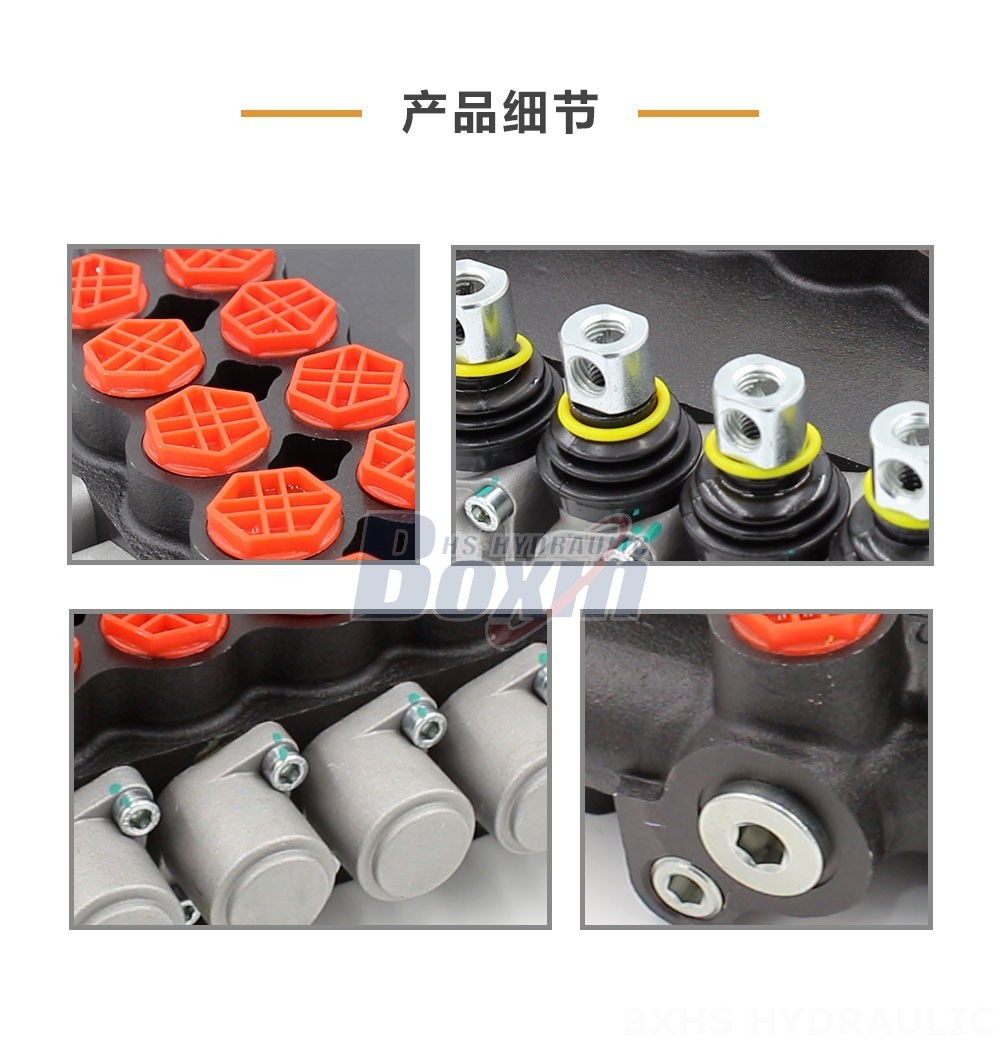

P80-G12-G34-OW Manual 5 Spool Monoblock Directional Valve detailed image

P80-G12-G34-OW Manual 5 Spool Monoblock Directional Valve detailed image

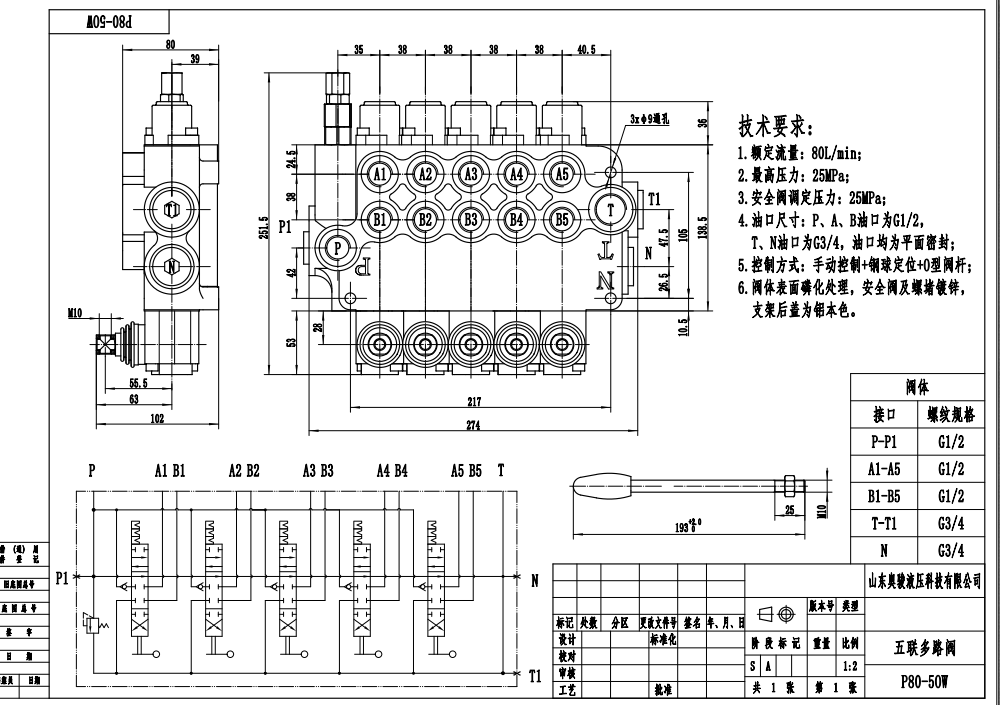

P80-G12-G34-OW Manual 5 Spool Monoblock Directional Valve drawing image

P80-G12-G34-OW Manual 5 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for demanding applications in various industries. With its robust construction, manual control, and excellent flow and pressure handling capabilities, it offers reliable and efficient control of hydraulic systems. The valve is suitable for a wide range of applications, including construction equipment, agricultural machinery, and industrial vehicles.

Port Size G1/2,G3/4,M22×1.5,M27×2.0,SAE 10,1/2 NPT,3/4 NPT
Section 1 Section,2 Section,3 Section,4 Section,5 Section,6 Section,7 Section
Ambient Temperature Range -40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)
Max Pressure 315 bar (4600 psi)
Rated Flow 80 L/min (21.2 US gpm)
Structure Type Monoblock valve
Control Method Manual
Inlet Port G1/2,G3/4,M27×2.0,SAE 10,SAE 12,1/2 NPT,3/4 NPT

**Product Features and Benefits:**

- Manual control for precise and responsive operation
- 5 spool design for versatile flow control
- Robust monoblock construction for durability and reliability
- Rated flow of 80 L/min for high system efficiency
- Maximum pressure of 250 bar for demanding applications
- Operating viscosity range of 15 - 75 mm²/s for compatibility with various fluids
- Ambient temperature range of -40°C to +80°C for use in harsh environments

**Applications:**

- Construction equipment: excavators, loaders, cranes, graders
- Agricultural machinery: tractors, harvesters, balers, sprayers
- Industrial vehicles: forklifts, telehandlers, aerial platforms, sweepers
- Other applications: waste compactors, concrete pumps, drilling rigs
