P80 Cable 3 Spool Monoblock Directional Valve

Rated Flow:80 L/min (21.2 US gpm)

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:P80 Series Monoblock Directional Valve

Productsize:22*32*10

Netweight:9.40 kg

Availability: In Stock

  • 1 Spool
  • 2 Spool
  • 3 Spool
  • 4 Spool
  • 5 Spool
  • 6 Spool
  • 7 Spool
  • Manual
  • Pneumatic
  • Electro-pneumatic
  • Electro-hydraulic
  • Solenoid
  • Hydraulic
  • Hydraulic and Manual
  • Cable
  • Joystick
1103 Views are Looking for this Product

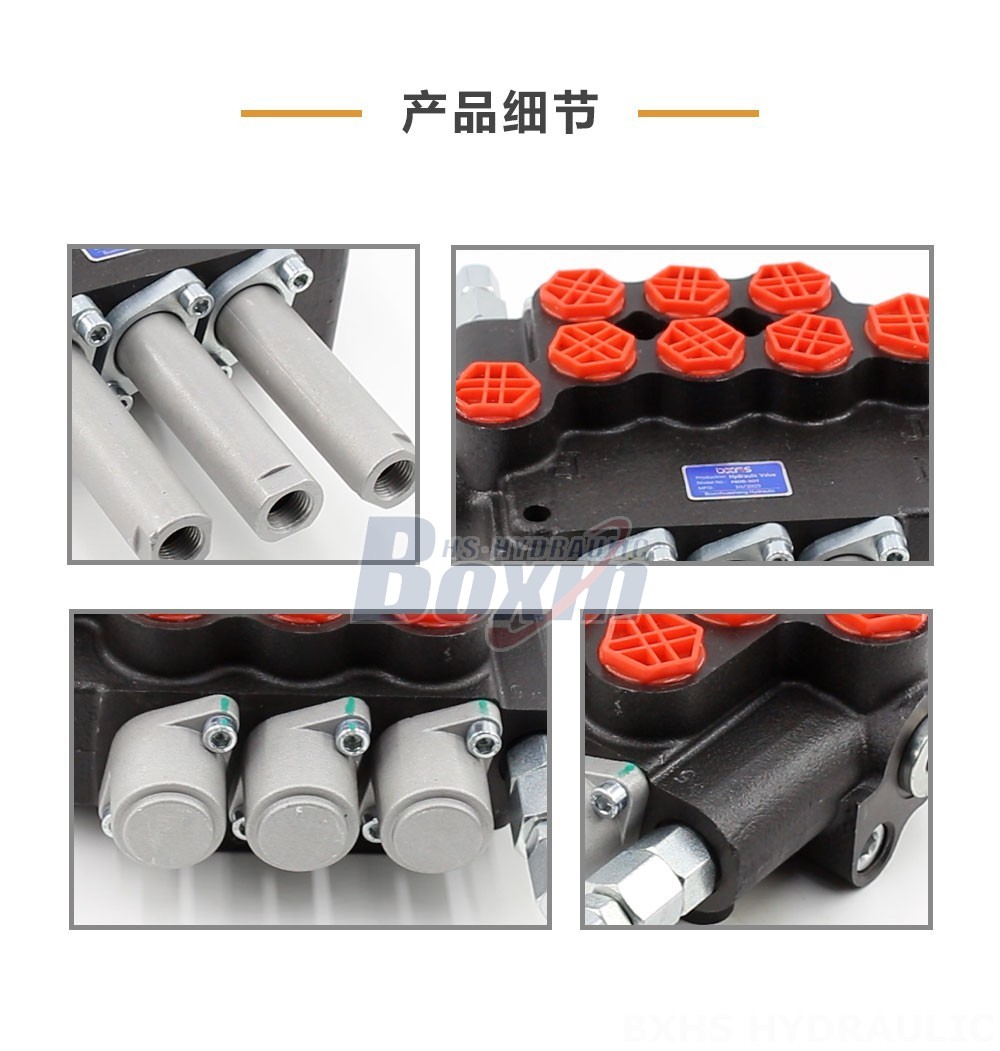

P80 Cable 3 Spool Monoblock Directional Valve detailed image

P80 Cable 3 Spool Monoblock Directional Valve detailed image

P80 Cable 3 Spool Monoblock Directional Valve drawing image

The P80 Cable 3 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for demanding applications in various industries. It features a cable control mechanism, 3 spool sections, and a sturdy monoblock construction. With a rated flow rate of 80 L/min and a maximum pressure of 250 bar, it can handle substantial hydraulic flows and pressures. Its wide operating viscosity range and temperature tolerance make it suitable for diverse operating conditions.

Port Size G1/2,G3/4,M22×1.5,M27×2.0,SAE 10,1/2 NPT,3/4 NPT
Section 1 Section,2 Section,3 Section,4 Section,5 Section,6 Section,7 Section
Ambient Temperature Range -40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)
Max Pressure 315 bar (4600 psi)
Rated Flow 80 L/min (21.2 US gpm)
Structure Type Monoblock valve
Control Method Cable
Inlet Port G1/2,G3/4,M27×2.0,SAE 10,SAE 12,1/2 NPT,3/4 NPT

**Product Features and Benefits:**

* **Cable Control:** Provides precise and responsive control over valve operation.
* **3 Spool Sections:** Allows for independent control of multiple hydraulic circuits.
* **Monoblock Construction:** Ensures structural rigidity and durability in harsh environments.
* **High Flow Capacity:** Handles hydraulic flows up to 80 L/min for efficient system operation.
* **High Pressure Rating:** Withstands pressures up to 250 bar for demanding applications.
* **Wide Viscosity Range:** Operates reliably with hydraulic fluids ranging from 15 to 75 mm²/s viscosity.
* **Temperature Tolerance:** Maintains performance in ambient temperatures from -40°C to +80°C.

**Applications:**

The P80 Cable 3 Spool Monoblock Directional Valve finds applications in various hydraulic systems, including:

* Material Handling Equipment: Forklifts, telehandlers, stackers
* Construction and Earth Moving Equipment: Excavators, skid steer loaders, motor graders
* Agricultural Machinery: Tractors, harvesters, balers
* Industrial Vehicles: Sweepers, waste compactors, hook-loaders
