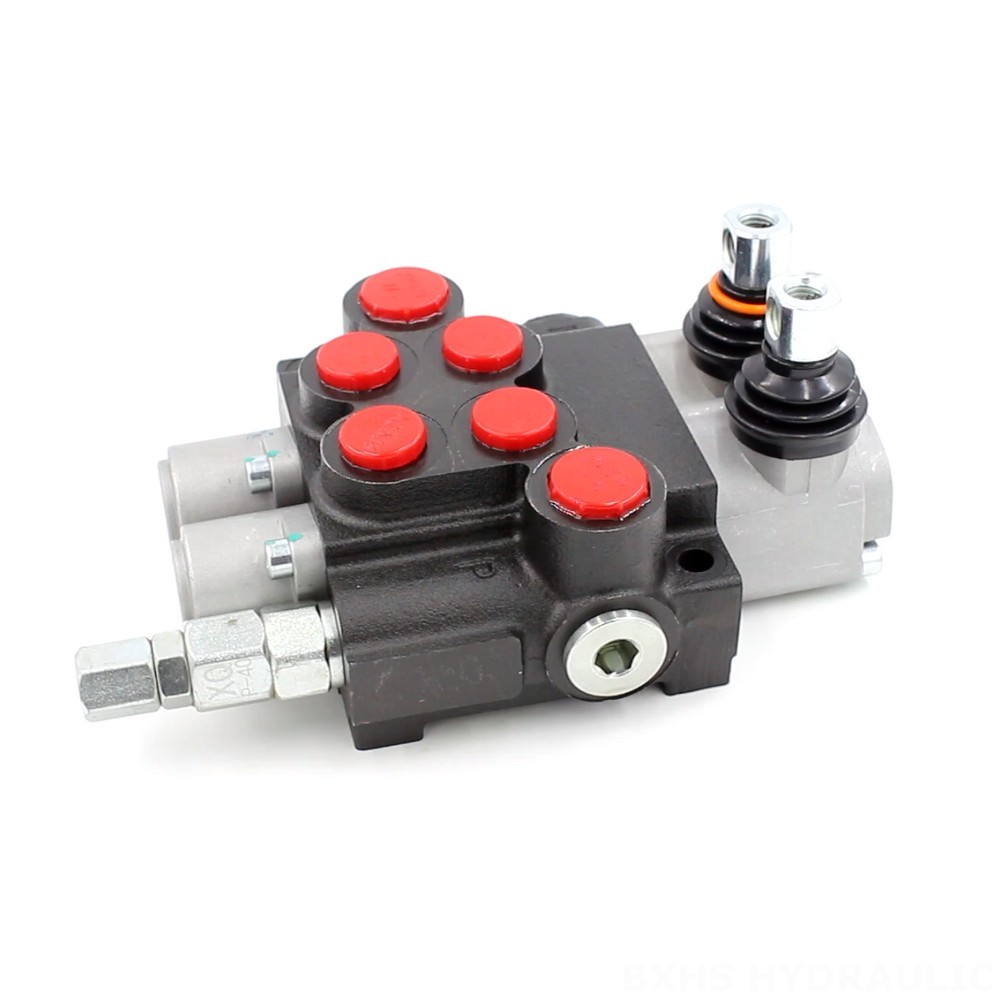

The P40-U78-U34-OT-YW Manual 2 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for use in various industrial applications. With a rated flow of 40 L/min and a maximum pressure of 250 bar, it offers precise and reliable control of fluid flow. Its compact monoblock design and manual operation make it suitable for a wide range of machinery and equipment.
| Rated Flow | 40 L/min (10.5 US gpm) |
|---|---|
| Max Pressure | 250 bar (3600 psi) |
| Inlet Port | G3/8,G1/2,M18×1.5,M22×1.5,SAE 8,SAE 10,3/8 NPT,1/2 NPT |
| Outlet Port | G3/8,G1/2,M18×1.5,M22×1.5,SAE 8,SAE 10,3/8 NPT,1/2 NPT |
| Port Size | G3/8,G1/2,M18×1.5,SAE 8,SAE 10,3/8 NPT,1/2 NPT |
| Section | 1 Section,2 Section,3 Section,4 Section,5 Section,6 Section,7 Section |
| Structure Type | Monoblock valve |
| Control Method | Manual |
| Ambient Temperature Range | -40°C to +80°C (-40°F to +176°F) |
| Operating Viscosity Range | 15 - 75 mm²/s (15 cSt to 75 cSt) |
**Product Features:**
* Manual control for precise and responsive operation
* 2 spool design allows for independent control of two separate fluid paths
* Monoblock construction provides a compact and durable design
* Rated flow of 40 L/min ensures efficient performance
* Maximum pressure of 250 bar for reliable operation in demanding applications
* Operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) for compatibility with various hydraulic fluids
* Ambient temperature range of -40°C to +80°C (-40°F to +176°F) for operation in diverse environments
**Applications:**
The P40-U78-U34-OT-YW Manual 2 Spool Monoblock Directional Valve is suitable for use in various applications, including:
* Hydraulic systems in construction equipment
* Agricultural machinery
* Industrial vehicles
* Material handling equipment
* Mobile hydraulics
* Fluid power systems
