1734 Views are Looking for this Product

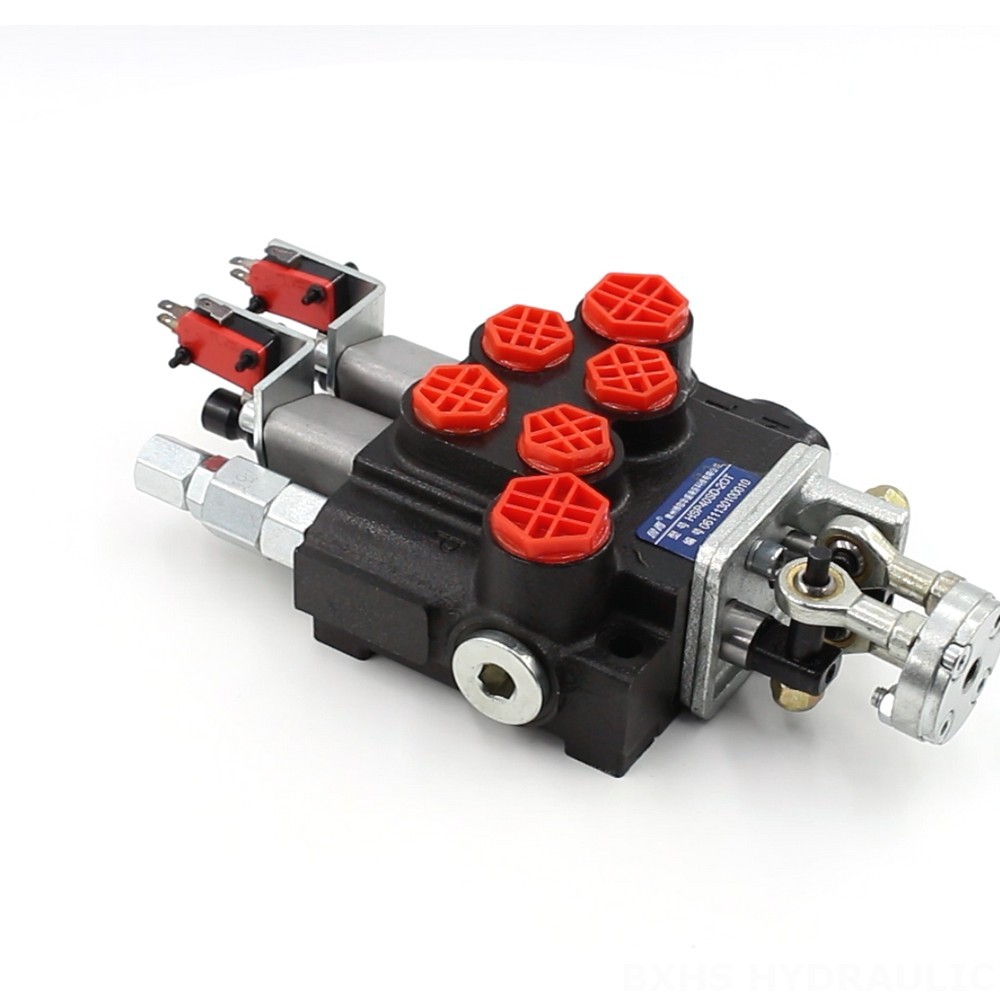

The P40 Micro Switch Joystick 2 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for precise control in various applications. With a rated flow of 40 L/min and a maximum pressure of 250 bar, it offers reliable and efficient operation in demanding conditions.
| P40 Series Monoblock Directional Valve Parameters | |
|---|---|
| Control Method | Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick, Manual and Joystick |
| Spool | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Rated Flow | 40 L/min (10.5 US gpm) |
| Max Pressure | 250 bar (3600 psi) |
| Inlet Port | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Outlet Port | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Size | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Section | 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section |
| Structure Type | Monoblock valve |
| Ambient Temperature Range | -40°C to +80°C (-40°F to +176°F) |
| Operating Viscosity Range | 15 - 75 mm²/s (15 cSt to 75 cSt) |
**Product Features:**
* Joystick control for intuitive and ergonomic operation
* 2-spool design for independent control of two hydraulic functions
* Monoblock construction for compact and robust design
* Rated flow of 40 L/min for efficient hydraulic power
* Maximum pressure of 250 bar for heavy-duty applications
* Operating viscosity range of 15 - 75 mm²/s for compatibility with various hydraulic fluids
* Ambient temperature range of -40°C to +80°C for operation in extreme conditions
**Applications:**
* Material handling equipment
* Construction machinery
* Agricultural vehicles
* Industrial vehicles
* Telehandlers
* Forklifts
* Mini-excavators
* Skid steer loaders
* Compact wheel loaders
* Backhoe loaders
* Harvesters
* Backhoes
* Sprayers
* Balers.
