P40 Manual and Joystick 4 Spool Monoblock Directional Valve

Rated Flow:40 L/min (10.5 US gpm)

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:P40 Series Monoblock Directional Valve

Productsize:22*23*12

Netweight:7.80 kg

Availability: In Stock

Description

P40 Manual and Joystick 4 Spool Monoblock Directional Valve detailed image

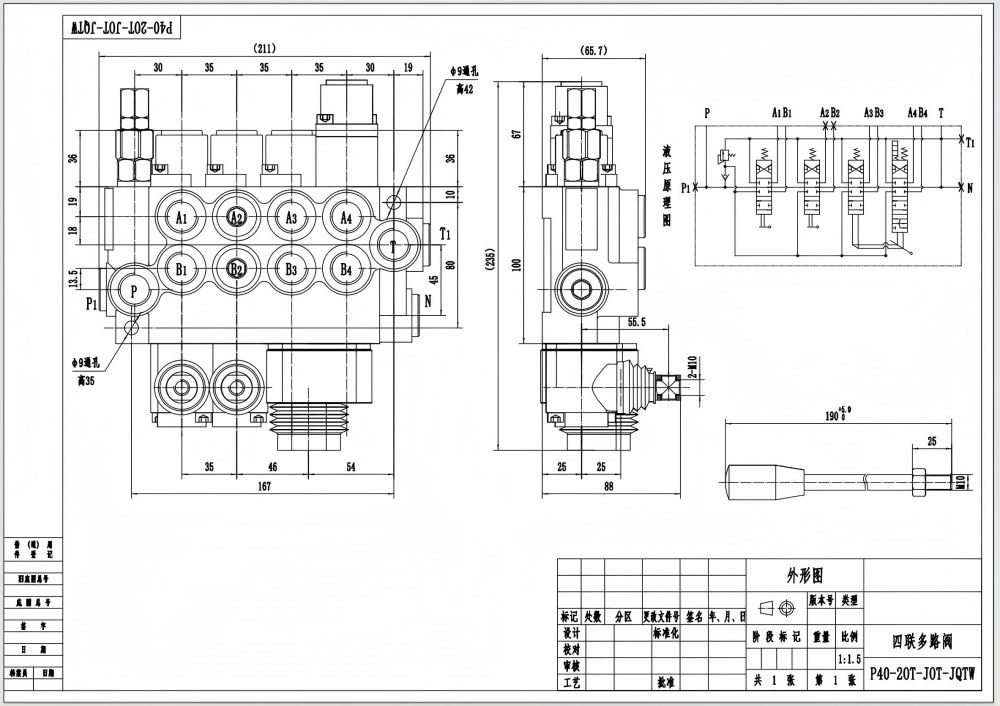

P40 Manual and Joystick 4 Spool Monoblock Directional Valve drawing image

The P40 Manual and Joystick 4 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for use in demanding applications requiring precise control of fluid flow. With a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 250 bar (3600 psi), this valve is suitable for a wide range of applications in the material handling, construction, agriculture, and industrial vehicle industries.

Rated Flow	40 L/min (10.5 US gpm)
Max Pressure	250 bar (3600 psi)
Inlet Port	G3/8,G1/2,M18×1.5,M22×1.5,SAE 8,SAE 10,3/8 NPT,1/2 NPT
Outlet Port	G3/8,G1/2,M18×1.5,M22×1.5,SAE 8,SAE 10,3/8 NPT,1/2 NPT
Port Size	G3/8,G1/2,M18×1.5,SAE 8,SAE 10,3/8 NPT,1/2 NPT
Section	1 Section,2 Section,3 Section,4 Section,5 Section,6 Section,7 Section
Structure Type	Monoblock valve
Control Method	Manual and Joystick
Ambient Temperature Range	-40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range	15 - 75 mm²/s (15 cSt to 75 cSt)

**Product Features and Benefits:**

* Manual and joystick control for precise and easy operation
* Monoblock construction for increased durability and reduced leakage
* 4 spool design for versatile flow control
* Flow capacity of 40 L/min (10.5 US gpm) for efficient operation
* Maximum pressure of 250 bar (3600 psi) for demanding applications
* Wide operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) for compatibility with various fluids
* Wide ambient temperature range of -40°C to +80°C (-40°F to +176°F) for use in extreme environments

**Applications:**

* Material handling equipment, such as forklifts, telehandlers, and cranes
* Construction equipment, such as excavators, loaders, and graders
* Agricultural machinery, such as tractors and harvesters
* Industrial vehicles, such as sweepers, compactors, and waste handlers

P40 Manual and Joystick 4 Spool Monoblock Directional Valve application image
