572 Views are Looking for this Product

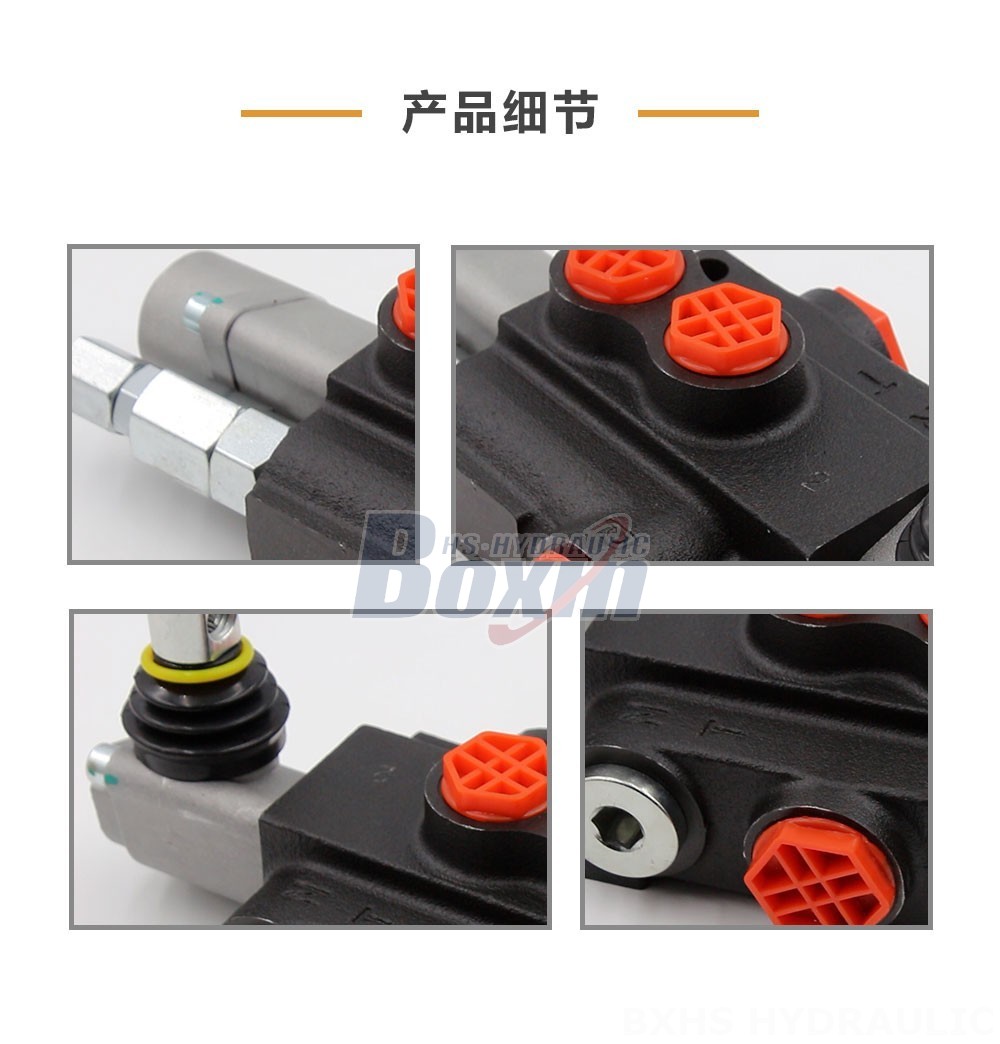

The P40-G12-G38-OTW Manual 1 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for use in a wide range of industrial applications. It features a manual control method, a 1 section design, and a monoblock valve structure. With a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 250 bar (3600 psi), this valve is capable of handling high flow rates and pressures. The operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) and the ambient temperature range of -40°C to +80°C (-40°F to +176°F) ensure reliable operation in various operating conditions. The valve has 1 spool, providing precise control over the flow of hydraulic fluid.
| Rated Flow | 40 L/min (10.5 US gpm) |
|---|---|
| Max Pressure | 250 bar (3600 psi) |
| Inlet Port | G3/8,G1/2,M18×1.5,M22×1.5,SAE 8,SAE 10,3/8 NPT,1/2 NPT |
| Outlet Port | G3/8,G1/2,M18×1.5,M22×1.5,SAE 8,SAE 10,3/8 NPT,1/2 NPT |
| Port Size | G3/8,G1/2,M18×1.5,SAE 8,SAE 10,3/8 NPT,1/2 NPT |
| Section | 1 Section,2 Section,3 Section,4 Section,5 Section,6 Section,7 Section |
| Structure Type | Monoblock valve |
| Control Method | Manual |
| Ambient Temperature Range | -40°C to +80°C (-40°F to +176°F) |
| Operating Viscosity Range | 15 - 75 mm²/s (15 cSt to 75 cSt) |
**Product Features and Benefits:**
* Manual control method for precise and responsive operation
* 1 section design for simple and efficient hydraulic system integration
* Monoblock valve structure for compact size and reduced leakage
* Rated flow of 40 L/min (10.5 US gpm) for efficient fluid handling
* Maximum pressure of 250 bar (3600 psi) for demanding applications
* Wide operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) for compatibility with various hydraulic fluids
* Ambient temperature range of -40°C to +80°C (-40°F to +176°F) for reliable operation in extreme conditions
* 1 spool for precise flow control
**Applications:**
* Industrial machinery
* Construction equipment
* Agricultural equipment
* Material handling equipment
* Mobile hydraulic systems
