P40-G12-G38 Manual 4 Spool Monoblock Directional Valve: Reliable Hydraulic Control Solution

Max Pressure:250 bar (3600 psi)

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:P40 Series Monoblock Directional Valve

Productsize:23*22*12

Netweight:8.00 kg

Availability: In Stock

Description

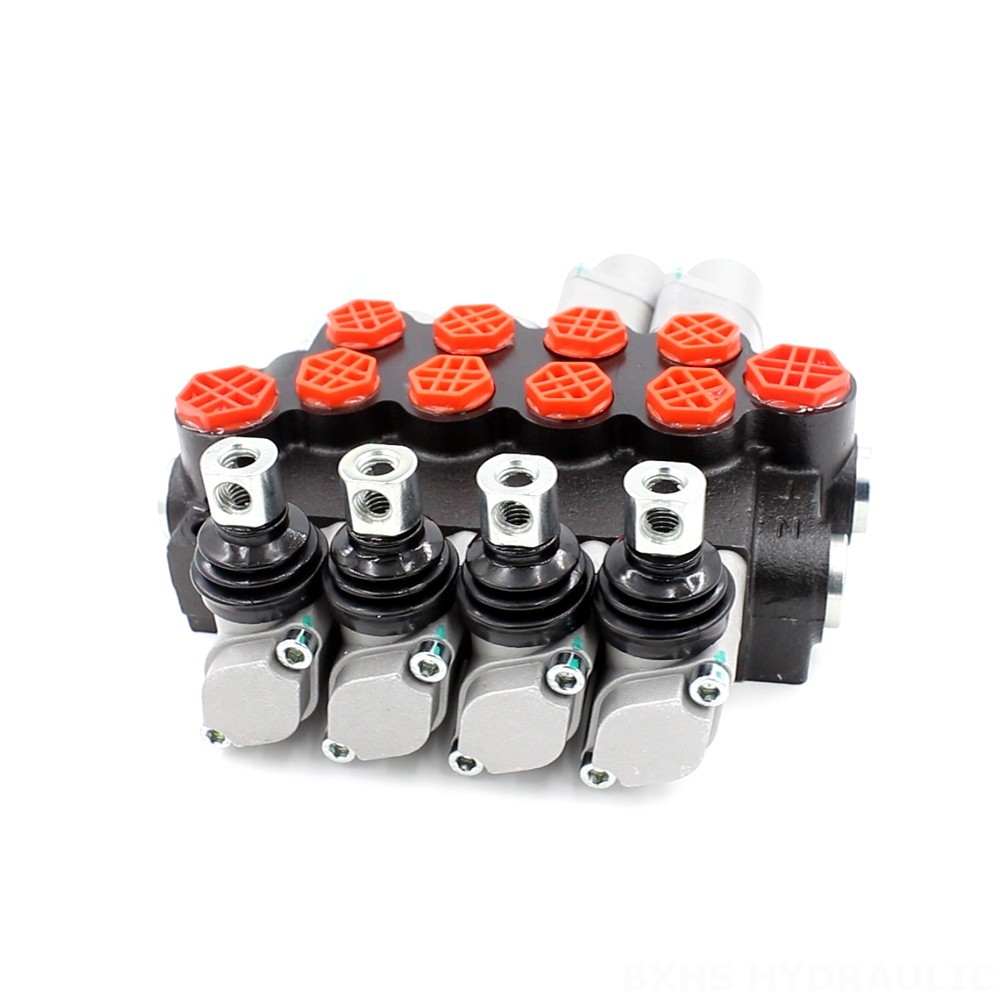

P40-G12-G38 Manual 4 Spool Monoblock Directional Valve: Reliable Hydraulic Control Solution detailed image

P40-G12-G38 Manual 4 Spool Monoblock Directional Valve: Reliable Hydraulic Control Solution drawing image

The P40-G12-G38 Manual 4 Spool Monoblock Directional Valve is an industrial-grade hydraulic valve designed for reliable control in various applications. It features a compact monoblock design, manual control, and a flow rate of up to 40 L/min (10.5 US gpm).

Rated Flow	40 L/min (10.5 US gpm)
Max Pressure	250 bar (3600 psi)
Inlet Port	G3/8,G1/2,M18×1.5,M22×1.5,SAE 8,SAE 10,3/8 NPT,1/2 NPT
Outlet Port	G3/8,G1/2,M18×1.5,M22×1.5,SAE 8,SAE 10,3/8 NPT,1/2 NPT
Port Size	G3/8,G1/2,M18×1.5,SAE 8,SAE 10,3/8 NPT,1/2 NPT
Section	1 Section,2 Section,3 Section,4 Section,5 Section,6 Section,7 Section
Structure Type	Monoblock valve
Ambient Temperature Range	-40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range	15 - 75 mm²/s (15 cSt to 75 cSt)

**P40-G12-G38 Manual 4 Spool Monoblock Directional Valve**

**Features:**

- Manual control for precise operation
- Monoblock construction for compact design and high durability
- 4 spool design for versatile control
- Rated flow of 40 L/min (10.5 US gpm) for efficient operation
- Maximum pressure of 250 bar (3600 psi) for demanding applications
- Operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) for compatibility with various fluids
- Ambient temperature range of -40°C to +80°C (-40°F to +176°F) for use in diverse environments

**Applications:**

- Material handling equipment
- Construction and earth moving machinery
- Agricultural vehicles
- Industrial vehicles
