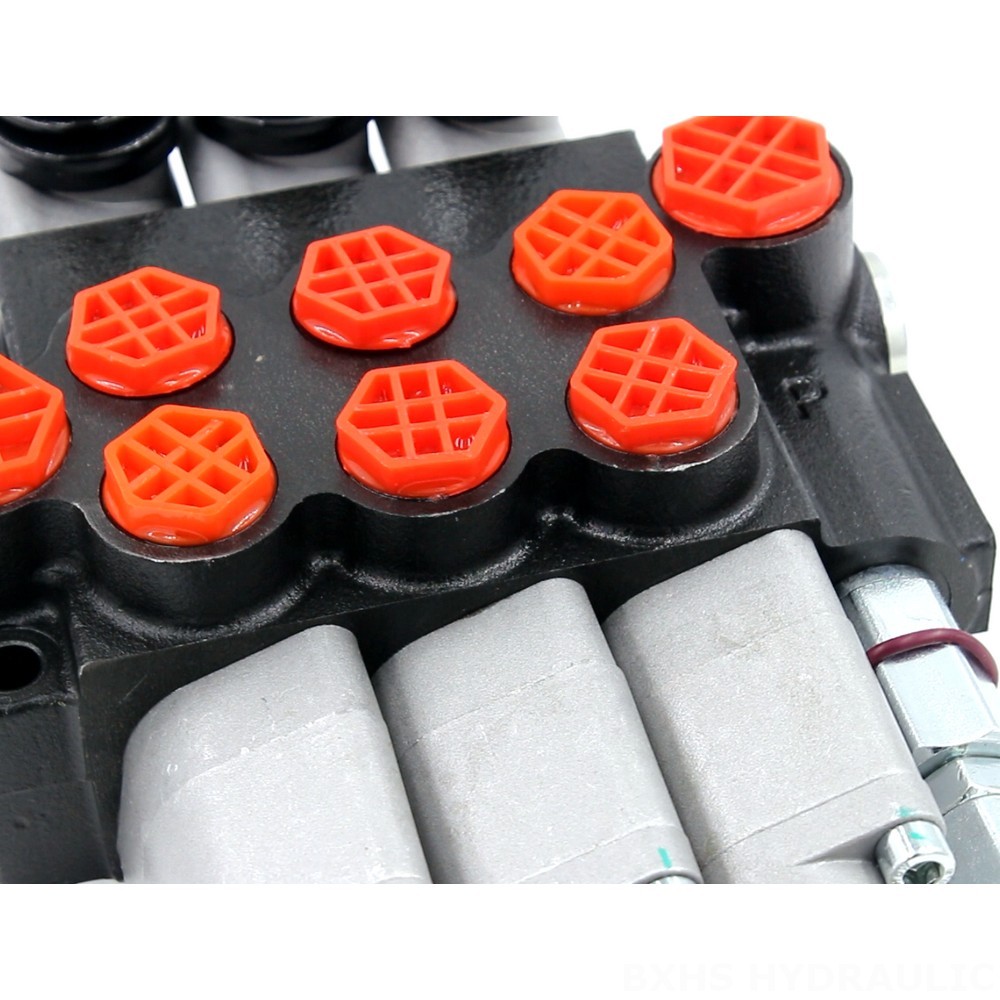

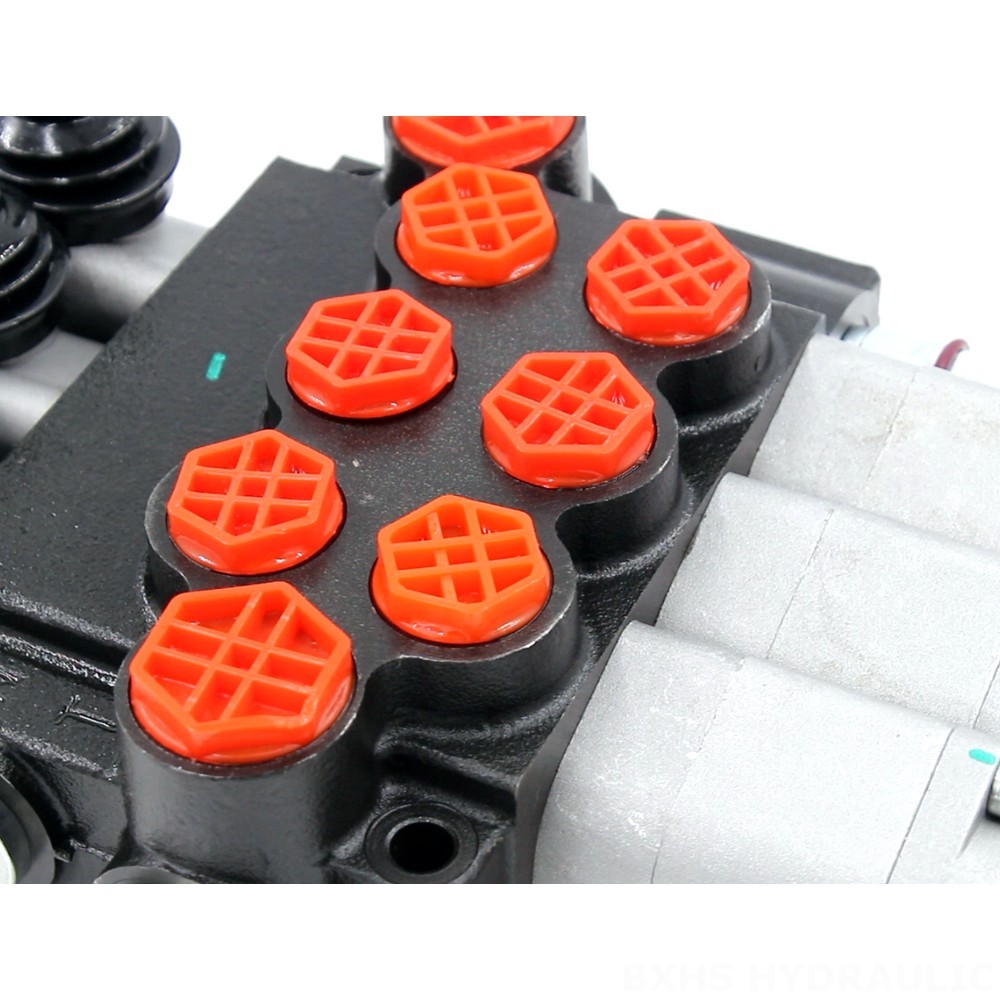

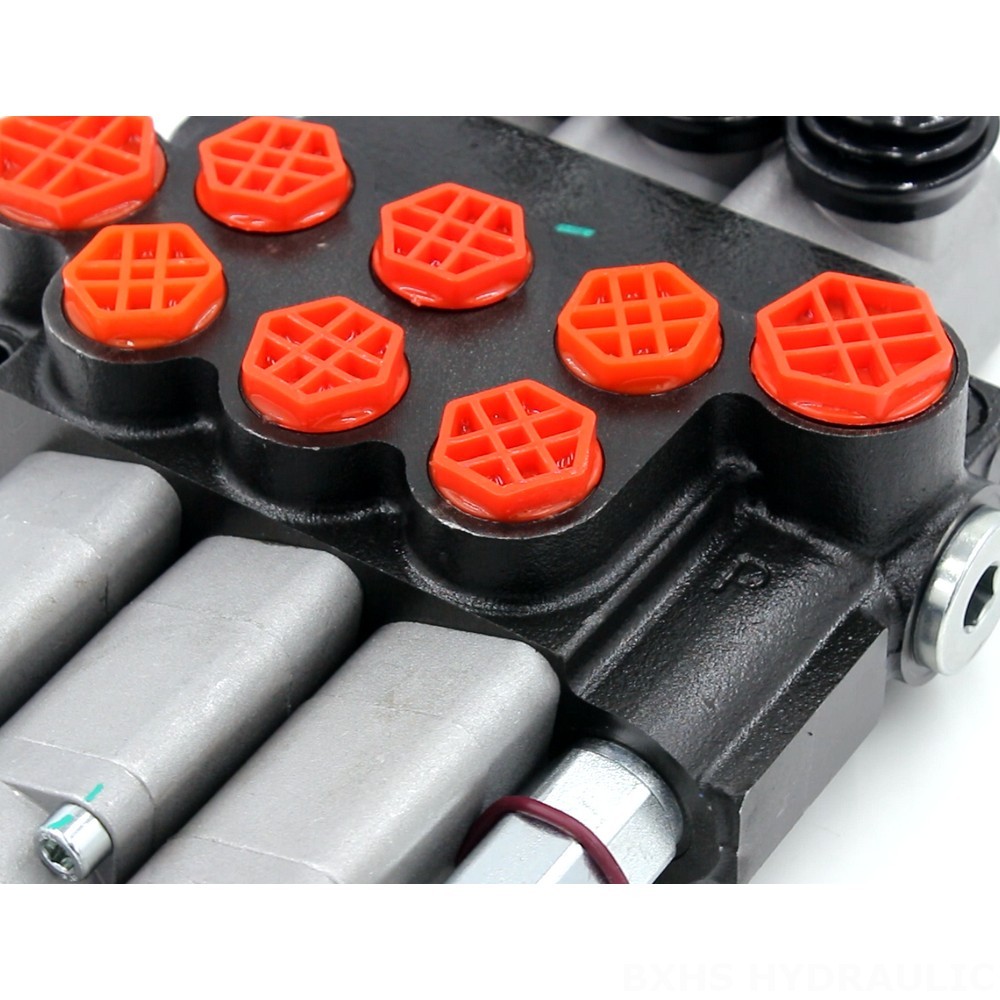

The P40-G12-G38-3QTW Manual 3 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for use in a wide range of industrial applications. It features a robust monoblock construction, manual control, and a flow rate of 40 L/min. With a maximum pressure of 250 bar and an operating temperature range of -40°C to +80°C, this valve is suitable for demanding applications in various industries.
| P40 Series Monoblock Directional Valve Parameters | |
|---|---|
| Control Method | Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick, Manual and Joystick |
| Spool | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Rated Flow | 40 L/min (10.5 US gpm) |
| Max Pressure | 250 bar (3600 psi) |
| Inlet Port | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Outlet Port | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Size | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Section | 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section |
| Structure Type | Monoblock valve |
| Ambient Temperature Range | -40°C to +80°C (-40°F to +176°F) |
| Operating Viscosity Range | 15 - 75 mm²/s (15 cSt to 75 cSt) |
**Product Features and Benefits:**
- Manual control for precise and reliable operation
- Monoblock construction for increased durability and reduced leakage
- Flow rate of 40 L/min for efficient operation
- Maximum pressure of 250 bar for demanding applications
- Wide operating temperature range of -40°C to +80°C for use in various environments
- 3 spool design for versatile control options
**Applications:**
- Material handling equipment
- Construction and earth moving machinery
- Agricultural machinery
- Industrial vehicles
- And many other hydraulic applications
