P40-G12-G38-2QTW1 Manual 2 Spool Monoblock Directional Valve

Rated Flow:40 L/min (10.5 US gpm)

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:P40 Series Monoblock Directional Valve

Productsize:22*17*12

Netweight:4.93 kg

Availability: In Stock

Description

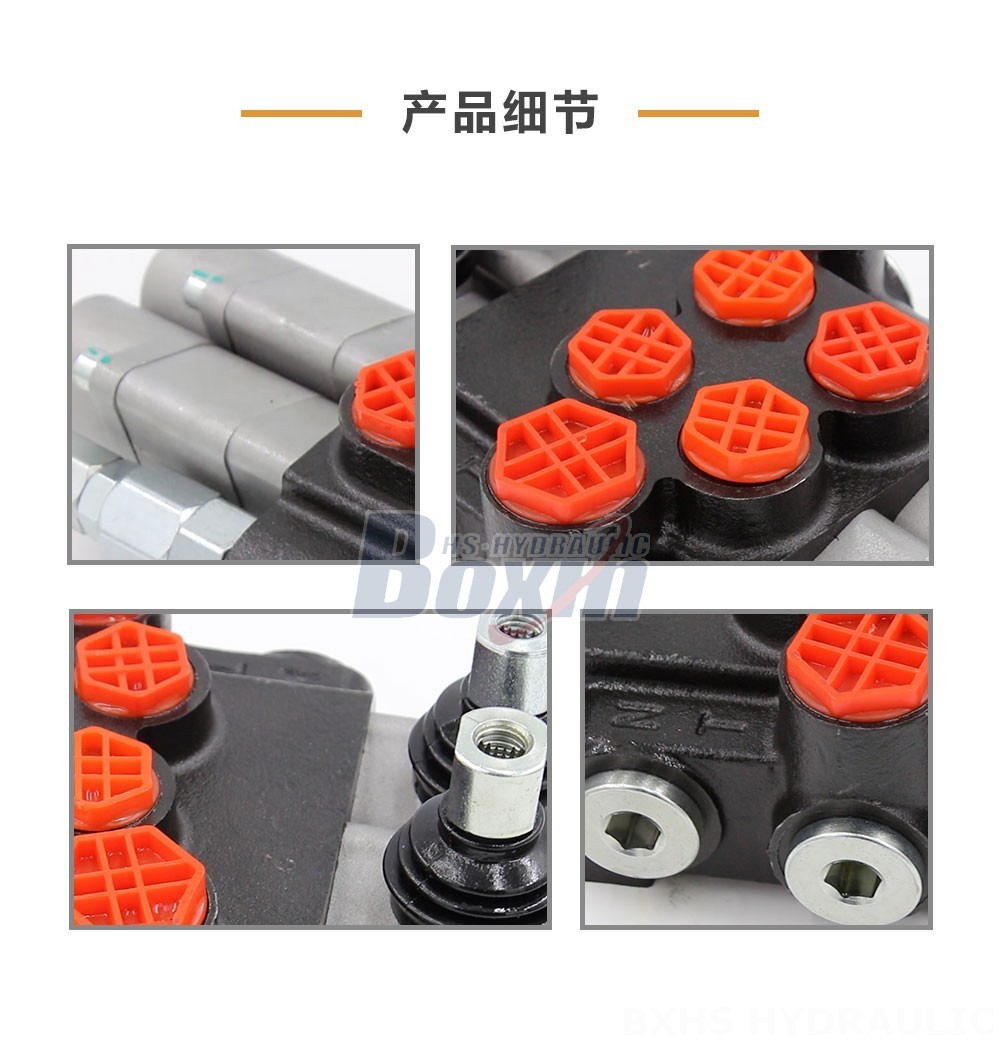

P40-G12-G38-2QTW1 Manual 2 Spool Monoblock Directional Valve detailed image

P40-G12-G38-2QTW1 Manual 2 Spool Monoblock Directional Valve drawing image

The P40-G12-G38-2QTW Manual 2 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for demanding applications in various industries. With a rated flow of 40 L/min and a max pressure of 250 bar, this valve provides reliable and efficient flow control for hydraulic systems. Its compact monoblock design offers space-saving benefits, while the manual control ensures precise and responsive operation.

Rated Flow	40 L/min (10.5 US gpm)
Max Pressure	250 bar (3600 psi)
Inlet Port	G3/8,G1/2,M18×1.5,M22×1.5,SAE 8,SAE 10,3/8 NPT,1/2 NPT
Outlet Port	G3/8,G1/2,M18×1.5,M22×1.5,SAE 8,SAE 10,3/8 NPT,1/2 NPT
Port Size	G3/8,G1/2,M18×1.5,SAE 8,SAE 10,3/8 NPT,1/2 NPT
Section	1 Section,2 Section,3 Section,4 Section,5 Section,6 Section,7 Section
Structure Type	Monoblock valve
Control Method	Manual
Ambient Temperature Range	-40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range	15 - 75 mm²/s (15 cSt to 75 cSt)

**Product Features and Benefits:**

* High flow capacity and pressure rating for demanding applications
* Compact monoblock design for space-saving installation
* Manual control for precise and responsive operation
* Durable construction for long-lasting performance
* Suitable for a wide range of hydraulic systems

**Applications:**

* Material handling equipment
* Construction and earth moving machinery
* Agricultural vehicles
* Industrial vehicles

**Applicable Machine Models:**

* Telehandlers
* Forklifts
* All terrain cranes
* Stackers
* Aerial platforms
* Motor graders
* Midi-excavators
* Mini-excavators
* Skid steer loaders
* Compact wheel loaders
