P40-G12-G38-2OT-QTW1 Manual 3 Spool Monoblock Directional Valve

Rated Flow:40 L/min (10.5 US gpm)

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:P40 Series Monoblock Directional Valve

Productsize:23*20*12

Netweight:6.60 kg

Availability: In Stock

Description

P40-G12-G38-2OT-QTW1 Manual 3 Spool Monoblock Directional Valve detailed image

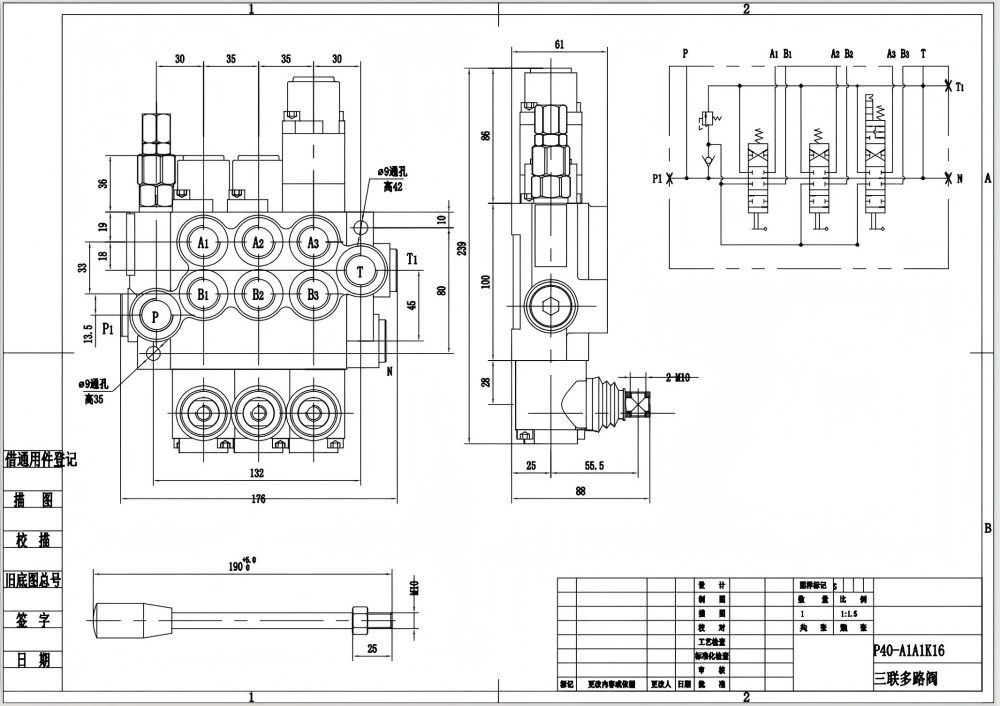

P40-G12-G38-2OT-QTW1 Manual 3 Spool Monoblock Directional Valve drawing image

The P40-G12-G38-2OT-QTW Manual 3 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for use in a wide range of industrial and mobile applications. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve provides precise and reliable control of hydraulic fluid flow. Its compact monoblock design makes it easy to install and maintain, while its manual operation allows for direct and intuitive control.

Rated Flow	40 L/min (10.5 US gpm)
Max Pressure	250 bar (3600 psi)
Inlet Port	G3/8,G1/2,M18×1.5,M22×1.5,SAE 8,SAE 10,3/8 NPT,1/2 NPT
Outlet Port	G3/8,G1/2,M18×1.5,M22×1.5,SAE 8,SAE 10,3/8 NPT,1/2 NPT
Port Size	G3/8,G1/2,M18×1.5,SAE 8,SAE 10,3/8 NPT,1/2 NPT
Section	1 Section,2 Section,3 Section,4 Section,5 Section,6 Section,7 Section
Structure Type	Monoblock valve
Control Method	Manual
Ambient Temperature Range	-40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range	15 - 75 mm²/s (15 cSt to 75 cSt)

**Product Features and Benefits:**

* Manual operation for precise and direct control
* Monoblock design for compact installation and easy maintenance
* Rated flow of 40 L/min for efficient hydraulic fluid flow
* Maximum pressure of 250 bar for demanding applications
* Durable construction for long service life

**Applications:**

* Industrial machinery
* Mobile hydraulic systems
* Construction equipment
* Agricultural equipment
* Material handling equipment

P40-G12-G38-2OT-QTW1 Manual 3 Spool Monoblock Directional Valve application image
