P40-G12-7OT Manual 7 Spool Monoblock Directional Valve

Rated Flow:40 L/min (10.5 US gpm)

Max Pressure:250 bar (3600 psi)

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:P40 Series Monoblock Directional Valve

Productsize:35*22*12

Netweight:12.50 kg

Availability: In Stock

Description

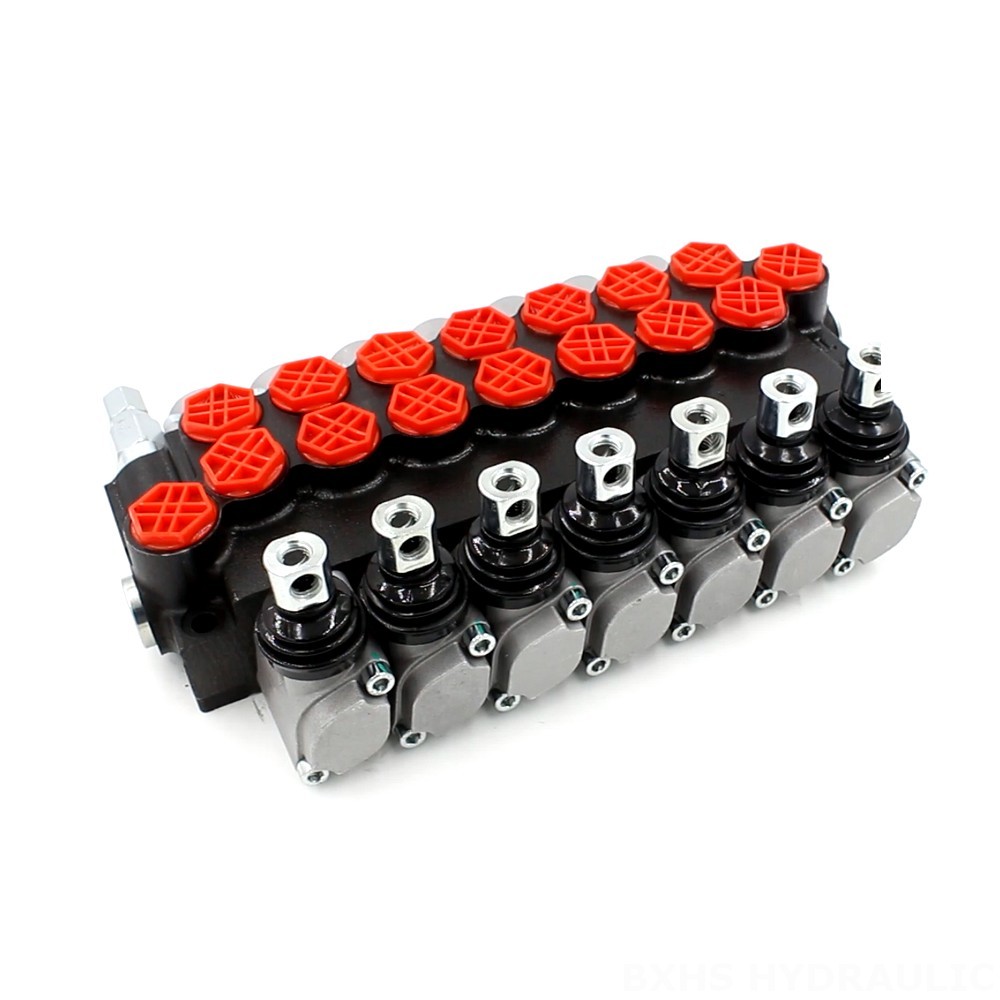

P40-G12-7OT Manual 7 Spool Monoblock Directional Valve detailed image

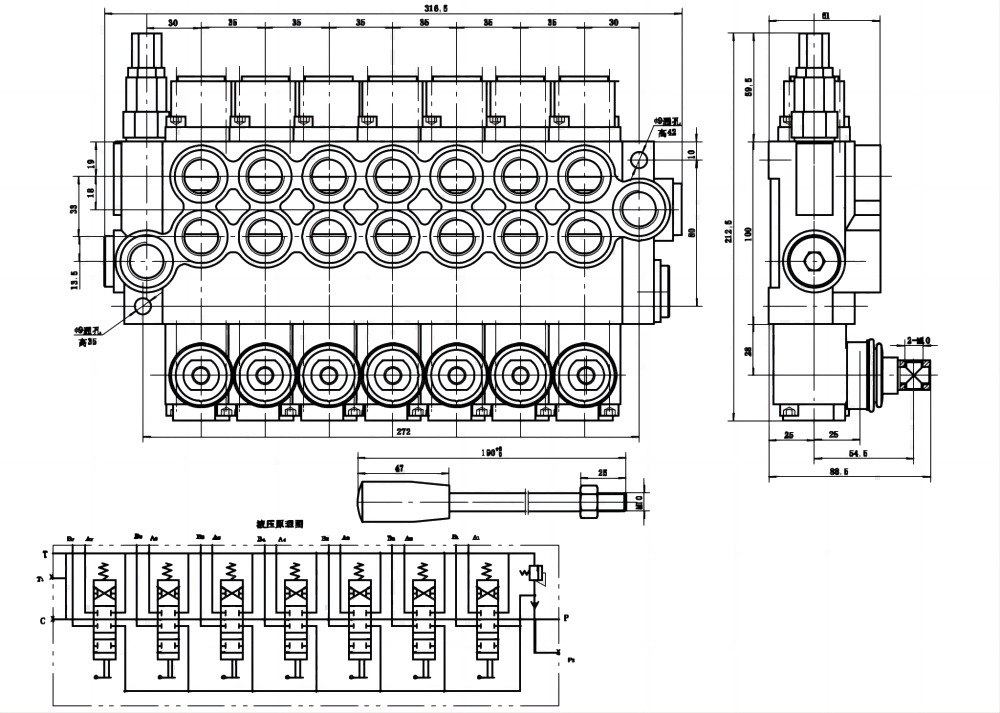

P40-G12-7OT Manual 7 Spool Monoblock Directional Valve drawing image

The P40-G12-7OT Manual 7 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for various industrial applications. With a rated flow of 40 L/min and a maximum pressure of 250 bar, it offers reliable and efficient flow control for hydraulic systems.

P40 Series Monoblock Directional Valve Parameters
Control Method	Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick, Manual and Joystick
Spool	1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Rated Flow	40 L/min (10.5 US gpm)
Max Pressure	250 bar (3600 psi)
Inlet Port	G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Outlet Port	G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Port Size	G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Section	1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section
Structure Type	Monoblock valve
Ambient Temperature Range	-40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range	15 - 75 mm²/s (15 cSt to 75 cSt)

**Product Features and Benefits:**

* Manual control for precise flow adjustment
* Monoblock construction for compact and durable design
* 7 spool design for versatility and customization
* Operating viscosity range of 15 - 75 mm²/s for compatibility with various fluids
* Ambient temperature range of -40°C to +80°C for operation in harsh environments

**Applications:**

* Material handling equipment (forklifts, telehandlers)
* Construction and earth moving machinery (excavators, loaders)
* Agricultural machinery (tractors, harvesters)
* Industrial vehicles (sweepers, waste compactors)

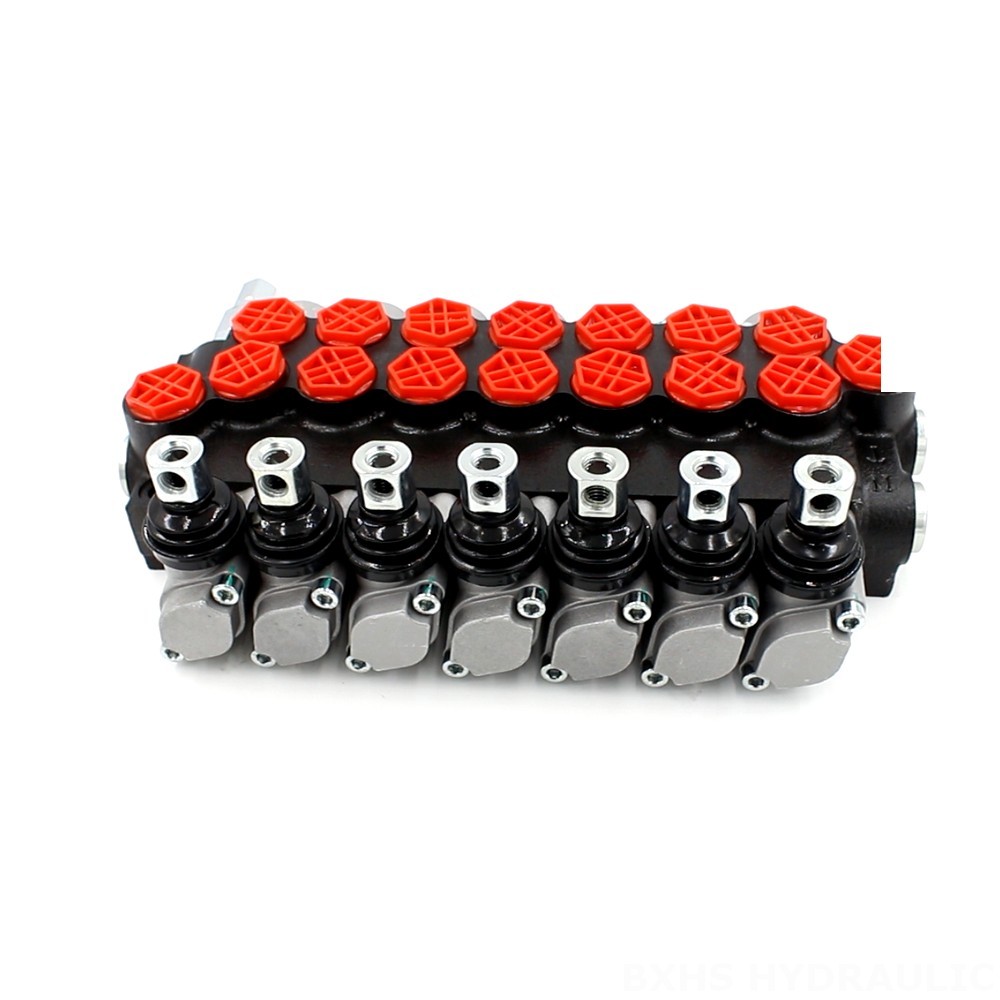

P40-G12-7OT Manual 7 Spool Monoblock Directional Valve application image
