P40-2OT Manual and Joystick 2 Spool Monoblock Directional Valve

Rated Flow:40 L/min (10.5 US gpm)

Max Pressure:250 bar (3600 psi)

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:P40 Series Monoblock Directional Valve

Productsize:22*17*12

Netweight:5.00 kg

Availability: In Stock

Description

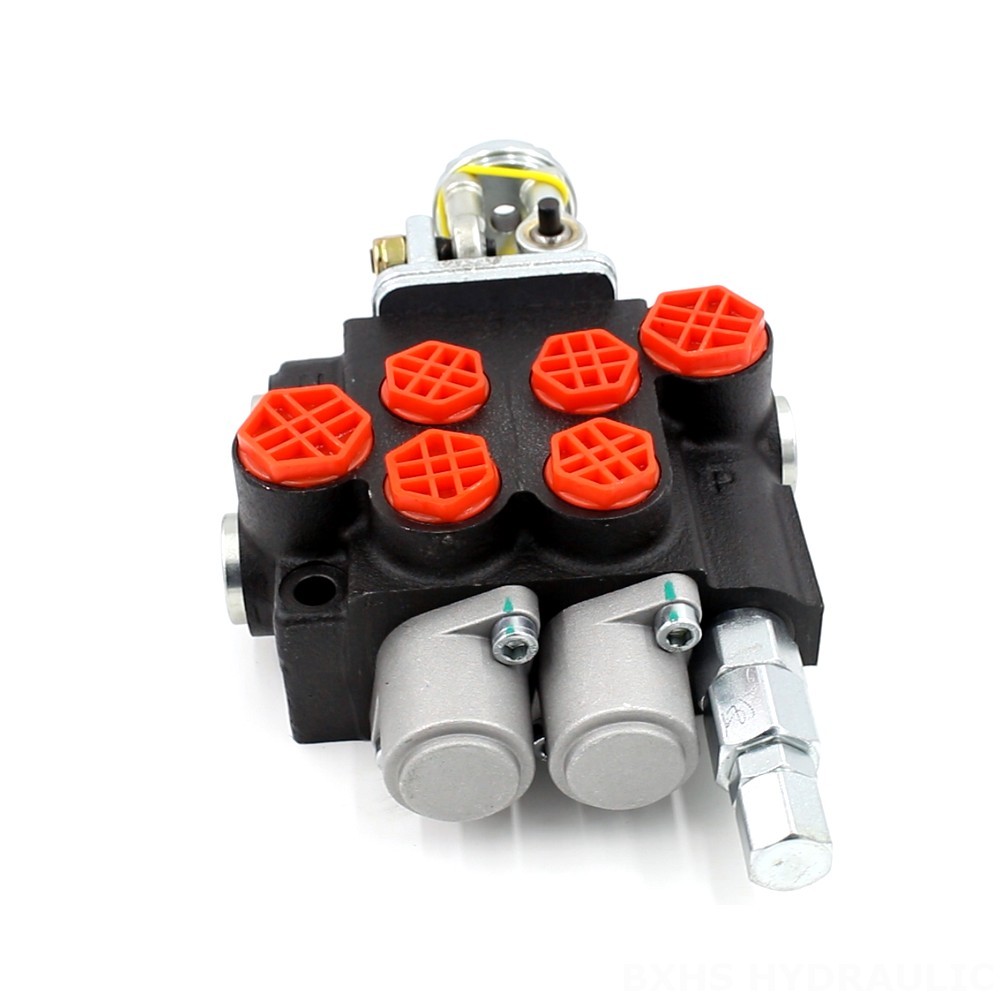

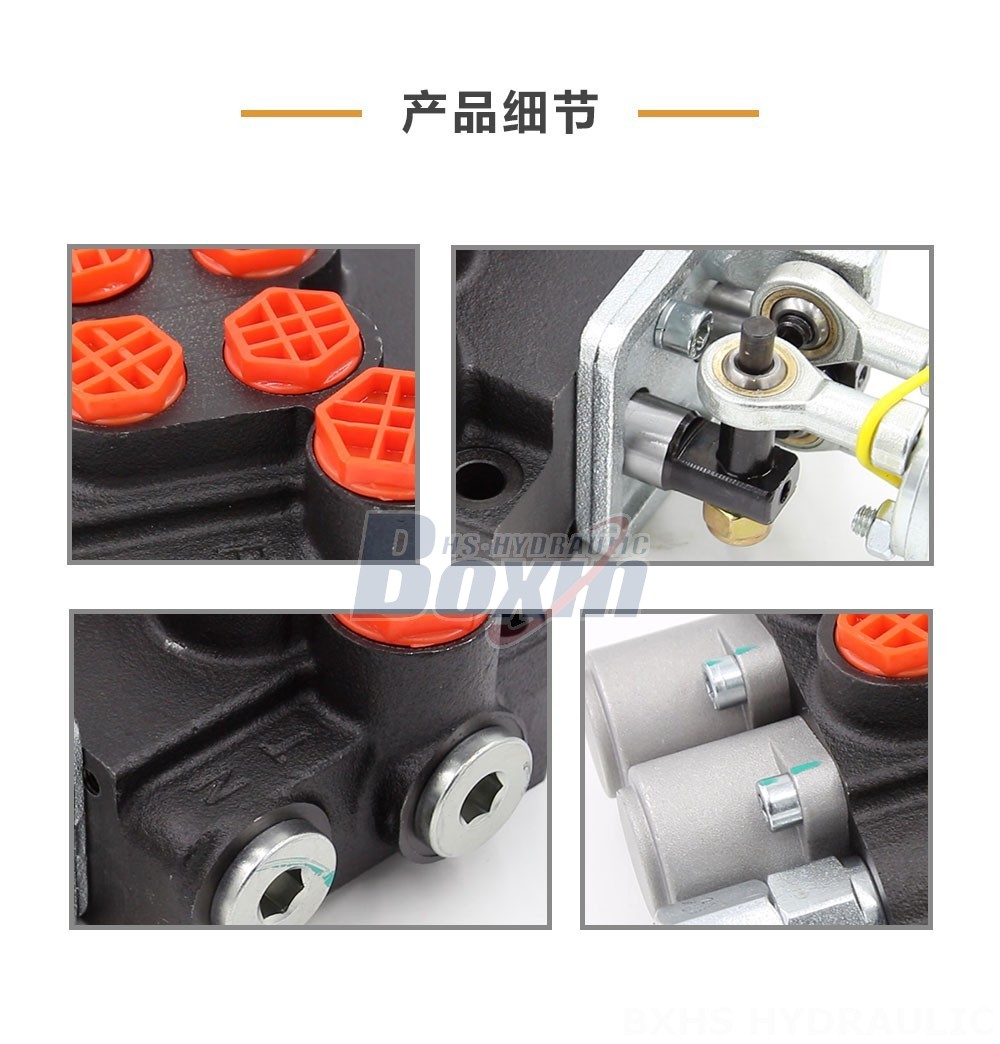

P40-2OT Manual and Joystick 2 Spool Monoblock Directional Valve detailed image

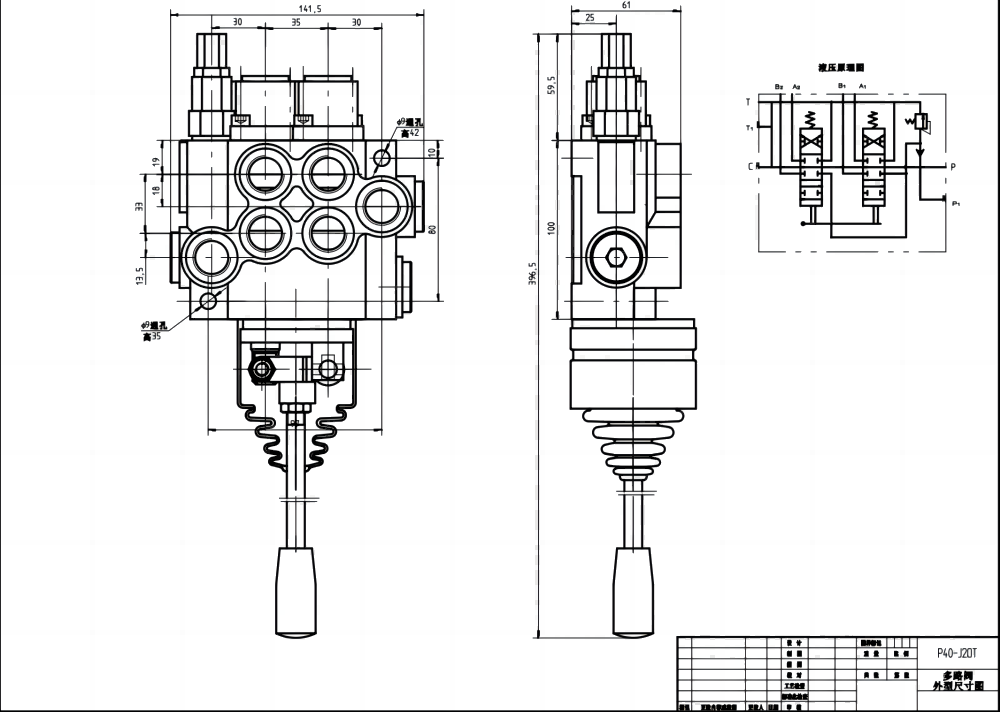

P40-2OT Manual and Joystick 2 Spool Monoblock Directional Valve drawing image

The P40-2OT Manual and Joystick 2 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for use in a wide range of industrial applications. It features manual and joystick control, a 2 spool monoblock design, a rated flow of 40 L/min (10.5 US gpm), a maximum pressure of 250 bar (3600 psi), and an operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt). The valve is suitable for use in temperatures ranging from -40°C to +80°C (-40°F to +176°F).

P40 Series Monoblock Directional Valve Parameters
Control Method	Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick, Manual and Joystick
Spool	1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Rated Flow	40 L/min (10.5 US gpm)
Max Pressure	250 bar (3600 psi)
Inlet Port	G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Outlet Port	G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Port Size	G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Section	1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section
Structure Type	Monoblock valve
Ambient Temperature Range	-40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range	15 - 75 mm²/s (15 cSt to 75 cSt)

**Product Features and Benefits:**

* Manual and joystick control for precise and easy operation
* 2 spool monoblock design for compact size and high flow capacity
* Rated flow of 40 L/min (10.5 US gpm) for efficient operation
* Maximum pressure of 250 bar (3600 psi) for demanding applications
* Operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) for compatibility with a wide range of hydraulic fluids
* Ambient temperature range of -40°C to +80°C (-40°F to +176°F) for use in extreme conditions

**Applications:**

The P40-2OT Manual and Joystick 2 Spool Monoblock Directional Valve is ideal for use in a variety of industrial applications, including:

* Material handling equipment
* Construction and earth moving equipment
* Agricultural equipment
* Industrial vehicles

P40-2OT Manual and Joystick 2 Spool Monoblock Directional Valve application image
