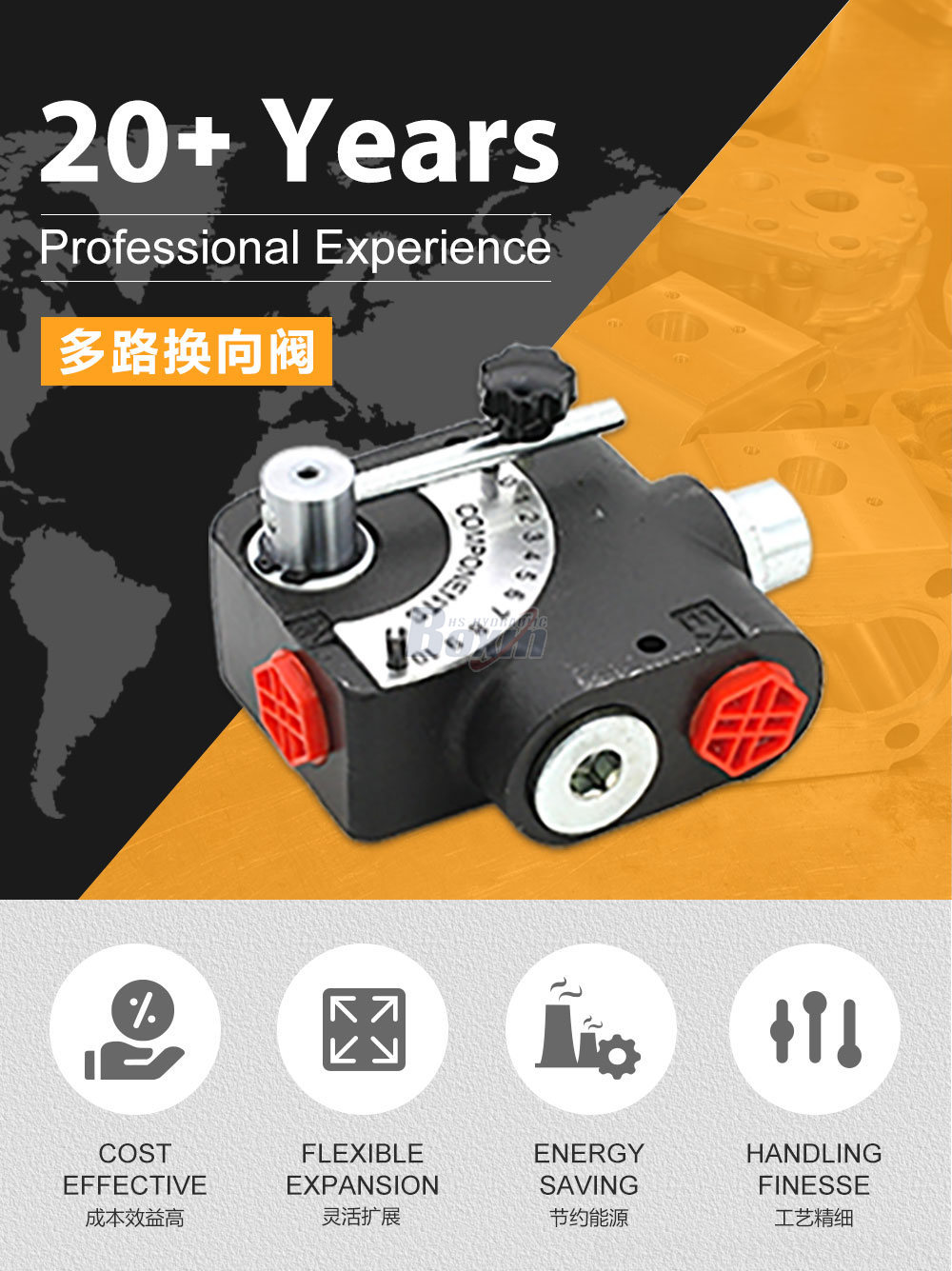

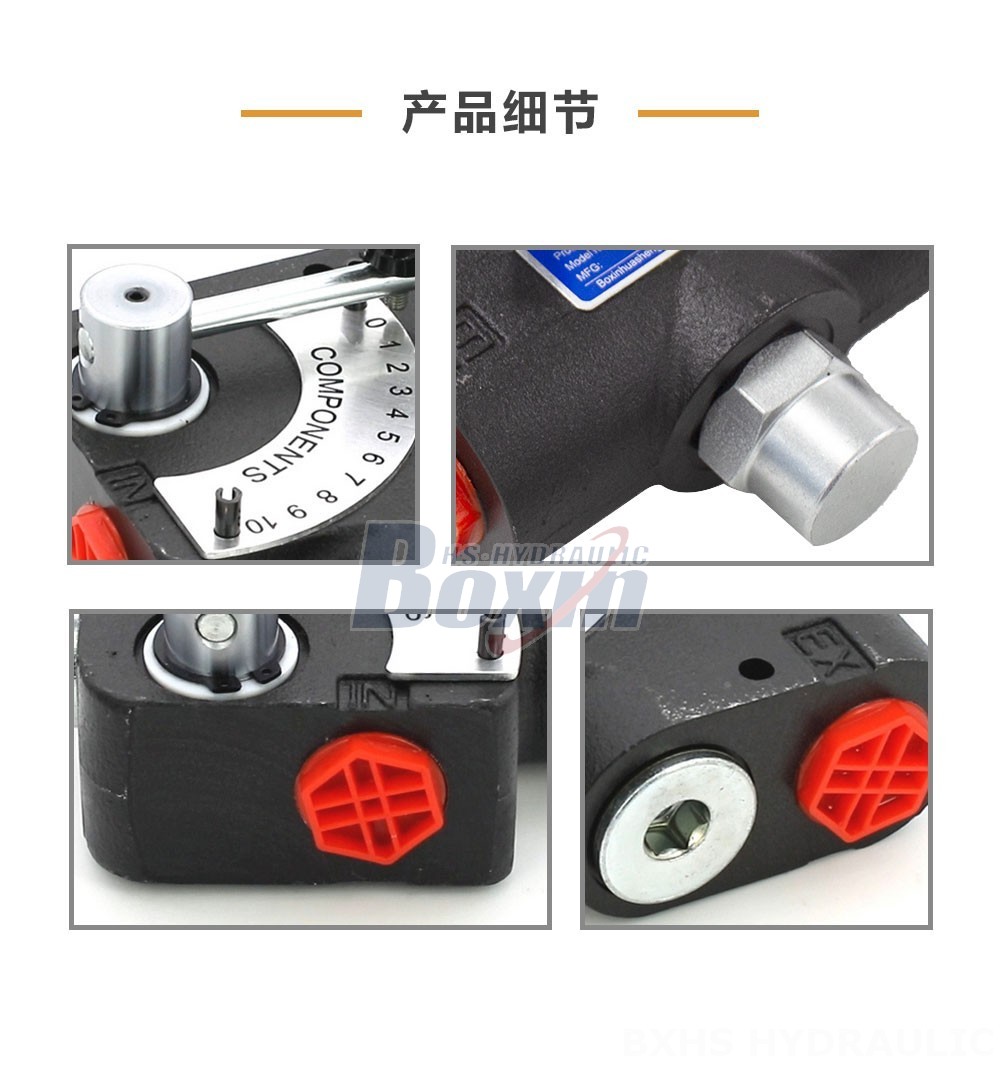

The LKF60 Manual 1 Spool Flow Control Valve is a monoblock valve designed for precise flow control in hydraulic systems. It features a manual control method, a single spool, and a rated flow of 60 L/min (15.8 US gpm). With a maximum pressure of 210 bar (3045 psi) and an operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt), this valve is suitable for various applications requiring accurate flow regulation.
| LKF60 Series Flow Control Valve Parameters | |
|---|---|
| Control Method | Manual, Hydraulic |
| Spool | 1 Spool |
| Ambient Temperature Range | -20°C to +80°C (-4°F to +176°F) |
| Structure Type | Monoblock valve |
| Section | 1 Section |
| Operating Viscosity Range | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| Rated Flow | 60 L/min (15.8 US gpm) |
| Max Pressure | 210 bar (3045 psi) |
| Inlet Port | G3/8, G3/4, G3/8, G1/2, G3/4, 1/2 NPT, 3/4 NPT |
| Outlet Port | G3/8, G1/2, G3/4, 1/2 NPT, 3/4 NPT |
| Port Size | G3/8, G1/2, G3/4, 1/2 NPT, 3/4 NPT, G3/8, G3/4, 1/2 NPT, 3/4 NPT |
**Product Highlights:**
- Manual control for precise flow adjustment
- Monoblock construction for compact and reliable performance
- High flow capacity of 60 L/min (15.8 US gpm)
- Durable construction for long service life
**Applications:**
- Flow control in hydraulic systems
- Pressure regulation
- Industrial machinery
- Mobile equipment
- Agricultural equipment
