Hydraulic Oil Control Valve 4-Spool Directional Valve: Technical Data & Downloadable Resources

Max Pressure:250 bar (3600 psi)

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:P40 Series Monoblock Directional Valve

Productsize:23*22*12

Netweight:7.80 kg

Availability: In Stock

Description

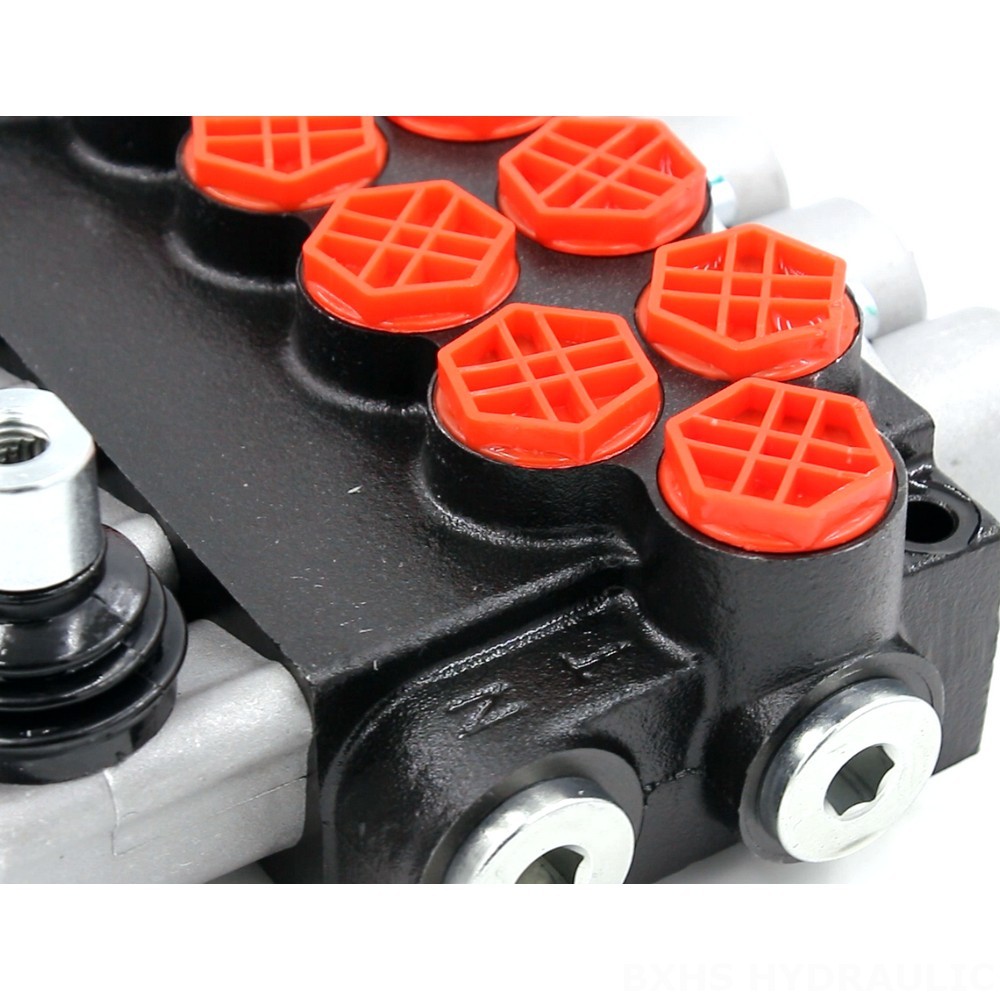

Hydraulic Oil Control Valve 4-Spool Directional Valve: Technical Data & Downloadable Resources detailed image

Hydraulic Oil Control Valve 4-Spool Directional Valve: Technical Data & Downloadable Resources drawing image

The P40 Series Hydraulic Oil Control Valve is a 4-spool, monoblock directional valve designed for demanding applications in material handling, construction, and industrial vehicles. With a rated flow of 40 L/min and a max pressure of 250 bar, this valve provides reliable and efficient control of hydraulic systems.

Rated Flow	40 L/min (10.5 US gpm)
Max Pressure	250 bar (3600 psi)
Inlet Port	G3/8,G1/2,M18×1.5,M22×1.5,SAE 8,SAE 10,3/8 NPT,1/2 NPT
Outlet Port	G3/8,G1/2,M18×1.5,M22×1.5,SAE 8,SAE 10,3/8 NPT,1/2 NPT
Port Size	G3/8,G1/2,M18×1.5,SAE 8,SAE 10,3/8 NPT,1/2 NPT
Section	1 Section,2 Section,3 Section,4 Section,5 Section,6 Section,7 Section
Structure Type	Monoblock valve
Ambient Temperature Range	-40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range	15 - 75 mm²/s (15 cSt to 75 cSt)

This robust and compact 4-spool directional valve features manual control and a 4-section design, offering versatile control capabilities for various hydraulic applications. Its durable monoblock construction ensures reliability under demanding conditions. The P40 Series valve is suitable for a wide range of equipment, including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
