HSV09-DKL Solenoid 1 Spool Flow Diverter Valve

Rated Flow:90 L/min (23.8 US gpm)

Max Pressure:180 bar (2600 psi)

Vendor:BXHS

Product Type:Flow Diverter Valve

Product Series:HSV09-DKL Series Flow Diverter Valve

Productsize:24*9*11

Netweight:6.00 kg

Availability: In Stock

Description

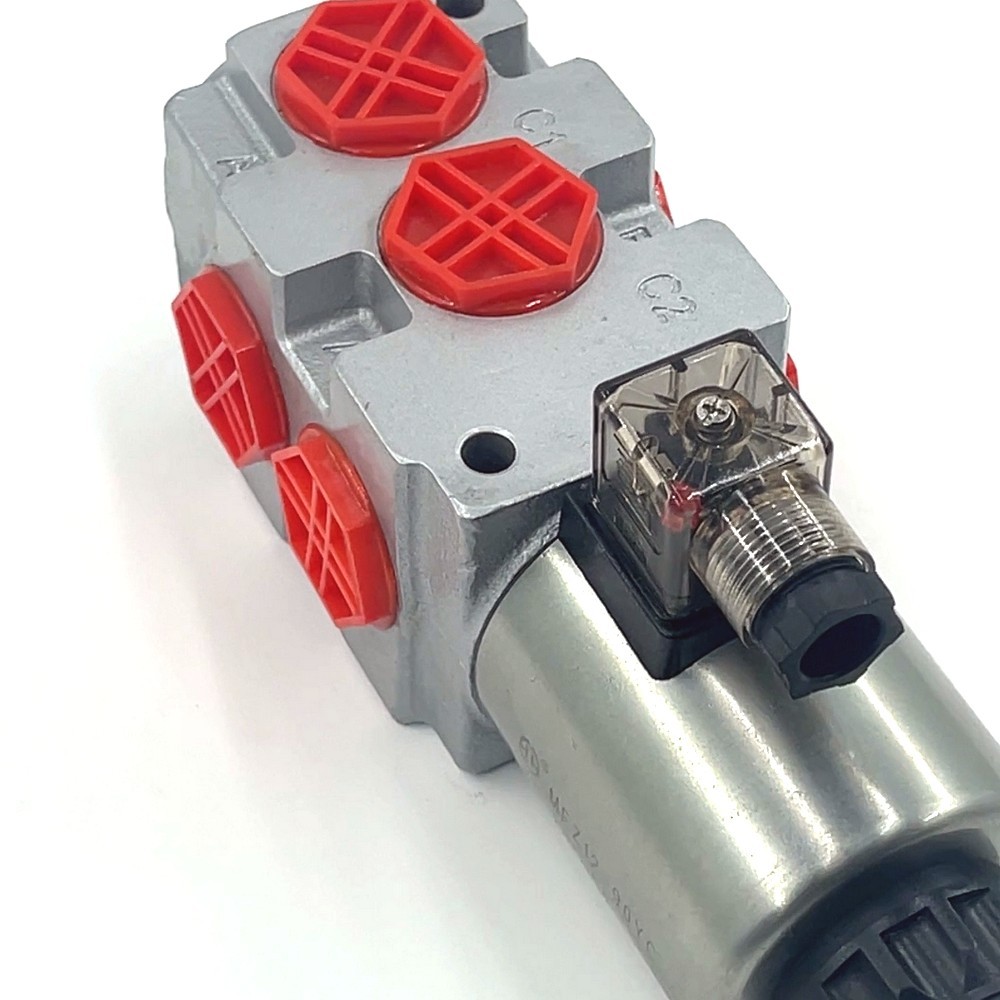

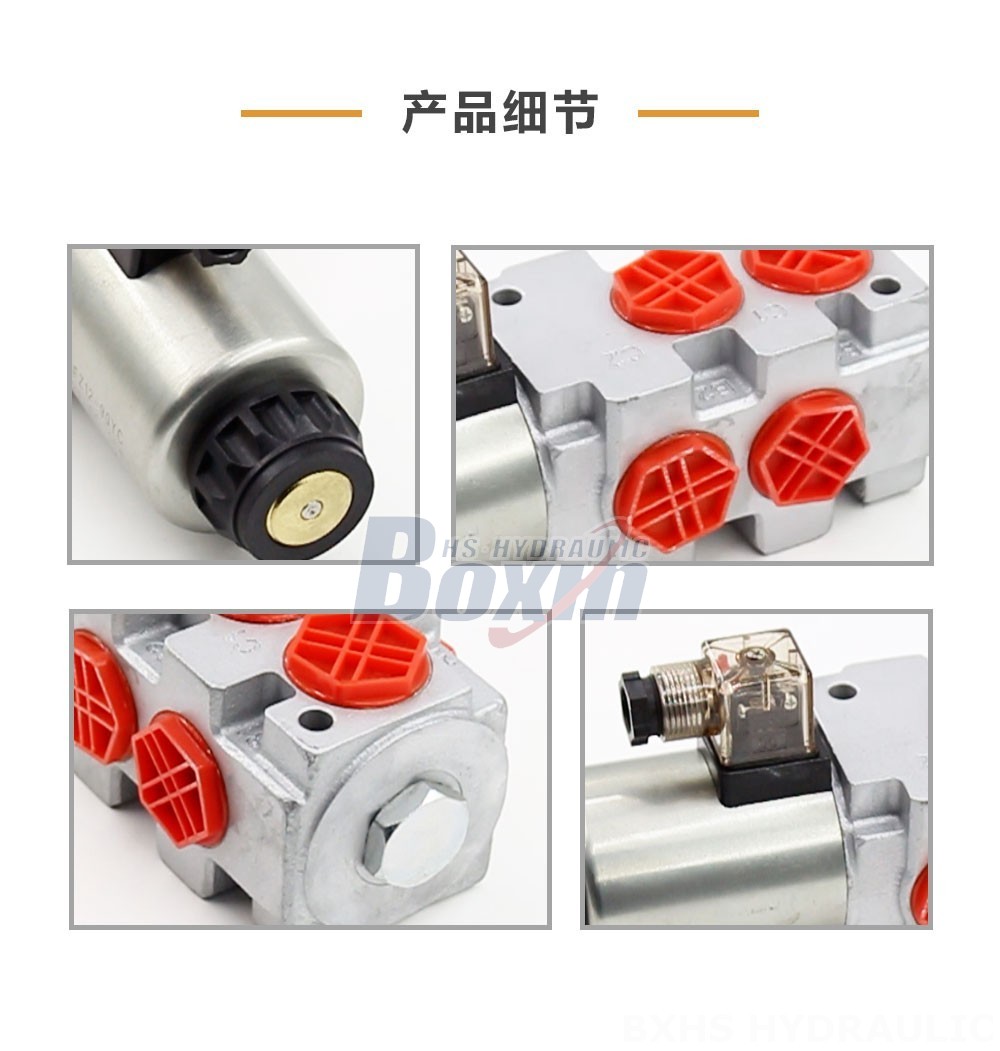

HSV09-DKL Solenoid 1 Spool Flow Diverter Valve detailed image

HSV09-DKL Solenoid 1 Spool Flow Diverter Valve drawing image

The HSV09-DKL Solenoid 1 Spool Flow Diverter Valve is a high-performance directional control valve designed for use in hydraulic systems. With a rated flow of 90 L/min (23.8 US gpm) and a maximum pressure of 250 bar (3600 psi), it is ideal for a wide range of applications in industries such as material handling, construction, agriculture and industrial vehicles.

HSV09-DKL Series Flow Diverter Valve Parameters
Control Method	Manual, Solenoid, Hydraulic, Electric
Spool	1 Spool, 2 Spool, 3 Spool
Rated Flow	90 L/min (23.8 US gpm)
Max Pressure	250 bar (3600 psi)
Inlet Port	G1/2, G3/4
Outlet Port	G1/2, G3/4
Port Size	G1/2, G3/4
Section	1 Section, 2 Section, 3 Section
Structure Type	Sectional valve
Ambient Temperature Range	-20°C to +80°C (-4°F to +176°F)
Operating Viscosity Range	15 - 75 mm²/s (15 cSt to 75 cSt)

* **Control Method:** Solenoid
* **Section:** 1 Section
* **Structure Type:** Sectional valve
* **Rated Flow:** 90 L/min (23.8 US gpm)
* **Max Pressure:** 250 bar (3600 psi)
* **Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)
* **Ambient Temperature Range:** -40°C to +80°C (-40°F to +176°F)
* **Spool:** 1 Spool

HSV09-DKL Solenoid 1 Spool Flow Diverter Valve application image
