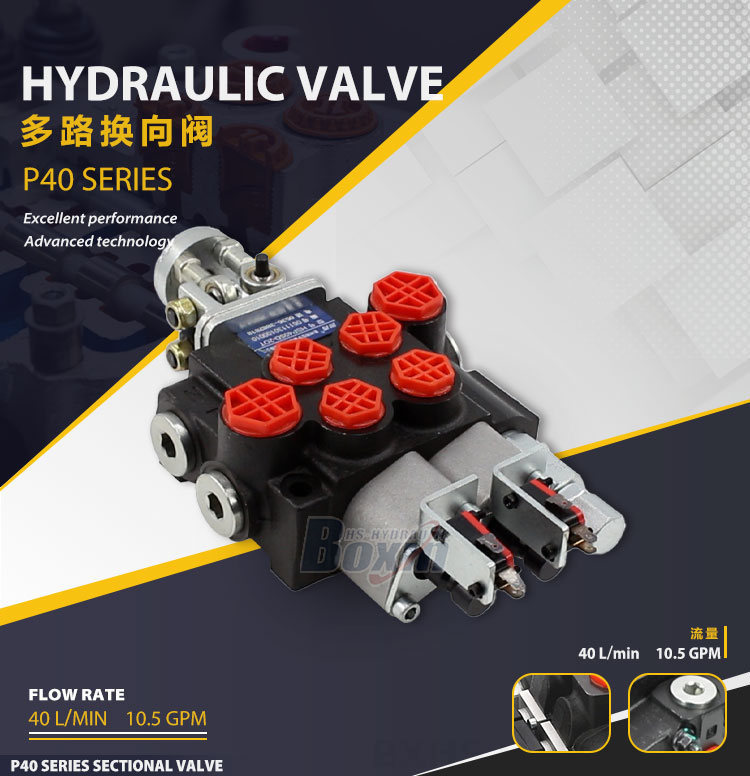

High-Precision P40 Micro Switch Joystick 2 Spool Monoblock Directional Valve: Unmatched Accuracy and Control

Control Method:Joystick

Spool:2 Spool

Rated Flow:40 L/min (10.5 US gpm)

Max Pressure:250 bar (3600 psi)

Inlet Port:G1/2

Outlet Port:G1/2

Port Size:G3/8

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:P40 Series Monoblock Directional Valve

Packagingsize:33*18*17

Grossweight:6.50 kg

Availability: In Stock

Description

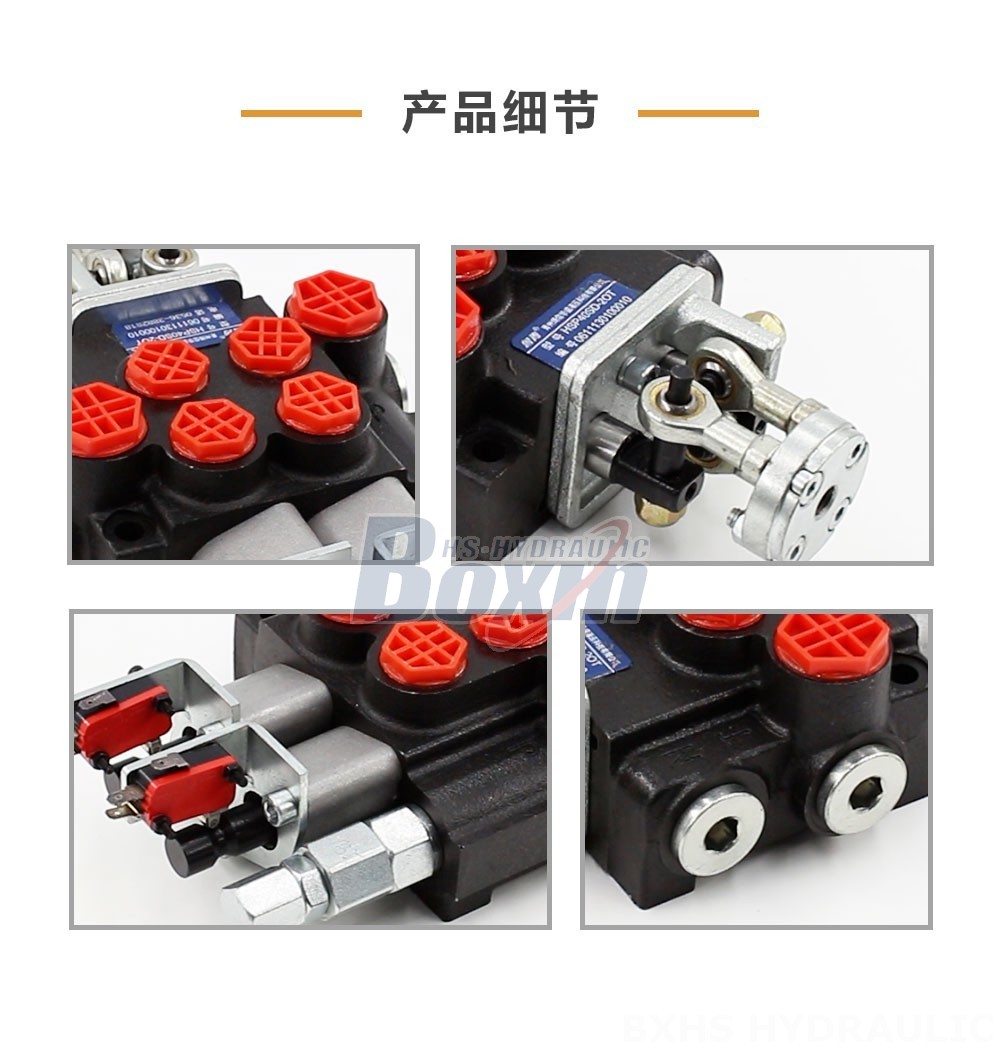

High-Precision P40 Micro Switch Joystick 2 Spool Monoblock Directional Valve: Unmatched Accuracy and Control detailed image

High-Precision P40 Micro Switch Joystick 2 Spool Monoblock Directional Valve: Unmatched Accuracy and Control drawing image

The P40 Micro Switch Joystick 2 Spool Monoblock Directional Valve offers unmatched accuracy and control for demanding hydraulic applications. Its innovative joystick design provides precise and intuitive operation, while the 2-spool monoblock construction ensures reliability and durability. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve is ideal for a wide range of applications in material handling, construction, agriculture, and industrial vehicles.

P40 Series Monoblock Directional Valve Parameters
Control Method	Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick, Manual and Joystick
Spool	1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Rated Flow	40 L/min (10.5 US gpm)
Max Pressure	250 bar (3600 psi)
Section	1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section
Structure Type	Monoblock valve
Ambient Temperature Range	-40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range	15 - 75 mm²/s (15 cSt to 75 cSt)

**P40 Micro Switch Joystick 2 Spool Monoblock Directional Valve**

**Key Features:**

* Joystick control for precise and intuitive operation
* 2-spool monoblock construction for reliability and durability
* Rated flow of 40 L/min for efficient performance
* Maximum pressure of 250 bar for demanding applications
* Operating viscosity range of 15 - 75 mm²/s for versatility
* Ambient temperature range of -40°C to +80°C for extreme environments

**Applications:**

* Material handling: telehandlers, forklifts
* Construction and earth moving: mini-excavators, skid steer loaders, compact wheel loaders, backhoe loaders
* Agriculture: harvesters, backhoes, sprayers, balers
* Industrial vehicles: forklifts, mobile cranes

The P40 Micro Switch Joystick 2 Spool Monoblock Directional Valve is the ideal choice for applications requiring high-precision control and reliability. Its innovative design and robust construction make it a trusted choice for professionals in a wide range of industries.
