Hand Valve Hydraulic P80 P40-U34-U78 Hydraulic Valve: OEM & ODM Production Services Available

Max Pressure:250 bar (3600 psi)

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:P40 Series Monoblock Directional Valve

Productsize:27*22*12

Netweight:9.30 kg

Availability: In Stock

  • Manual
  • Pneumatic
  • Electro-pneumatic
  • Electro-hydraulic
  • Solenoid
  • Hydraulic
  • Hydraulic and Manual
  • Cable
  • Joystick
  • Manual and Joystick
  • 1 Spool
  • 2 Spool
  • 3 Spool
  • 4 Spool
  • 5 Spool
  • 6 Spool
  • 7 Spool
487 Views are Looking for this Product

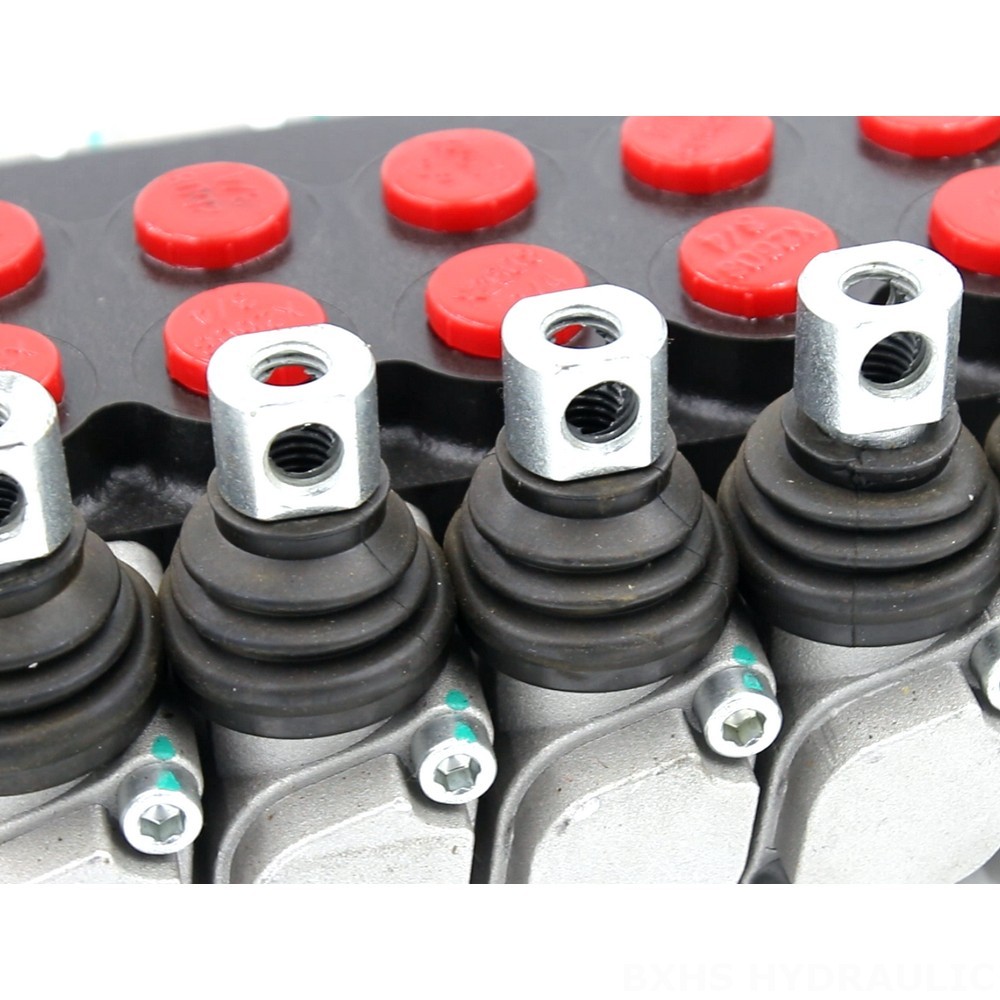

Hand Valve Hydraulic P80 P40-U34-U78 Hydraulic Valve: OEM & ODM Production Services Available detailed image

Hand Valve Hydraulic P80 P40-U34-U78 Hydraulic Valve: OEM & ODM Production Services Available detailed image

Hand Valve Hydraulic P80 P40-U34-U78 Hydraulic Valve: OEM & ODM Production Services Available drawing image

This high-performance hydraulic valve, featuring 5 sections and a monoblock design, is perfect for a range of applications including material handling, construction, and agriculture. With a rated flow of 40 L/min and a max pressure of 250 bar, it offers reliable operation in demanding environments. We also provide OEM and ODM services to meet your specific needs.

Rated Flow 40 L/min (10.5 US gpm)
Max Pressure 250 bar (3600 psi)
Inlet Port G3/8,G1/2,M18×1.5,M22×1.5,SAE 8,SAE 10,3/8 NPT,1/2 NPT
Outlet Port G3/8,G1/2,M18×1.5,M22×1.5,SAE 8,SAE 10,3/8 NPT,1/2 NPT
Port Size G3/8,G1/2,M18×1.5,SAE 8,SAE 10,3/8 NPT,1/2 NPT
Section 1 Section,2 Section,3 Section,4 Section,5 Section,6 Section,7 Section
Structure Type Monoblock valve
Ambient Temperature Range -40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)

This manual hydraulic valve, designated as P80 P40-U34-U78, offers a robust solution for various hydraulic systems. Its 5-section monoblock construction provides durability and efficiency. The valve is designed for a rated flow of 40 L/min and a maximum pressure of 250 bar. Operating temperature range from -40°C to +80°C ensures reliable performance across various applications. This valve is particularly suitable for telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders. We are proud to offer OEM and ODM services, allowing you to customize the valve to your specific requirements. Whether you need private label solutions or specialized designs, our experienced team can help you bring your vision to life. We also offer wholesale pricing and are actively seeking distributors, wholesalers, agents, and traders to join our global network.
