Double Acting Hydraulic Control Valve Distributors Wanted: P80-G12-OW Hydraulic Monoblock Valve

Max Pressure:315 bar (4600 psi)

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:P80 Series Monoblock Directional Valve

Productsize:25.1*10.5*8

Netweight:4.80 kg

Availability: In Stock

Description

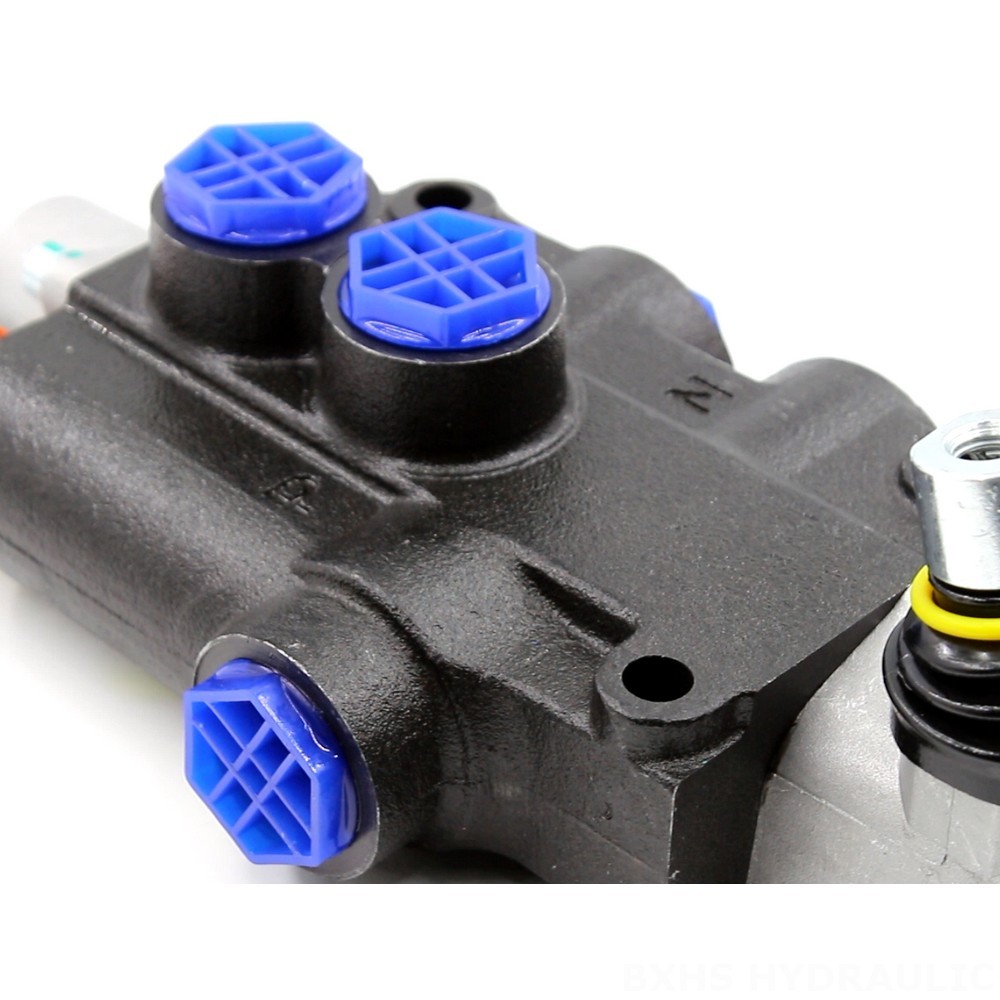

Double Acting Hydraulic Control Valve Distributors Wanted: P80-G12-OW Hydraulic Monoblock Valve detailed image

Double Acting Hydraulic Control Valve Distributors Wanted: P80-G12-OW Hydraulic Monoblock Valve drawing image

The P80-G12-OW Hydraulic Monoblock Valve is a high-performance, double-acting, manual control valve designed for heavy-duty applications in material handling, construction, agriculture, and industrial vehicles.

Port Size	G1/2,G3/4,M22×1.5,M27×2.0,SAE 10,1/2 NPT,3/4 NPT
Section	1 Section,2 Section,3 Section,4 Section,5 Section,6 Section,7 Section
Ambient Temperature Range	-40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range	15 - 75 mm²/s (15 cSt to 75 cSt)
Max Pressure	315 bar (4600 psi)
Rated Flow	80 L/min (21.2 US gpm)
Structure Type	Monoblock valve
Inlet Port	G1/2,G3/4,M27×2.0,SAE 10,SAE 12,1/2 NPT,3/4 NPT

This robust monoblock valve features a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure of 250 bar (3600 psi). It is suitable for a wide range of operating temperatures (-40°C to +80°C) and viscosity ranges (15 - 75 mm²/s). The P80-G12-OW is ideal for use in telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, midi excavators, mini excavators, skid steer loaders, and compact wheel loaders. Its durable construction and reliable performance ensure smooth operation and long service life.

Double Acting Hydraulic Control Valve Distributors Wanted: P80-G12-OW Hydraulic Monoblock Valve application image
