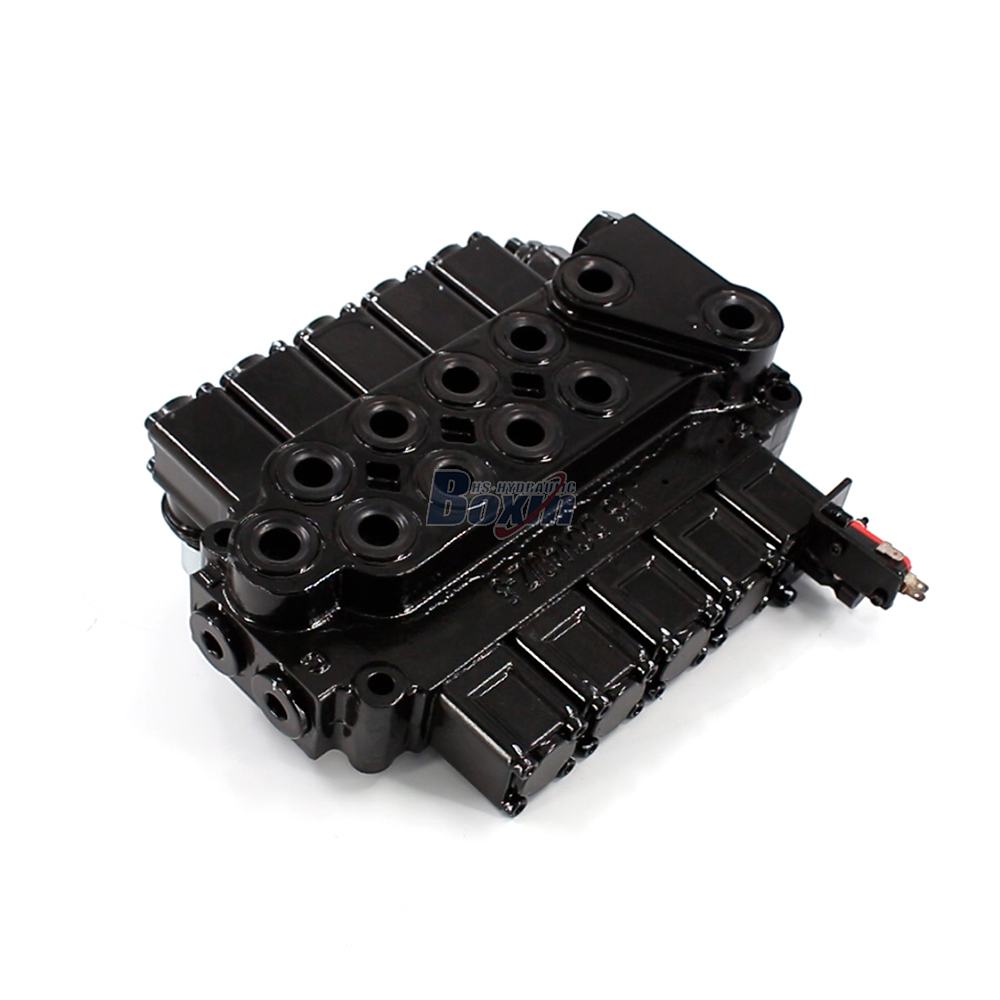

The DCV40Z Manual 5 Spool Monoblock Directional Valve is designed for hydraulic systems requiring manual control of fluid flow. This valve features 5 sections, a rated flow of 40 L/min (10.5 US gpm), and a maximum pressure of 350 bar (5100 psi). It has an ambient temperature range of -40°C to +80°C (-40°F to +176°F) and is suitable for use in a wide range of applications.

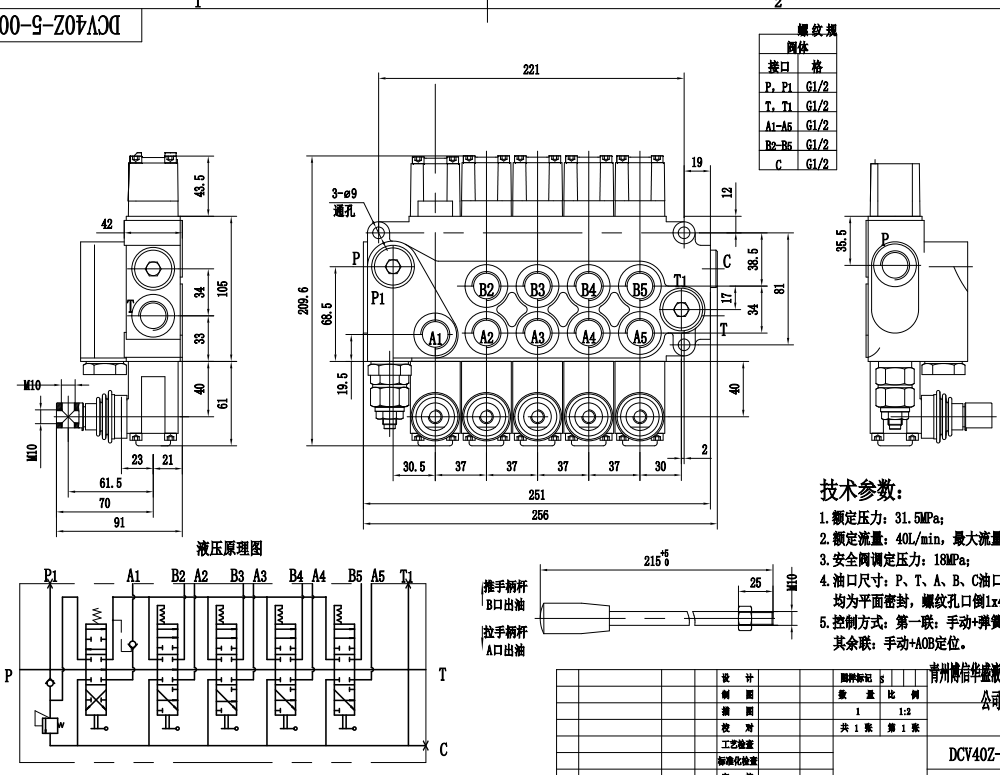

| DCV40Z Series Outrigger Control Valve Parameters | |
|---|---|
| Control Method | Manual, Electro-hydraulic, Joystick, Manual and Joystick |
| Spool | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Ambient Temperature Range | -40°C to +80°C (-40°F to +176°F) |
| Structure Type | Monoblock valve |
| Section | 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section |
| Operating Viscosity Range | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| Rated Flow | 40 L/min (10.5 US gpm) |
| Max Pressure | 350 bar (5100 psi) |
| Inlet Port | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Outlet Port | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Size | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |

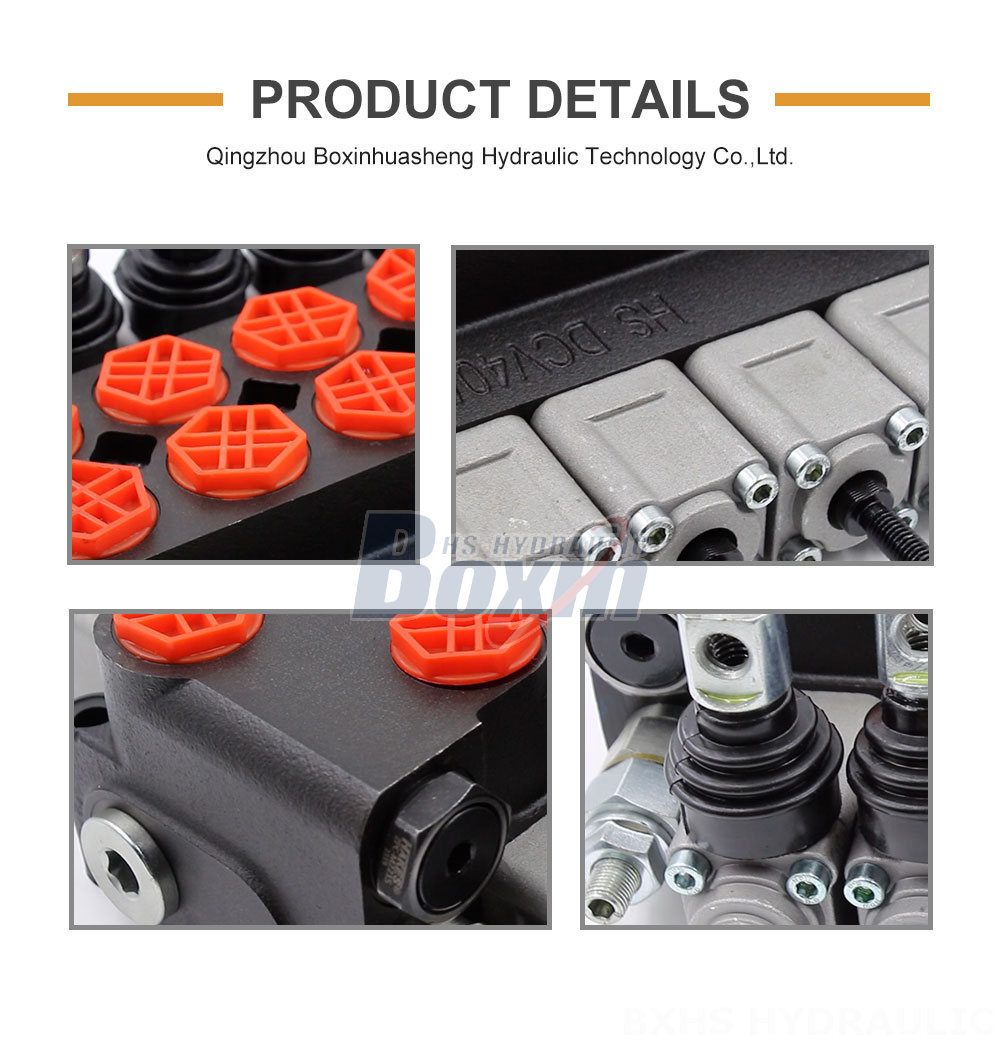

Manual control for precise and responsive operation, Monoblock design for compact and robust construction , 5 spool design for versatile control capabilities .
Rated flow of 40 L/min for high system efficiency ,Maximum pressure of 350 bar for demanding applications, Wide operating viscosity range (15 - 75 mm²/s) for compatibility with various hydraulic fluids ,Wide ambient temperature range (-40°C to +80°C) for operation in harsh environments.
Applications: Construction and earth moving equipment , Industrial vehicles, Material handling equipment , Agricultural machinery , Forestry equipment, Mining equipment ,Waste management equipment.Please contact us to get more information.
