Bespoke Hydraulic Solutions: P40-G12-G38-2OT-QTW Valves for Unique Applications

Max Pressure:250 bar (3600 psi)

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:P40 Series Monoblock Directional Valve

Productsize:23*20*12

Netweight:6.60 kg

Availability: In Stock

  • Manual
  • Pneumatic
  • Electro-pneumatic
  • Electro-hydraulic
  • Solenoid
  • Hydraulic
  • Hydraulic and Manual
  • Cable
  • Joystick
  • Manual and Joystick
  • 1 Spool
  • 2 Spool
  • 3 Spool
  • 4 Spool
  • 5 Spool
  • 6 Spool
  • 7 Spool
729 Views are Looking for this Product

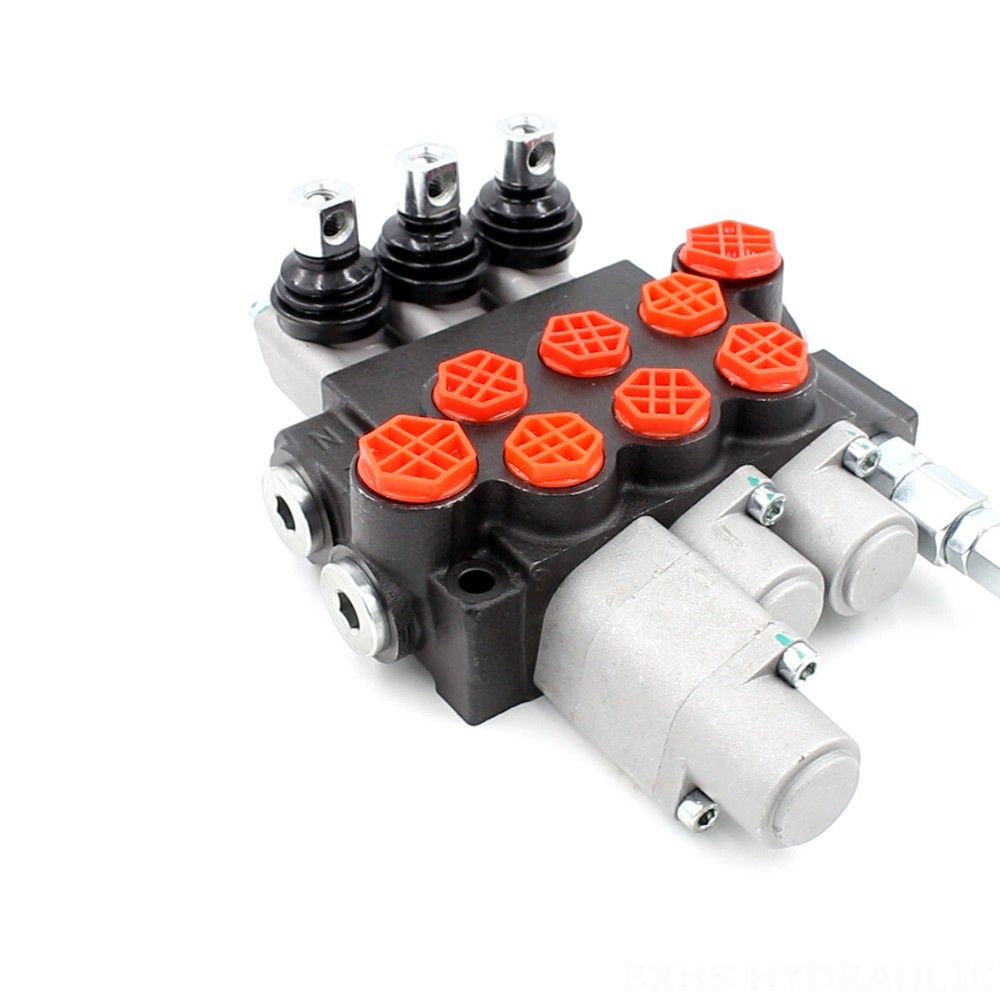

Bespoke Hydraulic Solutions: P40-G12-G38-2OT-QTW Valves for Unique Applications detailed image

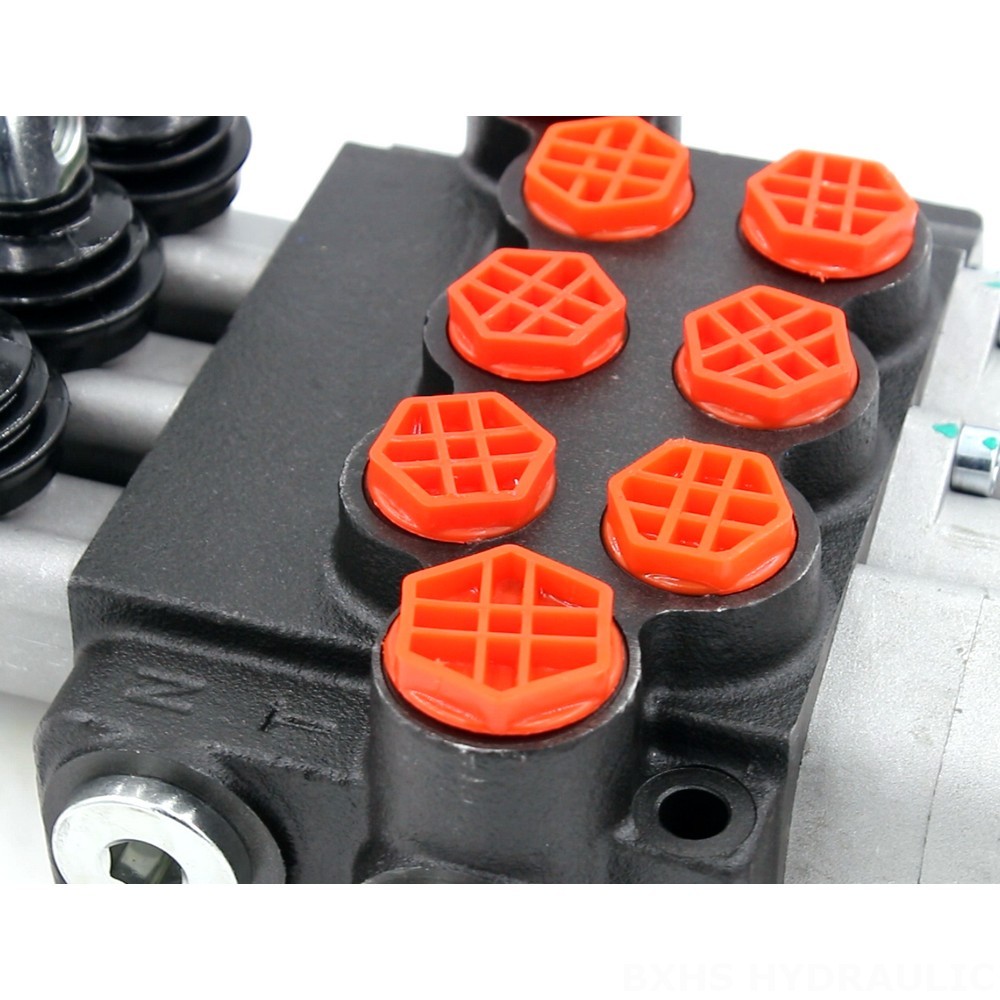

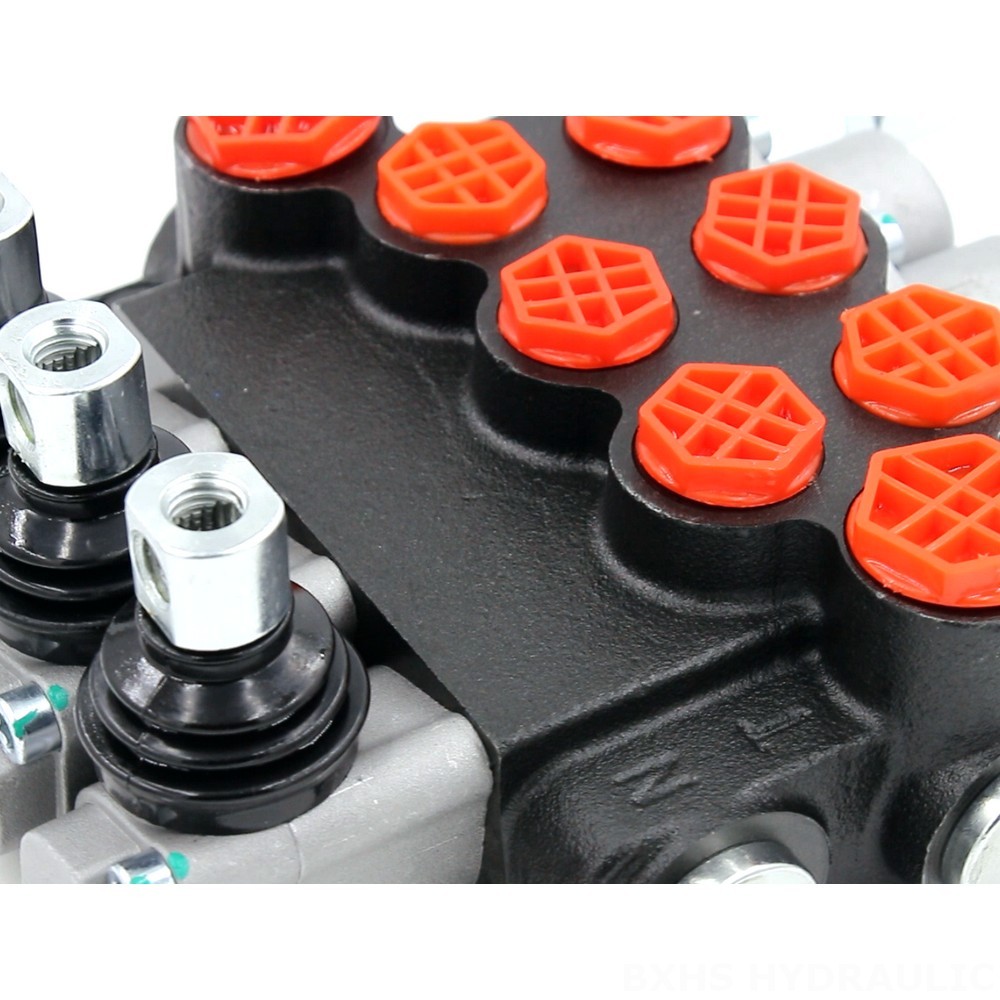

Bespoke Hydraulic Solutions: P40-G12-G38-2OT-QTW Valves for Unique Applications detailed image

Bespoke Hydraulic Solutions: P40-G12-G38-2OT-QTW Valves for Unique Applications drawing image

Our Bespoke Hydraulic Solutions: P40-G12-G38-2OT-QTW Valves are custom-engineered to meet the unique demands of your applications. Featuring manual control, a 3-section monoblock design, and a rated flow of 40 L/min (10.5 US gpm), these valves deliver exceptional performance and durability in demanding environments.

Rated Flow 40 L/min (10.5 US gpm)
Max Pressure 250 bar (3600 psi)
Inlet Port G3/8,G1/2,M18×1.5,M22×1.5,SAE 8,SAE 10,3/8 NPT,1/2 NPT
Outlet Port G3/8,G1/2,M18×1.5,M22×1.5,SAE 8,SAE 10,3/8 NPT,1/2 NPT
Port Size G3/8,G1/2,M18×1.5,SAE 8,SAE 10,3/8 NPT,1/2 NPT
Section 1 Section,2 Section,3 Section,4 Section,5 Section,6 Section,7 Section
Structure Type Monoblock valve
Ambient Temperature Range -40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)

Our P40-G12-G38-2OT-QTW Valves are designed to provide precise control and reliability in a wide range of applications, including material handling, construction, agriculture, and industrial vehicles. With a maximum pressure of 250 bar (3600 psi) and an operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt), these valves can withstand the toughest conditions. Their compact design and versatile mounting options make them suitable for integration into various systems, while their extended ambient temperature range of -40°C to +80°C (-40°F to +176°F) ensures optimal performance in extreme environments.

As a leading manufacturer of hydraulic products, we offer OEM, private label, and custom hydraulic solutions to meet your specific requirements. Our team of experienced engineers can work closely with you to design and develop the perfect hydraulic solution for your application. Whether you need a standard valve or a highly customized solution, we have the expertise and capabilities to deliver the results you demand.
