Standard Specification P350A542KEAB25-25R 104.5 cc/rev Hydraulic Gear Pump Supply

Displacement:104.5 cc/rev

Rated Pressure:22 MPa (3190 psi)

Max Pressure:24.5 MPa (3550 psi)

Max Speed:2400 r/min

Rotation:R: Right (clockwise)

Vendor:BXHS

Product Type:Hydraulic Gear Pump

Product Series:P350 Series Hydraulic Gear Pump

Packagingsize:45*25*18

Grossweight:25.00 kg

Availability: In Stock

156 Views are Looking for this Product

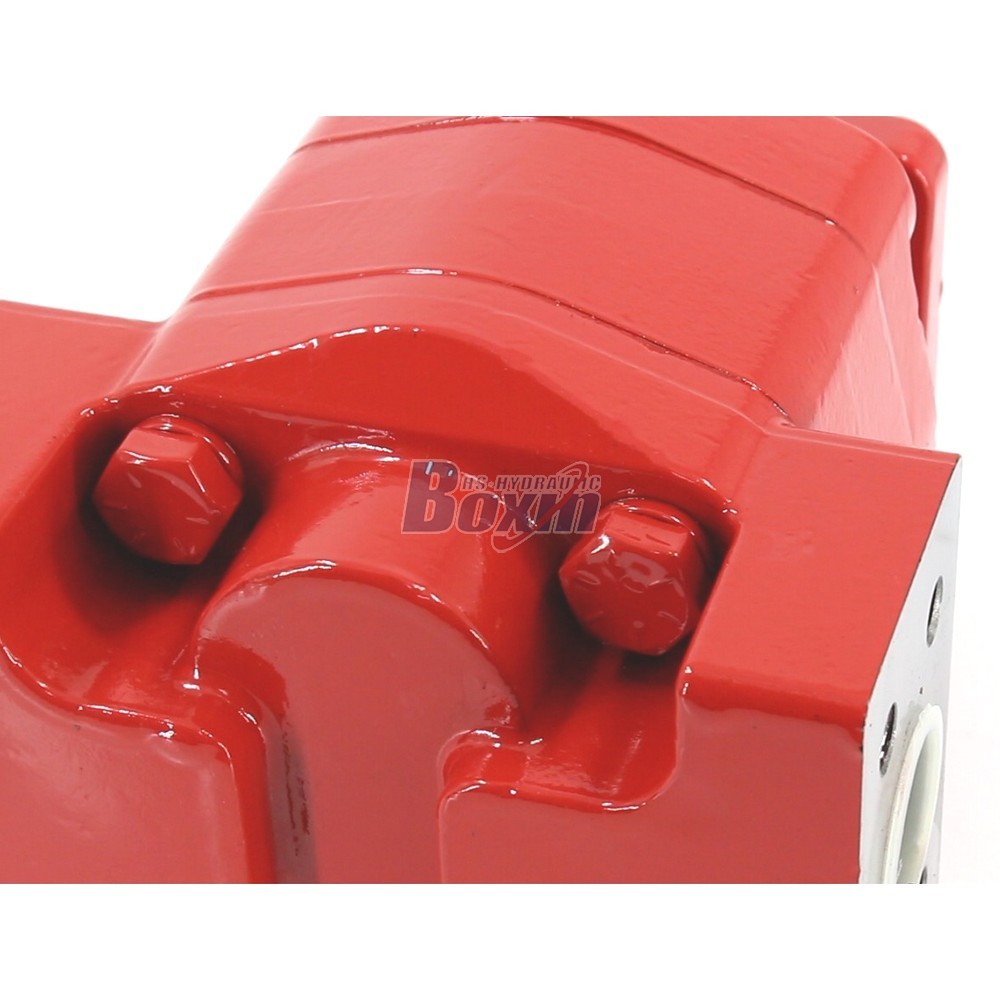

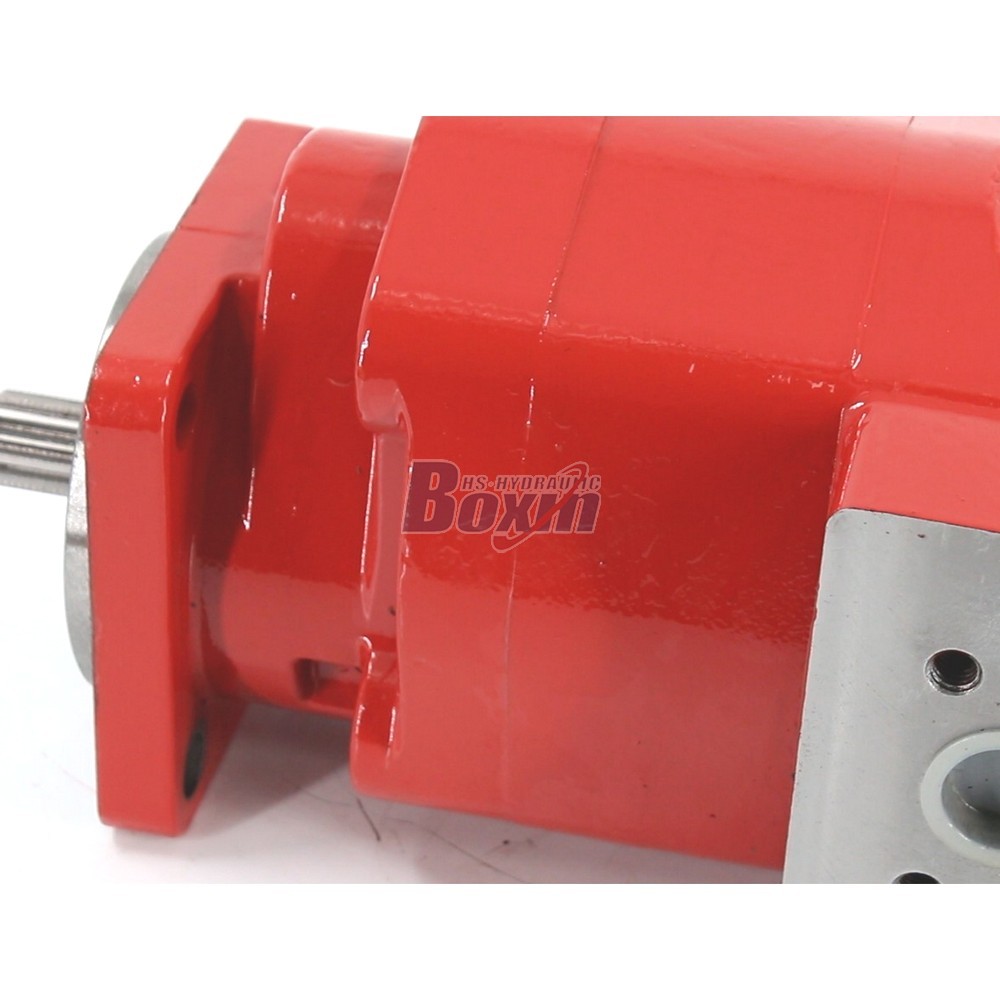

Standard Specification P350A542KEAB25-25R 104.5 cc/rev Hydraulic Gear Pump Supply detailed image

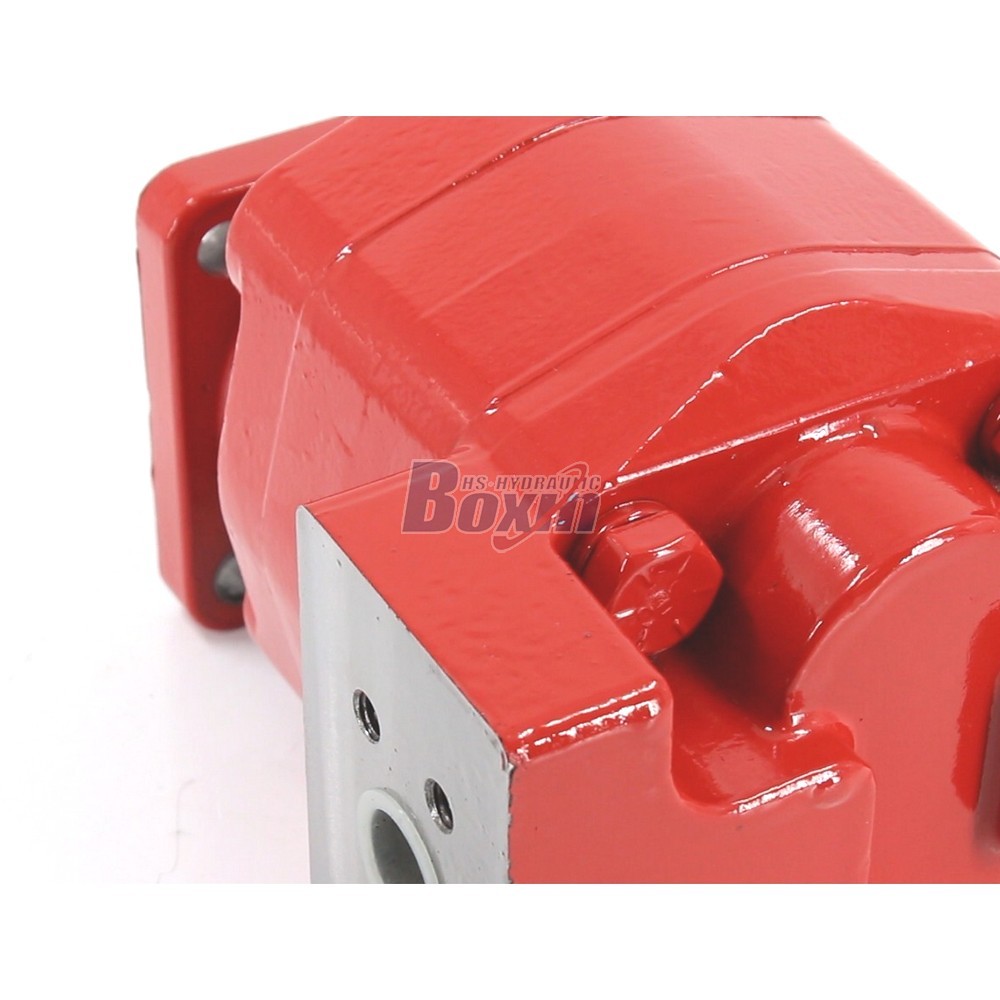

Standard Specification P350A542KEAB25-25R 104.5 cc/rev Hydraulic Gear Pump Supply detailed image

Standard Specification P350A542KEAB25-25R 104.5 cc/rev Hydraulic Gear Pump Supply drawing image

This P350 Series Hydraulic Gear Pump features a 104.5 cc/rev displacement, rated pressure of 22 MPa (3190 psi), and max speed of 2400 r/min. Manufactured by a 25-year IATF 16949 certified factory, it ensures reliable performance for wheel loaders, forklifts, and agricultural machinery with 100% tested quality.

P350 Series Hydraulic Gear Pump Parameters
Displacement 104.5 cc/rev
Rated Pressure 22 MPa (3190 psi)
Max Pressure 24.5 MPa (3550 psi)
Rated Speed 2000 r/min
Max Speed 2400 r/min
Rotation L: Left (counter-clockwise), R: Right (clockwise)
Material Cast Iron
Structure External Gear Pump
Flange Version ISO-4 Mounting Holes
Shaft Type X: Involute Spline

**1. Precise P350 Series Gear Pump Specifications**
- Delivers consistent flow with 104.5 cc/rev displacement, rated at 22 MPa (3190 psi) and peak pressure of 24.5 MPa (3550 psi).
- Optimized for right-hand clockwise rotation at 2000 r/min rated speed, ensuring seamless integration into heavy-duty hydraulic circuits.

**2. Reliable Hydraulic Gear Pump for Heavy Duty**
- Engineered for demanding applications in construction and earthmoving, including wheel loaders, telehandlers, and skid steer loaders.
- Withstands high operational stress with max speed capacity of 2400 r/min, providing stable power transmission for material handling equipment.

**3. Factory Direct Sales from Certified Manufacturer**
- Sourced directly from a 25-year established facility with 68,000 sqm area and annual capacity of 1,500,000 units, eliminating middleman costs.
- Benefits from Wholesale China Factory pricing while receiving IATF 16949 and CE certified products backed by 25+ autonomous patents.

**4. Rigorous Quality Control & Testing Protocol**
- Every unit undergoes 100% bench testing for pressure, flow, and sealing integrity using 260+ vertical machining centers and CMM inspection.
- Ensures zero-defect delivery with strict oil cleanliness standards and SGS professional detection, guaranteeing long service life in industrial vehicles.

**5. OEM/ODM Available Customization Services**
- Supported by 35+ senior engineers with 10+ years experience, offering tailored solutions for appearance, casting, and laser logo marking.
- Ideal for distributors seeking Private Label options, with robust rust-proof packaging and global compatibility to replace major international brands.
