Production & Delivery
15-30 Days Production Lead Time
Innovation drives development Technology forges future
216 Views are Looking for this Product

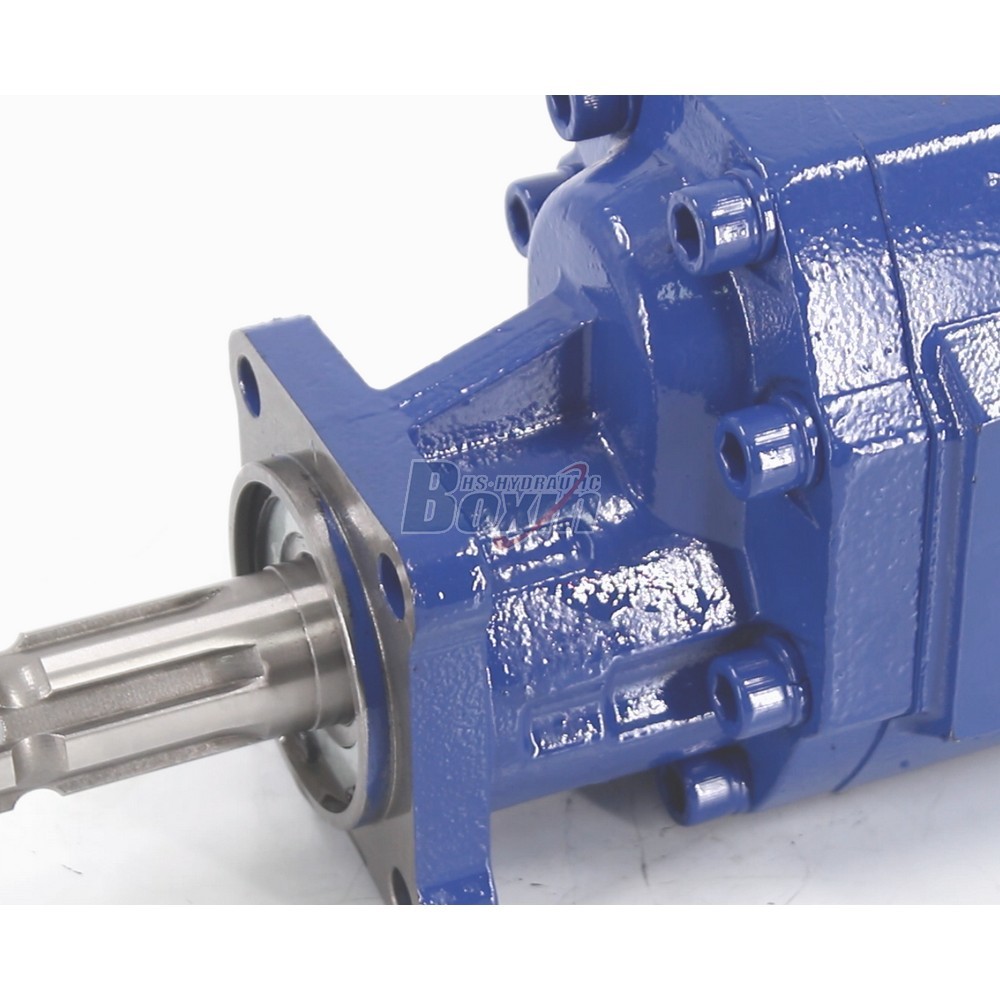

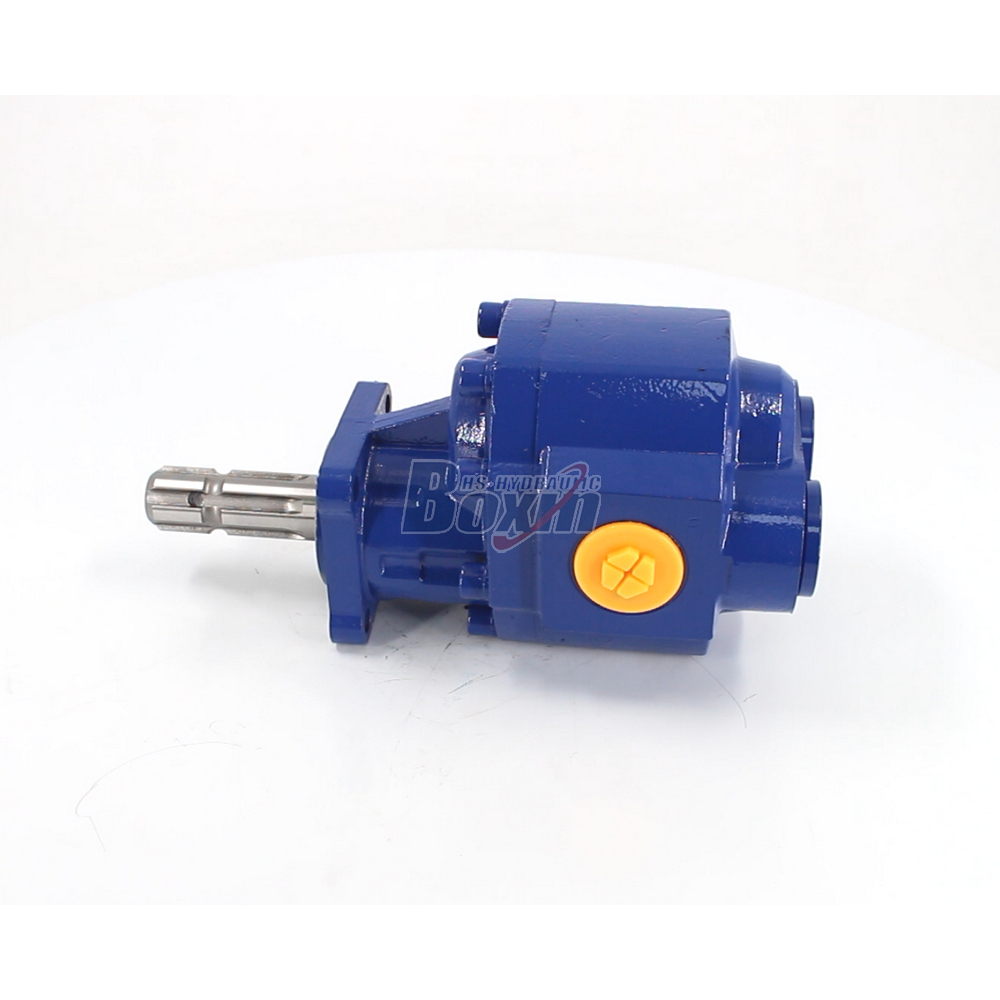

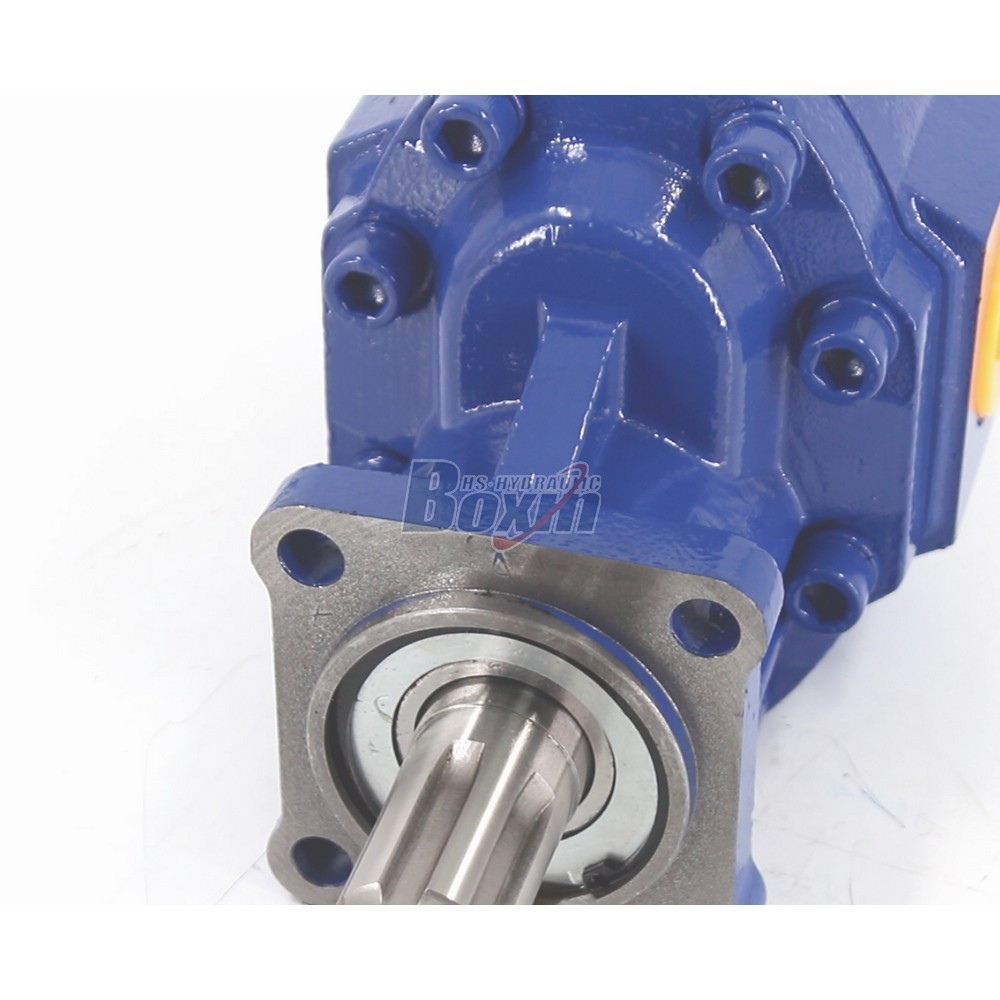

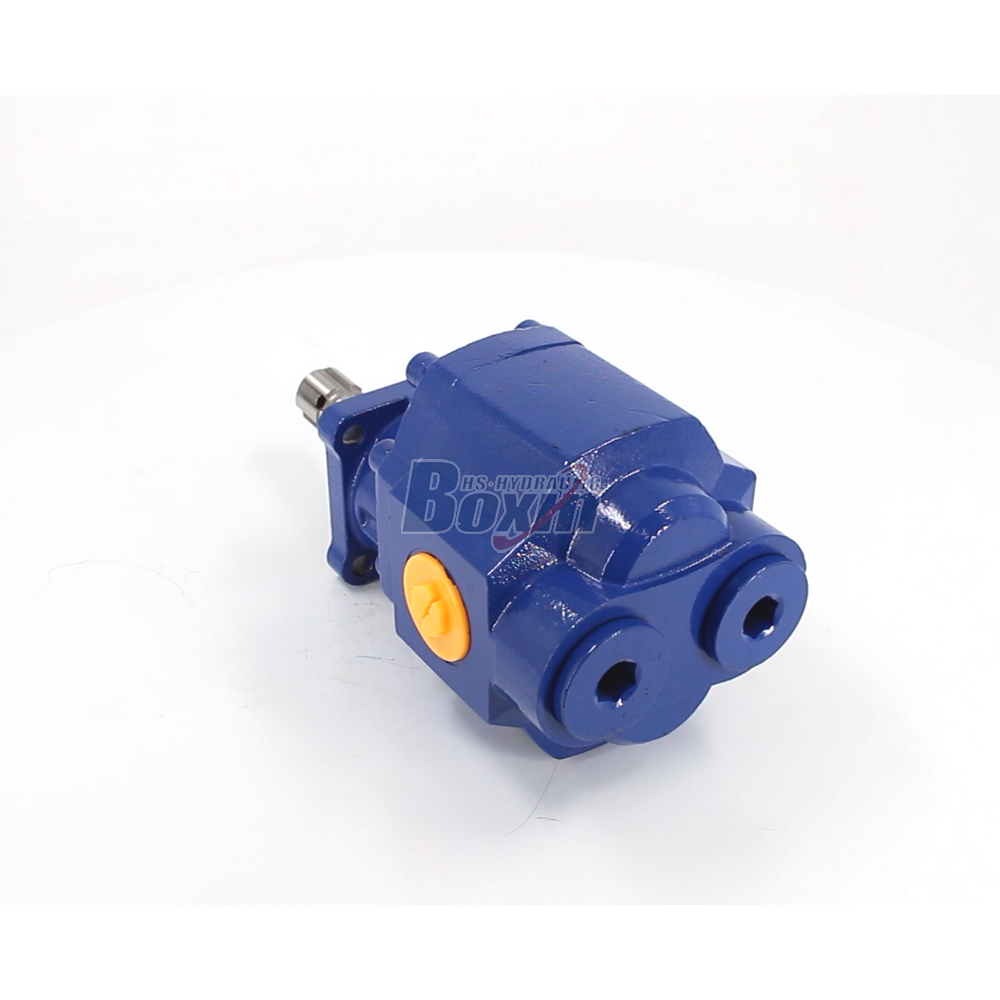

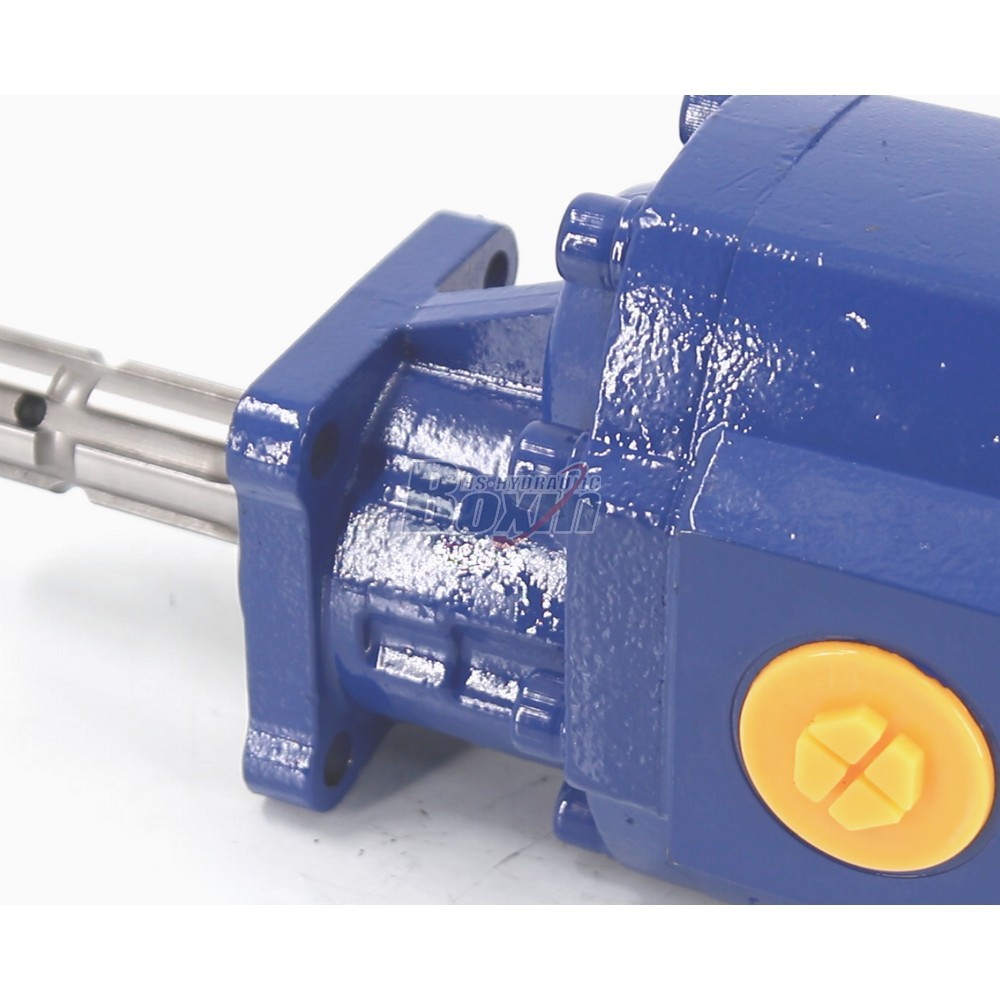

CBHST1-110-KZ Hydraulic Gear Pump features 110 cc/rev displacement, 20 MPa rated pressure, and bidirectional rotation for heavy-duty machinery. Backed by a 25-year Professional Manufacturer with IATF 16949 certification, this pump ensures reliable performance for wheel loaders, forklifts, and agricultural equipment. Factory Direct Sales support full OEM/ODM customization for global distributors.
| CBHST1-ISO Series Hydraulic Gear Pump Parameters | |
|---|---|
| Displacement | 50 cc/rev, 63 cc/rev, 80 cc/rev, 100 cc/rev, 110 cc/rev, 34 cc/rev, 43 cc/rev, 90 cc/rev, 120 cc/rev, 82 cc/rev |
| Rated Pressure | 20 MPa (2900 psi), 23 MPa (3335 psi), 25 MPa (3625 psi) |
| Max Pressure | 23 MPa (3335 psi), 25 MPa (3625 psi), 28 MPa (4061 psi) |
| Rated Speed | 2000 r/min |
| Max Speed | 2500 r/min |
| Rotation | /: (Bidirectional) |
| Material | Cast Iron |
| Structure | External Gear Pump |
| Flange Version | ISO-4 Mounting Holes |
| Shaft Type | H: Rectangle Spline |
**1. High Flow 110cc Hydraulic Pump Specifications**
- Delivers consistent flow with 110 cc/rev displacement, operating at rated speed of 2000 r/min and max speed of 2500 r/min.
- Handles demanding loads with 20 MPa (2900 psi) rated pressure and peaks at 23 MPa (3335 psi), ideal for concrete boom pumps and telehandlers.
**2. Versatile CBHST1 Series Pump Applications**
- Designed for bidirectional rotation, ensuring seamless integration into wheel loaders, backhoe loaders, and skid steer loaders.
- Widely compatible with construction and earth-moving vehicles, offering a durable solution for material handling and industrial vehicle systems.
**3. Reliable High Pressure Gear Pump Quality**
- Manufactured in our 68,000 sqm facility with 260+ vertical machining centers, ensuring strict tolerance control.
- Every unit undergoes 100% bench testing for pressure, flow, and sealing, backed by CE compliance and SGS professional detection reports.
**4. OEM/ODM Available Customization Services**
- Supported by 35+ senior engineers with 10+ years of experience, we offer tailored solutions including logo laser marking and casting modifications.
- As a Wholesale China Factory, we provide one-stop OEM/ODM services to help distributors build their Private Label brands efficiently.
**5. Factory Direct Sales & Global Logistics**
- Benefit from Exported Worldwide logistics with anti-rust treatment and heavy-duty wooden crate packaging to ensure safe delivery.
- With an annual capacity of 1,500,000 units and 25+ patents, we serve as a stable partner for wholesalers seeking Hot Sale hydraulic components.
