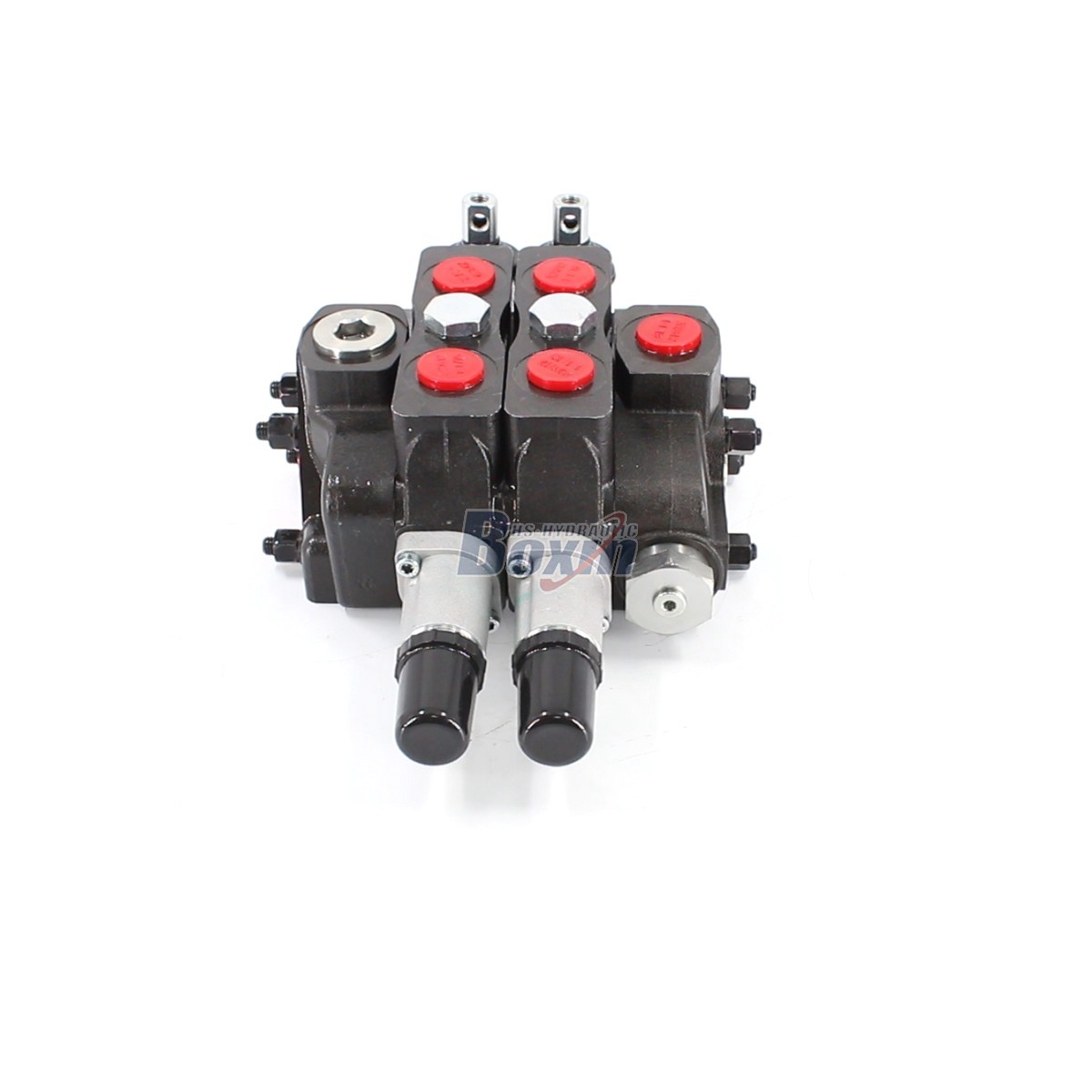

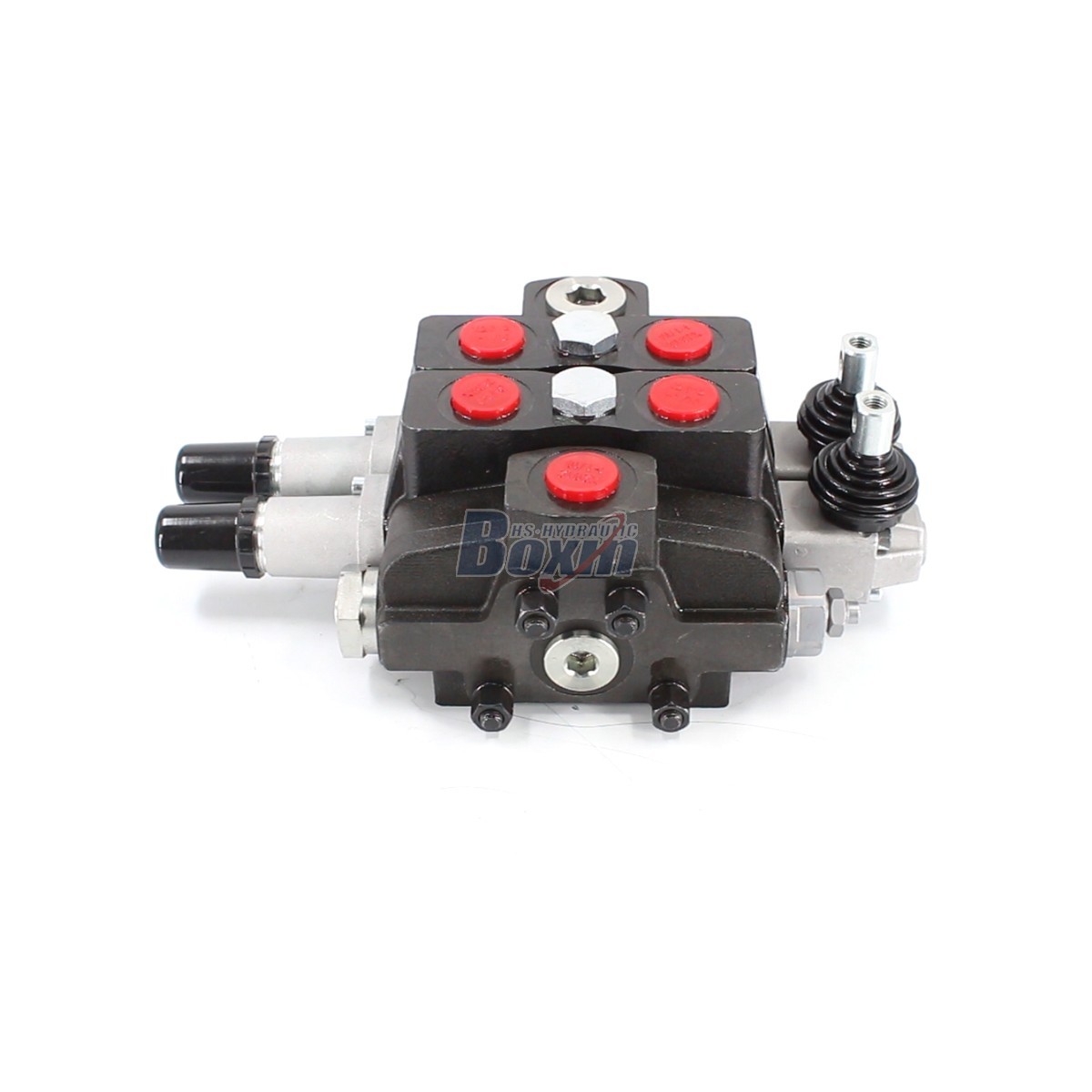

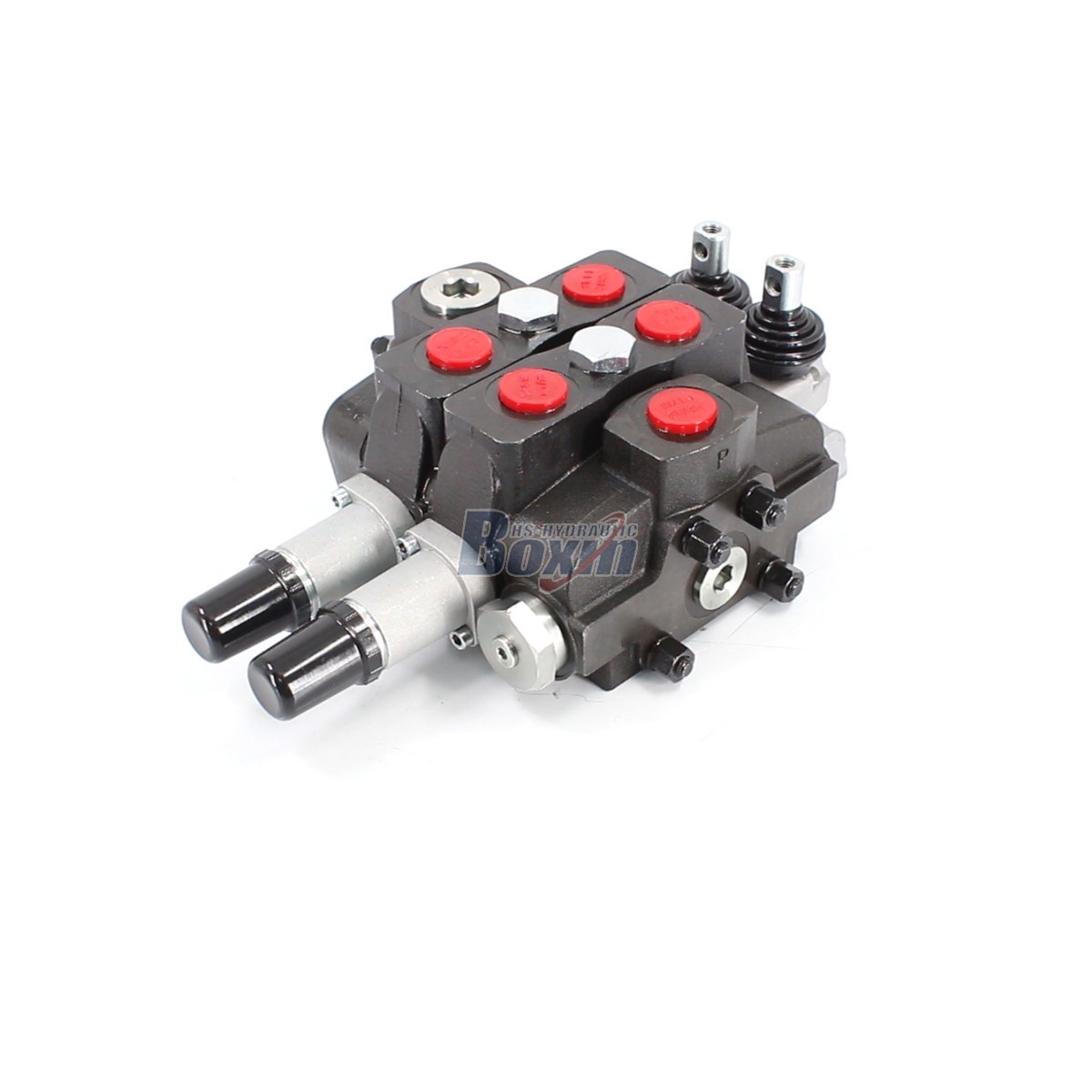

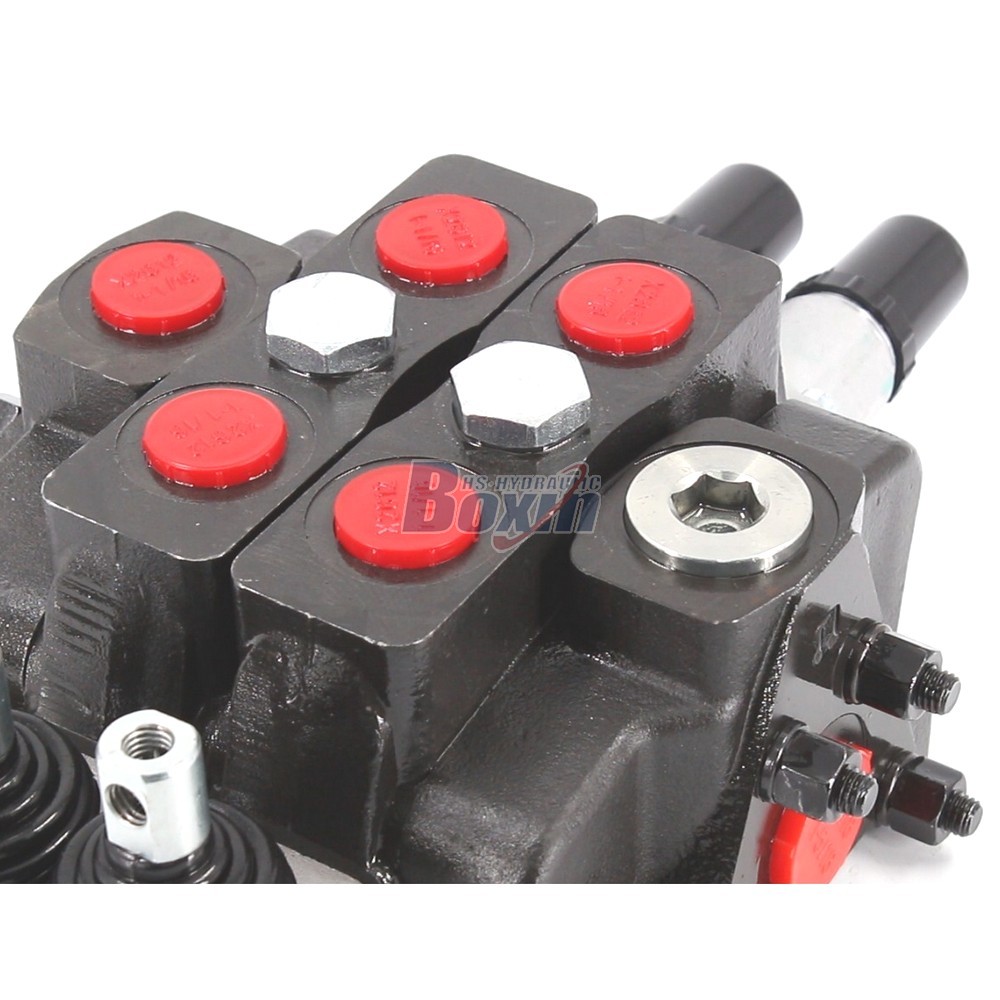

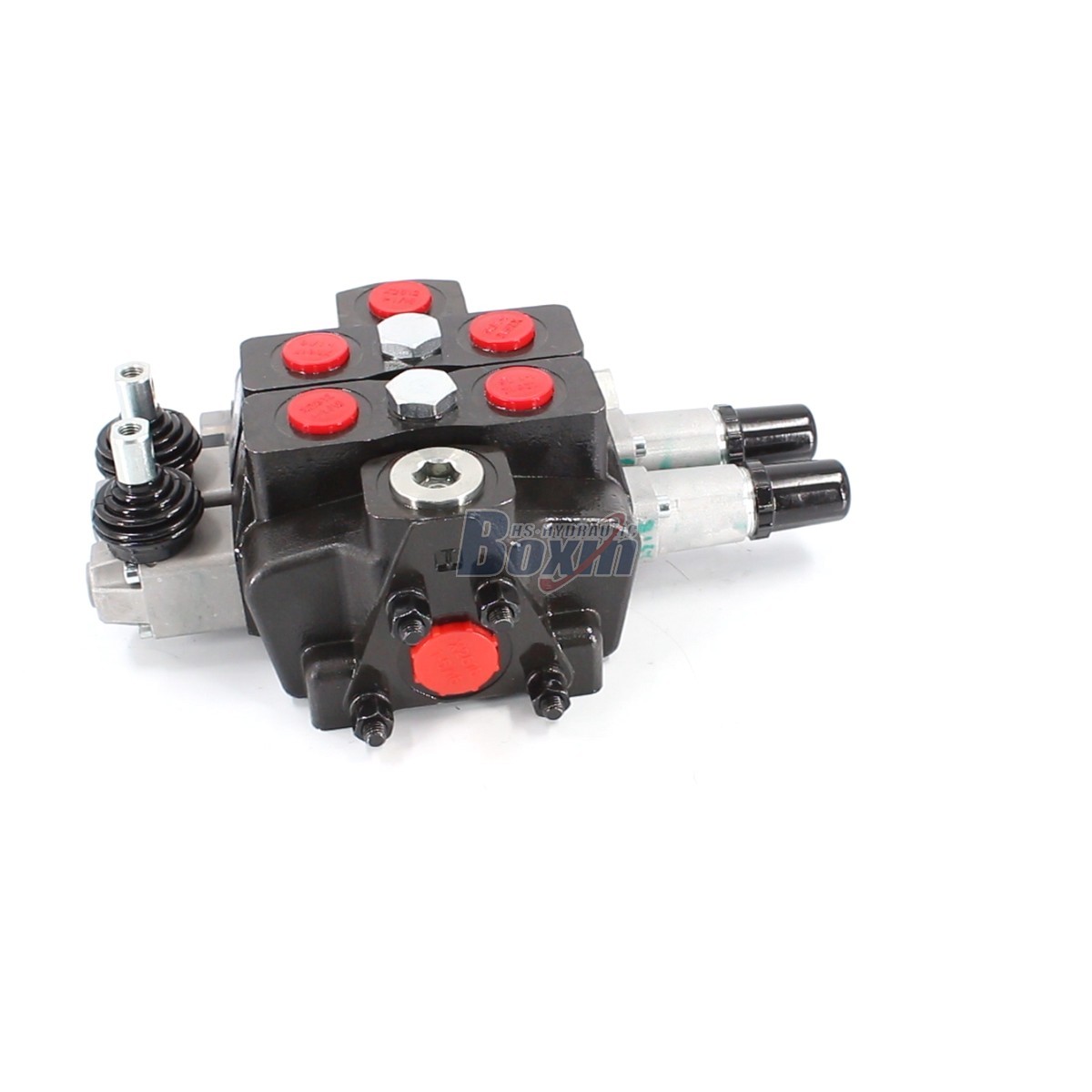

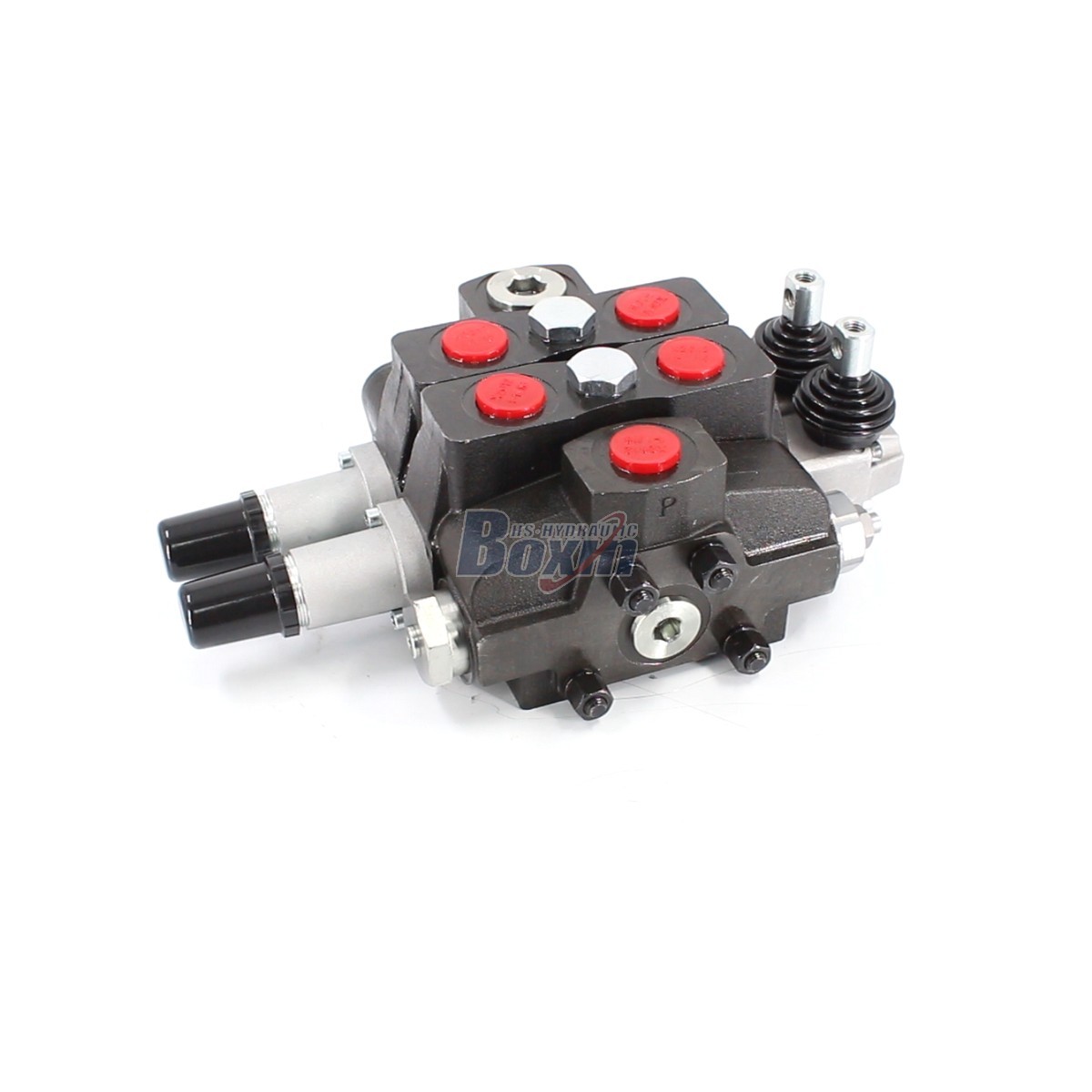

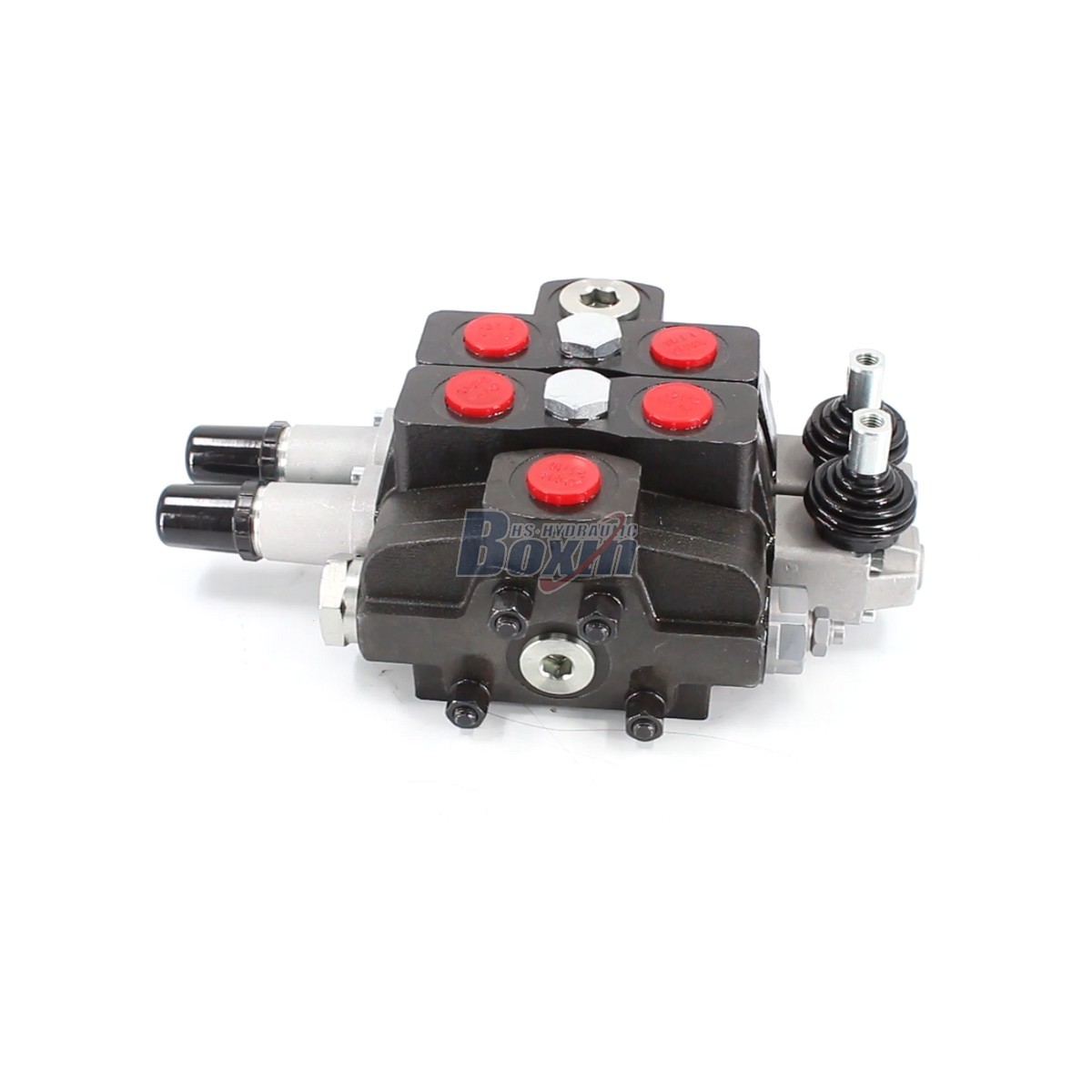

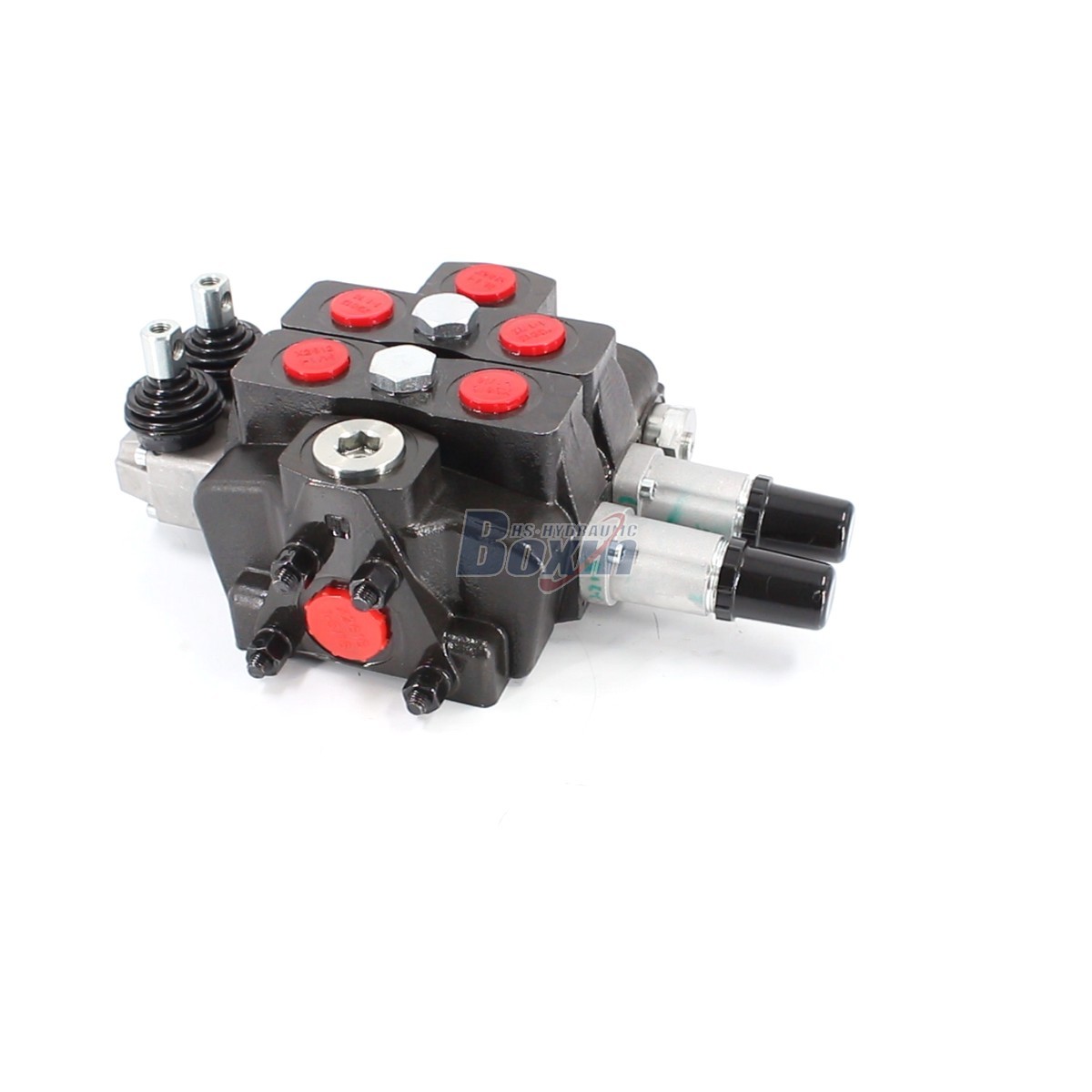

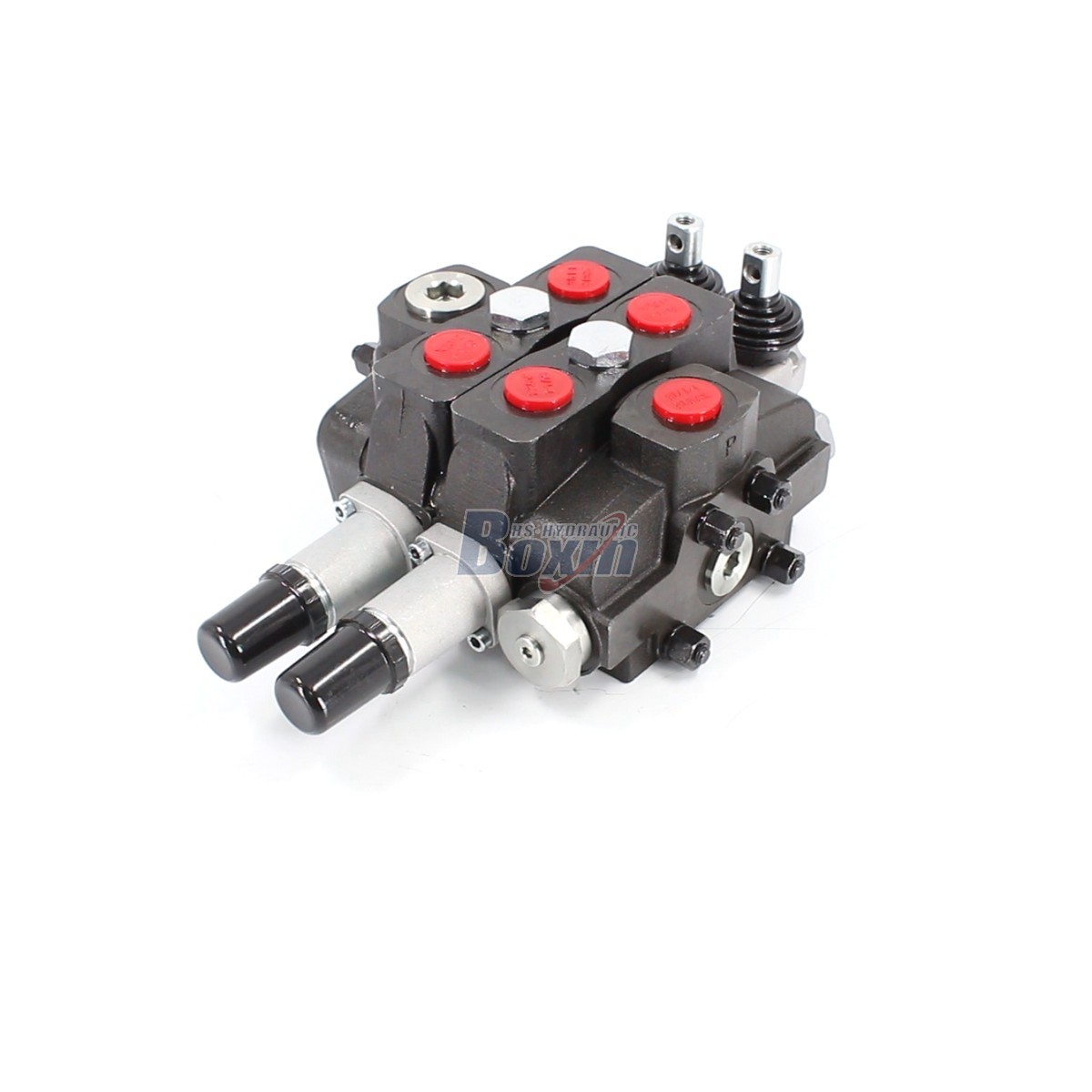

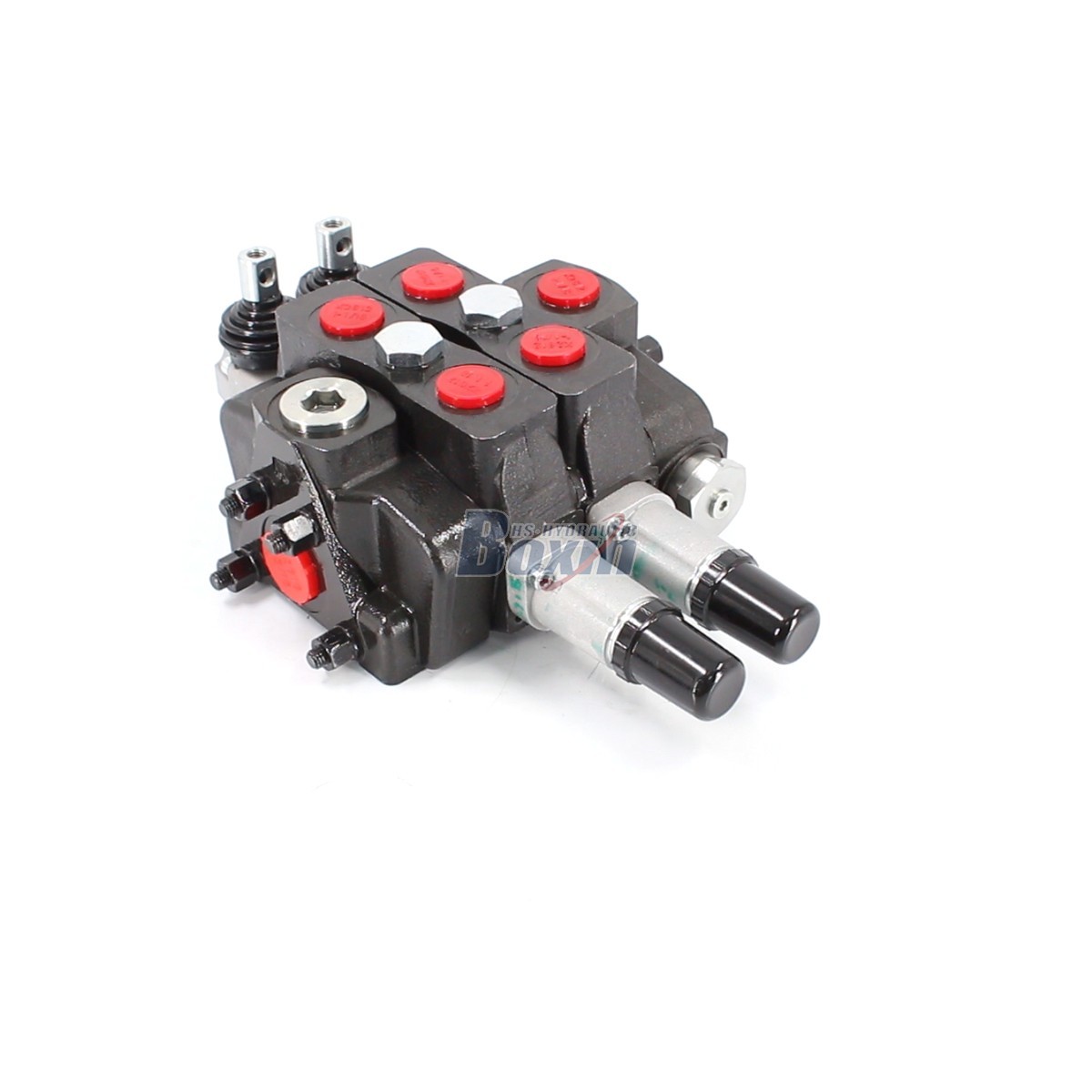

The SDS180T-2CB-OT is a robust manual 2-spool sectional directional valve designed for global hydraulic systems. With a rated flow of 160 L/min and max pressure up to 350 bar, it offers reliable control for construction, agriculture, and industrial machinery. Featuring versatile port options (G1, SAE) and wide temperature tolerance, it is ideal for OEMs and distributors seeking high-performance, customizable hydraulic solutions.

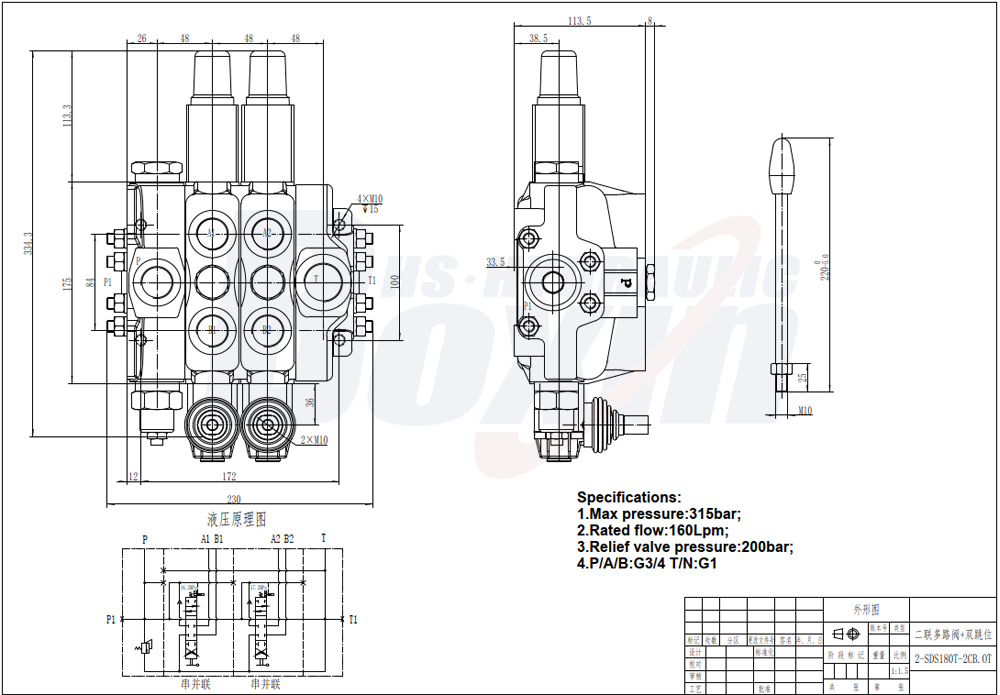

| SDS180 Series Sectional Directional Valve Parameters | |
|---|---|
| Control Method | Manual, Hydraulic, Pneumatic and Manual |
| Spool | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Ambient Temperature Range | -40°C to +80°C (-40°F to +176°F) |
| Structure Type | Sectional valve |
| Section | 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section, 8 Section, 9 Section, 10 Section |
| Operating Viscosity Range | 12 - 400 mm²/s (12 cSt to 400 cSt) |
| Rated Flow | 160 L/min (42.2 US gpm) |
| Max Pressure | 315 bar (4600 psi), 350 bar (5100 psi) |
| Inlet Port | G3/4, G1, SAE 12 |
| Outlet Port | G1, SAE 16 |
| Port Size | G3/4, G1, SAE 12 |
Product Overview:
The SDS180T-2CB-OT is a high-performance manual 2-spool sectional directional valve engineered for demanding hydraulic applications. As a leading global manufacturer, we offer comprehensive OEM, ODM, and customization services to meet diverse market needs.
Key Features & Advantages:
- High Performance: Rated flow of 160 L/min (42.2 US gpm) with maximum operating pressures of 350 bar (5100 psi) or 315 bar (4600 psi), ensuring efficient power transmission.
- Versatile Connectivity: Compatible with G1, G3/4, and SAE 12 inlet ports, and G1 or SAE 16 outlet ports, facilitating easy integration into existing systems.
- Durability: Constructed to withstand extreme conditions with an ambient temperature range of -40°C to +80°C and an operating viscosity range of 12-400 mm²/s.
- Modular Design: The sectional structure allows for flexible configuration and expansion, reducing inventory costs and simplifying maintenance.
Applications:
Ideal for mobile hydraulics in construction equipment (mini-excavators, skid steers), agricultural machinery (tractors, harvesters), and material handling vehicles (forklifts, telehandlers).
Business Services:
We support wholesalers, distributors, agents, and traders with competitive bulk pricing, strict quality control, and fast global shipping. Contact us for custom specifications and private labeling opportunities.
