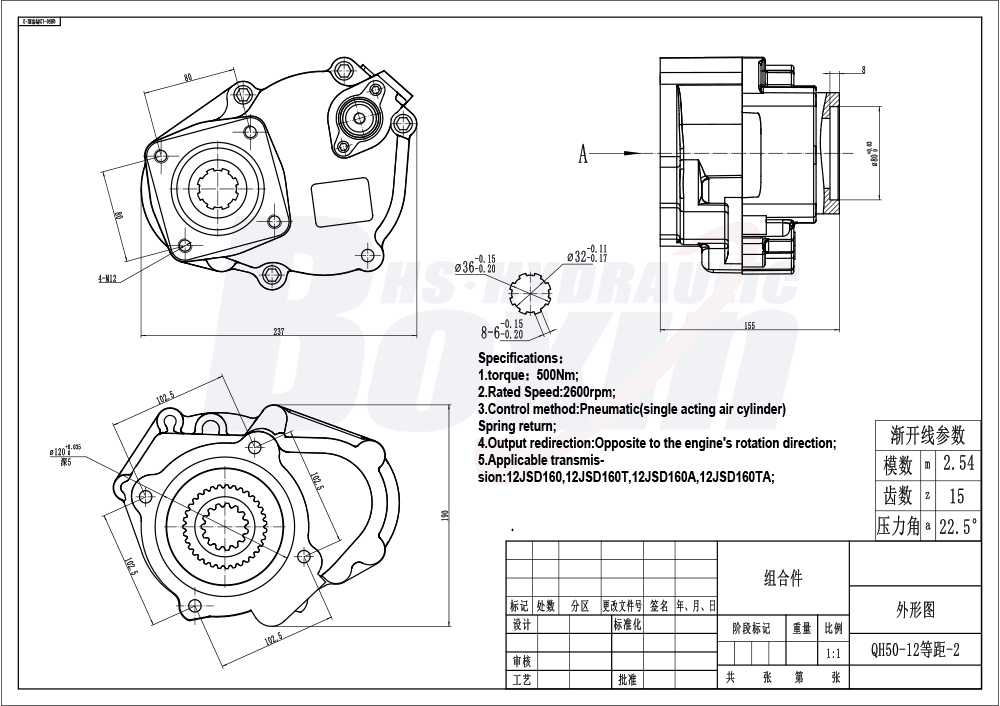

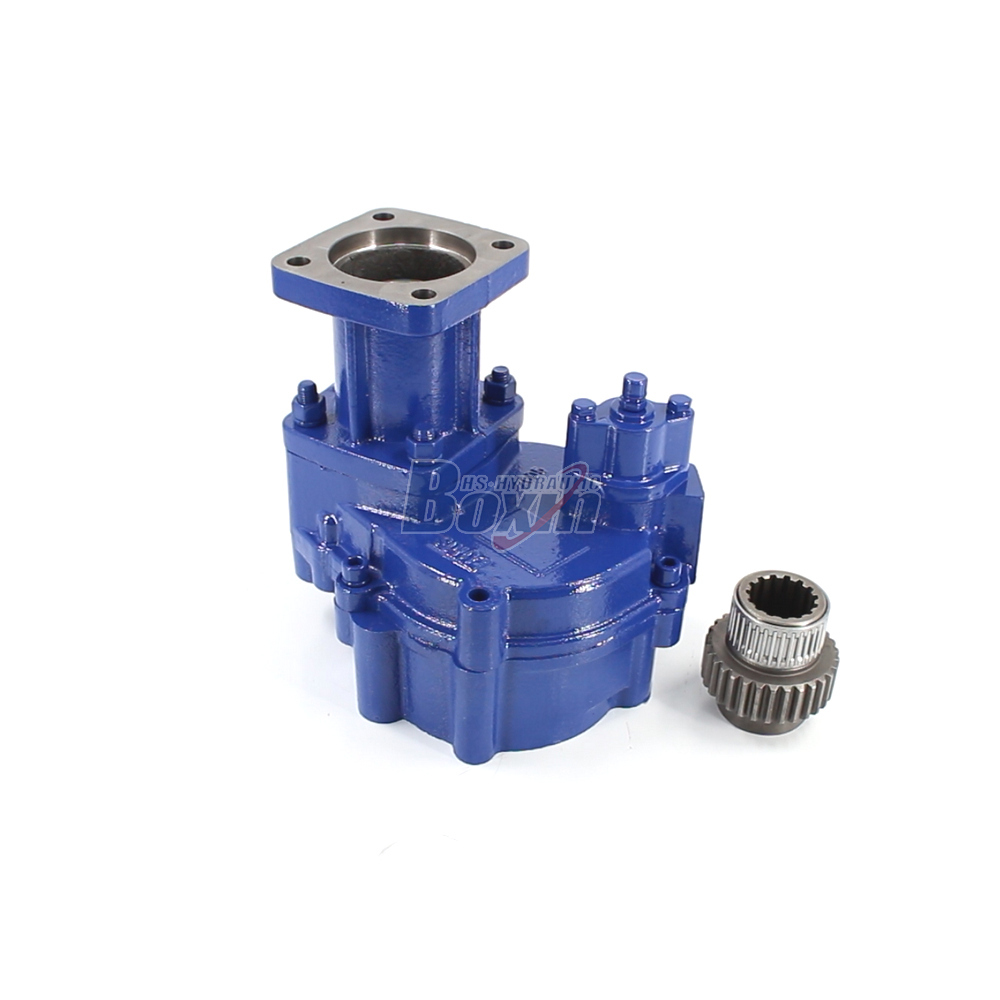

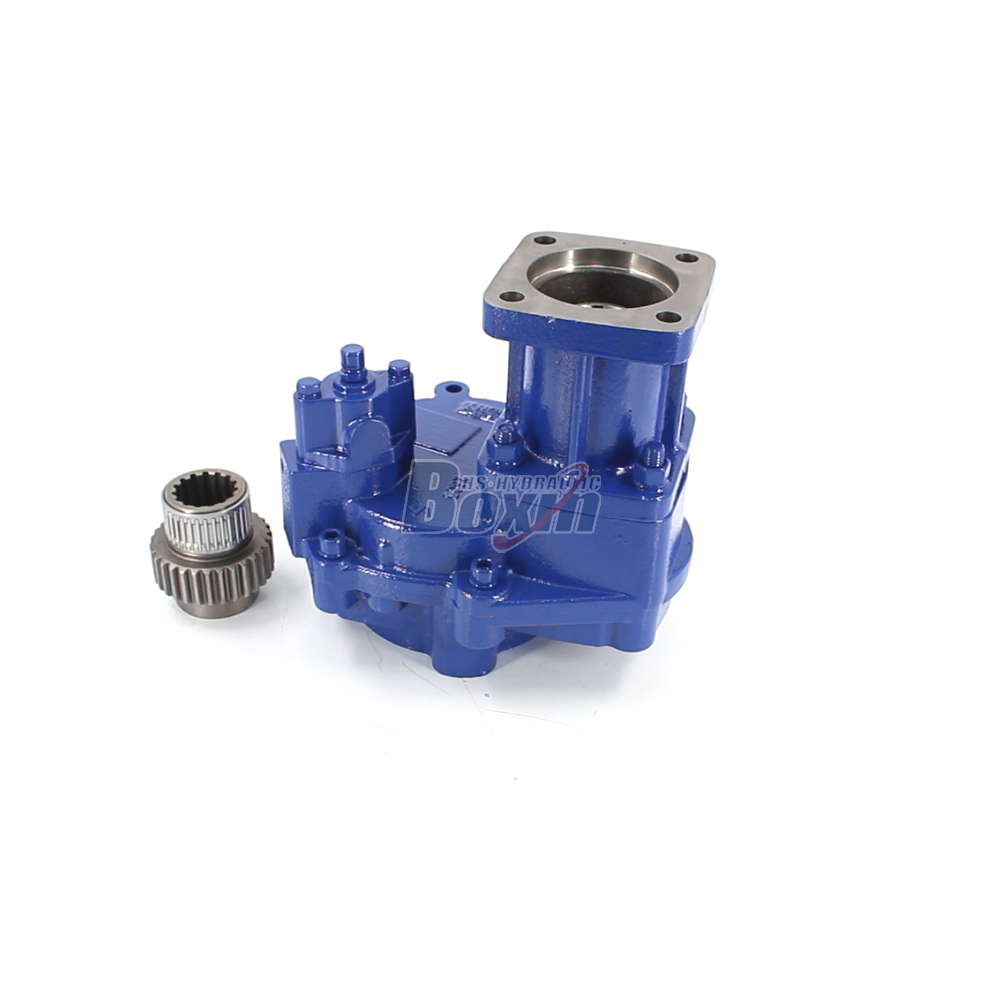

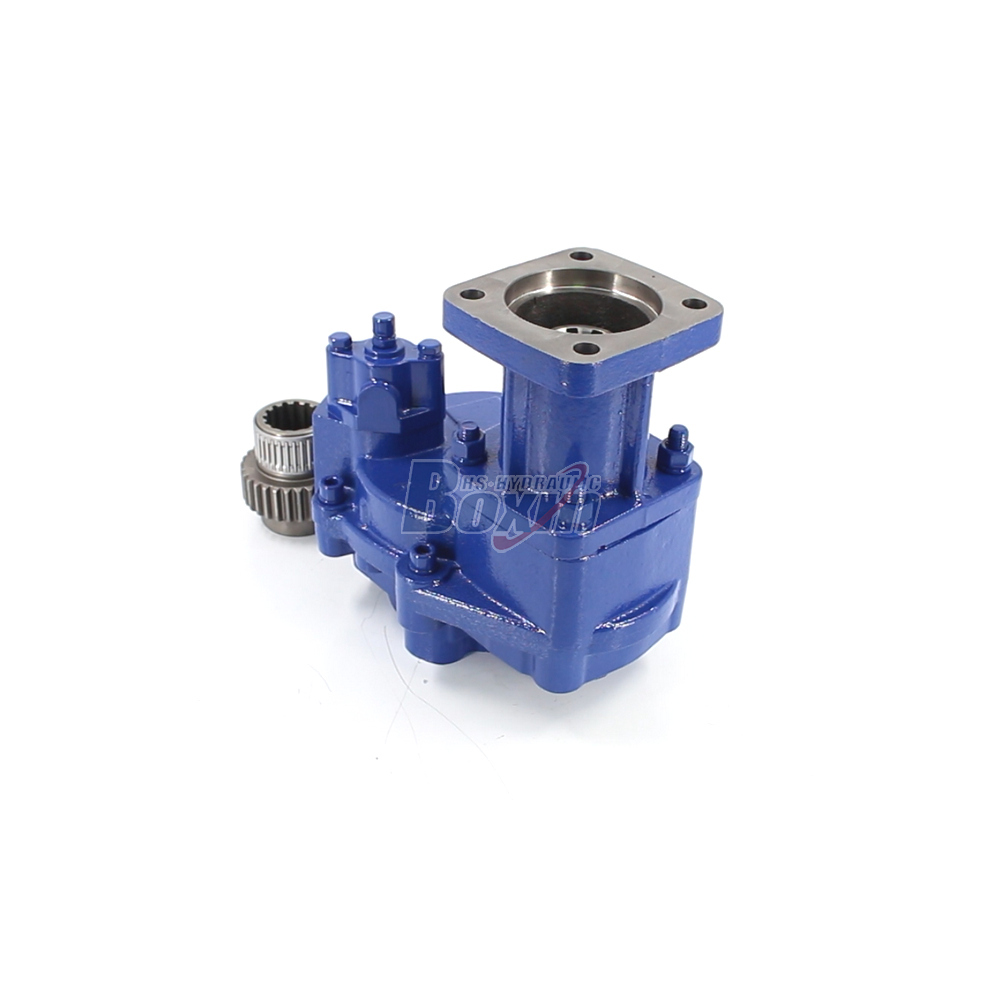

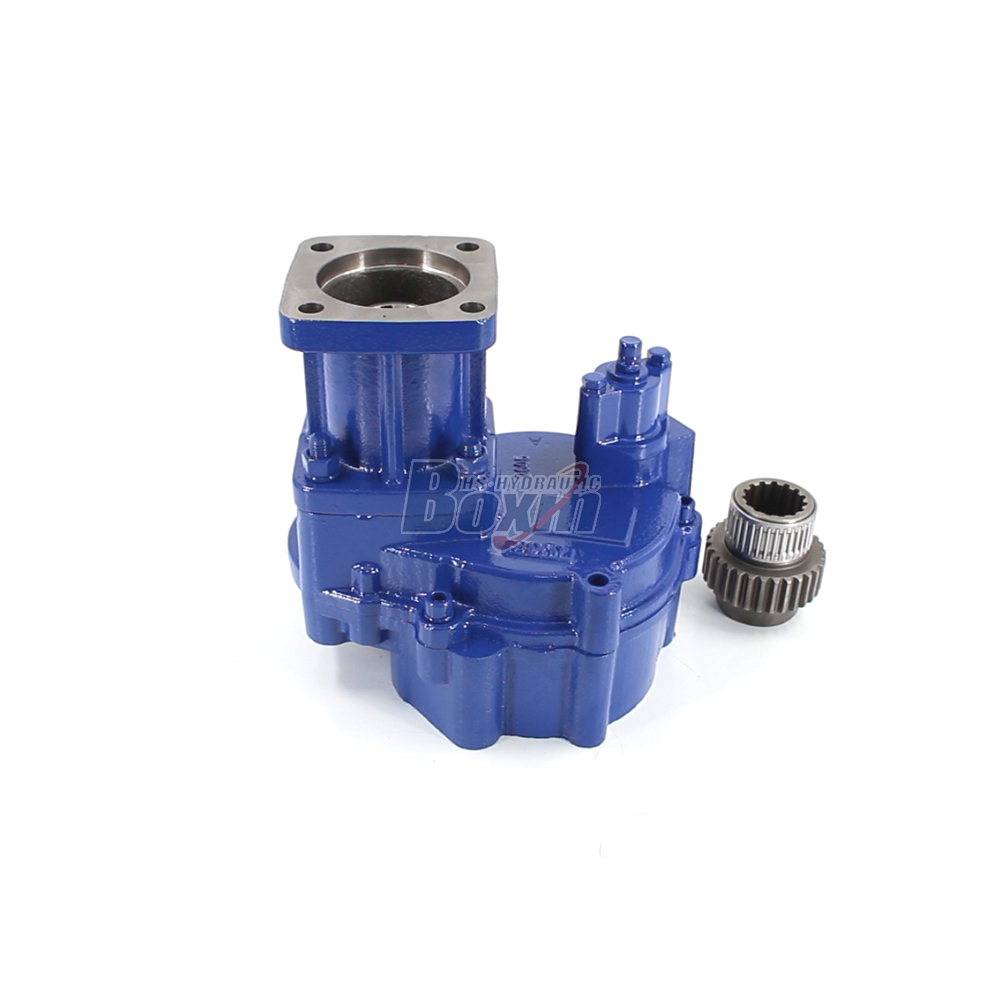

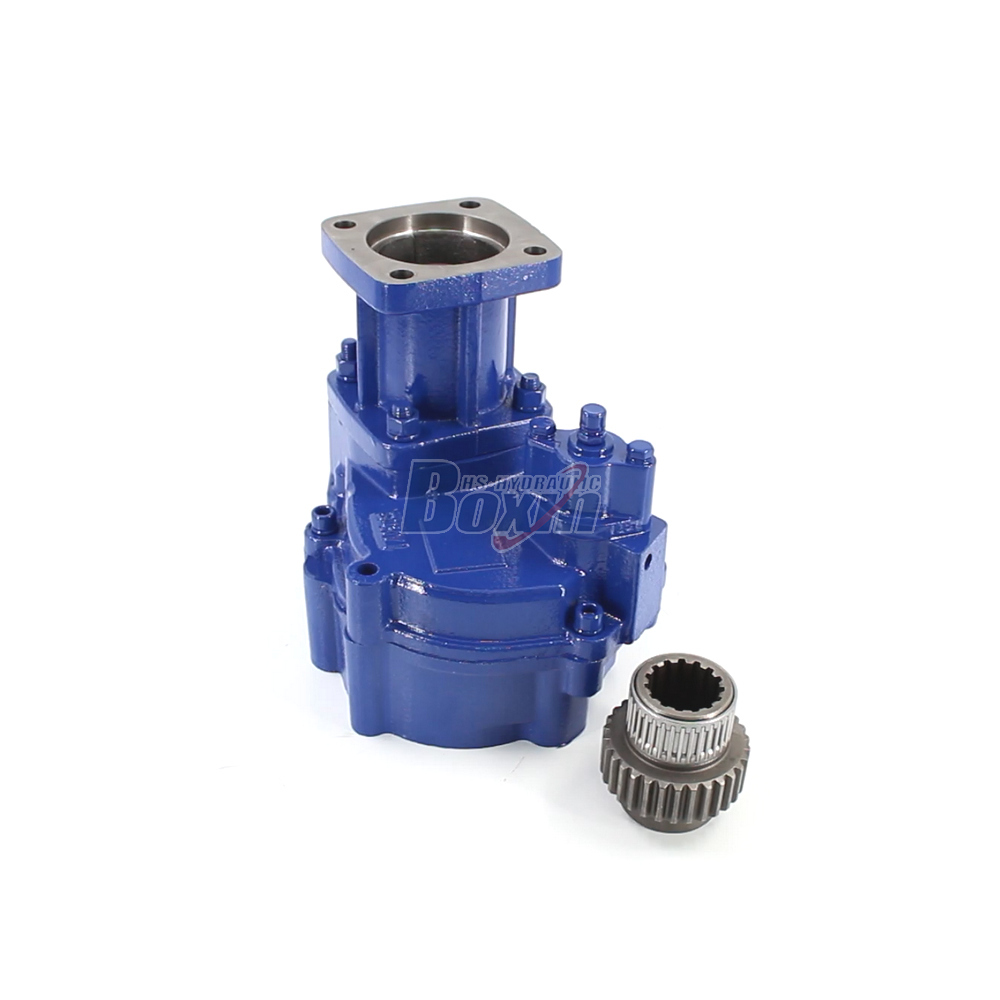

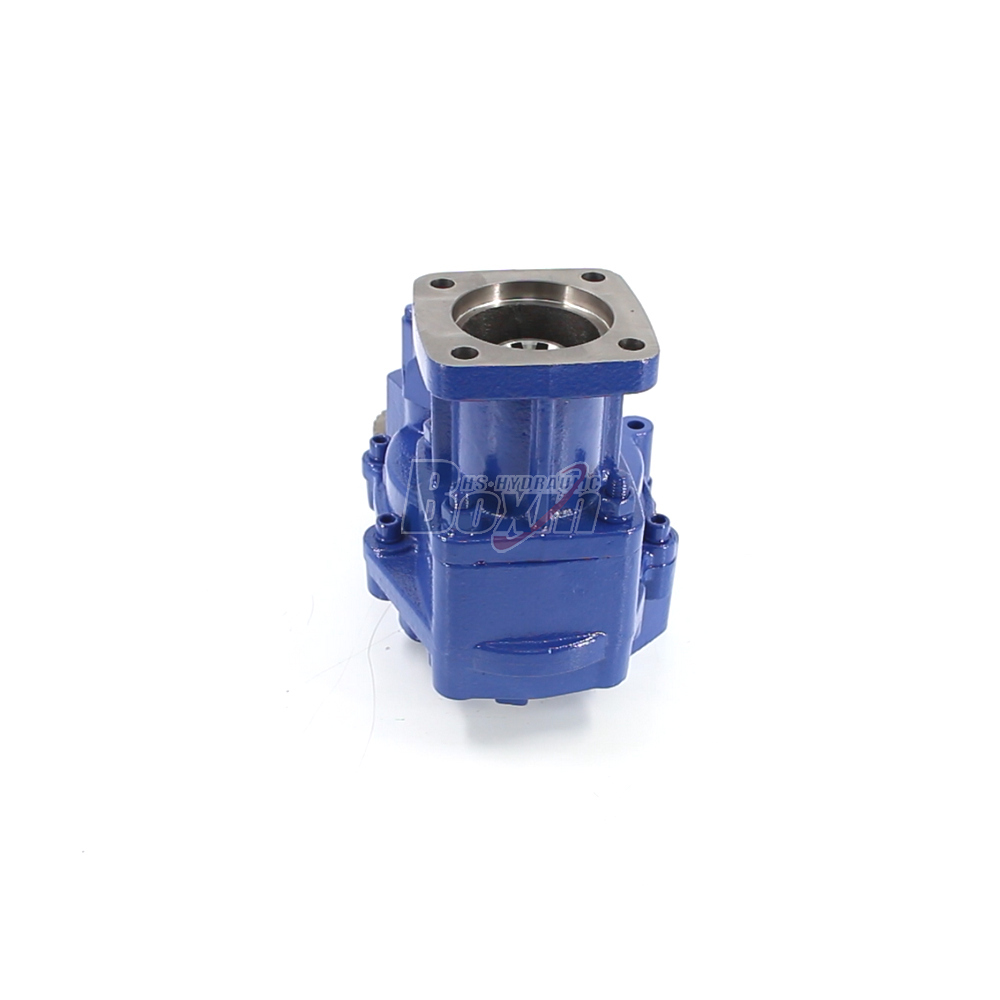

The QH50-12-2 is a robust 500 Nm Power Take Off unit featuring pneumatic single-acting control with spring reset. Designed with a 1:1.2 speed ratio and standard mounting, it delivers output steering opposite to the engine direction. Ideal for global OEMs and distributors seeking reliable, no-pressure lube PTO solutions for heavy-duty machinery.
| QH50-12-2 Power Take Off Parameters | |
|---|---|
| Control Air Pressure | 6 bar, 7-10 bar |
| Lube Option | No Pressure Lube |
| Mounting Option | Standard Mount |
| Manipulation Form | Pneumatic (single acting cylinder) spring reset |
| Output Steering | Opposite to the engine steering direction |
| Rated Output Torque | 500 Nm |
| Speed Ratio | 1:1.2 |
| Controlling Method | Pneumatic Control |
| Mounting Type | 4 bolt |
Product Overview: The QH50-12-2 Power Take Off (PTO) is engineered for high-performance applications requiring precise torque transmission and reliable engagement. With a rated output torque of 500 Nm and a speed ratio of 1:1.2, it ensures efficient power transfer for various hydraulic and mechanical drives.
Key Features:
- Pneumatic Control: Operates via a single-acting cylinder with spring reset, requiring control air pressure of 6-10 bar for smooth engagement and disengagement.
- Reverse Output Steering: The output rotation is opposite to the engine steering direction, catering to specific machinery design requirements.
- Maintenance-Free Lubrication: The 'No Pressure Lube' option simplifies maintenance and reduces system complexity.
- Standard Mounting: Compatible with a wide range of industrial and mobile equipment, facilitating easy integration.
Applications:
This PTO is widely used in construction, agriculture, material handling, and industrial vehicles. It is suitable for wheel loaders, telehandlers, backhoe loaders, tractors, harvesters, and waste compactors. We offer comprehensive services including manufacturing, OEM/ODM, white labeling, and customization for global distributors, wholesalers, and agents.
