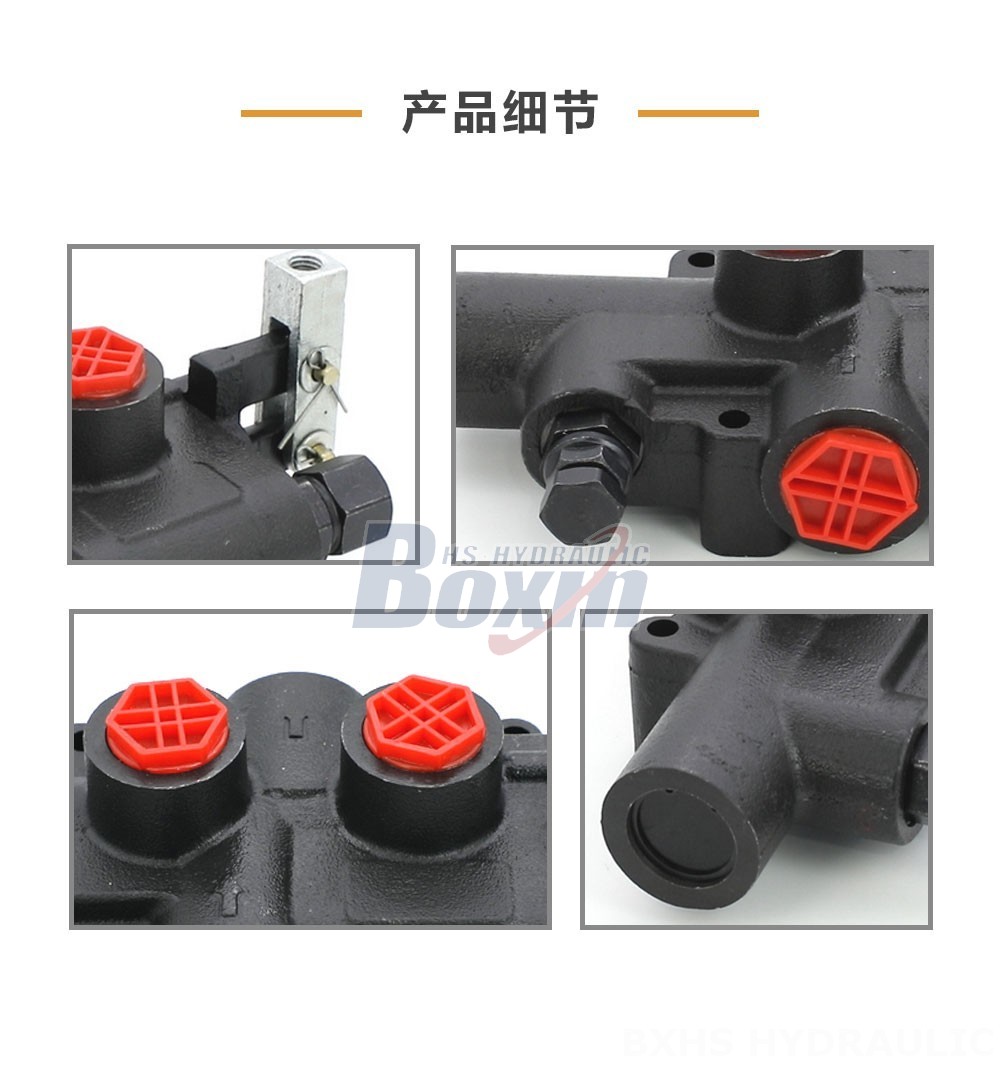

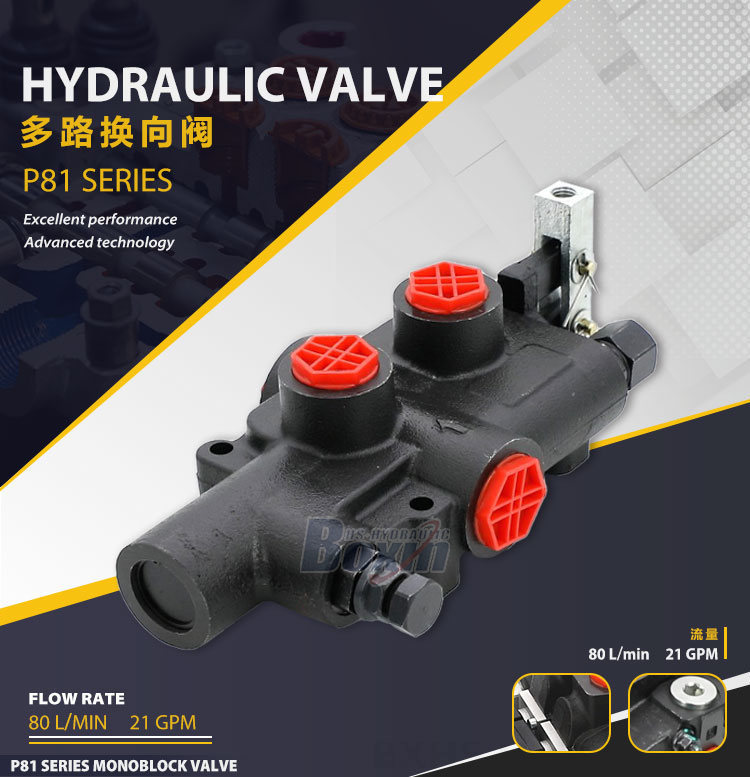

The P81 Manual 1 Spool Log Splitter Valve is a high-performance hydraulic valve designed for use in log splitter applications. With a rated flow of 80 L/min and a maximum pressure of 250 bar, this valve provides reliable and efficient control of hydraulic systems. Its compact monoblock design and manual control mechanism make it easy to integrate and operate.
| P81 Series Log Splitter Valve Parameters | |
|---|---|
| Control Method | Manual |
| Spool | 1 Spool |
| Rated Flow | 95 L/min (25.1 US gpm) |
| Max Pressure | 19 MPa (2735 psi) |
| Inlet Port | G1/2 |
| Outlet Port | G1/2 |
| Port Size | G3/4 |
| Section | 1 Section |
| Structure Type | Monoblock valve |
| Ambient Temperature Range | -40°C to +80°C (-40°F to +176°F) |
| Operating Viscosity Range | 15 - 75 mm²/s (15 cSt to 75 cSt) |
**Product Features and Benefits:**
* Manual control for precise and responsive operation
* Monoblock construction for compact and durable design
* Rated flow of 80 L/min for high efficiency
* Maximum pressure of 250 bar for demanding applications
* Operating viscosity range of 15 - 75 mm²/s for compatibility with various hydraulic fluids
* Ambient temperature range of -40°C to +80°C for reliable performance in harsh environments
* Single spool design for simple and effective flow control
* Kick out setting pressure of 70~140bar for customized pressure adjustment
* Ideal for use in log splitters and other industrial applications
* Compatible with a wide range of hydraulic systems
* Backed by our commitment to quality and customer satisfaction
