P6-40 40 cc/rev Hydraulic Piston Pump

Rated Pressure:25 MPa (3625 psi)

Max Pressure:30 MPa (4351 psi)

Vendor:BXHS

Product Type:Hydraulic Piston Pump

Product Series:P Series Hydraulic Piston Pump

Productsize:26.25*12.5*14.1

Netweight:19.50 kg

Availability: In Stock

  • 40 cc/rev
  • 63 cc/rev
  • 80 cc/rev
0 Views are Looking for this Product

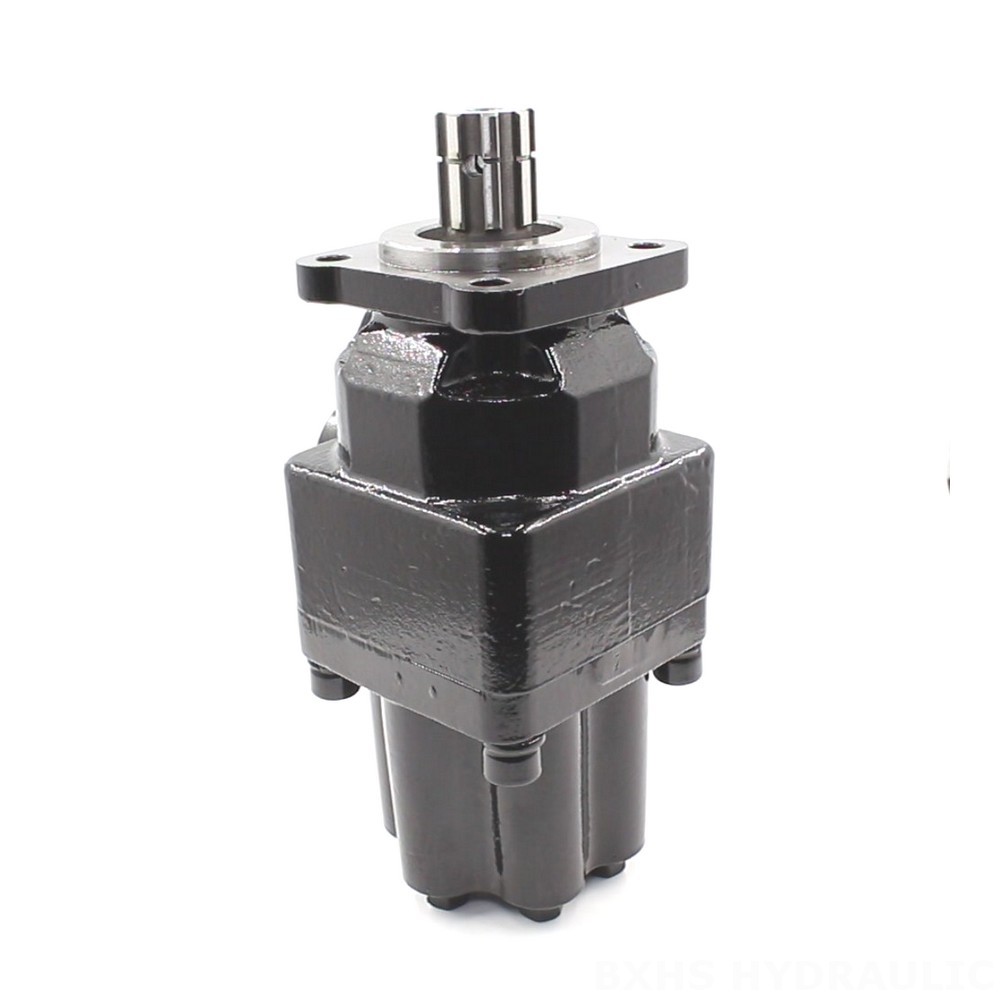

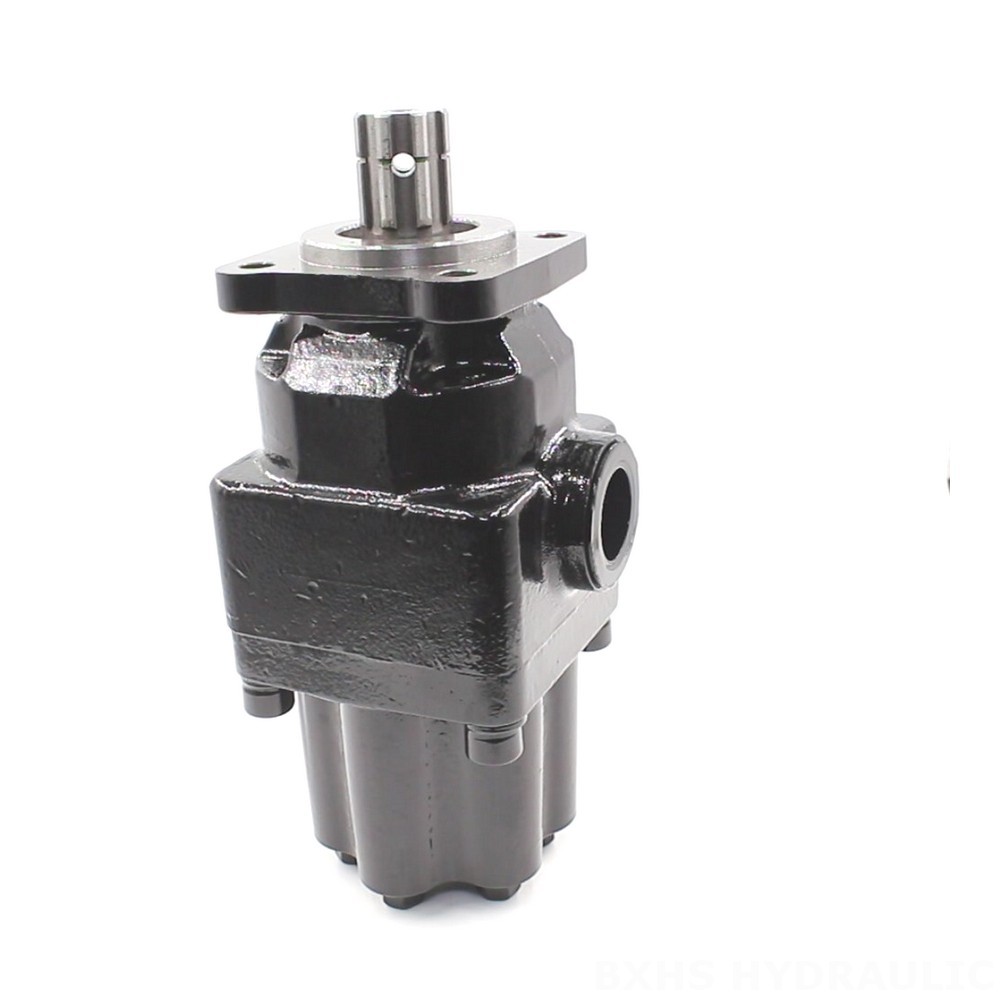

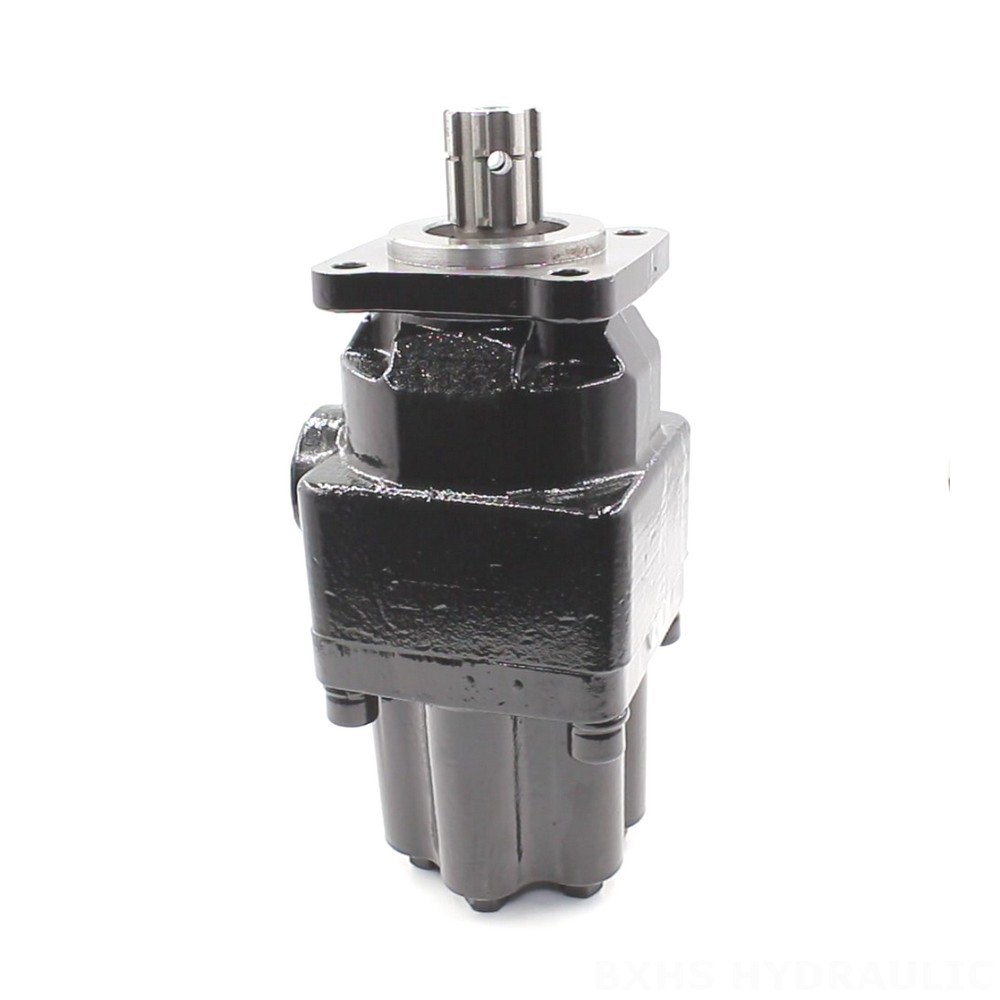

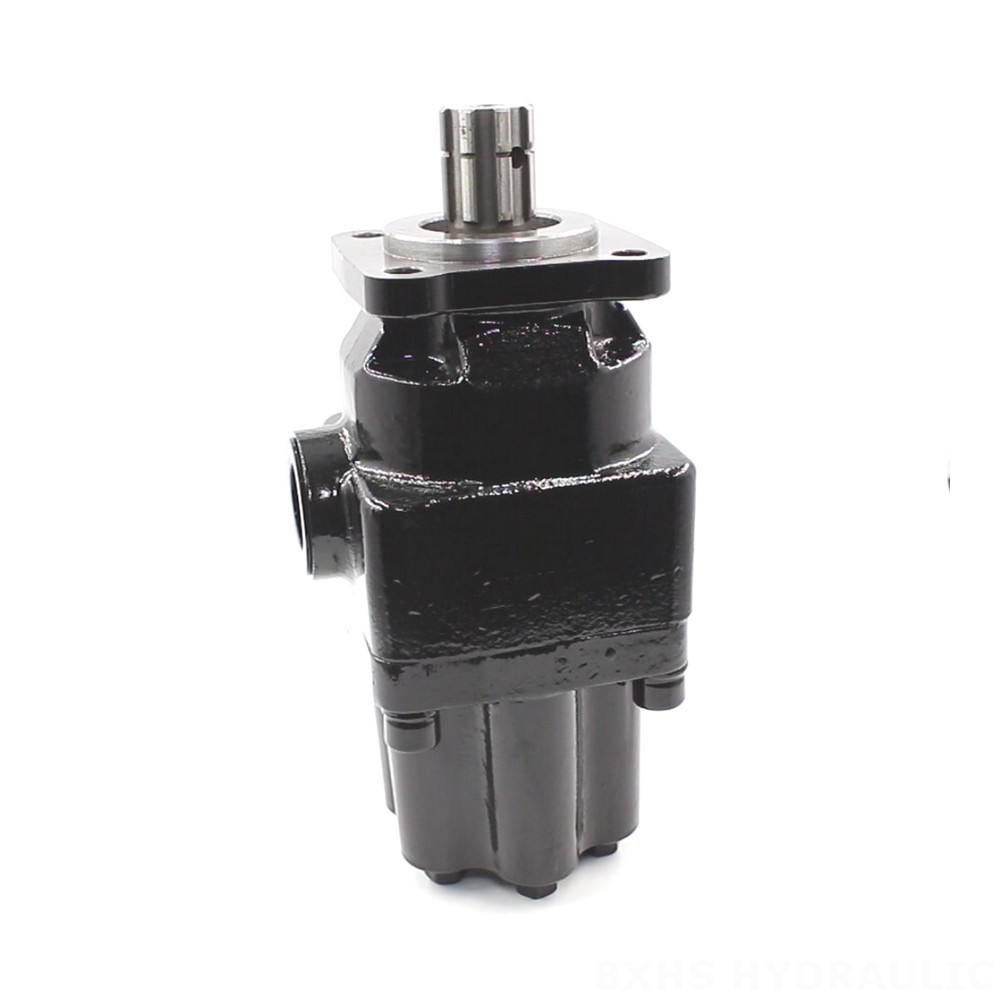

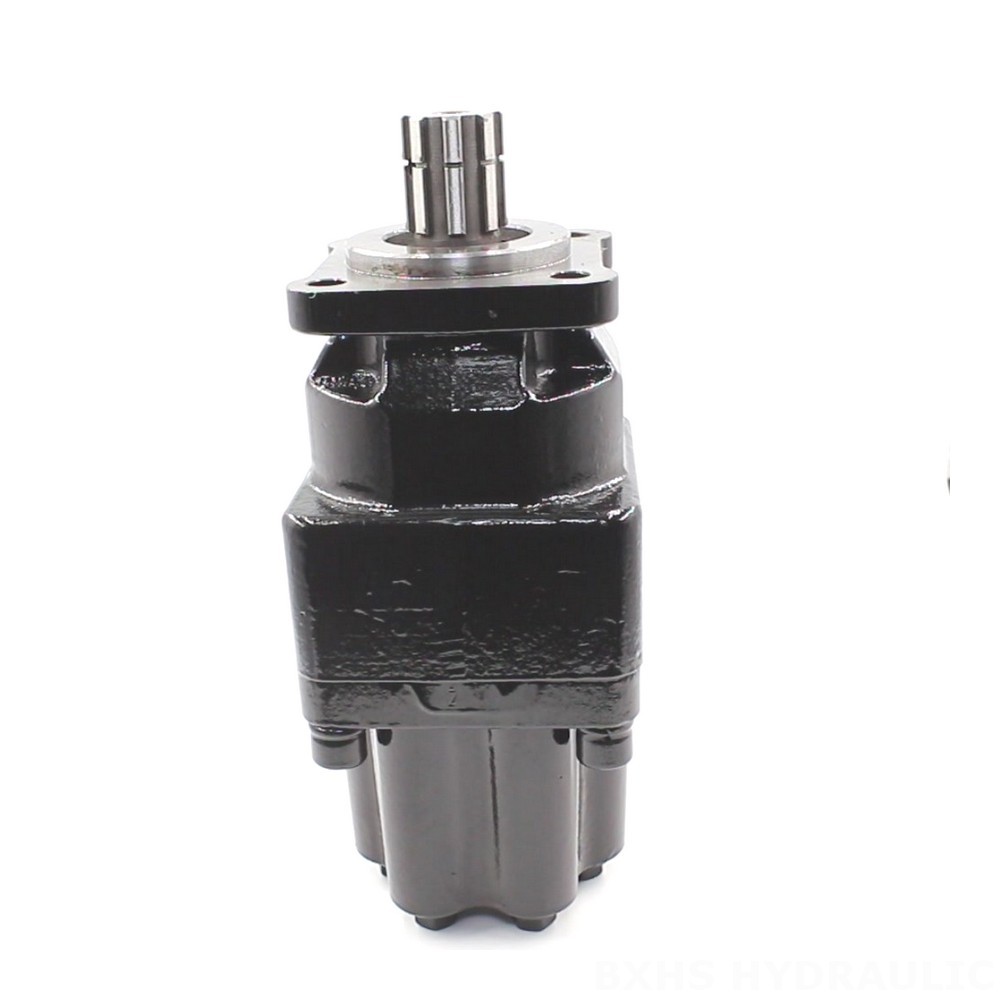

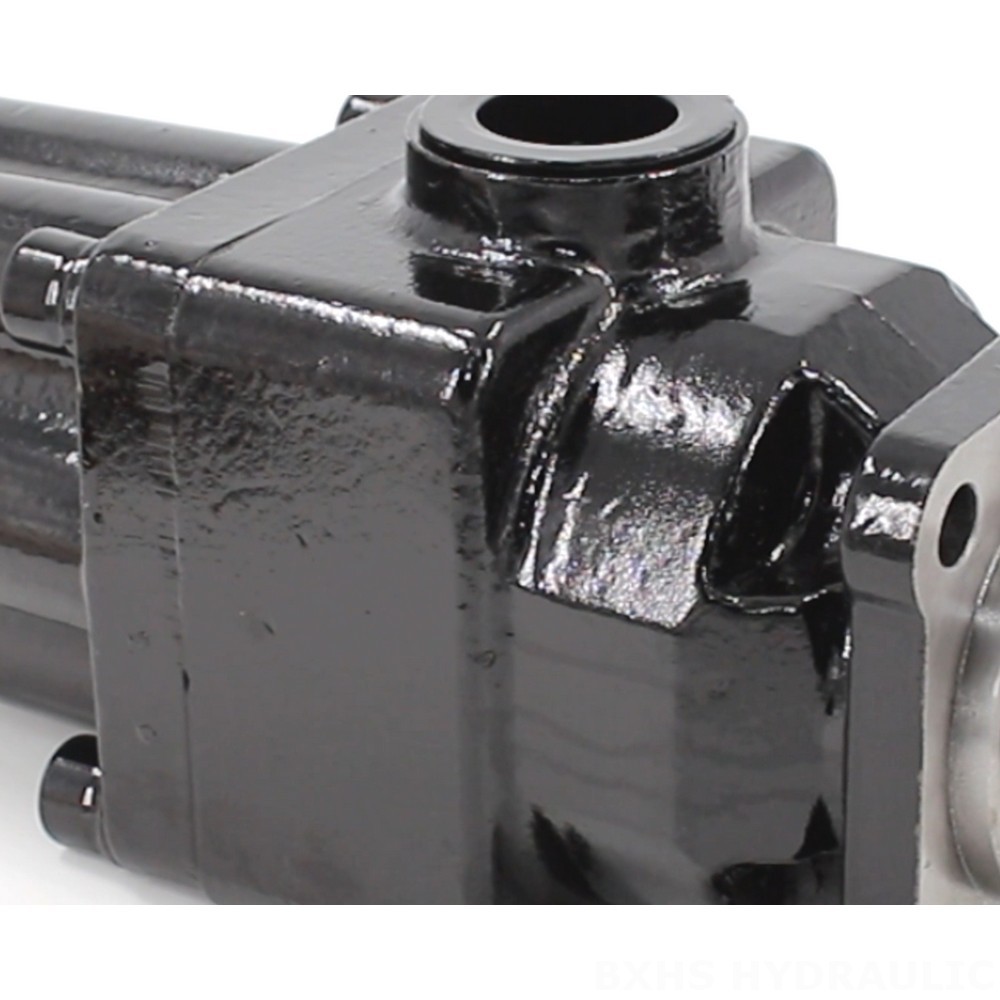

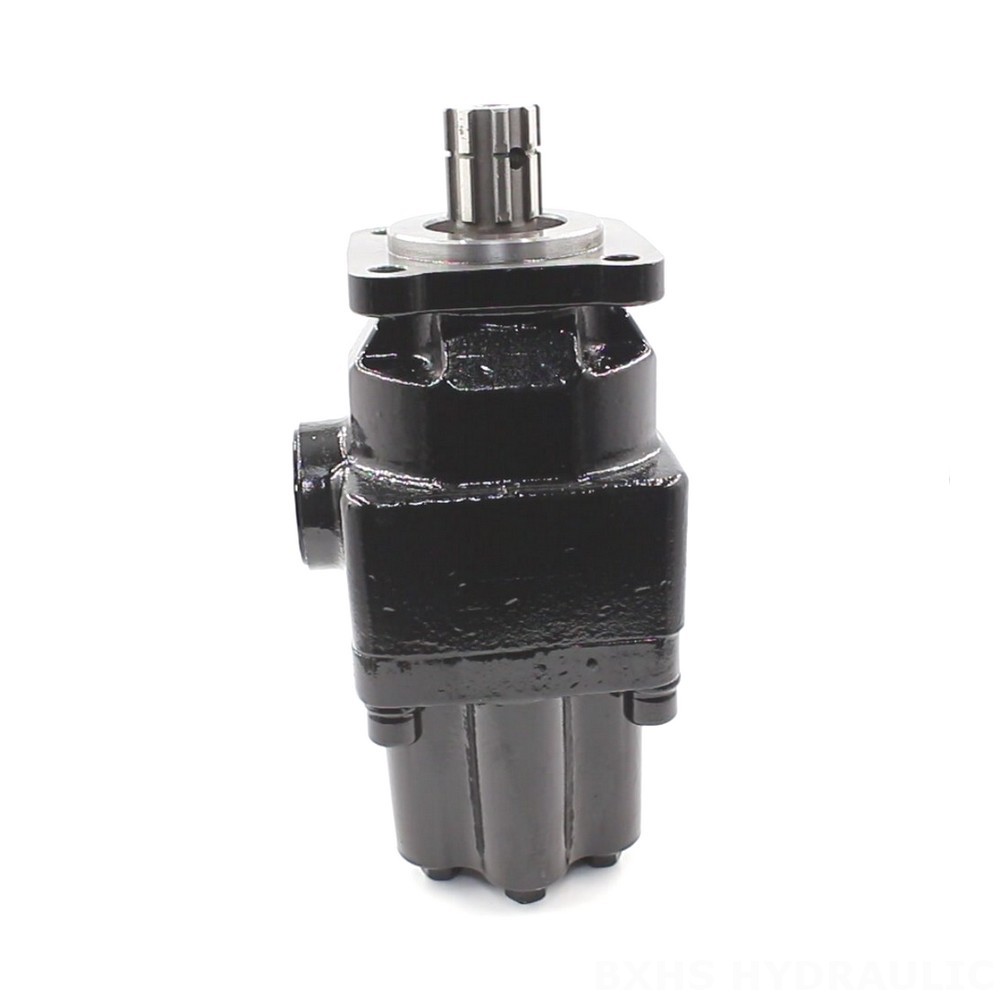

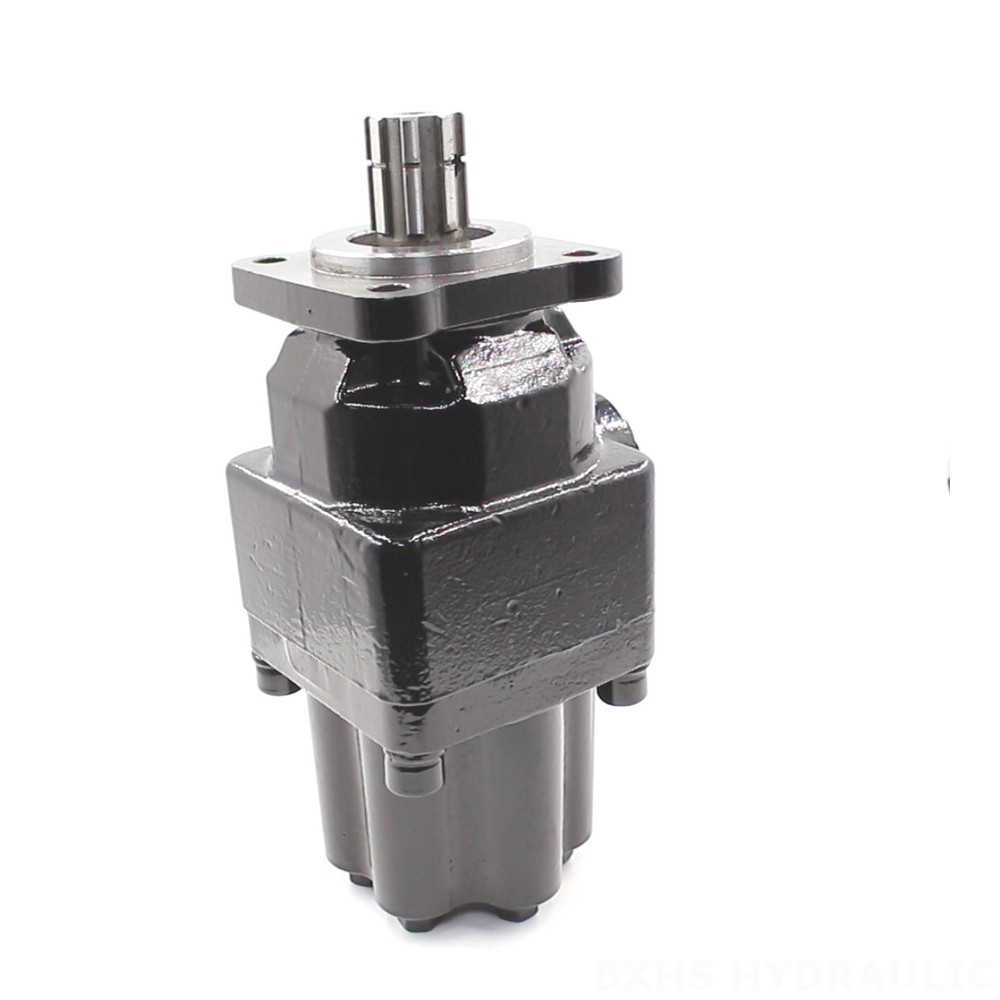

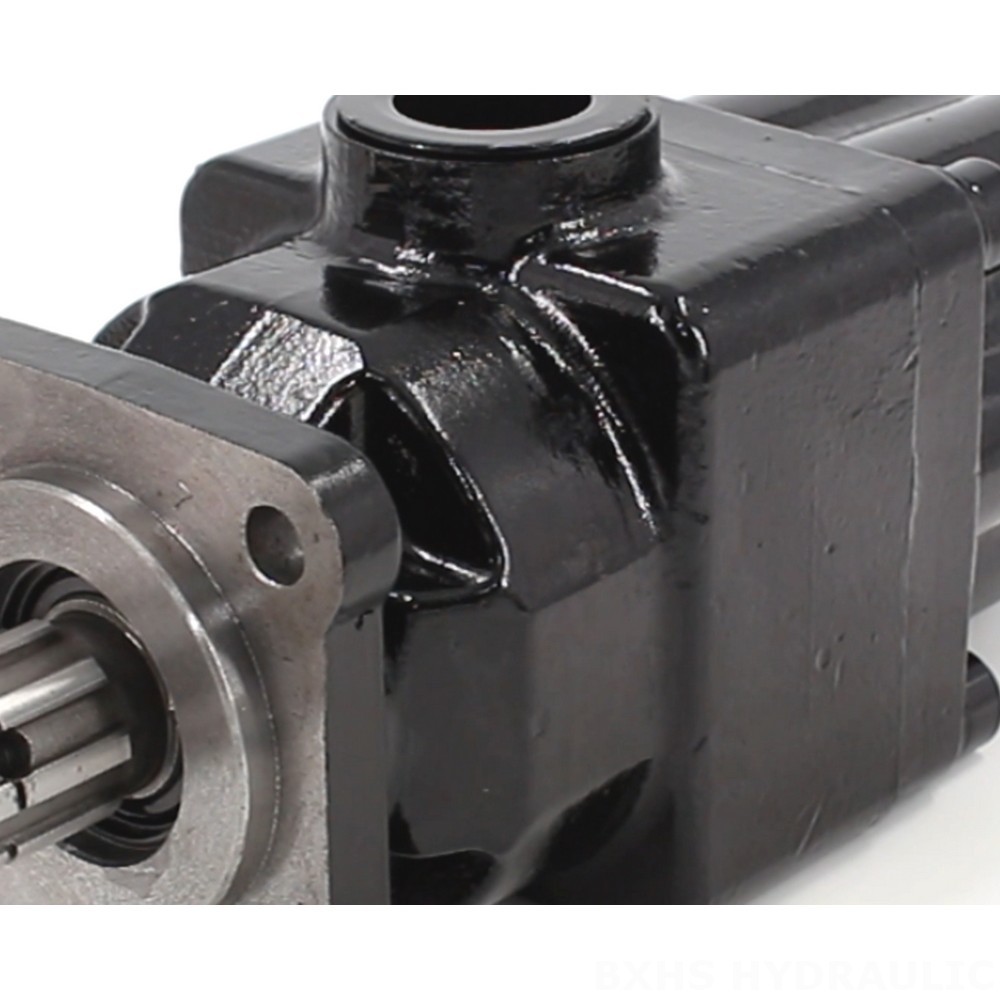

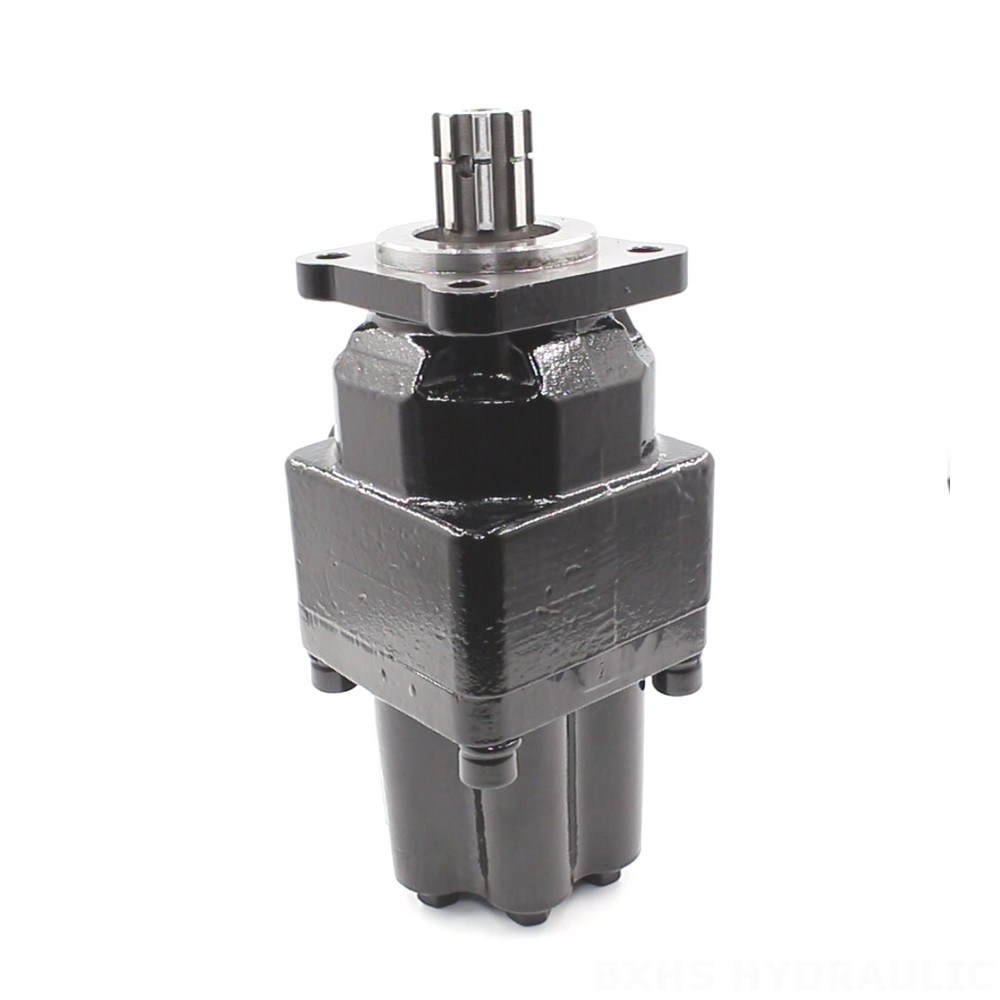

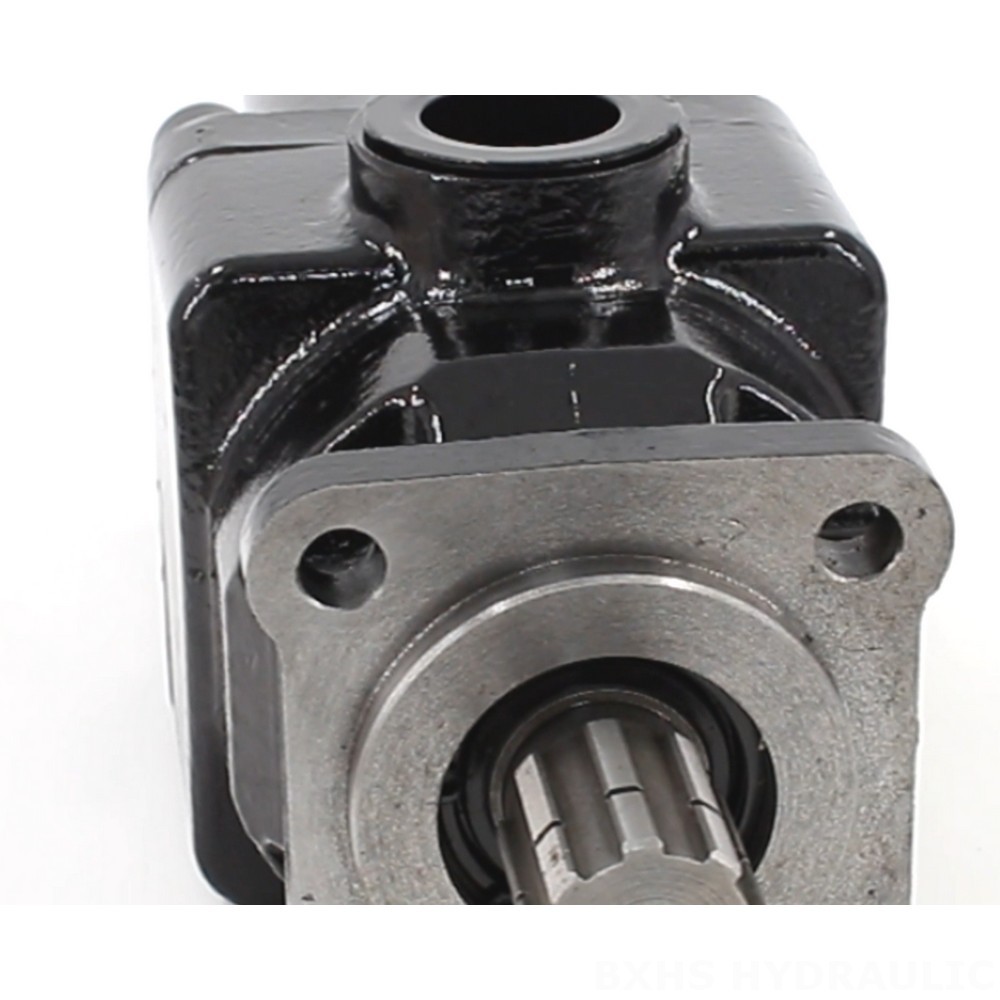

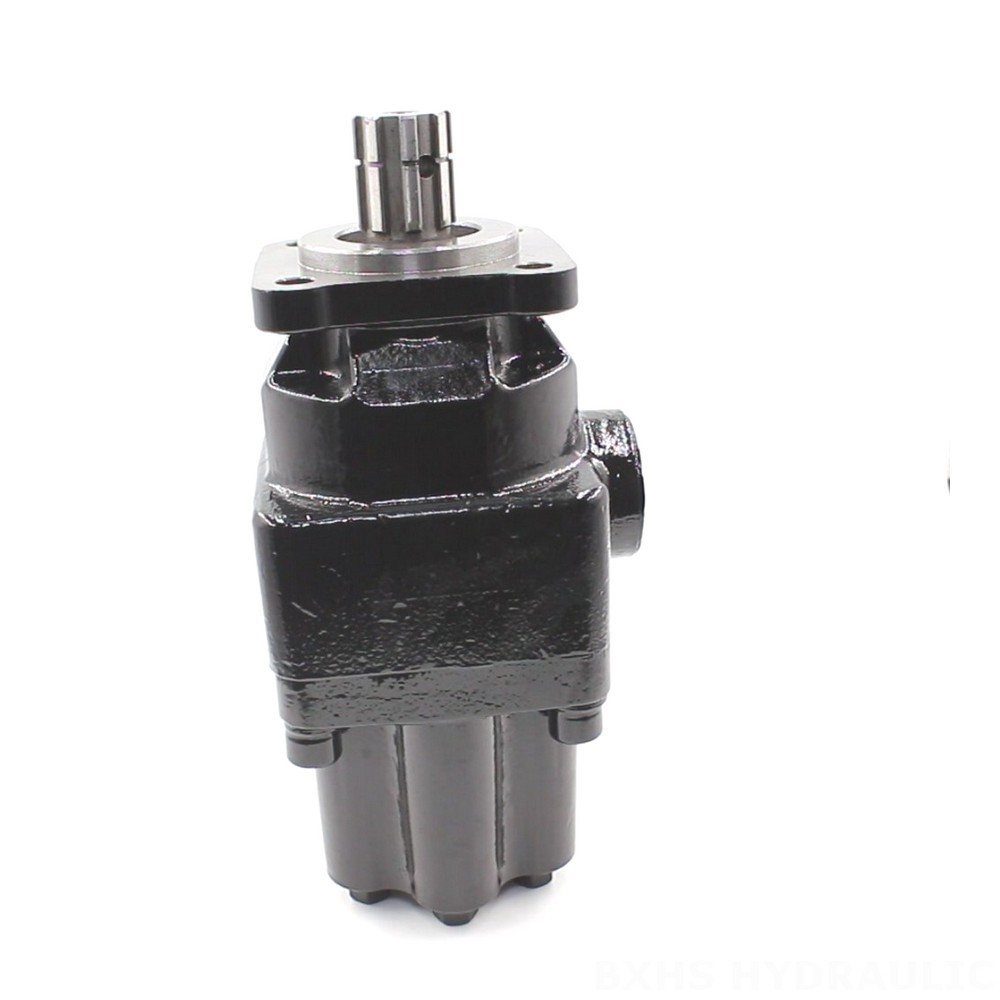

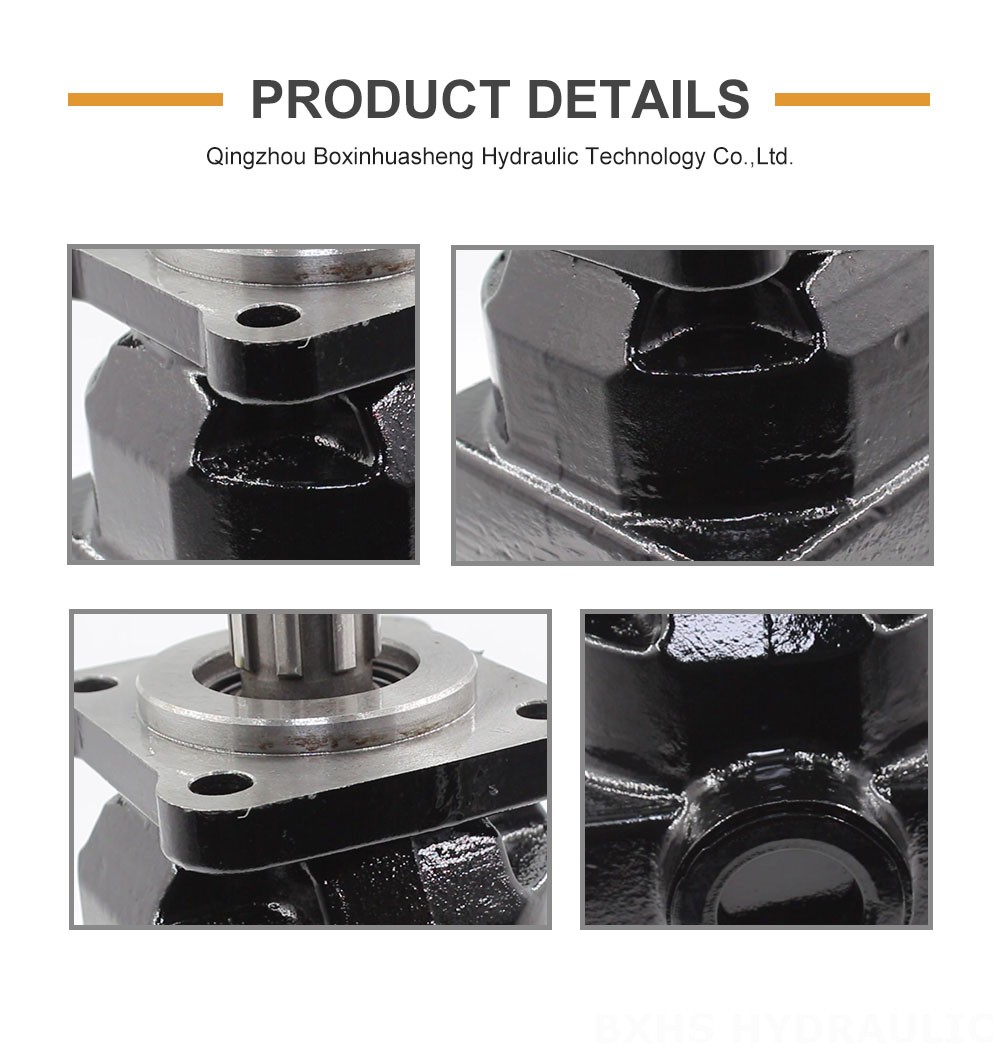

P6-40 40 cc/rev Hydraulic Piston Pump detailed image

P6-40 40 cc/rev Hydraulic Piston Pump detailed image

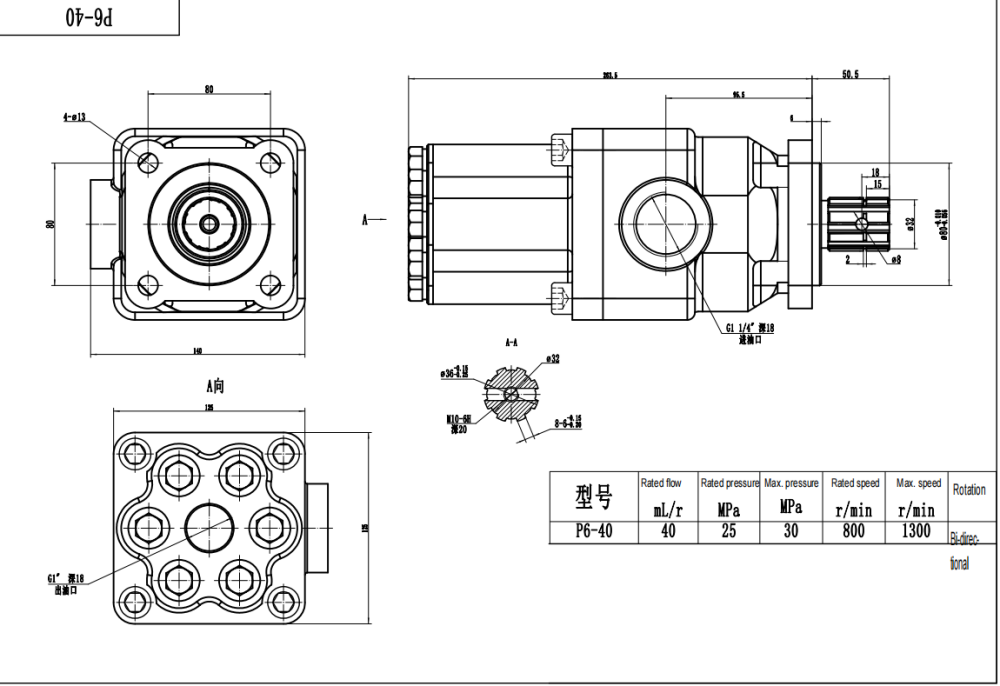

P6-40 40 cc/rev Hydraulic Piston Pump drawing image

The P6-40 is a robust 40 cc/rev hydraulic piston pump designed for high-pressure applications in various industries. Featuring a swashplate design and cast iron construction, this bidirectional pump offers reliable performance with a rated pressure of 25 MPa and a maximum pressure of 30 MPa. Suitable for a range of equipment including mini-excavators, skid steers, and tractors.

Rated Pressure 25 MPa (3625 psi)
Max Pressure 30 MPa (4351 psi)
Rated Speed 800 r/min
Max Speed 1300 r/min
Rotation /: (Bidirectional)
Structure Swashplate
Material Cast Iron
Flange Version ISO-4 Mounting Holes,UNI-3 Mounting Holes
Shaft Type H: Rectangle Spline

The P6-40 40 cc/rev Hydraulic Piston Pump is a high-performance, heavy-duty pump ideal for demanding applications in construction, agriculture, and industrial vehicles. Its robust cast iron construction ensures durability and longevity, while the swashplate design provides smooth and efficient operation. With a rated pressure of 25 MPa (3625 psi) and a maximum pressure of 30 MPa (4351 psi), it handles high-pressure hydraulic systems with ease. Its bidirectional rotation capability offers flexibility in system design. The pump features both ISO-4 and UNI-3 flange mounting options for compatibility with a wide range of equipment and a rectangle spline shaft (Type H) for secure coupling. Its rated speed of 800 r/min and maximum speed of 1300 r/min provide ample flow for various applications. The P6-40 is well-suited for powering hydraulic systems in mini-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, tractors and front-end loaders, telehandlers, and forklifts. Its reliable performance and durable design make it a cost-effective solution for various hydraulic power needs.
