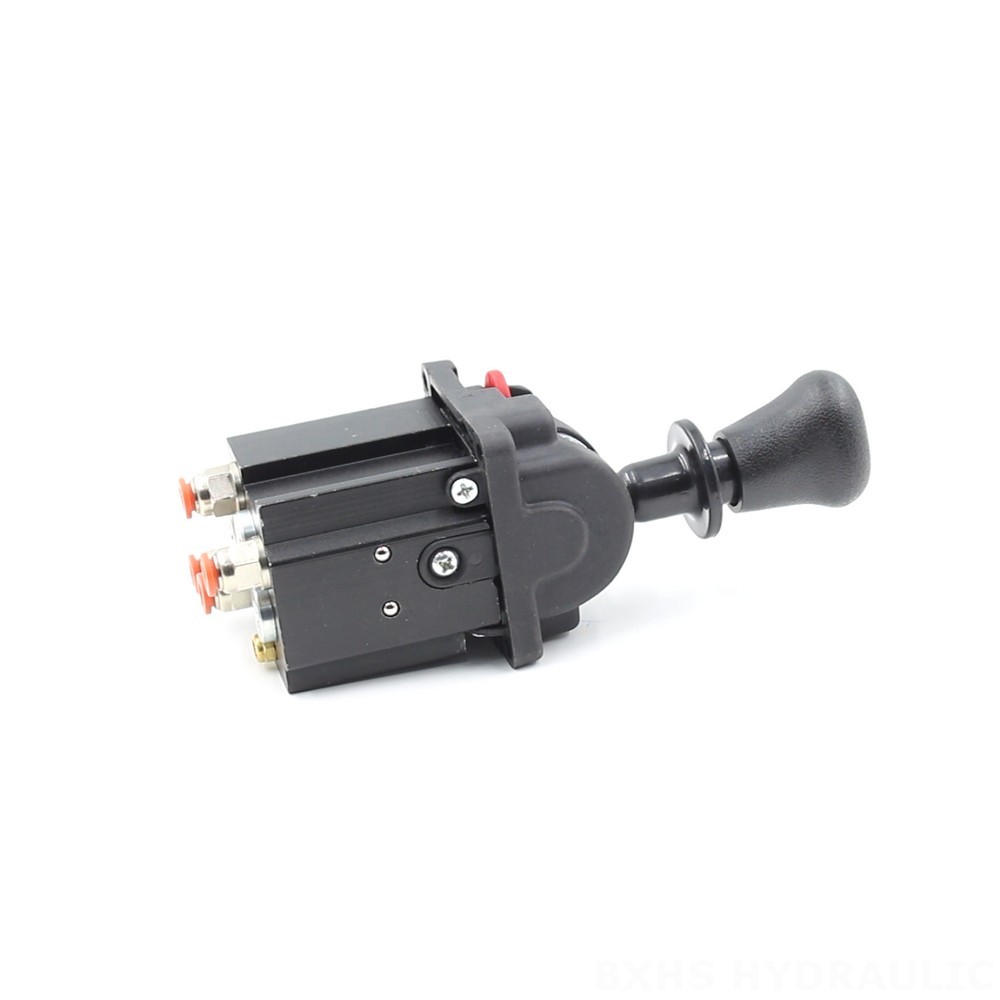

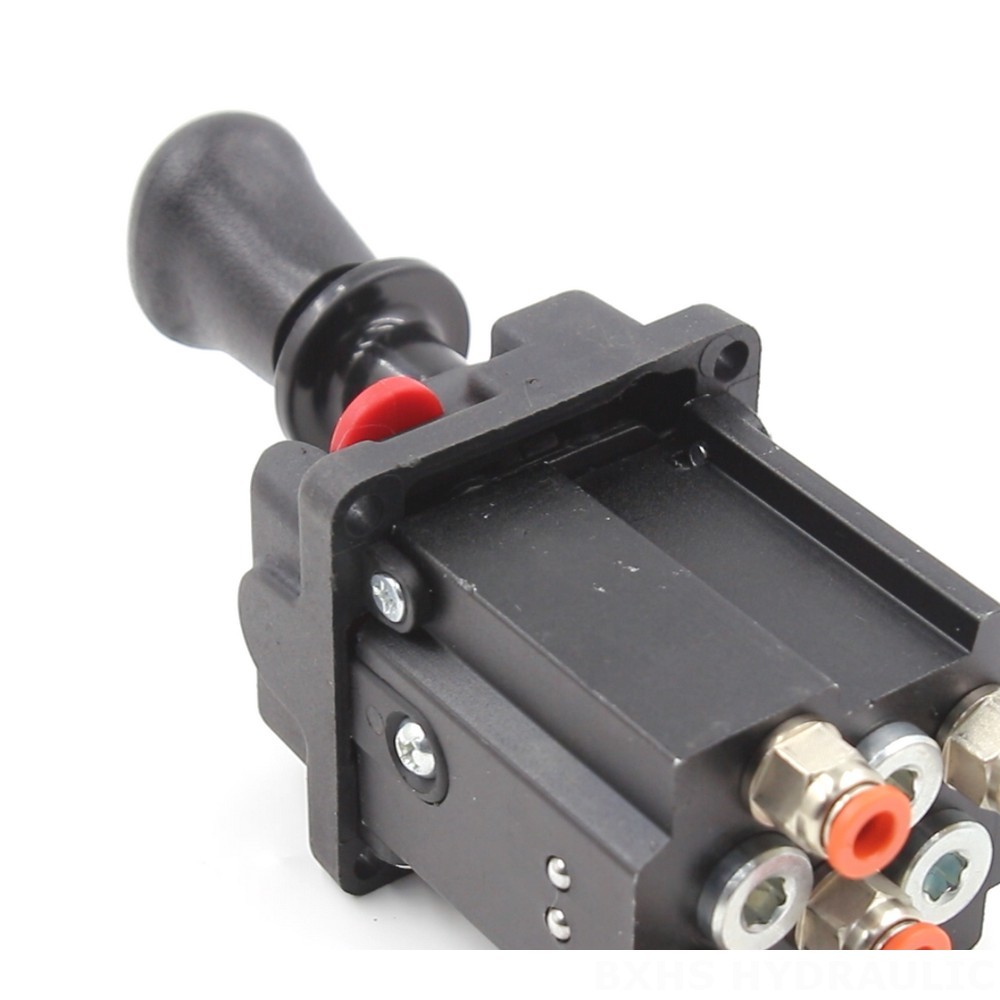

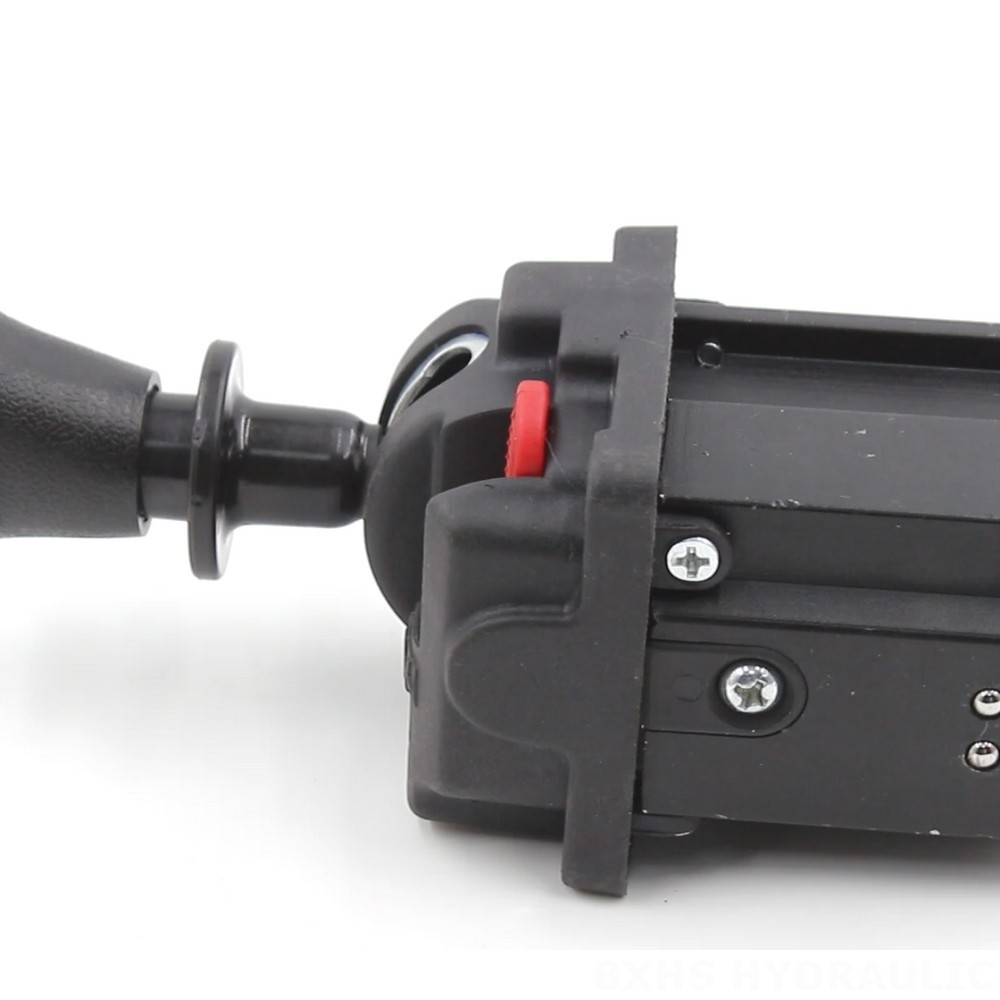

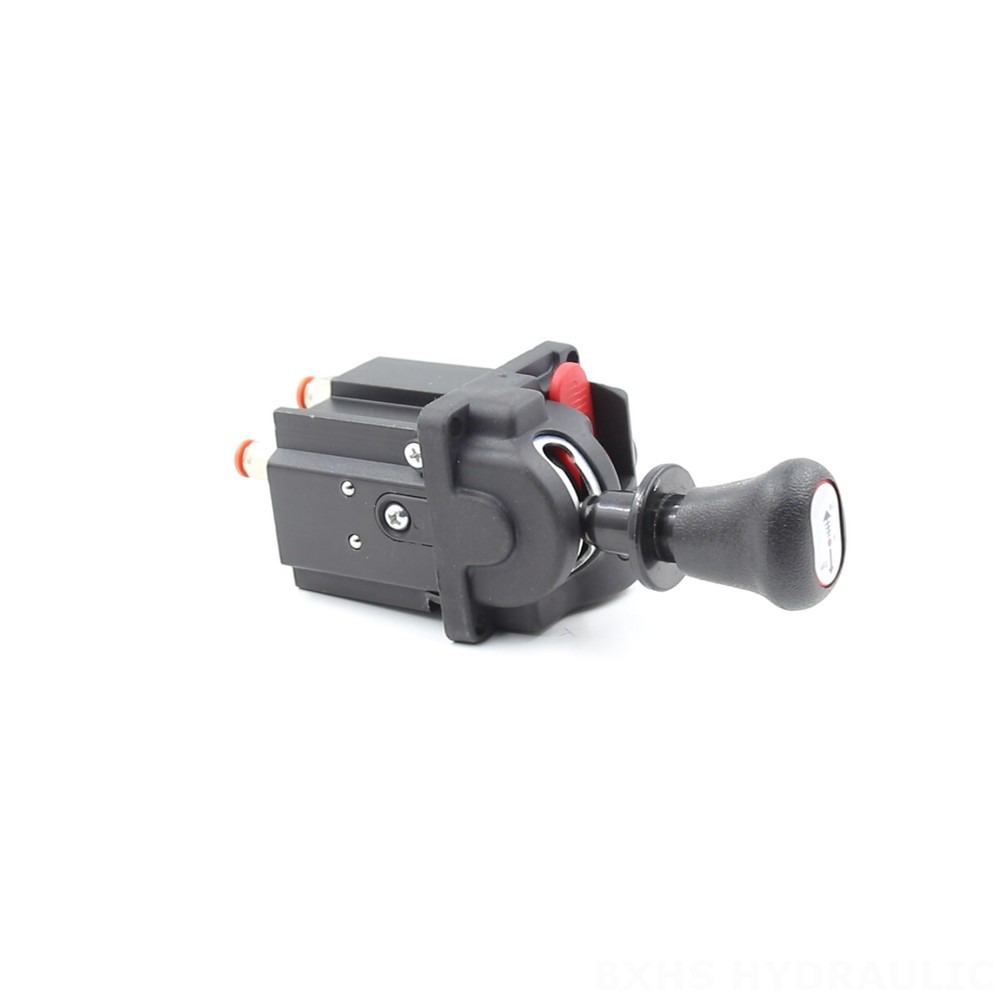

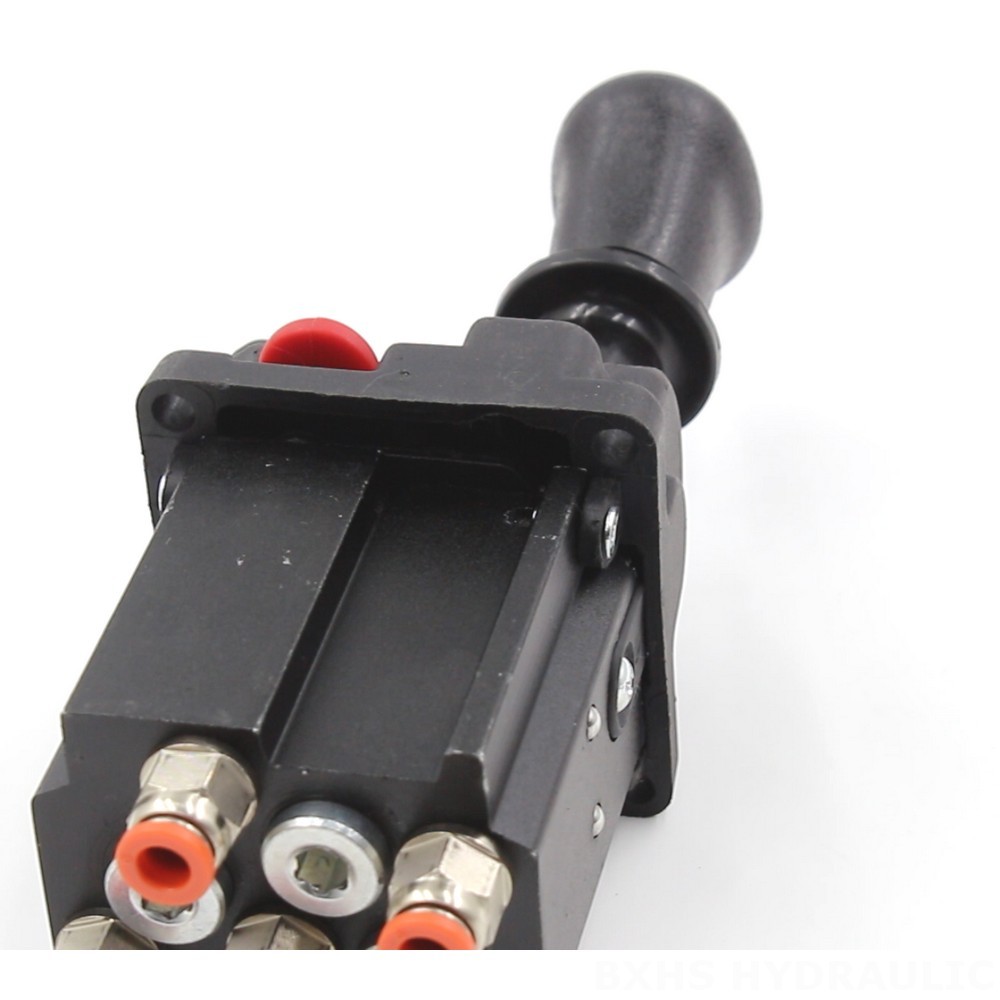

This BKQF34 Series hydraulic diverted valve is a pneumatic controlled, monoblock valve designed for construction, material handling, agriculture, and industrial vehicles. It features a 1-spool design with a rated flow of 40 L/min and a maximum pressure of 1 MPa. This valve is suitable for various applications including telehandlers, forklifts, mini-excavators, skid steer loaders, compact wheel loaders, wheel loaders, and backhoe loaders.
| BKQF34 Series Pneumatic Control Valve Parameters | |
|---|---|
| Spool | 1 Spool |
| Control Method | Manual |
| Section | 1 Section |
| Ambient Temperature Range | -40°C to +80°C (-40°F to +176°F) |
| Operating Viscosity Range | 12 - 400 mm²/s (12 cSt to 400 cSt) |
| Max Pressure | 1 MPa (145 psi) |
| Rated Flow | 40 L/min (10.5 US gpm) |
| Structure Type | Monoblock valve |
The BKQF34 Series hydraulic diverted valve is a reliable and efficient solution for controlling hydraulic systems in a wide range of applications. This monoblock valve features a pneumatic control system and a single spool design, offering precise and responsive control. Its rated flow of 40 L/min and maximum pressure of 1 MPa ensure reliable performance even under demanding conditions. The valve's operating viscosity range of 12-400 mm²/s (12 cSt to 400 cSt) and ambient temperature range of -40°C to +80°C (-40°F to +176°F) make it suitable for a variety of environments. This valve is ideal for use in construction and earth moving equipment, material handling equipment, agricultural equipment, and industrial vehicles. Some common applications include telehandlers, forklifts, mini-excavators, skid steer loaders, compact wheel loaders, wheel loaders, and backhoe loaders.
