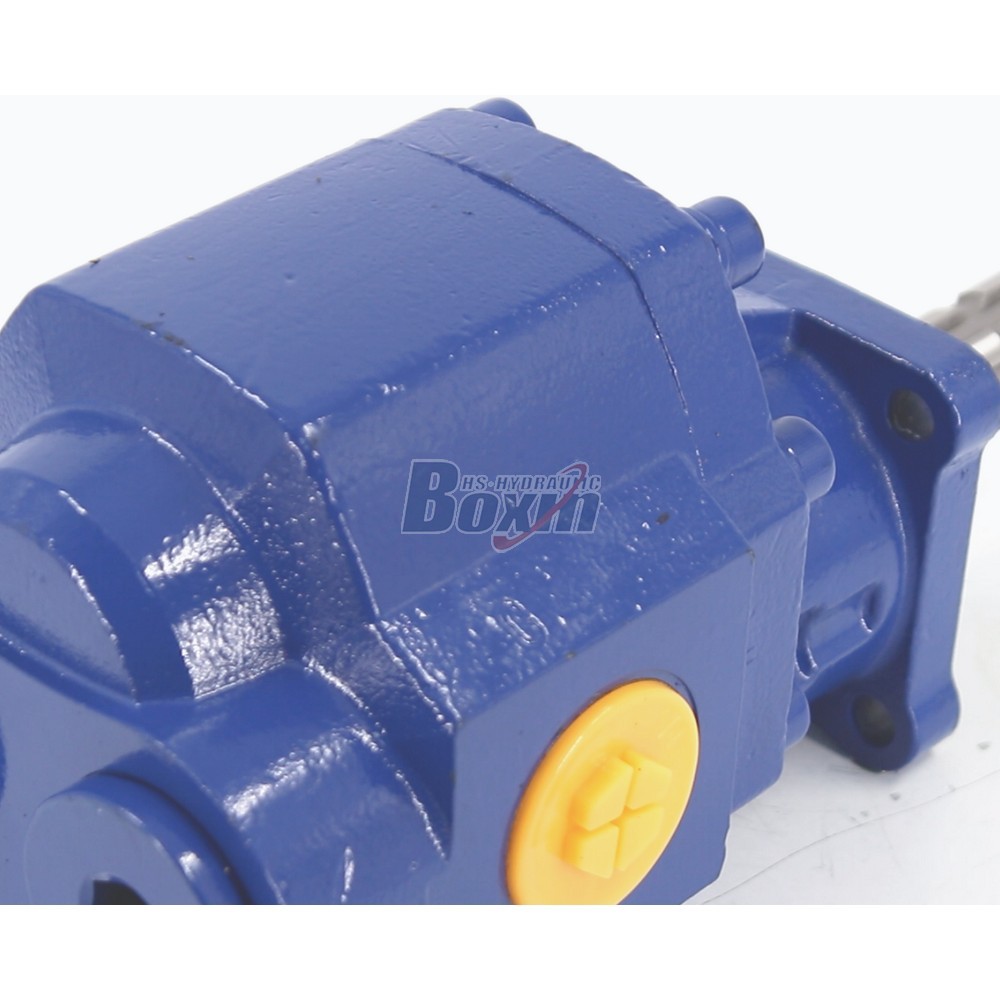

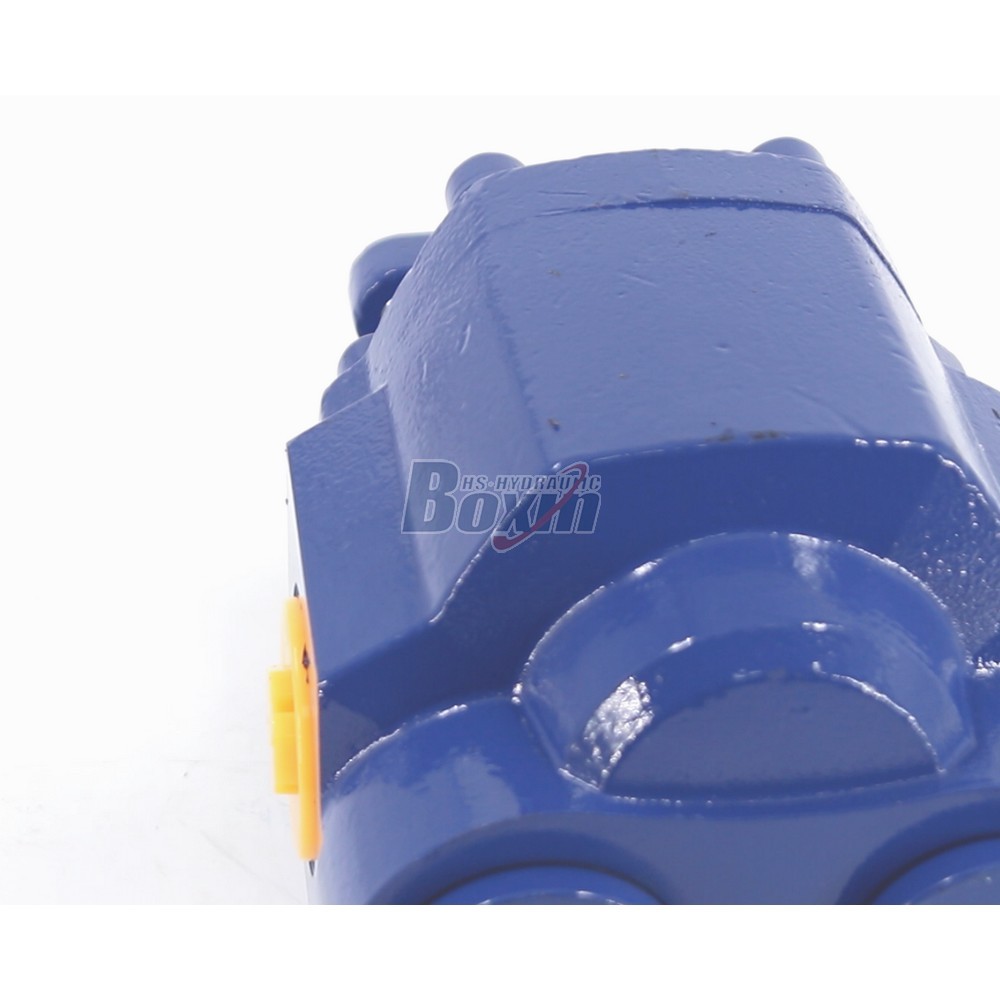

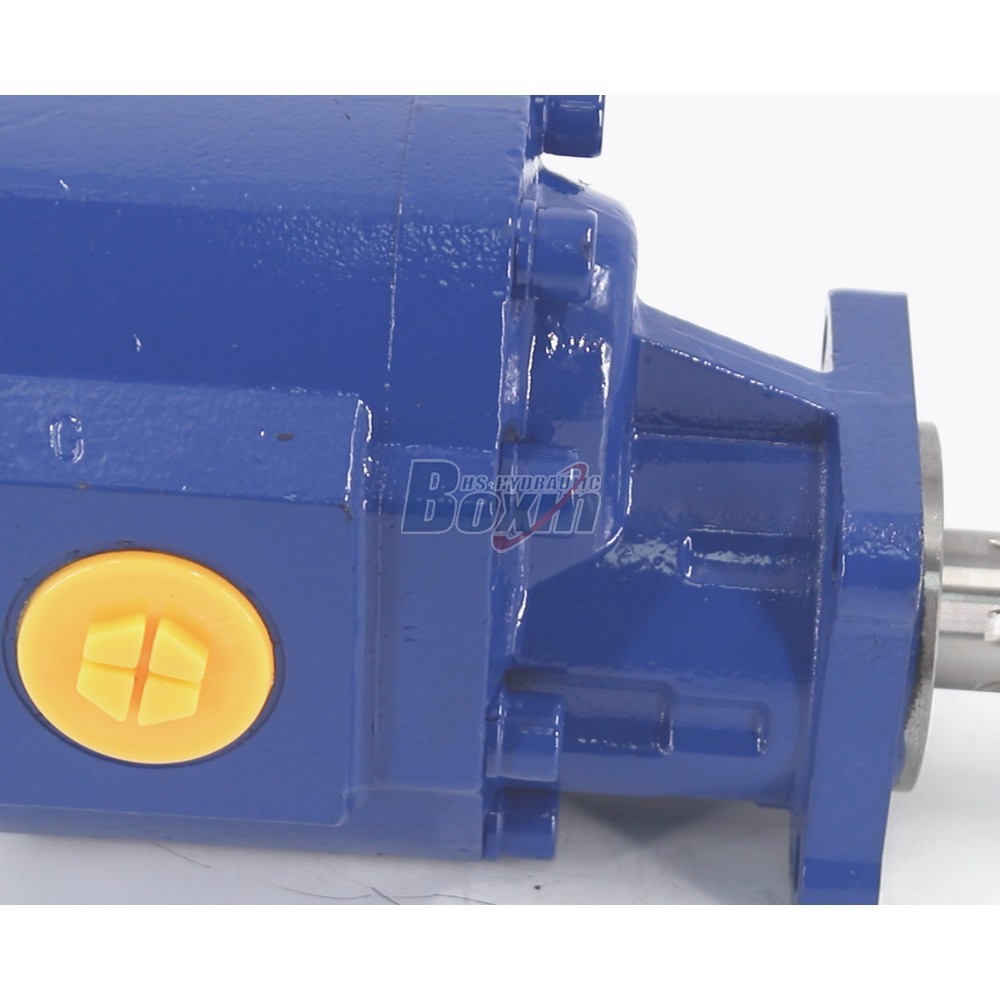

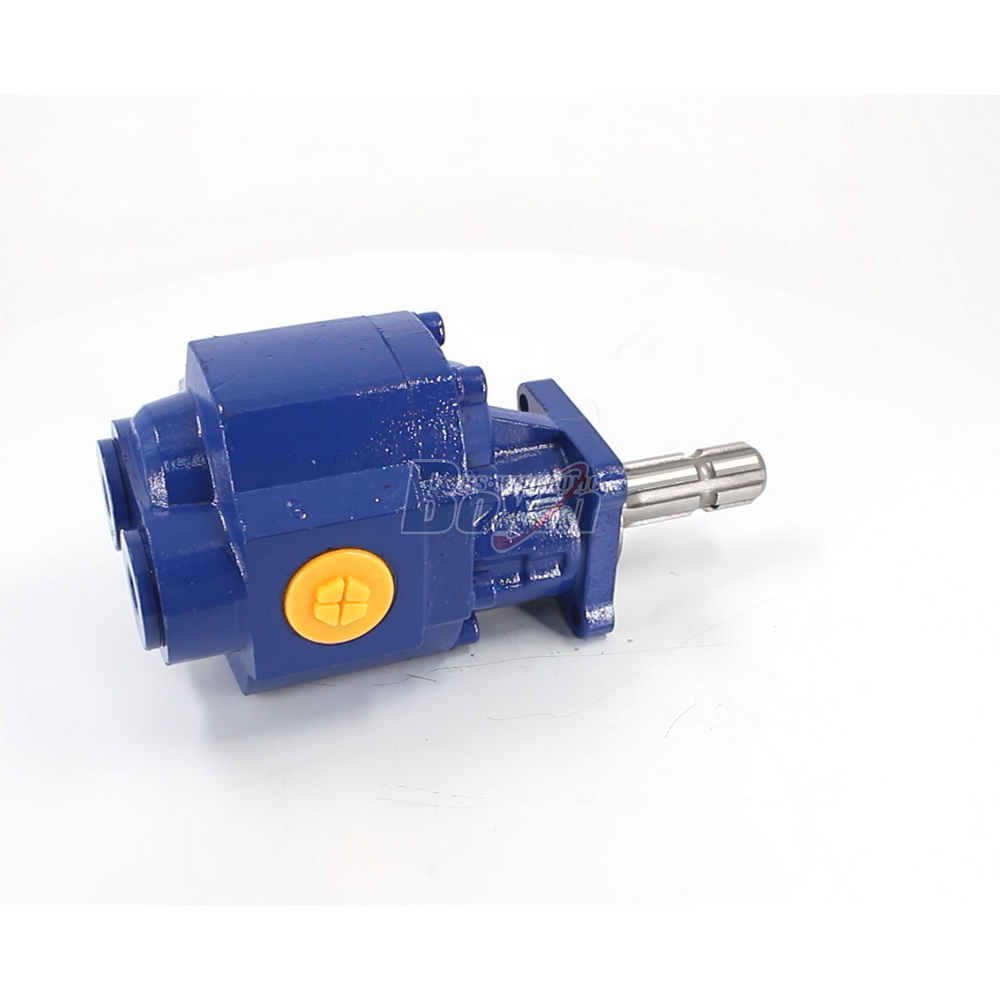

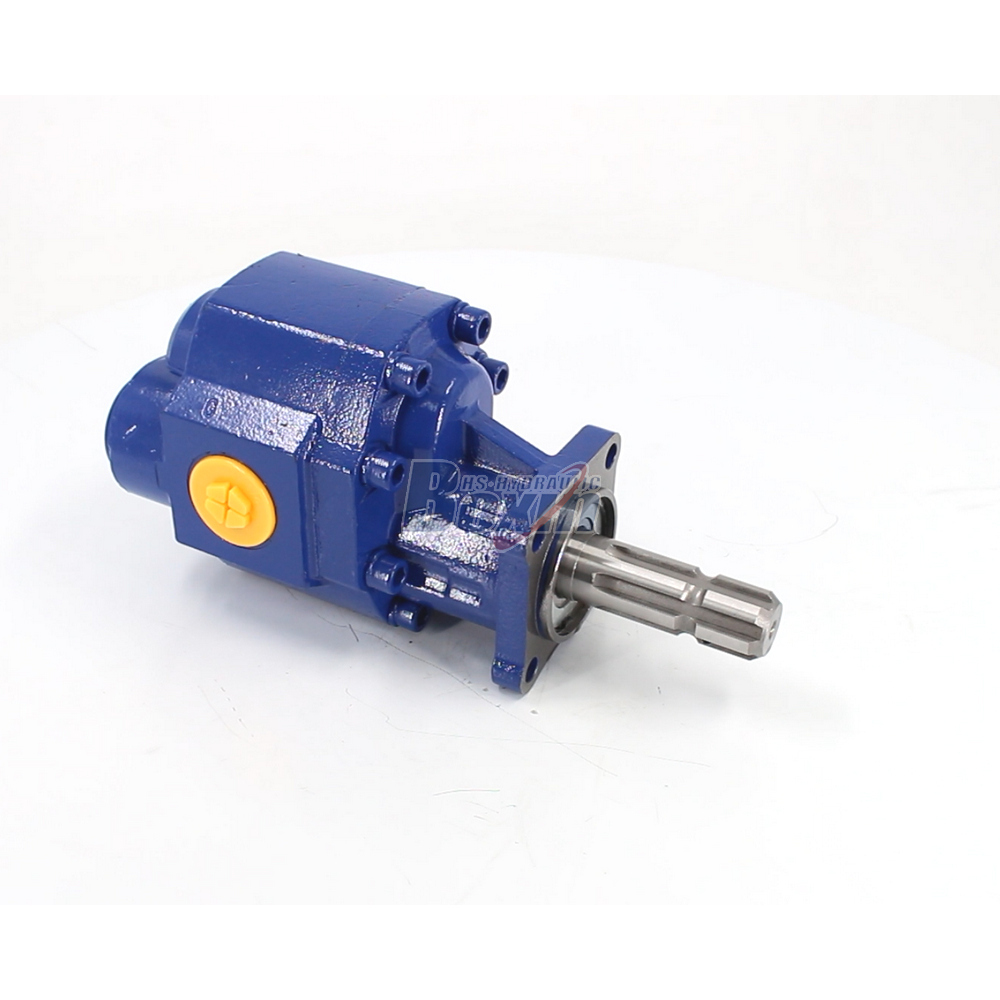

This CBHST1-110-KZ Hydraulic Gear Pump delivers 110 cc/rev displacement with a rated pressure of 20 MPa (2900 psi) and max speed of 2500 r/min. Manufactured by a 25-year Professional Manufacturer with IATF 16949 certification, it ensures reliable performance for wheel loaders, forklifts, and agricultural machinery. Bidirectional rotation and 100% tested quality make it an ideal OEM replacement.
| CBHST1-ISO Series Hydraulic Gear Pump Parameters | |
|---|---|
| Displacement | 50 cc/rev, 63 cc/rev, 80 cc/rev, 100 cc/rev, 110 cc/rev, 34 cc/rev, 43 cc/rev, 90 cc/rev, 120 cc/rev, 82 cc/rev |
| Rated Pressure | 20 MPa (2900 psi), 23 MPa (3335 psi), 25 MPa (3625 psi) |
| Max Pressure | 23 MPa (3335 psi), 25 MPa (3625 psi), 28 MPa (4061 psi) |
| Rated Speed | 2000 r/min |
| Max Speed | 2500 r/min |
| Rotation | /: (Bidirectional) |
| Material | Cast Iron |
| Structure | External Gear Pump |
| Flange Version | ISO-4 Mounting Holes |
| Shaft Type | H: Rectangle Spline |
**1. High Flow 110cc Hydraulic Pump Specifications**
- Delivers precise 110 cc/rev displacement with bidirectional rotation, ensuring versatile installation in complex hydraulic systems.
- Operates at a rated pressure of 20 MPa (2900 psi) and withstands max pressure up to 23 MPa (3335 psi), ideal for heavy-duty material handling.
**2. Factory Direct Sales from Certified Manufacturer**
- Sourced directly from a 25-year Professional Manufacturer with 4 modern factories and annual capacity of 1,500,000 units.
- Benefits from Factory Direct Sales pricing, eliminating middlemen costs while ensuring consistent supply for wholesalers and distributors.
**3. Rigorous Quality Control & IATF 16949 Standard**
- Every unit undergoes 100% bench testing for pressure, flow, and sealing integrity using 260+ vertical machining centers.
- Holds IATF 16949, CE, and SGS certifications, guaranteeing oil cleanliness and dimensional accuracy via CMM inspection.
**4. Wide Compatibility for Construction Machinery**
- Designed as a direct replacement for major brands in wheel loaders, backhoe loaders, skid steers, and concrete boom pumps.
- Supports diverse applications including agriculture tractors, telehandlers, and all-terrain cranes with stable performance at 2000 r/min rated speed.
**5. Custom OEM/ODM Solutions Available**
- Backed by 35+ senior engineers offering full OEM/ODM services, including custom casing, logo laser marking, and private label packaging.
- Provides Exported Worldwide reliability with rust-proof treatment and heavy-duty wooden crate packaging for safe global transit.
