HDCF50 Solenoid 3 Spool Solenoid Control Valve

Rated Flow:50 L/min (13.2 US gpm)

Max Pressure:250 bar (3600 psi)

Vendor:BXHS

Product Type:Solenoid Control Valve

Product Series:HDCF50 Series Solenoid Control Valve

Productsize:26*22*10.7

Netweight:13.00 kg

Availability: In Stock

Description

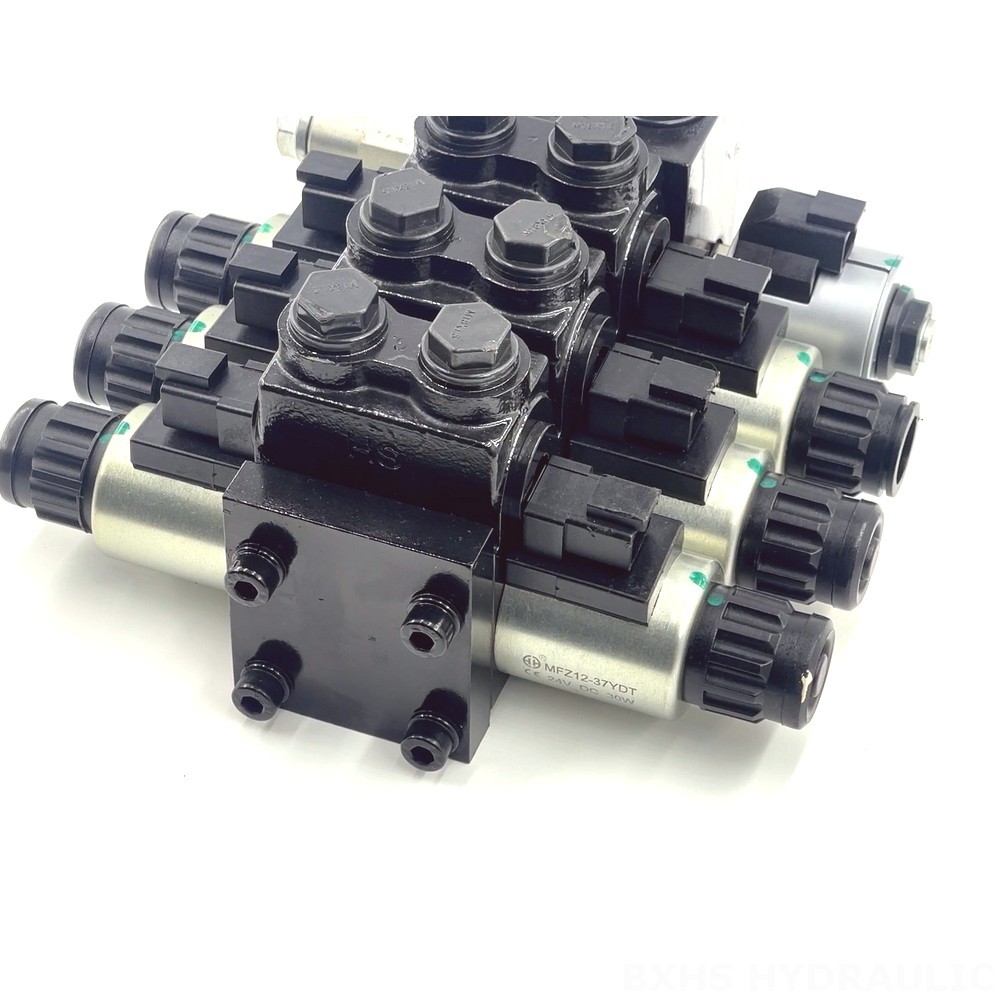

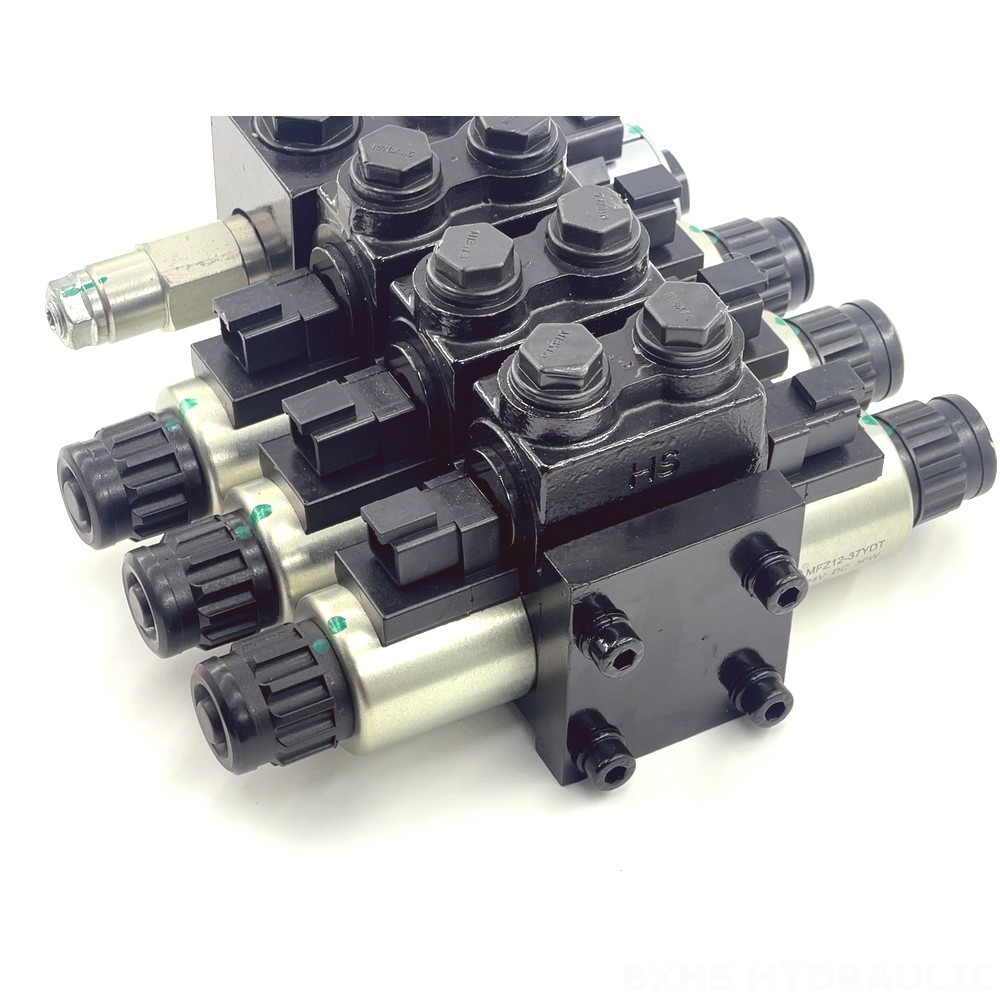

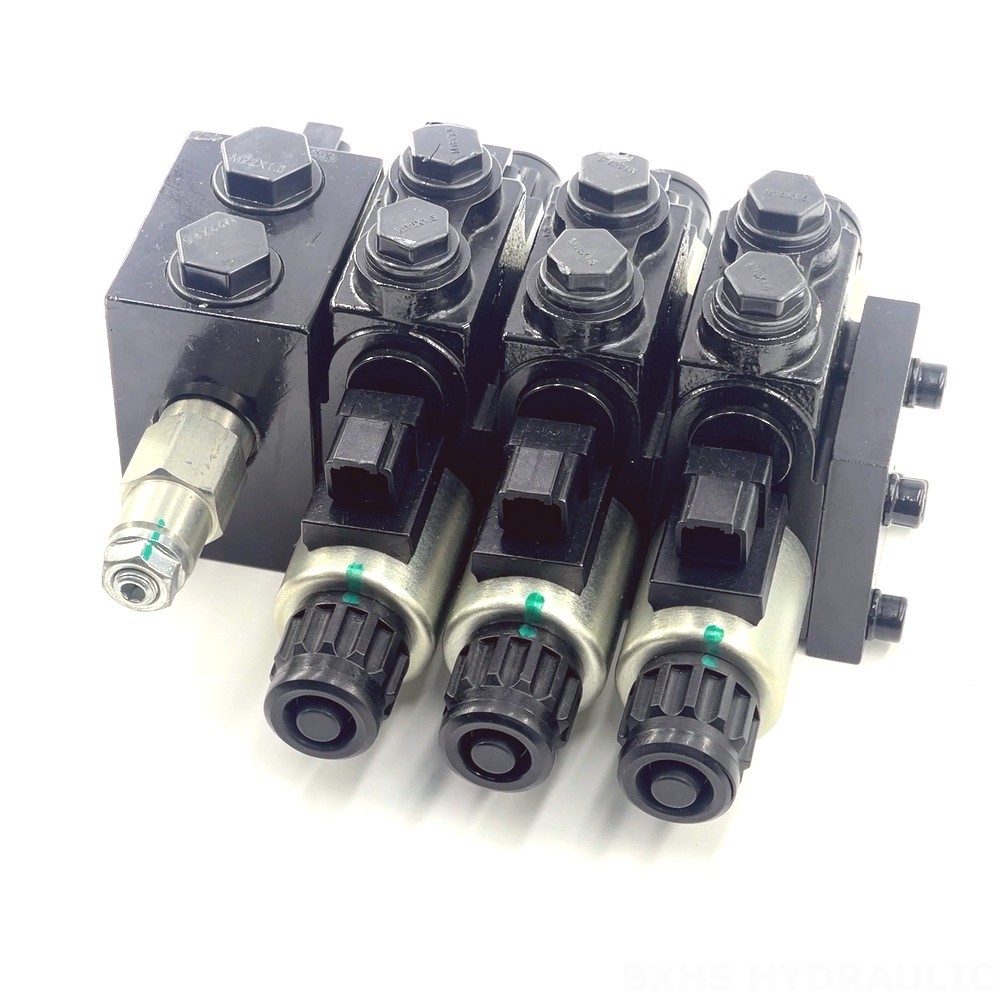

HDCF50 Solenoid 3 Spool Solenoid Control Valve detailed image

HDCF50 Solenoid 3 Spool Solenoid Control Valve drawing image

The HDCF50 Solenoid 3 Spool Solenoid Control Valve is a high-performance valve designed for controlling the flow of hydraulic fluid in a wide range of applications. With a rated flow of 50 L/min and a maximum pressure of 160 bar, this valve is suitable for demanding applications in various industries, including material handling, construction and earth moving, agriculture, and industrial vehicles.

HDCF50 Series Solenoid Control Valve Parameters
Spool	1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool
Control Method	Solenoid
Port Size	M22×1.5, SAE 8
Section	1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section, 8 Section, 9 Section, 10 Section
Ambient Temperature Range	-20°C to +80°C (-4°F to +176°F)
Operating Viscosity Range	15 - 75 mm²/s (15 cSt to 75 cSt)
Outlet Port	M18×1.5, M22×1.5, SAE 8
Max Pressure	160 bar (2300 psi)
Rated Flow	50 L/min (13.2 US gpm)
Structure Type	Sectional valve
Inlet Port	M18×1.5, M22×1.5, SAE 8

- Control Method: Solenoid
- Section: 3 Section
- Structure Type: Sectional valve
- Rated Flow: 50 L/min (13.2 US gpm)
- Max Pressure: 160 bar (2300 psi)
- Operating Viscosity Range: 15 - 75 mm²/s (15 cSt to 75 cSt)
- Ambient Temperature Range: -20°C to +80°C (-4°F to +176°F)
- Spool: 3 Spool
- Voltage: 12V 24V

HDCF50 Solenoid 3 Spool Solenoid Control Valve application image
