Factory Direct Supply P21A646JEAL20-25 64.6 cc/rev Hydraulic Gear Pump

Displacement:64.6 cc/rev

Rated Pressure:16 MPa (2320 psi)

Max Pressure:17 MPa (2465 psi)

Max Speed:2400 r/min

Rotation:/: (Bidirectional)

Vendor:BXHS

Product Type:Hydraulic Gear Pump

Product Series:P21 Series Hydraulic Gear Pump

Packagingsize:45*25*18

Grossweight:16.00 kg

Availability: In Stock

173 Views are Looking for this Product

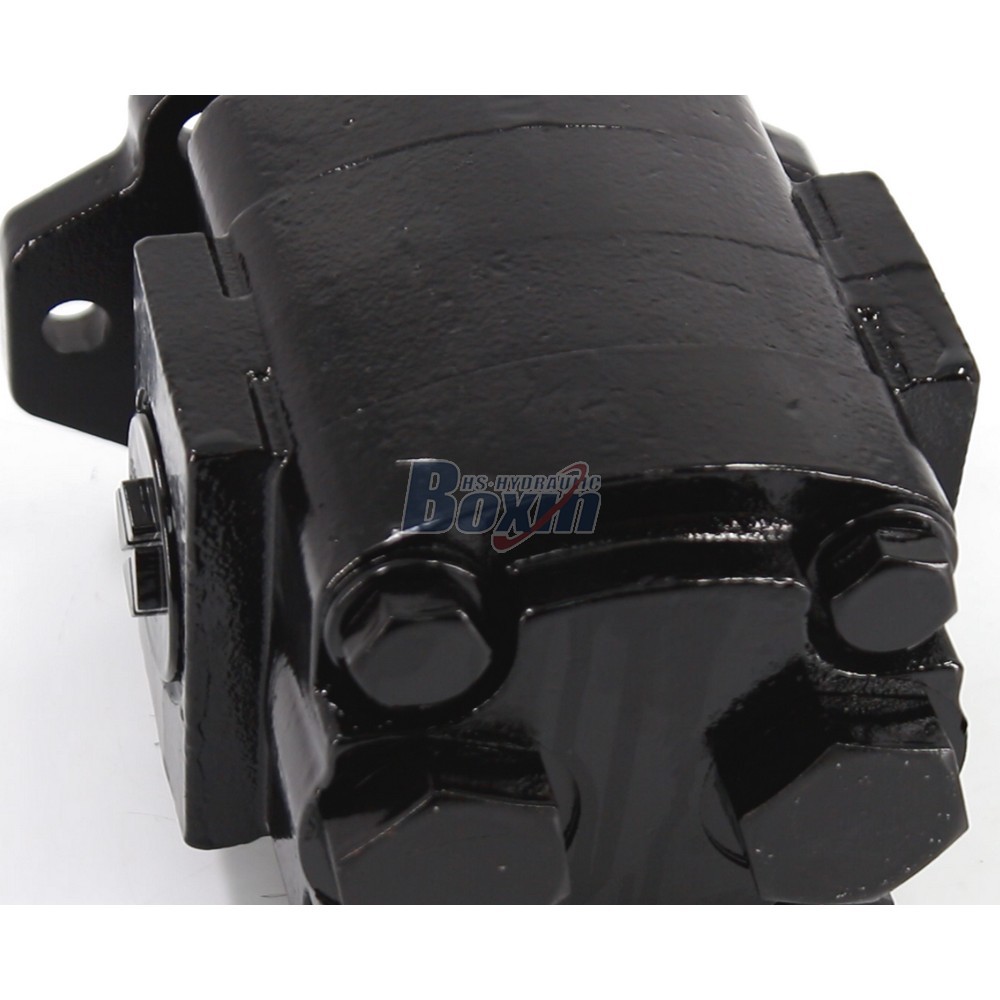

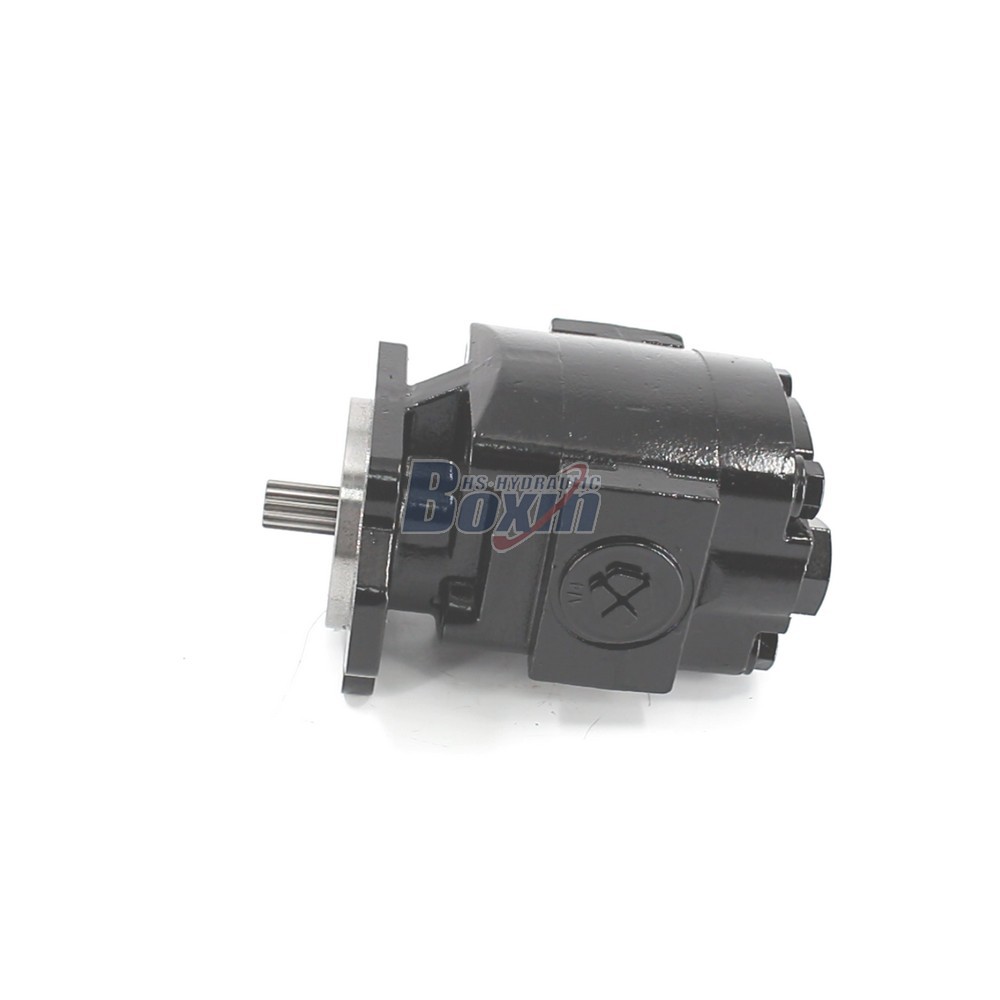

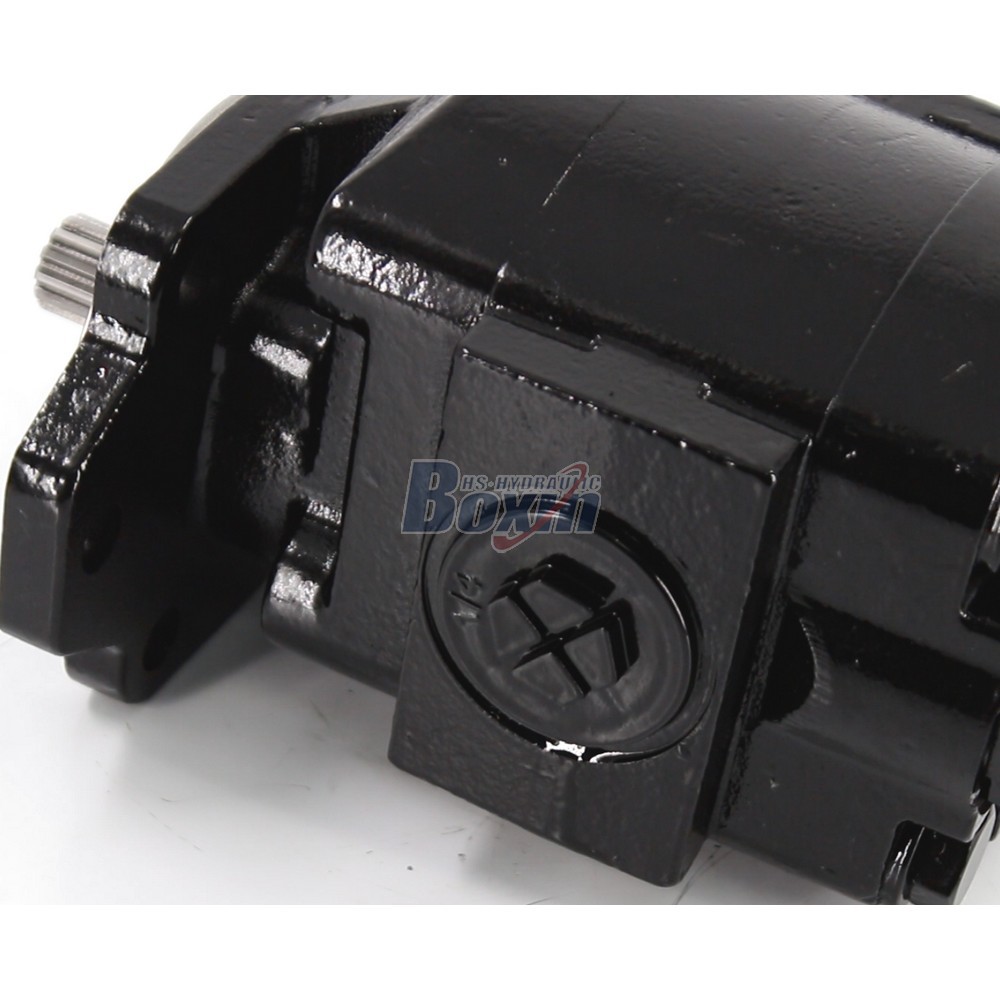

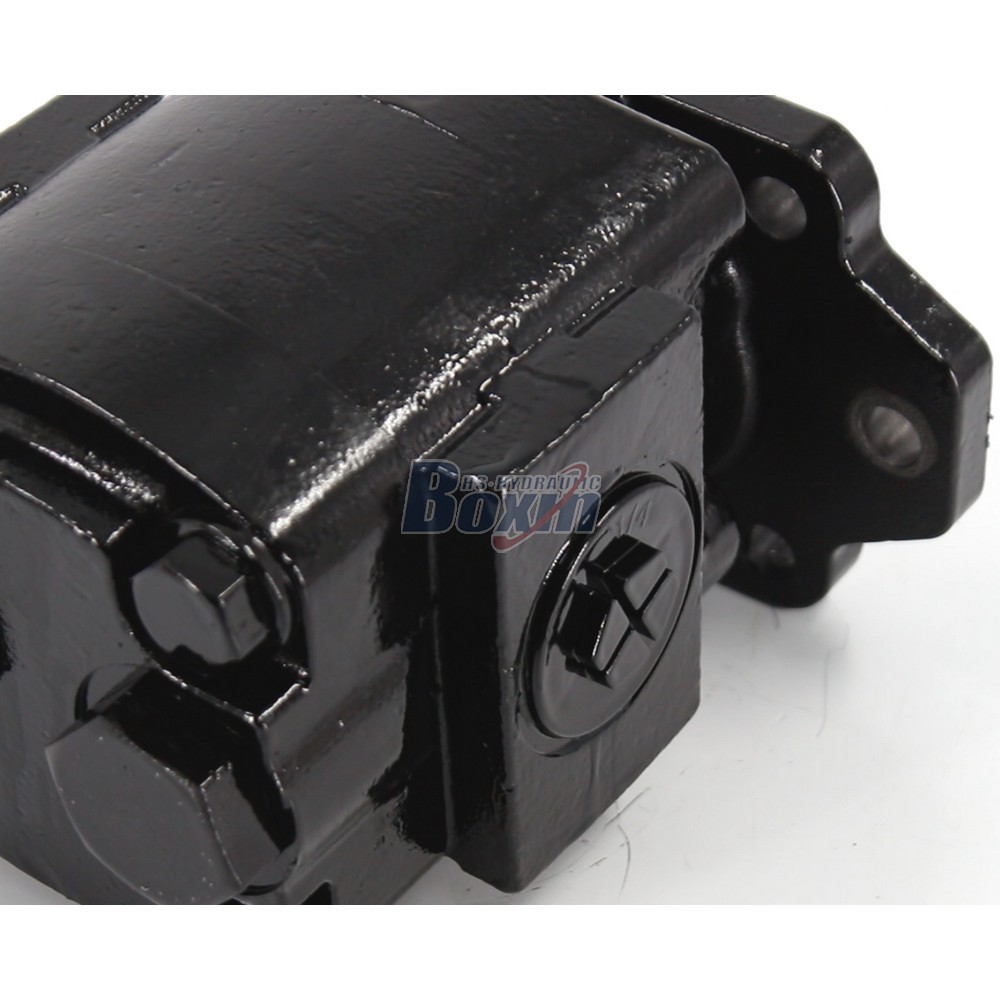

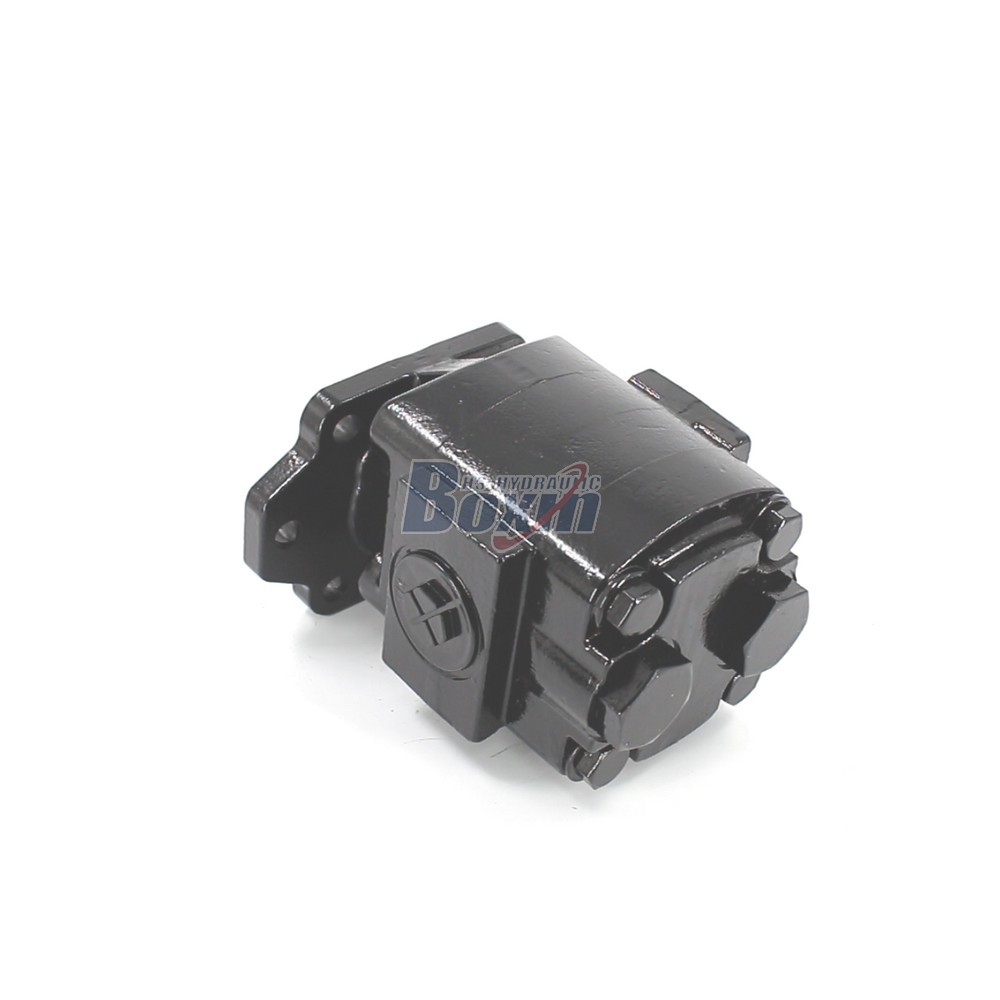

Factory Direct Supply P21A646JEAL20-25 64.6 cc/rev Hydraulic Gear Pump detailed image

Factory Direct Supply P21A646JEAL20-25 64.6 cc/rev Hydraulic Gear Pump detailed image

Factory Direct Supply P21A646JEAL20-25 64.6 cc/rev Hydraulic Gear Pump drawing image

This Factory Direct Supply P21A646JEAL20-25 Hydraulic Gear Pump features a 64.6 cc/rev displacement, 16 MPa rated pressure, and bidirectional rotation for versatile application. Manufactured by a Professional Manufacturer with 25+ years of experience, it is ideal for wheel loaders, excavators, and agricultural machinery, ensuring reliable performance and OEM compatibility.

P21 Series Hydraulic Gear Pump Parameters
Displacement 64.6 cc/rev
Rated Pressure 16 MPa (2320 psi)
Max Pressure 17 MPa (2465 psi)
Rated Speed 600 r/min
Max Speed 2400 r/min
Rotation /: (Bidirectional)
Material Cast Iron
Structure External Gear Pump
Flange Version A-Oval Flange, B-Square Flange, ISO-4 Mounting Holes, UNI-3 Mounting Holes, SAE Flange
Shaft Type X: Involute Spline

**1. High-Efficiency Hydraulic Gear Pump Specifications**
- Delivers precise flow with 64.6 cc/rev displacement, operating at a rated speed of 2000 r/min and max speed of 2400 r/min.
- Handles demanding tasks with a rated pressure of 16 MPa (2320 psi) and max pressure of 17 MPa (2465 psi), ensuring stable power output.

**2. Versatile P21 Series Gear Pump Applications**
- Designed for broad compatibility with construction and earth-moving equipment, including wheel loaders, backhoe loaders, and skid steer loaders.
- Suitable for material handling and agricultural vehicles like forklifts, telehandlers, tractors, and dumpers, offering bidirectional rotation flexibility.

**3. Reliable 64.6cc Hydraulic Pump Quality Control**
- Produced in IATF 16949 certified facilities with 260+ machining centers; every unit undergoes 100% bench testing for pressure, flow, and sealing.
- Ensures cleanliness and durability through CMM inspection and SGS detection, backed by 25+ autonomous patents for consistent field performance.

**4. Customizable Construction Machinery Hydraulic Pump Solutions**
- Supported by 35+ senior engineers for full OEM/ODM services, including custom casting, appearance design, and laser logo branding.
- Offers Private Label options and direct replacement for major international brands, meeting specific technical requirements for global distributors.

**5. Factory Direct Sales & Global Logistics**
- Leverage Wholesale Direct Sales from a 68,000 sqm facility with an annual capacity of 1,500,000 units, ensuring short lead times.
- Products are secured with rust-proof treatment and heavy-duty wooden crate packaging, guaranteeing safe delivery for Exported Worldwide orders.
