DCV58 Solenoid And Manual 3 Spool Sectional Directional Valve

Rated Flow:60 L/min (15.8 US gpm)

Vendor:BXHS

Product Type:Sectional Directional Valve

Product Series:DCV58 Series Sectional Directional Valve

Productsize:32*25*13

Netweight:13.80 kg

Availability: In Stock

Description

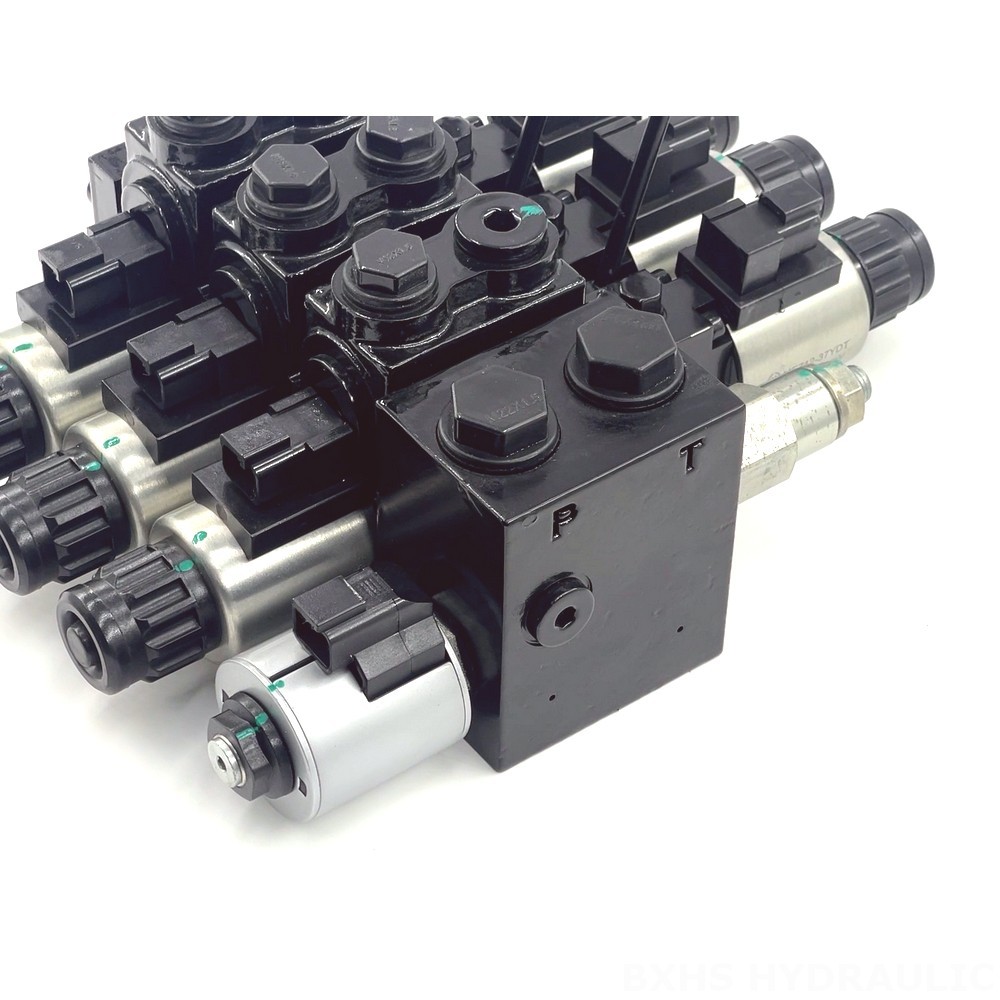

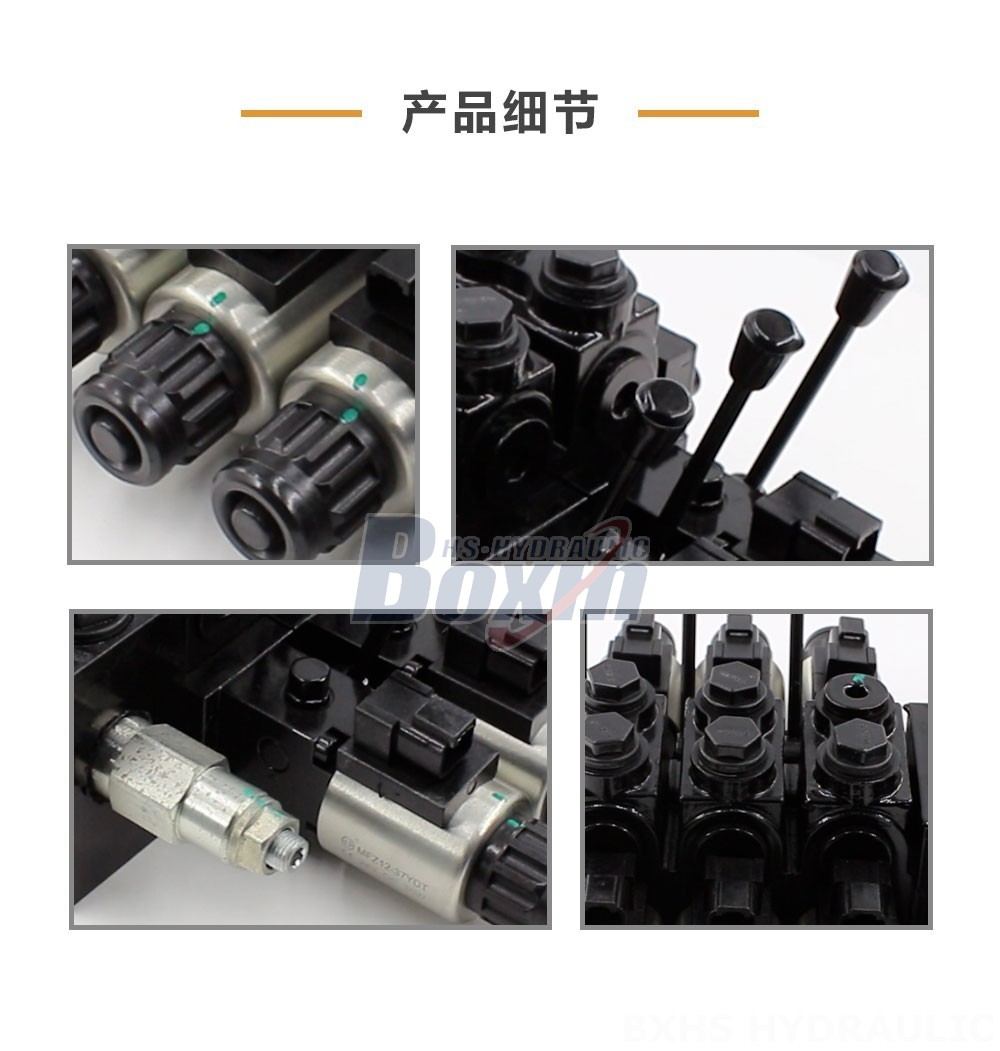

DCV58 Solenoid And Manual 3 Spool Sectional Directional Valve detailed image

DCV58 Solenoid And Manual 3 Spool Sectional Directional Valve drawing image

The DCV58 Solenoid And Manual 3 Spool Sectional Directional Valve is a high-performance hydraulic valve designed for use in a wide range of industrial and mobile equipment applications. With a rated flow of 60 L/min (15.8 US gpm) and a maximum pressure of 350 bar (5100 psi), this valve is capable of handling the demands of even the most challenging applications.

Rated Flow	60 L/min (15.8 US gpm)
Max Pressure	350 bar (5100 psi)
Inlet Port	G1/2,M22×1.5,SAE 10,1/2 NPT
Outlet Port	G1/2,M22×1.5,SAE 10,1/2 NPT
Port Size	G1/2,M22×1.5,SAE 10,1/2 NPT
Section	1 Section,2 Section,3 Section,4 Section,5 Section,6 Section,7 Section,8 Section,9 Section,10 Section,11 Section,12 Section
Structure Type	Sectional valve
Control Method	Solenoid And Manual
Ambient Temperature Range	-40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range	15 - 75 mm²/s (15 cSt to 75 cSt)

Compact and lightweight design for easy installation
, Modular construction for flexibility and customization
,High flow capacity and pressure rating for demanding applications,Solenoid and manual operation for precise control
, Durable construction for long service life.

Applications:Material handling equipment
, Construction equipment, Agricultural equipment
,Industrial vehicles , Mobile hydraulic systems.

For more information or to discuss your specific hydraulic valve requirements, please contact our sales team. We are here to assist you with your project and provide tailored solutions that meet your needs.

DCV58 Solenoid And Manual 3 Spool Sectional Directional Valve application image
