1095 Views are Looking for this Product

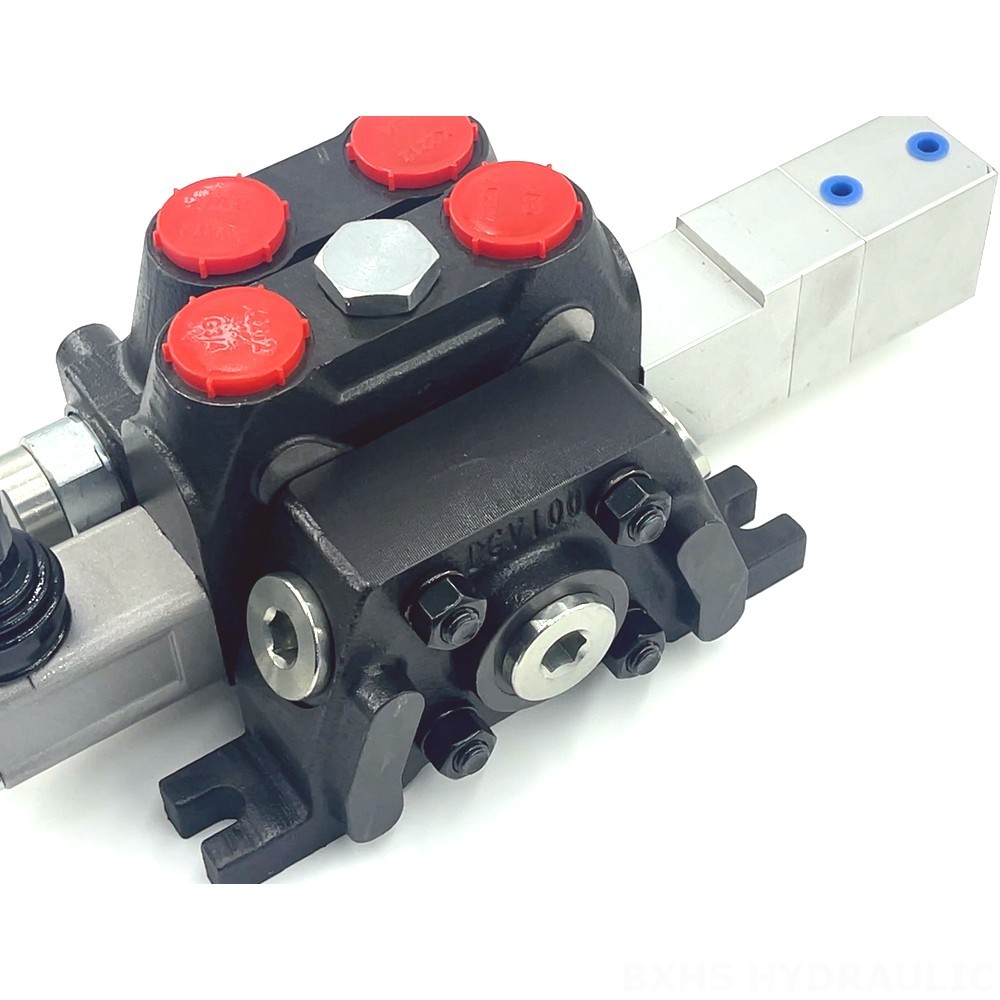

The DCV100 Pneumatic 1 Spool Sectional Directional Valve is a high-performance hydraulic valve designed for use in a wide range of industrial applications. With a rated flow of 100 L/min and a maximum pressure of 350 bar, it offers excellent flow capacity and pressure handling capabilities. Its compact and modular design makes it suitable for integration into various hydraulic systems.

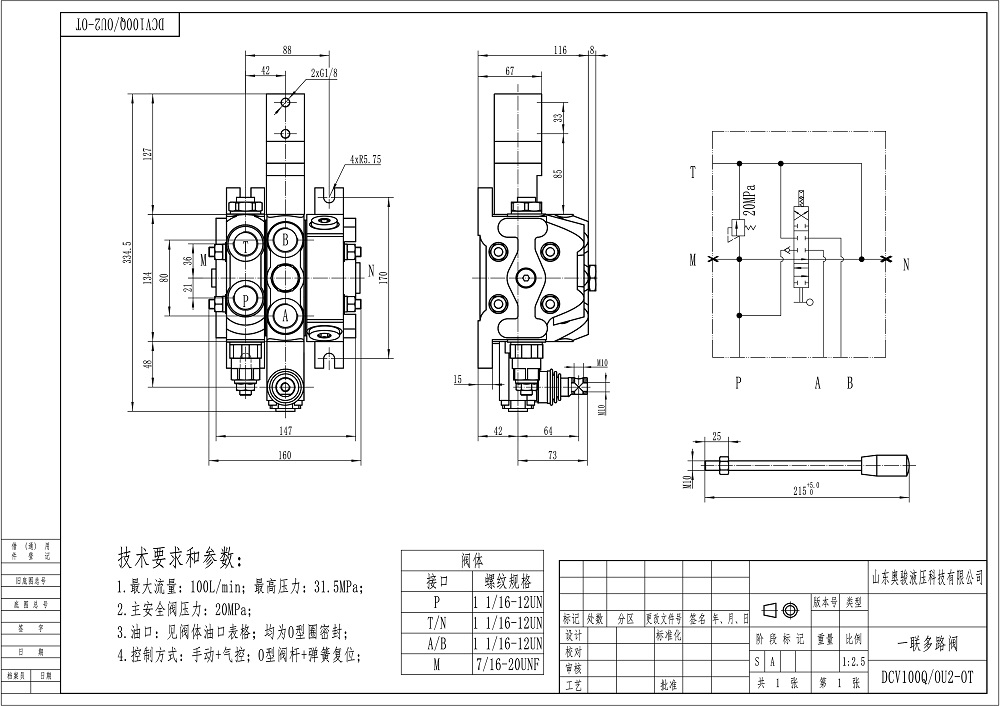

| DCV100 Series Sectional Directional Valve Parameters | |
|---|---|
| Control Method | Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Hydraulic, Cable, Joystick, Manual and Joystick |
| Spool | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool, 11 Spool, 12 Spool |
| Rated Flow | 100 L/min (26.5 US gpm) |
| Max Pressure | 350 bar (5100 psi) |
| Inlet Port | G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 3/4 NPT |
| Outlet Port | G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 3/4 NPT |
| Port Size | G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 3/4 NPT |
| Section | 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section, 8 Section, 9 Section, 10 Section, 11 Section, 12 Section |
| Structure Type | Sectional valve |
| Ambient Temperature Range | -40°C to +60°C (-40°F to +140°F) |
| Operating Viscosity Range | 15 - 75 mm²/s (15 cSt to 75 cSt) |
**Key Features and Benefits:**
- High flow capacity of 100 L/min for efficient system operation
- Maximum pressure of 350 bar for demanding applications
- Pneumatic control method for precise and responsive valve actuation
- Sectional valve design allows for easy customization and modularity
- Wide operating viscosity range of 15 - 75 mm²/s for compatibility with various hydraulic fluids
- Compact and lightweight design for space-saving installation
**Applications:**
The DCV100 Pneumatic 1 Spool Sectional Directional Valve is suitable for use in a variety of hydraulic systems, including:
- Material handling equipment
- Construction and earth-moving machinery
- Agricultural machinery
- Industrial vehicles
**Specific Applications:**
- Telehandlers
- Forklifts
- All-terrain cranes
- Stackers
- Aerial platforms
- Motor graders
- Excavators
- Skid steer loaders
- Compact wheel loaders
