1097 Views are Looking for this Product

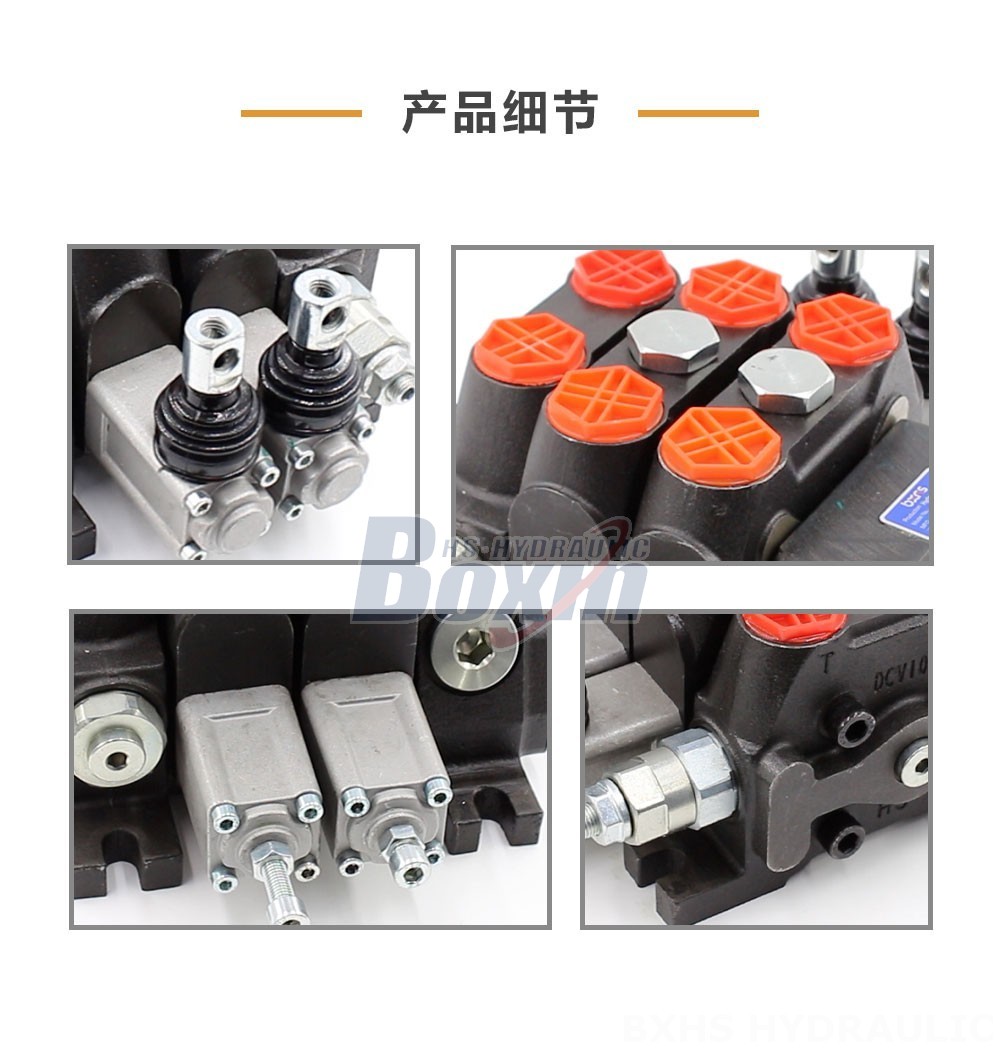

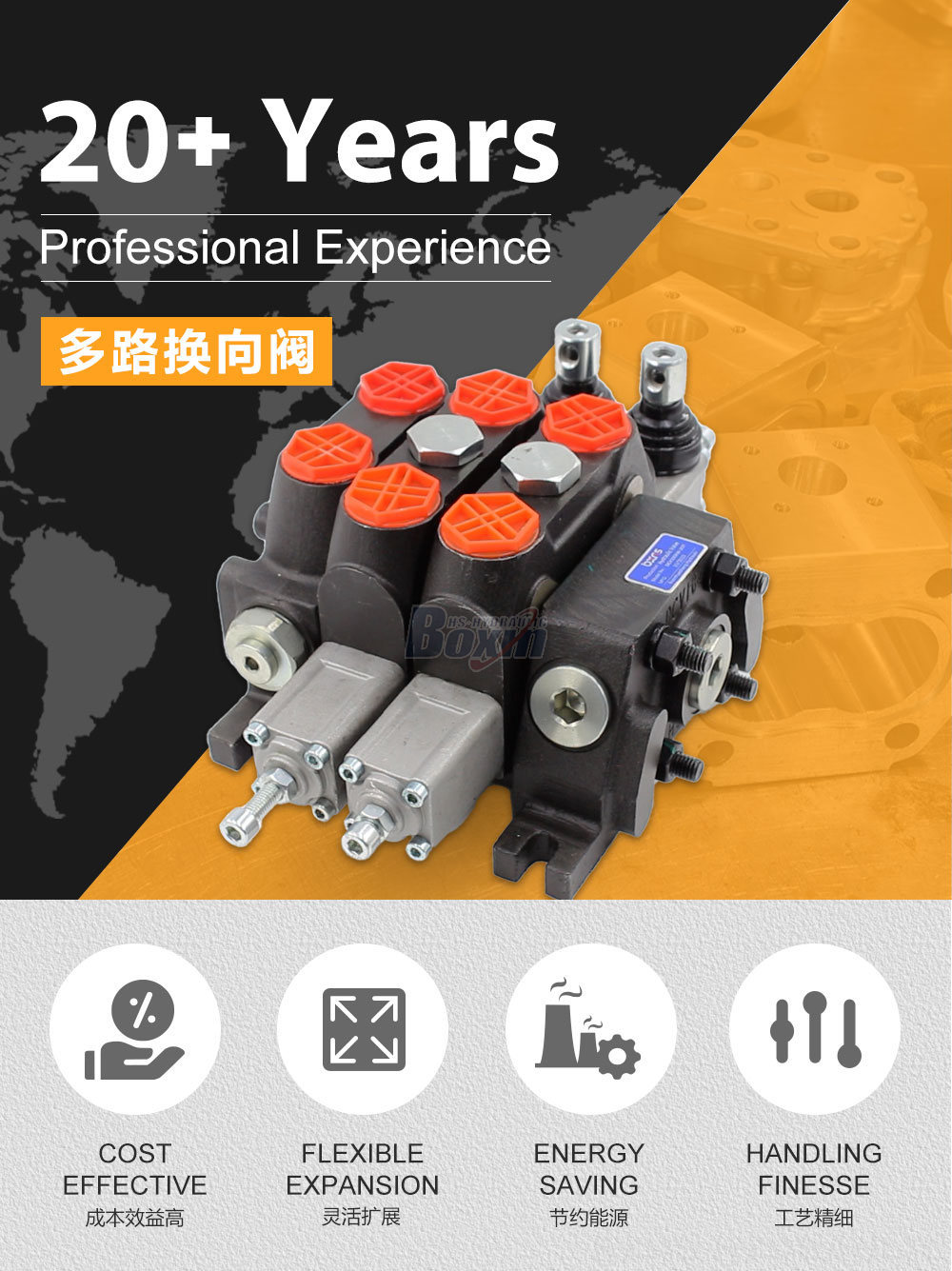

The DCV100 Manual 2 Spool Sectional Directional Valve is a high-performance hydraulic valve designed for use in a wide range of applications requiring precise flow and pressure control. With a rated flow of 100 L/min and a maximum pressure of 350 bar, this valve is capable of handling demanding hydraulic systems. Its compact design and modular construction make it easy to integrate into existing systems, while its manual control provides precise and responsive operation.
| Rated Flow | 100 L/min (26.5 US gpm) |
|---|---|
| Max Pressure | 350 bar (5100 psi) |
| Inlet Port | G3/4,M22×1.5,M27×2.0,SAE 10,SAE 12,3/4 NPT |
| Outlet Port | G3/4,M22×1.5,M27×2.0,SAE 10,SAE 12,3/4 NPT |
| Port Size | G3/4,M22×1.5,M27×2.0,SAE 10,SAE 12,3/4 NPT |
| Section | 1 Section,2 Section,3 Section,4 Section,5 Section,6 Section,7 Section,8 Section,9 Section,10 Section,11 Section,12 Section |
| Structure Type | Sectional valve |
| Control Method | Manual |
| Ambient Temperature Range | -40°C to +60°C (-40°F to +140°F) |
| Operating Viscosity Range | 15 - 75 mm²/s (15 cSt to 75 cSt) |
**Product Features:**
* Manual control for precise and responsive operation
* 2 spool design for independent control of two hydraulic circuits
* Sectional valve design for easy integration into existing systems
* Rated flow of 100 L/min for efficient hydraulic system performance
* Maximum pressure of 350 bar for demanding applications
* Operating viscosity range of 15 - 75 mm²/s for compatibility with a wide range of hydraulic fluids
* Ambient temperature range of -40°C to +60°C for use in harsh environments
**Applications:**
The DCV100 Manual 2 Spool Sectional Directional Valve is ideal for use in a variety of applications, including:
* Material handling equipment, such as forklifts and telehandlers
* Construction and earth moving equipment, such as excavators and loaders
* Agricultural machinery, such as tractors and harvesters
* Industrial vehicles, such as sweepers and waste compactors
