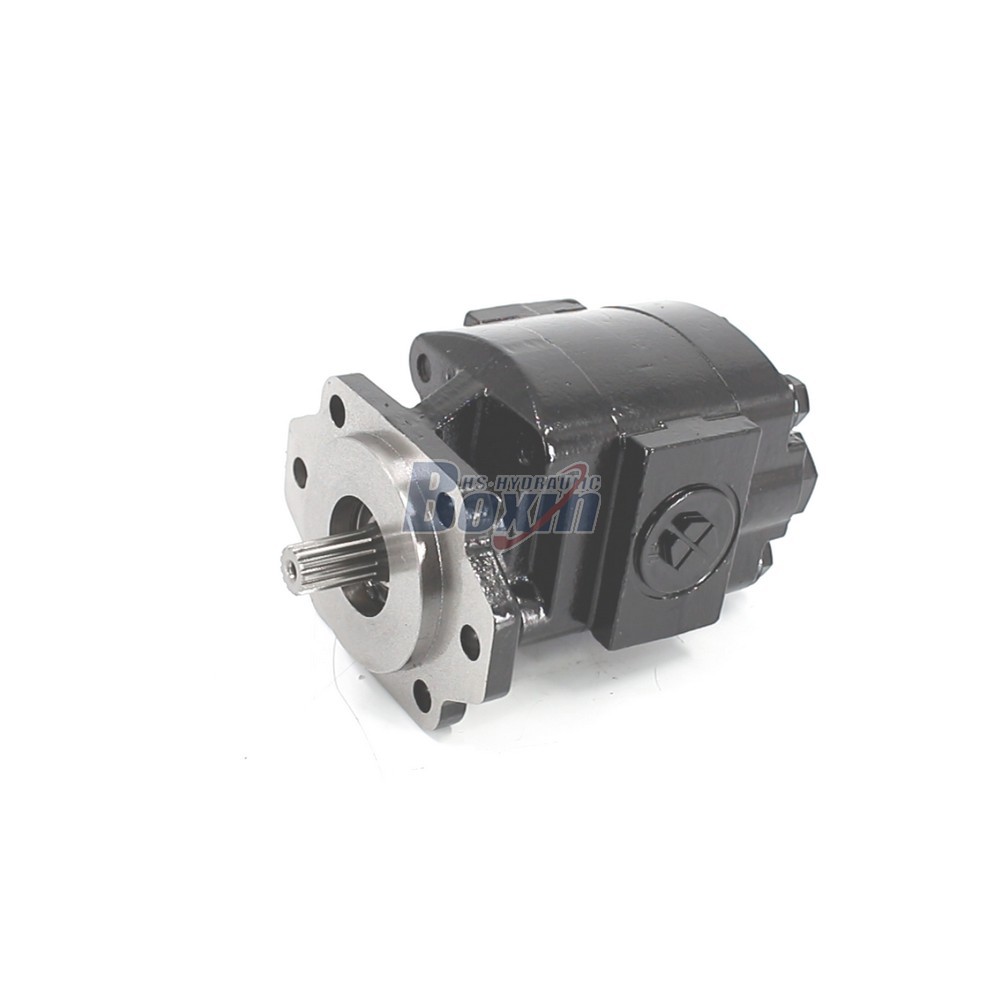

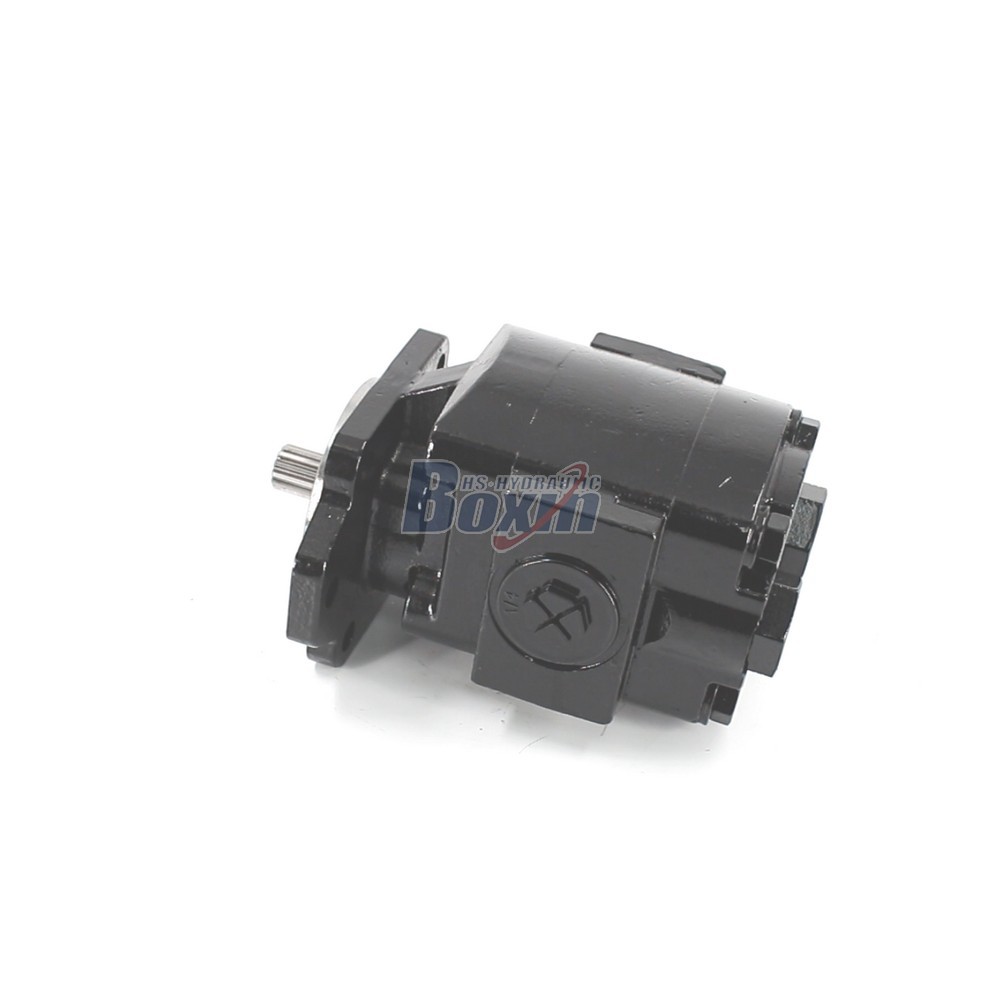

Competitive Price P21A646JEAL20-25 64.6 cc/rev Hydraulic Gear Pump by Manufacturer

Displacement:64.6 cc/rev

Rated Pressure:16 MPa (2320 psi)

Max Pressure:17 MPa (2465 psi)

Max Speed:2400 r/min

Rotation:/: (Bidirectional)

Vendor:BXHS

Product Type:Hydraulic Gear Pump

Product Series:P21 Series Hydraulic Gear Pump

Packagingsize:45*25*18

Grossweight:16.00 kg

Availability: In Stock

150 Views are Looking for this Product

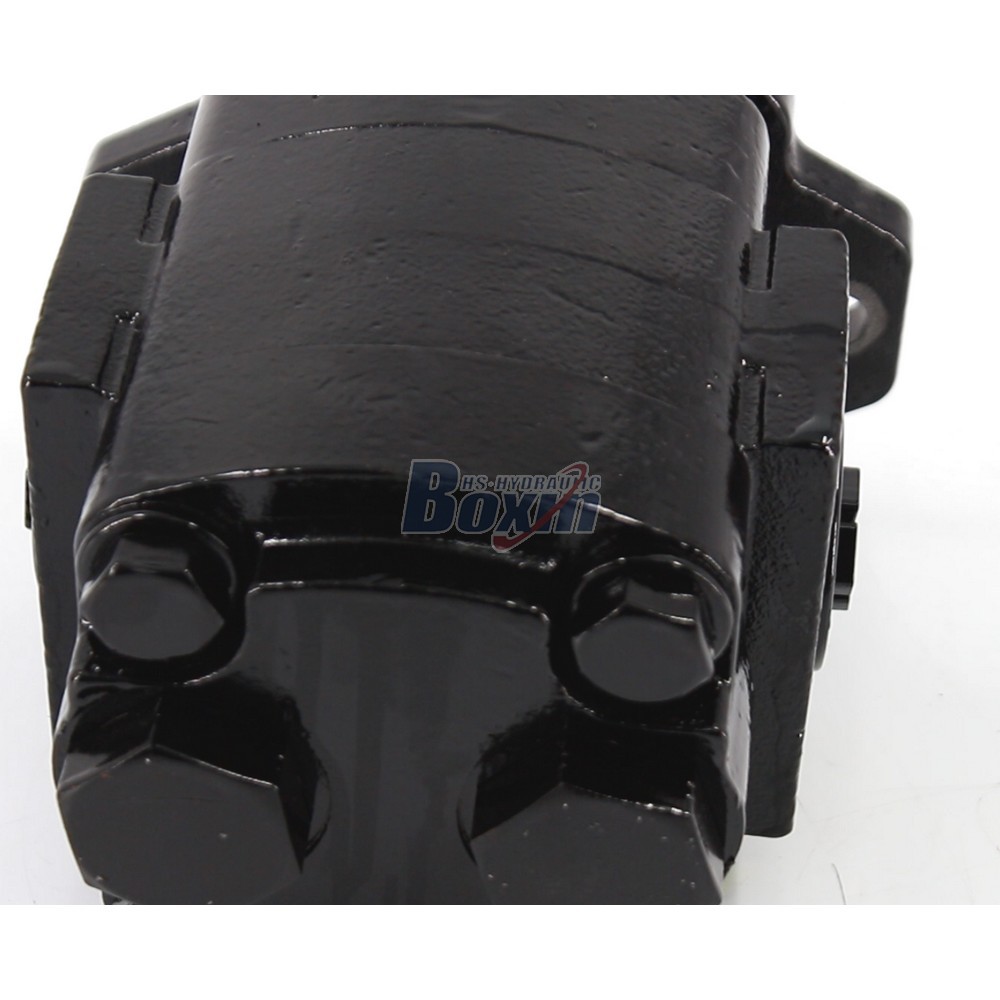

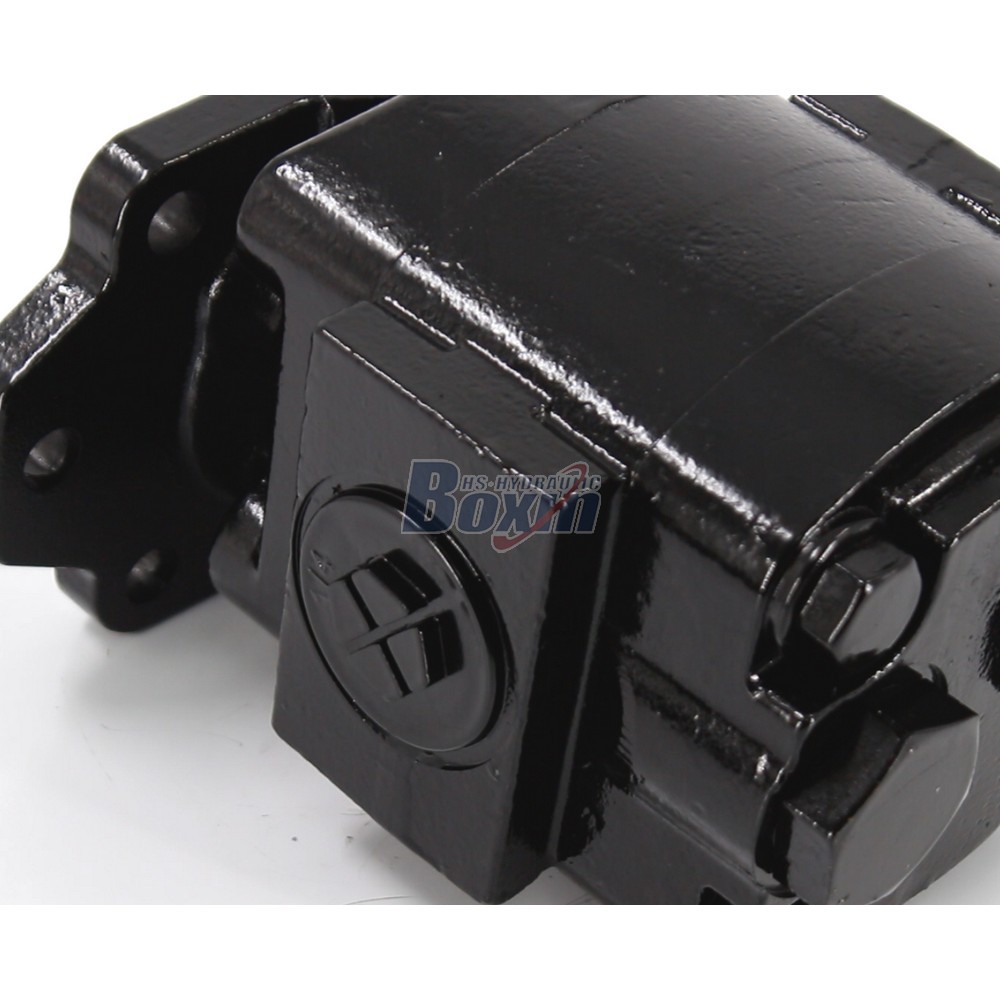

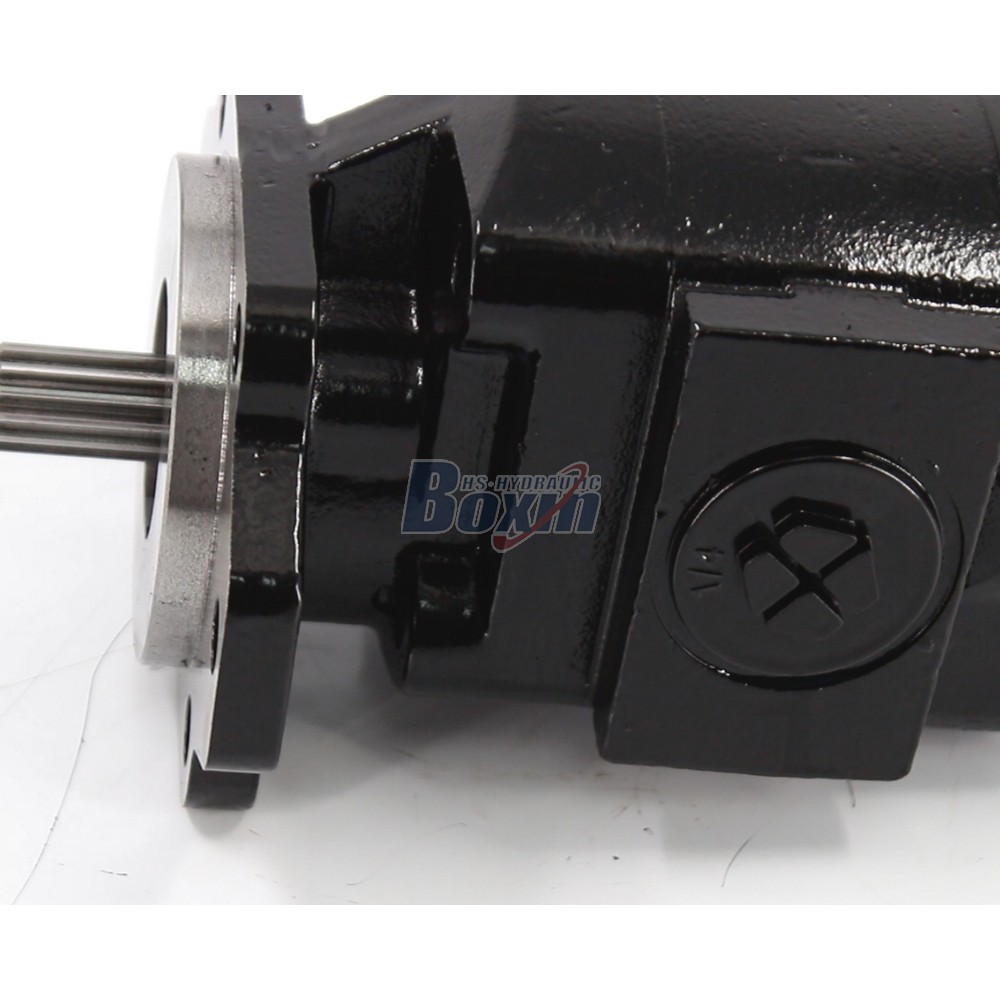

Competitive Price P21A646JEAL20-25 64.6 cc/rev Hydraulic Gear Pump by Manufacturer detailed image

Competitive Price P21A646JEAL20-25 64.6 cc/rev Hydraulic Gear Pump by Manufacturer detailed image

Competitive Price P21A646JEAL20-25 64.6 cc/rev Hydraulic Gear Pump by Manufacturer drawing image

This P21 Series Hydraulic Gear Pump features a 64.6 cc/rev displacement and 16 MPa rated pressure, engineered for wheel loaders and excavators. Backed by a 25-year Professional Manufacturer with IATF 16949 certification, it ensures reliable bidirectional performance and OEM compatibility for global B2B buyers.

P21 Series Hydraulic Gear Pump Parameters
Displacement 64.6 cc/rev
Rated Pressure 16 MPa (2320 psi)
Max Pressure 17 MPa (2465 psi)
Rated Speed 600 r/min
Max Speed 2400 r/min
Rotation /: (Bidirectional)
Material Cast Iron
Structure External Gear Pump
Flange Version A-Oval Flange, B-Square Flange, ISO-4 Mounting Holes, UNI-3 Mounting Holes, SAE Flange
Shaft Type X: Involute Spline

**1. High-Efficiency Hydraulic Gear Pump Specs**
- Delivers precise 64.6 cc/rev displacement with a rated pressure of 16 MPa (2320 psi) and max pressure of 17 MPa.
- Operates smoothly at 2000 r/min rated speed (max 2400 r/min), ensuring stable flow for demanding hydraulic systems.

**2. Versatile P21 Series Gear Pump Applications**
- Specifically designed for construction and earth-moving machinery, including wheel loaders, backhoes, and skid steer loaders.
- Bidirectional rotation capability allows flexible integration into agricultural tractors, forklifts, and telehandlers.

**3. Reliable Construction Machinery Pump Quality**
- Manufactured in a 68,000 sqm facility with 260+ CNC machines, ensuring strict adherence to IATF 16949 standards.
- Every unit undergoes 100% bench testing for pressure, flow, and sealing, backed by CE compliance and SGS detection.

**4. Factory Direct Sales & Customization**
- As a China Wholesale source with 25+ years of experience, we offer full OEM/ODM services including logo laser marking.
- Our 35+ senior engineers support custom castings and appearances, making us a preferred partner for private label brands.

**5. Global Supply Chain & Compatibility**
- Exported Worldwide with heavy-duty wooden crate packaging to prevent rust and damage during long-distance transit.
- Perfectly compatible with international mainstream brands, offering a cost-effective Factory Direct Sales alternative for distributors.
