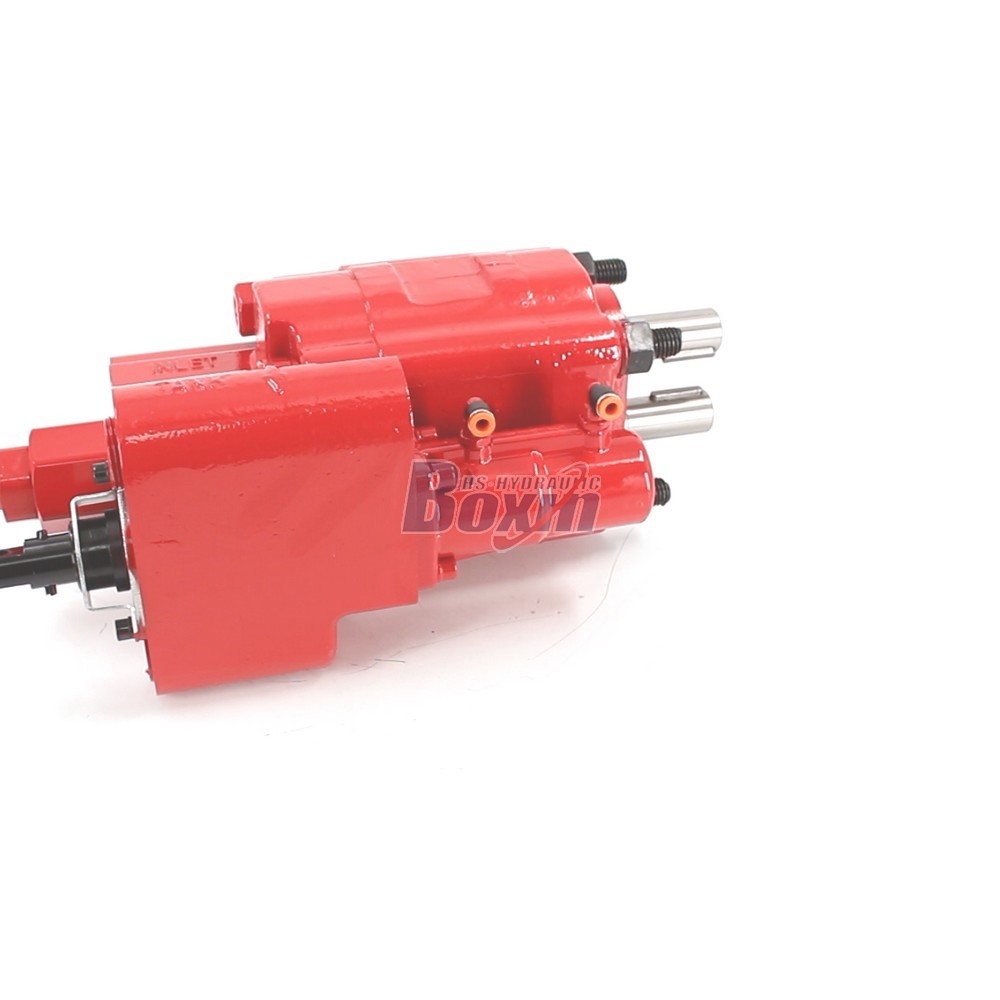

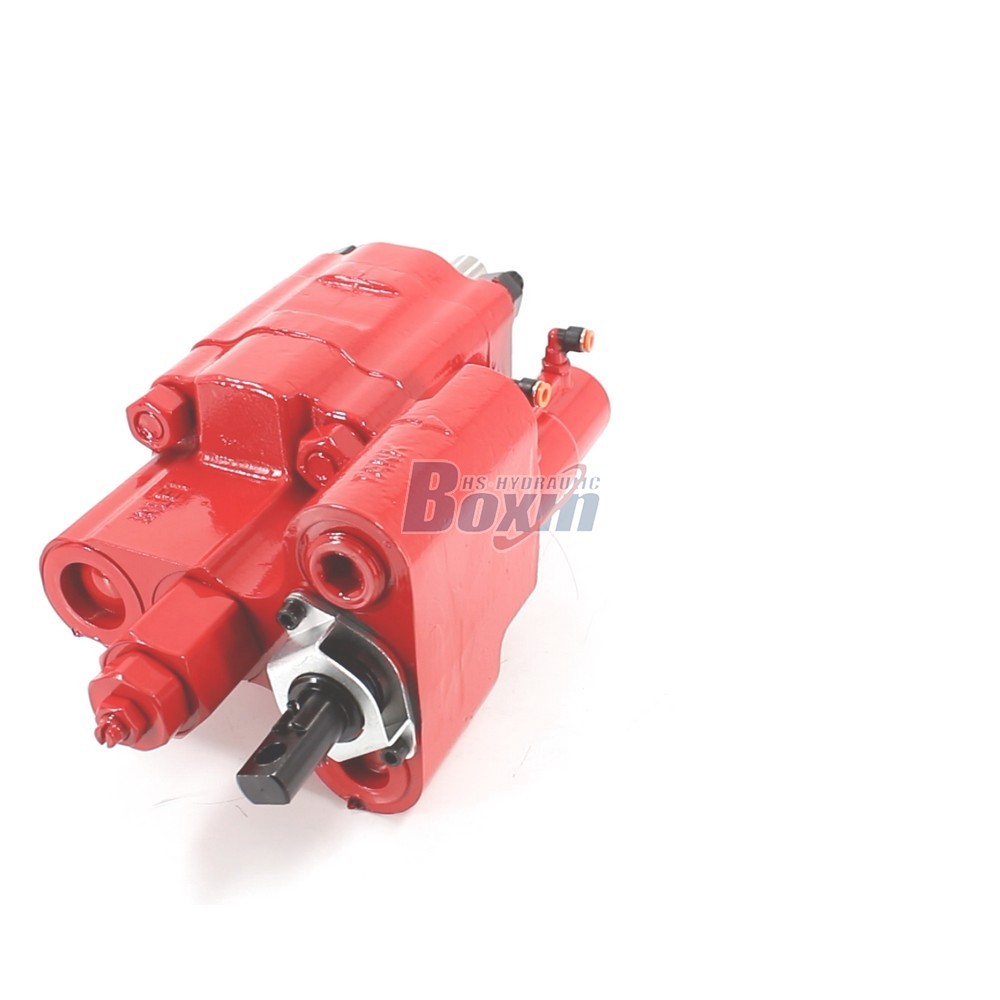

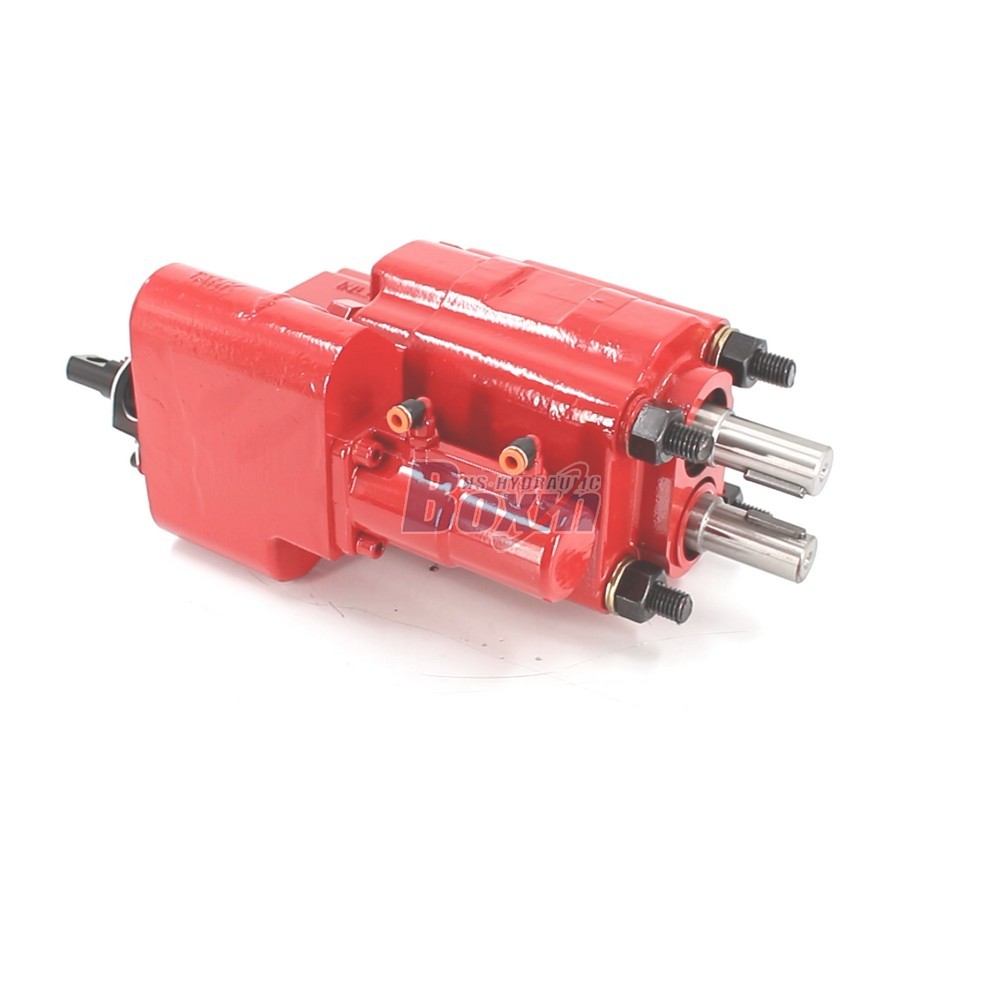

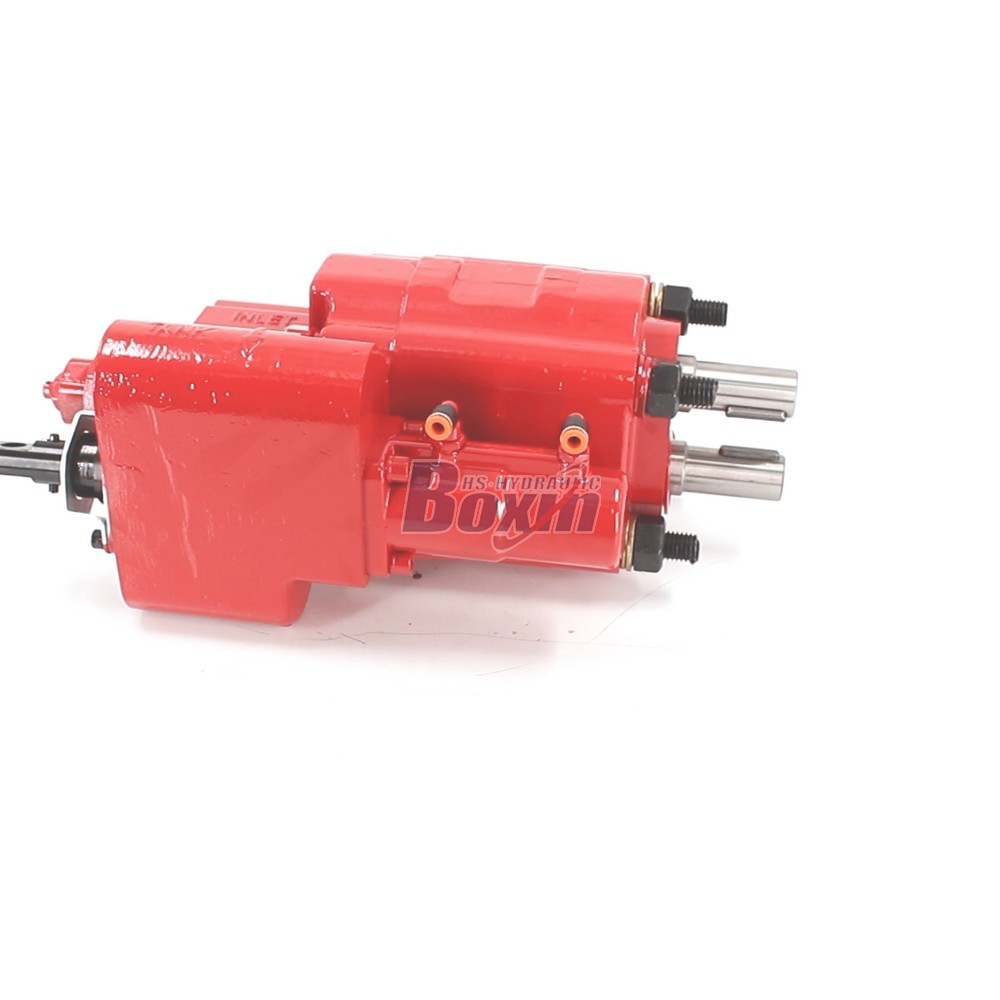

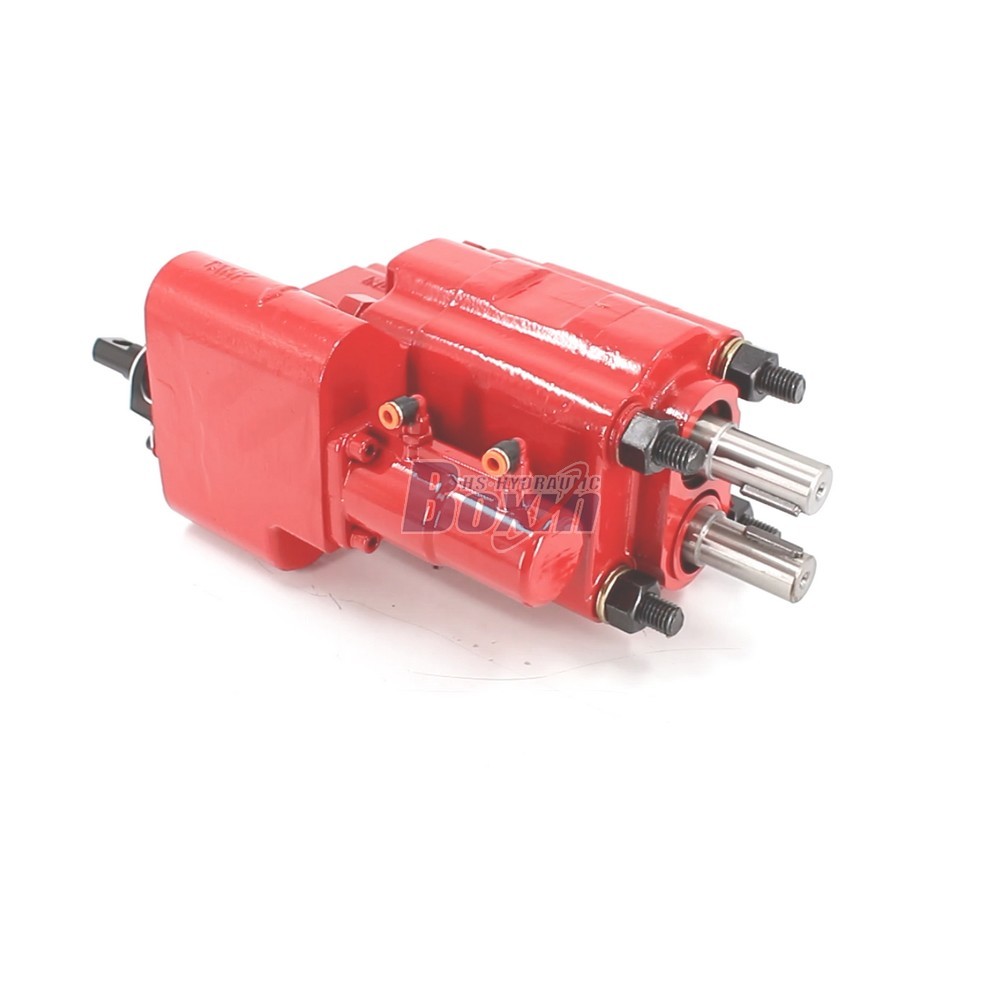

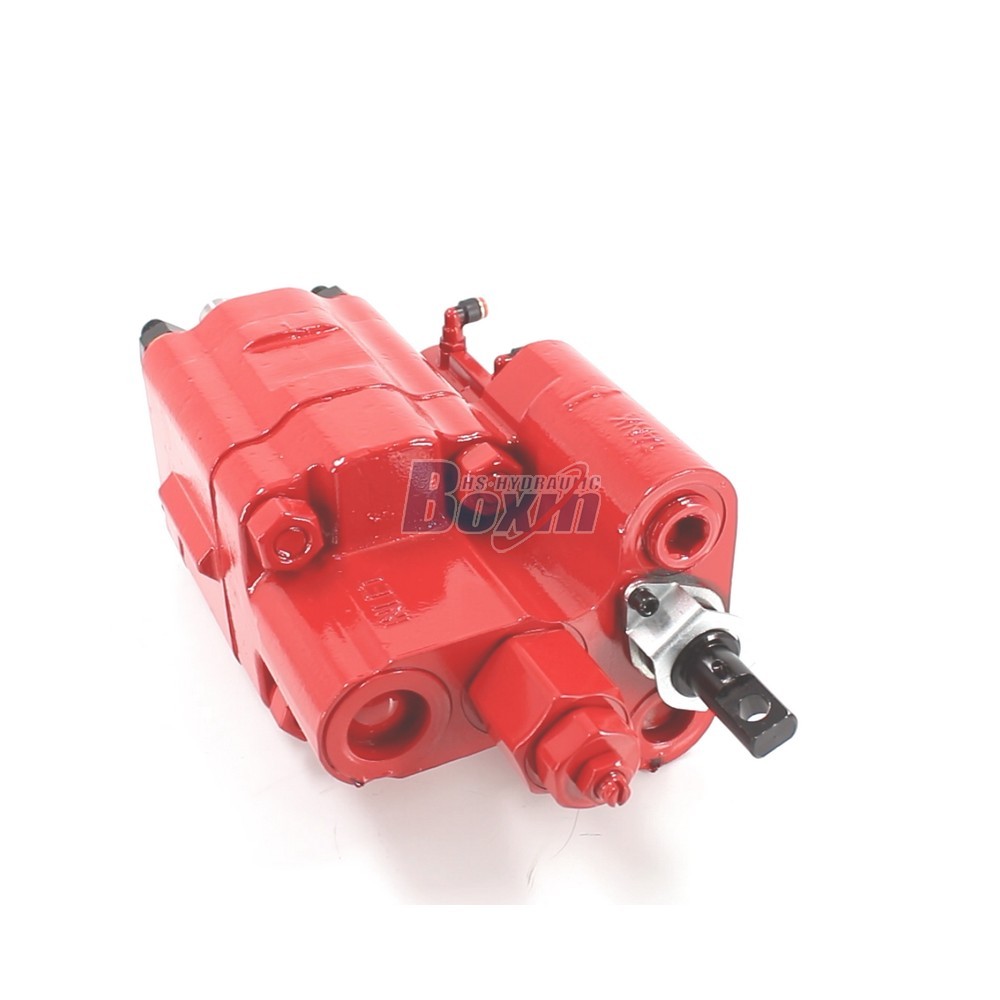

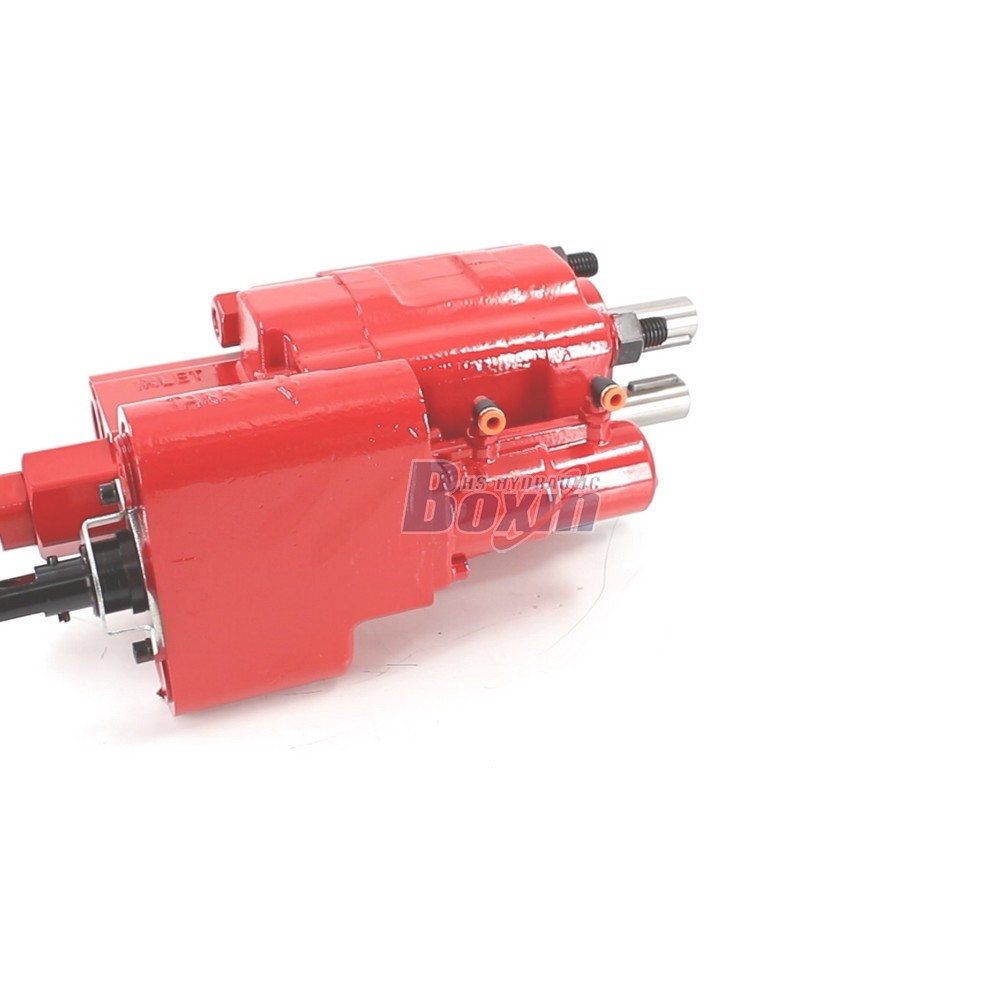

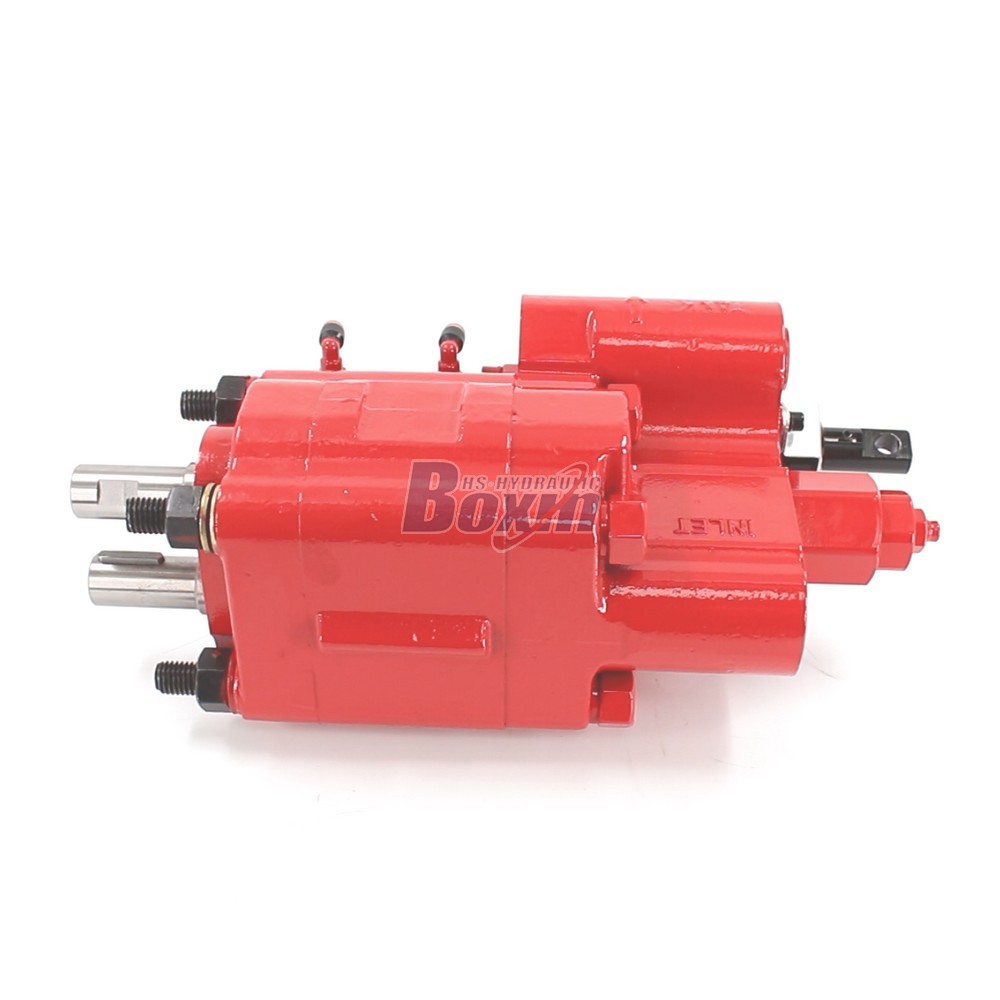

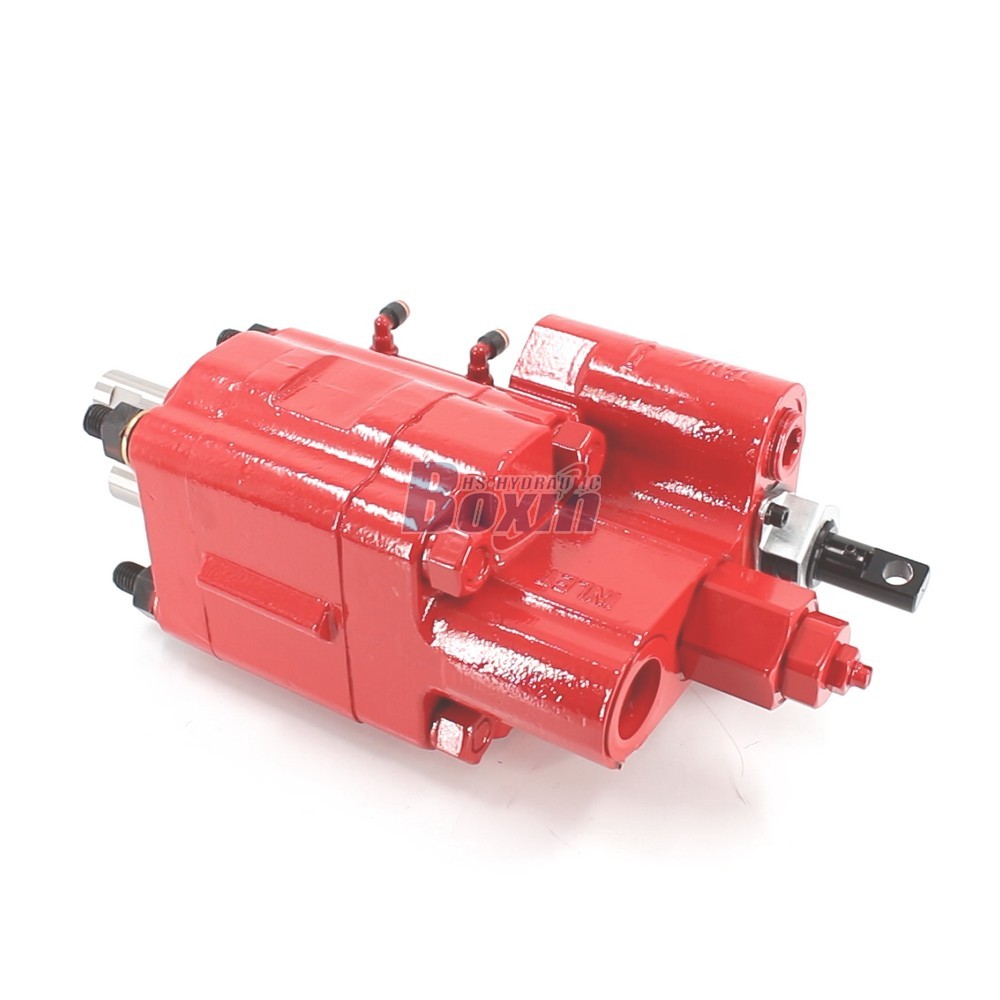

The C101-25-AS-H is a robust 100 cc/rev external hydraulic gear pump designed for global industrial applications. Featuring a durable cast iron construction and bidirectional rotation, it operates efficiently at rated pressures up to 20 MPa and speeds of 2200 r/min. With an ISO-4 flange and rectangle spline shaft, this pump is ideal for OEM, custom, and wholesale needs in heavy machinery.

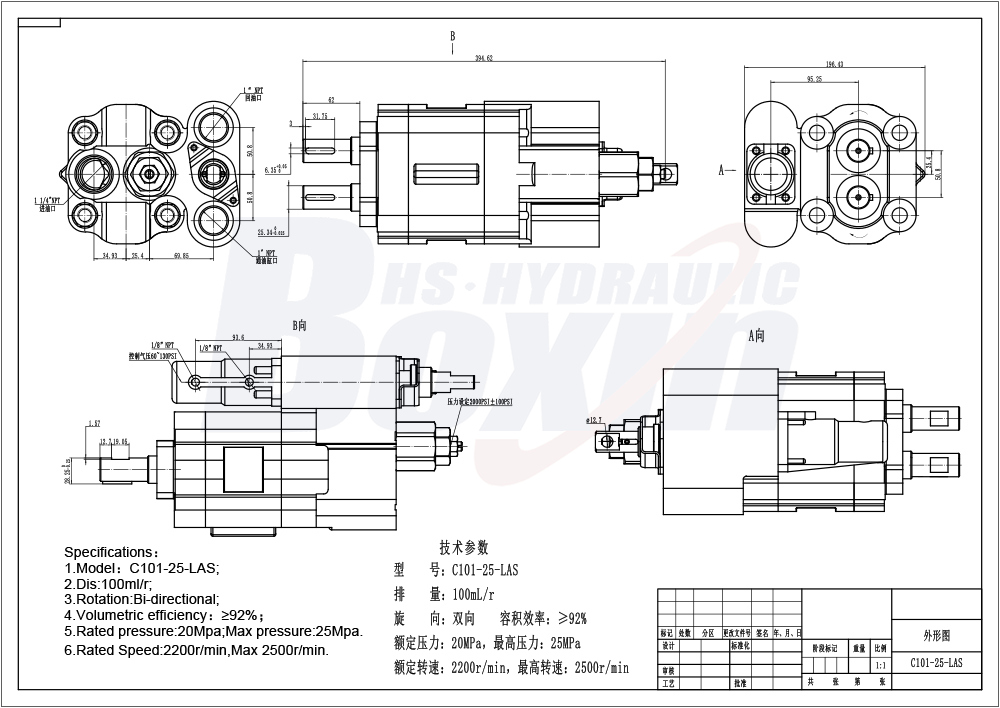

| C101 Series Hydraulic Gear Pump Parameters | |
|---|---|
| Displacement | 100 cc/rev, 90 cc/rev, 112 cc/rev |
| Rated Pressure | 17 MPa (2465 psi), 20 MPa (2900 psi) |
| Max Pressure | 25 MPa (3625 psi) |
| Rated Speed | 2200 r/min |
| Max Speed | 2500 r/min |
| Rotation | /: (Bidirectional) |
| Material | Cast Iron |
| Structure | External Gear Pump |
| Flange Version | ISO-4 Mounting Holes |
| Shaft Type | H: Rectangle Spline |
Product Features:
- High Performance: Delivers consistent flow with 100 cc/rev displacement and handles max pressures of 25 MPa (3625 psi).
- Durable Construction: Made from high-grade cast iron for longevity in harsh environments.
- Versatile Design: Bidirectional rotation allows flexible installation; ISO-4 mounting and H-type rectangle spline shaft ensure compatibility with standard systems.
- Operational Efficiency: Rated for 2200 r/min with a max speed of 2500 r/min, ensuring reliable power transmission.
Applications:
Ideal for construction equipment like wheel loaders and backhoes, agricultural machinery such as tractors and harvesters, and material handling vehicles including forklifts and telehandlers. Suitable for manufacturers seeking OEM, ODM, or bulk wholesale solutions for hydraulic systems requiring high durability and pressure resistance.
